LaVoce SAN184.02-4
4Ω
8ΩSubwoofer
| Nominal diameter | 18″ / 460 mm |
| Resonance | 38 Hz |
| Q factor | 0.46 |
| Sensitivity | 93.3 dB |
| Linear excursion | ± 8.8 mm |
| Program Power | 2400 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.3dB

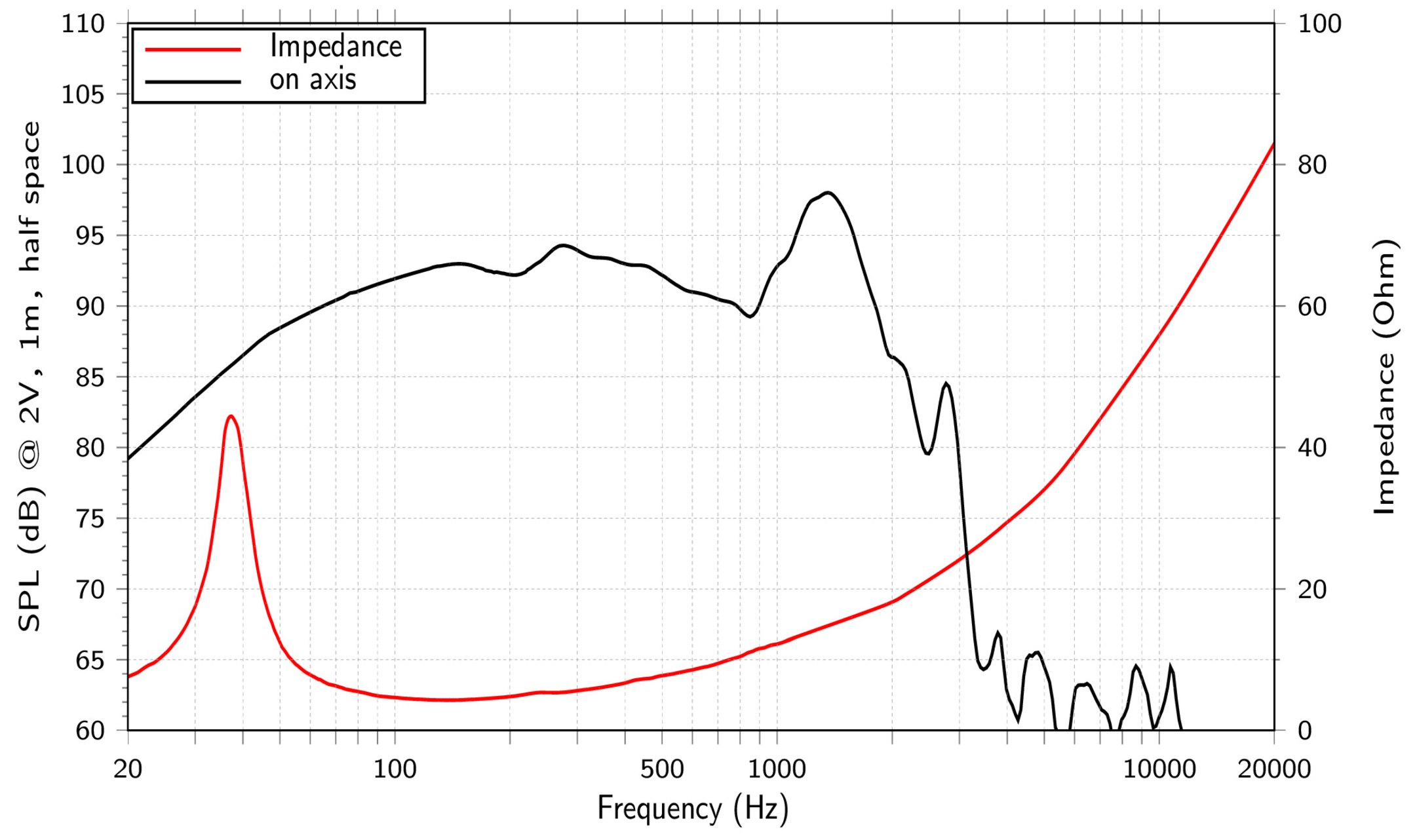

- Frequency response 40 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 5.81
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion (one way) xmax 8.8mm
- Maximum excursion before damage xlim 17.3mm
- Air volume displaced at xmax VD 1074cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.7Ω
- Inductance (1kHz) LE 1.46mH
- VC Diameter 100mm
- Winding height HVC 24.5mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 21.9N/A
- Motor constant Bl/√RE 11.4N/√W
- Air gap height HAG 14mm
- Diameter 97mm
- Height 9mm
- Material Neodymium
Diaphragm
- Effective diameter 394mm
- Effective area SD 1220cm²
- Moving mass MMS 270g
- Moving mass (without air load) MMD 240g
Suspensions
- Stiffness KMS 15.4N/mm
- Compliance CMS 65µm/N
- Equivalent volume to the compliance VAS 137L
- Mechanical resistance RMS 11.1N·s/m
- Surround material Polycotton

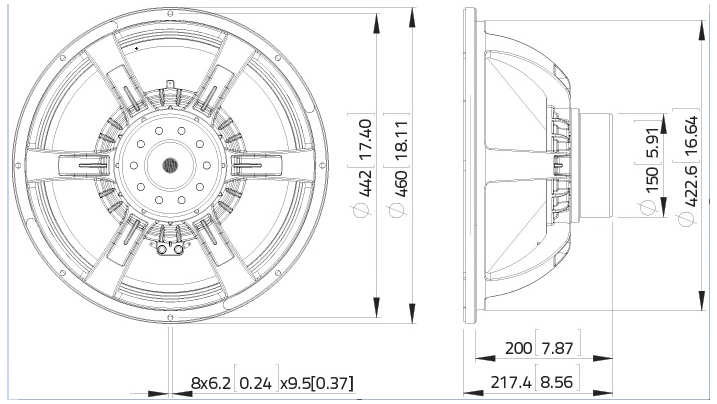

Dimensions
- Nominal diameter 18″
- 460mm
- Volume occupied by the driver 7.8L
- Net weight 9.0kg
- Frame material Aluminium
.webp)
.webp)
