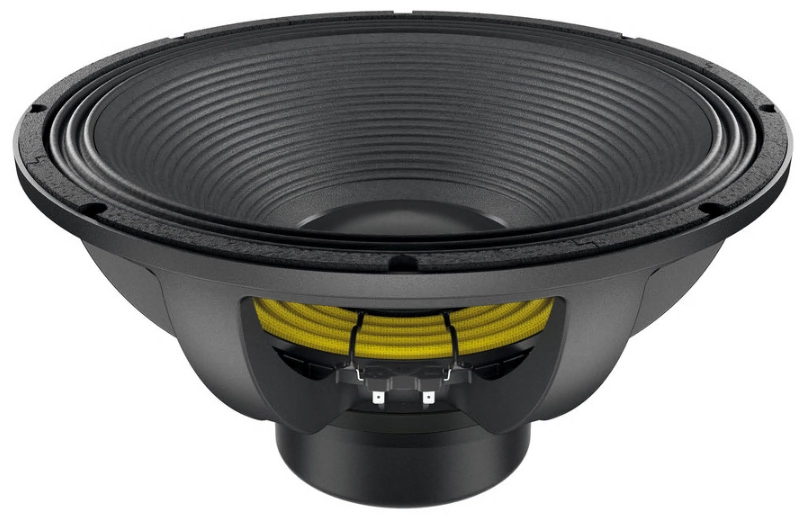

LaVoce SAN184.50iP-1
1Ω
2ΩSubwoofer
| Nominal diameter | 18″ / 460 mm |
| Resonance | 34 Hz |
| Q factor | 0.17 |
| Sensitivity | 96 dB |
| Linear excursion | ± 24.2 mm |
| Program Power | 3400 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96dB
- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 3.82
- Electrical quality factor QES 0.18
- Total quality factor QTS 0.17
Large signal parameters
- Maximum linear excursion (one way) xmax 24.2mm
- Maximum excursion before damage xlim 32mm
- Air volume displaced at xmax VD 2952cm³
- Power handling P 1700W
- Program power Pmax 3400W
Voice Coil
- Nominal impedance Z 1Ω
- DC resistance RE 0.7Ω
- Inductance (1kHz) LE 0.2mH
- VC Diameter 115mm
- Winding height HVC 54.9mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 17.3N/A
- Motor constant Bl/√RE 20.6N/√W
- Air gap height HAG 13mm
- Diameter 113mm
- Height 15mm
- Material Neodymium
Diaphragm
- Effective diameter 394mm
- Effective area SD 1220cm²
- Moving mass MMS 352g
- Moving mass (without air load) MMD 322g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 16.1N/mm
- Compliance CMS 62µm/N
- Equivalent volume to the compliance VAS 131L
- Mechanical resistance RMS 19.7N·s/m
- Surround material Polycotton

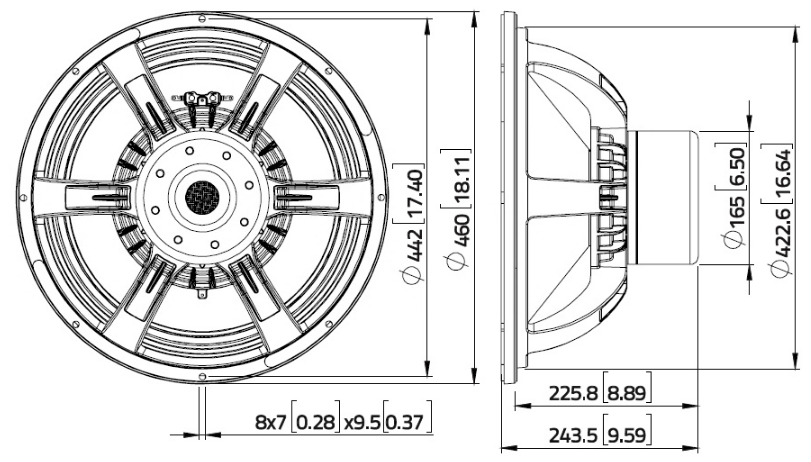

Dimensions
- Nominal diameter 18″
- 460mm
- Volume occupied by the driver 13.5L
- Frame material Aluminium
.webp)
.webp)
