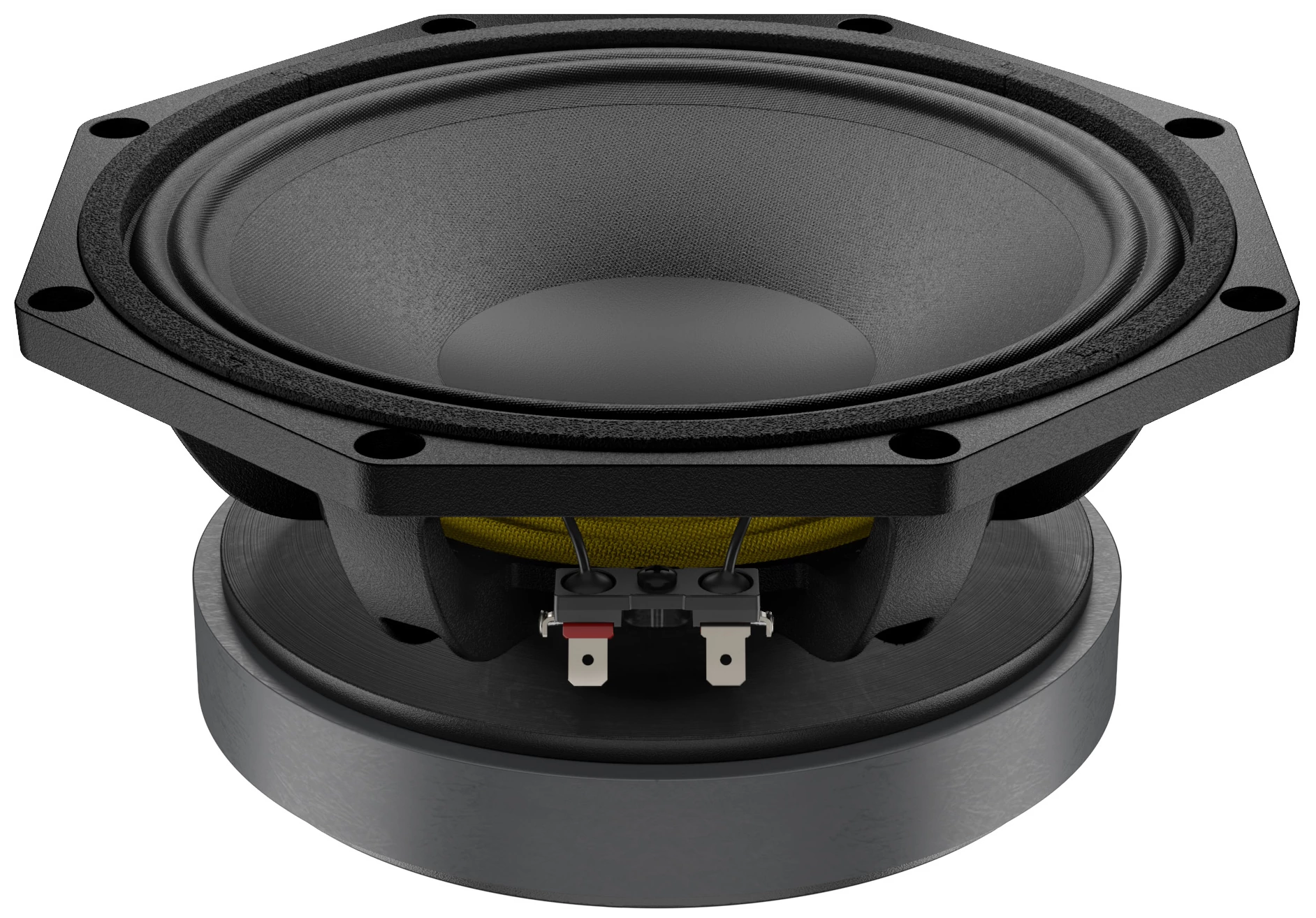

LaVoce WAF082.01
8Ω
Woofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 76 Hz |
| Q factor | 0.21 |
| Sensitivity | 95.5 dB |
| Linear excursion | ± 5.8 mm |
| Program Power | 500 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.5dB

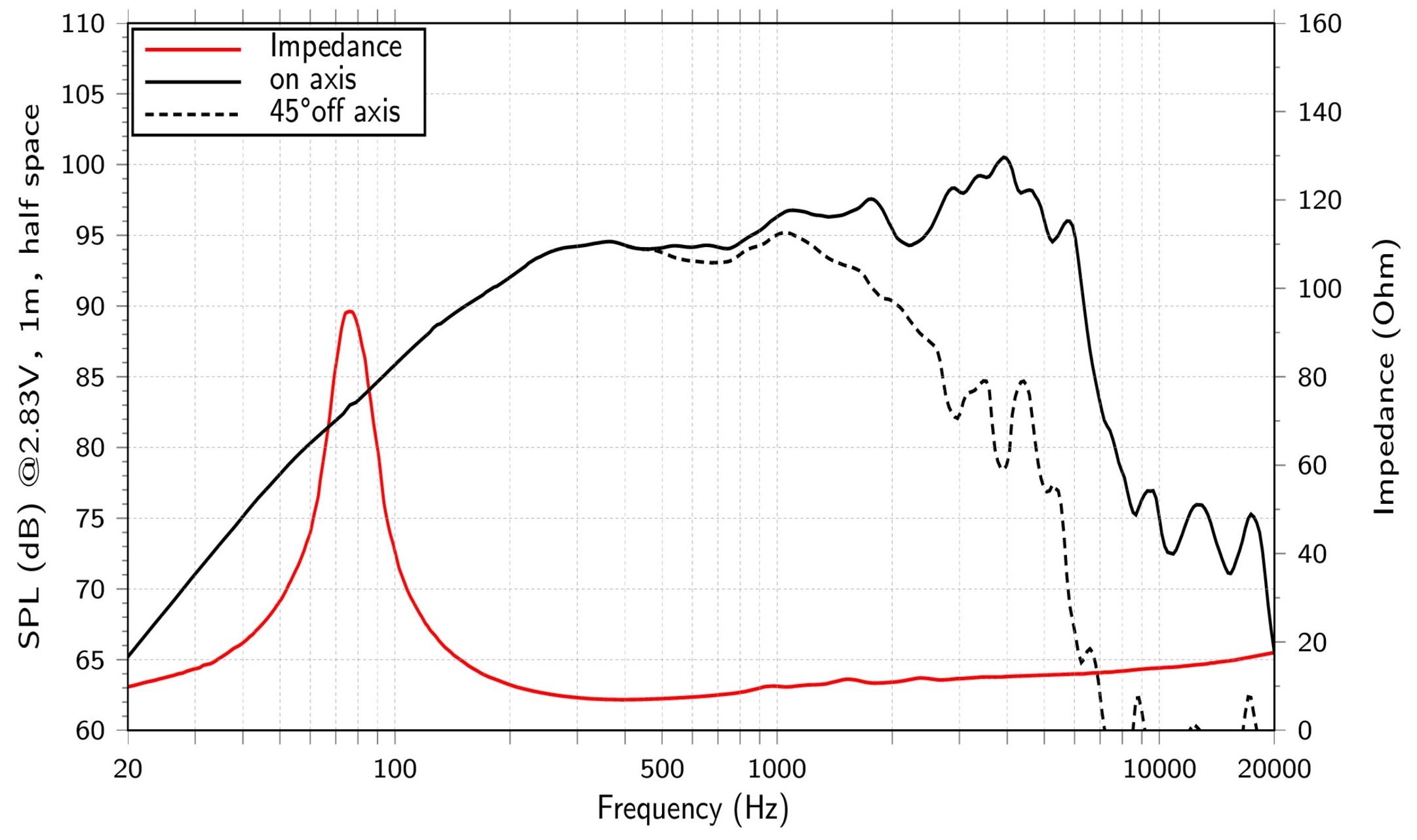

- Frequency response 70 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 76Hz
- Mechanical quality factor QMS 3.84
- Electrical quality factor QES 0.22
- Total quality factor QTS 0.21
Large signal parameters
- Maximum linear excursion (one way) xmax 5.8mm
- Maximum excursion before damage xlim 11.3mm
- Air volume displaced at xmax VD 128cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.1Ω
- Inductance (1kHz) LE 0.11mH
- VC Diameter 51mm
- Winding height HVC 16.6mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 18N/A
- Motor constant Bl/√RE 7.95N/√W
- Air gap height HAG 10mm
- Diameter 165mm
- Height 22mm
- Material Ferrite
Diaphragm
- Effective diameter 167mm
- Effective area SD 220cm²
- Moving mass MMS 29.3g
- Moving mass (without air load) MMD 27g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 6.71N/mm
- Compliance CMS 149µm/N
- Equivalent volume to the compliance VAS 10.2L
- Mechanical resistance RMS 3.64N·s/m
- Surround material Polycotton

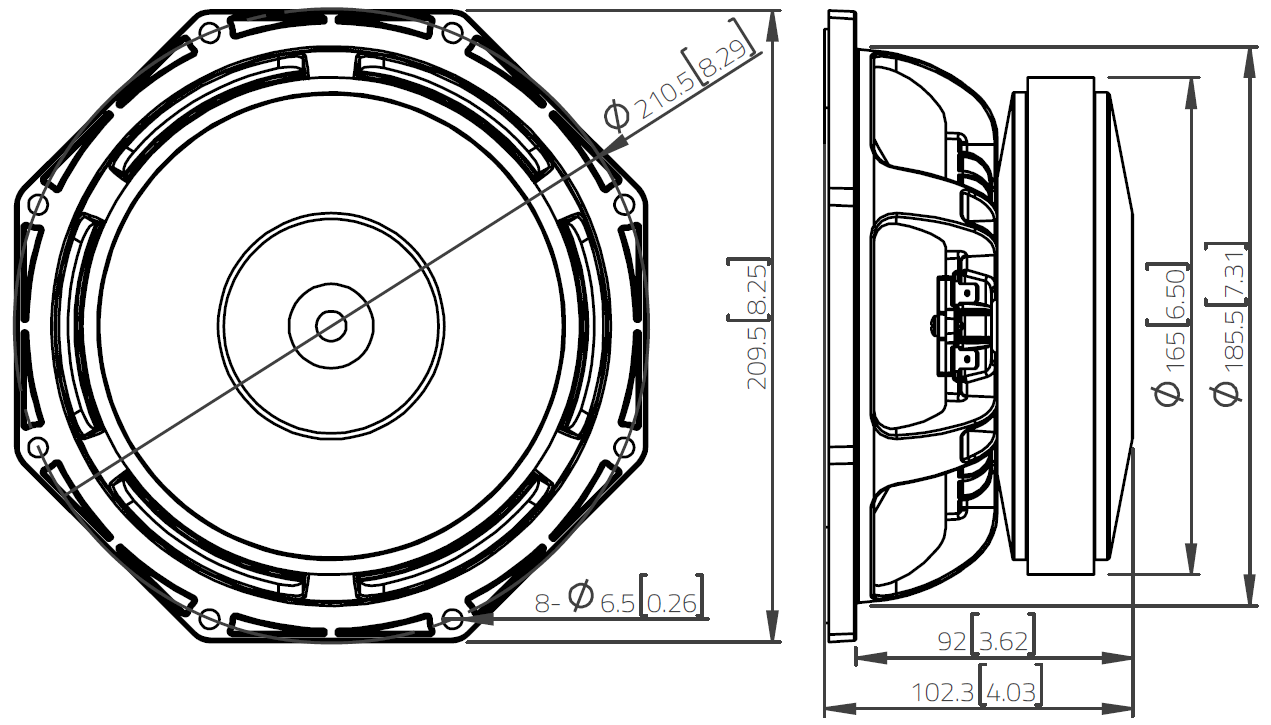

Dimensions
- Nominal diameter 8″
- 200mm
- Volume occupied by the driver 1L
- Net weight 5.3kg
- Frame material Aluminium
.webp)
.webp)
