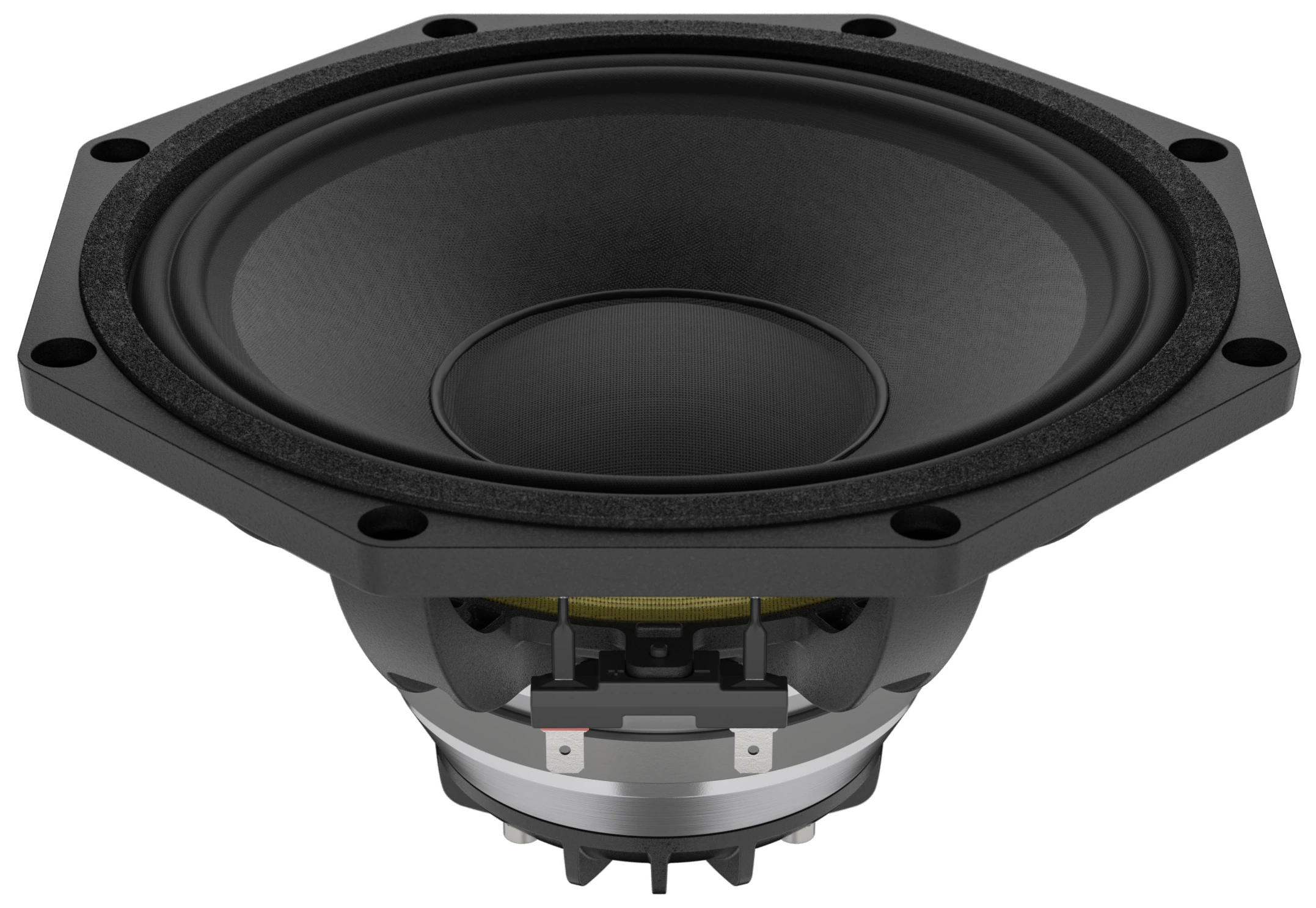

LaVoce CAN082.00K
8Ω
Coaxial
| Nominal diameter | 8″ / 200 mm |
| Resonance | 72 Hz |
| Q factor | 0.27 |
| Sensitivity | 94.1 dB |
| Linear excursion | ± 6.7 mm |
| Program Power | 500 W |

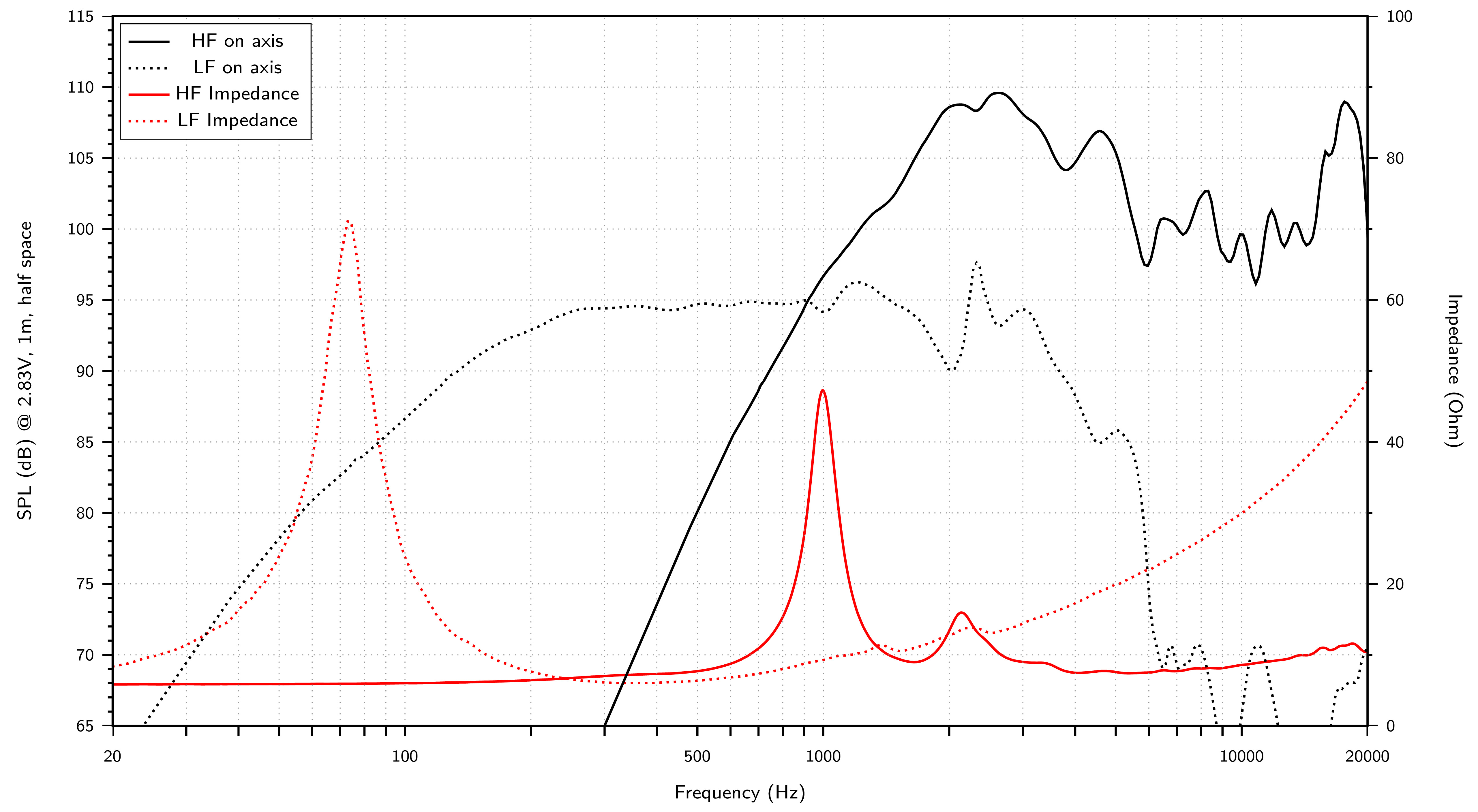

.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.1dB
- Frequency response 70 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 72Hz
- Mechanical quality factor QMS 3.51
- Electrical quality factor QES 0.30
- Total quality factor QTS 0.27
Large signal parameters
- Maximum linear excursion (one way) xmax 6.7mm
- Maximum excursion before damage xlim 10.7mm
- Air volume displaced at xmax VD 147cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.1Ω
- Inductance (1kHz) LE 0.64mH
- VC Diameter 51mm
- Winding height HVC 17.4mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Flux density B 1.1T
- Force factor Bl 13.2N/A
- Motor constant Bl/√RE 5.82N/√W
- Air gap height HAG 8mm
- Diameter 102mm
- Height 9mm
- Material Neodymium
Diaphragm
- Effective diameter 167mm
- Effective area SD 220cm²
- Moving mass MMS 22.2g
- Moving mass (without air load) MMD 19.9g
- Material Water proof treated paper
Suspensions
- Stiffness KMS 4.55N/mm
- Compliance CMS 220µm/N
- Equivalent volume to the compliance VAS 15.1L
- Mechanical resistance RMS 2.86N·s/m
- Surround material Polycotton

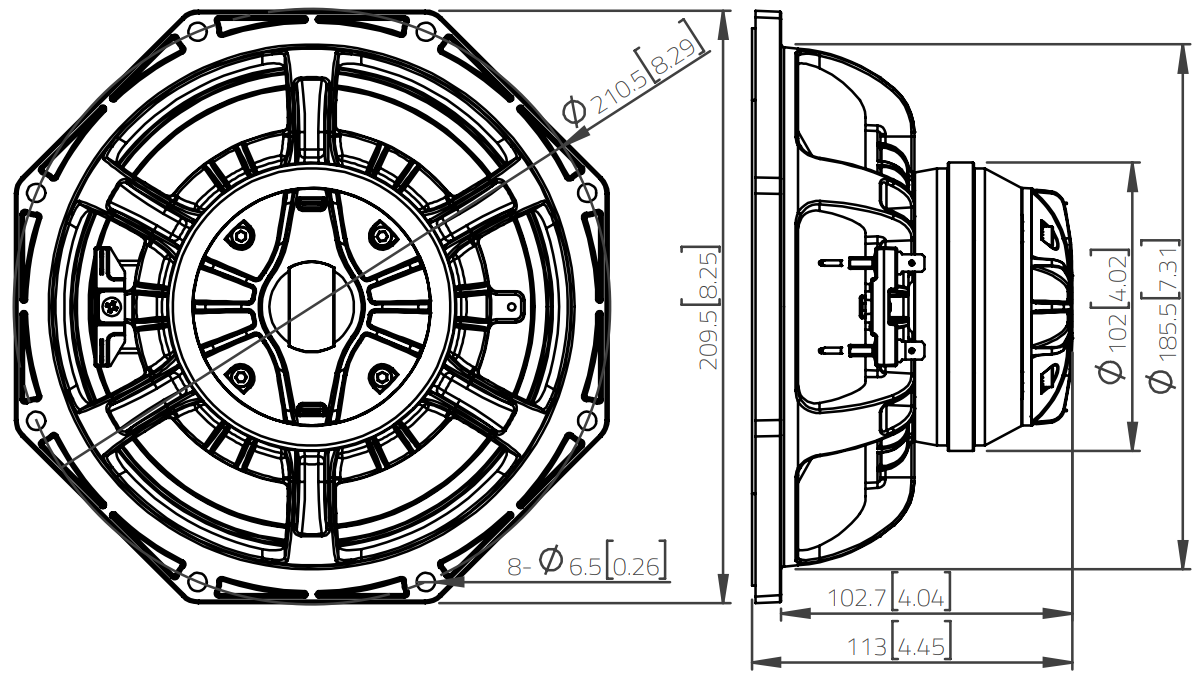

Dimensions
- Nominal diameter 8″
- 200mm
- Volume occupied by the driver 0.75L
- Net weight 2.3kg
- Frame material Aluminium
.webp)
.webp)
