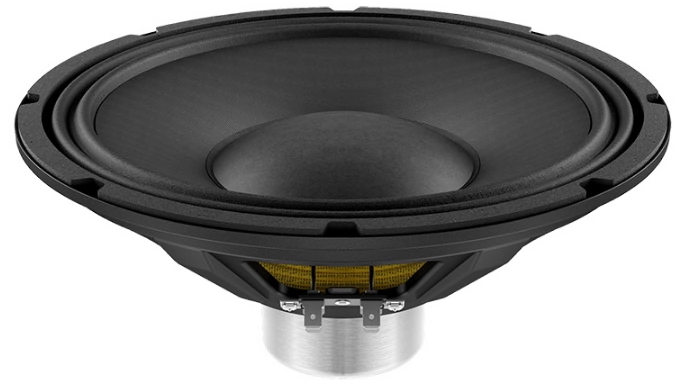

LaVoce NBASS10-20-32

8Ω16Ω
32Ω

Bass Guitar Speaker

Nominal diameter10″ / 250 mm
Resonance57 Hz
Q factor0.61
Sensitivity92.5 dB
Linear excursion± 6.4 mm
Program Power300 W
LaVoce NBASS10-20-32 Bass Guitar Speaker
Impedance
Excursion
Velocity
SPL
Phase
Group delay
Step response
Tone Burst
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 92.5dB
  • Frequency response 50 - 3000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 57Hz
  • Mechanical quality factor QMS 5.40
  • Electrical quality factor QES 0.69
  • Total quality factor QTS 0.61

Large signal parameters

  • Maximum linear excursion (one way) xmax 6.4mm
  • Maximum excursion before damage xlim 10.5mm
  • Air volume displaced at xmax VD 226cm³
  • Power handling P 150W
  • Program power Pmax 300W

Voice Coil

  • Nominal impedance Z 32Ω
  • DC resistance RE 25.9Ω
  • Inductance (1kHz) LE 1.95mH
  • VC Diameter 50mm
  • Winding height HVC 16.8mm
  • Winding material Copper
  • Former material Glass fiber

Magnet

  • Force factor Bl 20.5N/A
  • Motor constant Bl/√RE 4.02N/√W
  • Air gap height HAG 8.2mm
  • Diameter 51mm
  • Height 9mm
  • Material Neodymium

Diaphragm

  • Effective diameter 212mm
  • Effective area SD 353cm²
  • Moving mass MMS 30.9g
  • Moving mass (without air load) MMD 26.3g
  • Material Water proof treated paper

Suspensions

  • Stiffness KMS 3.97N/mm
  • Compliance CMS 252µm/N
  • Equivalent volume to the compliance VAS 44.4L
  • Mechanical resistance RMS 2.05N·s/m
  • Surround material Polycotton

Dimensions

  • Nominal diameter 10″
  • 250mm
  • Volume occupied by the driver 0.9L
  • Frame material Steel

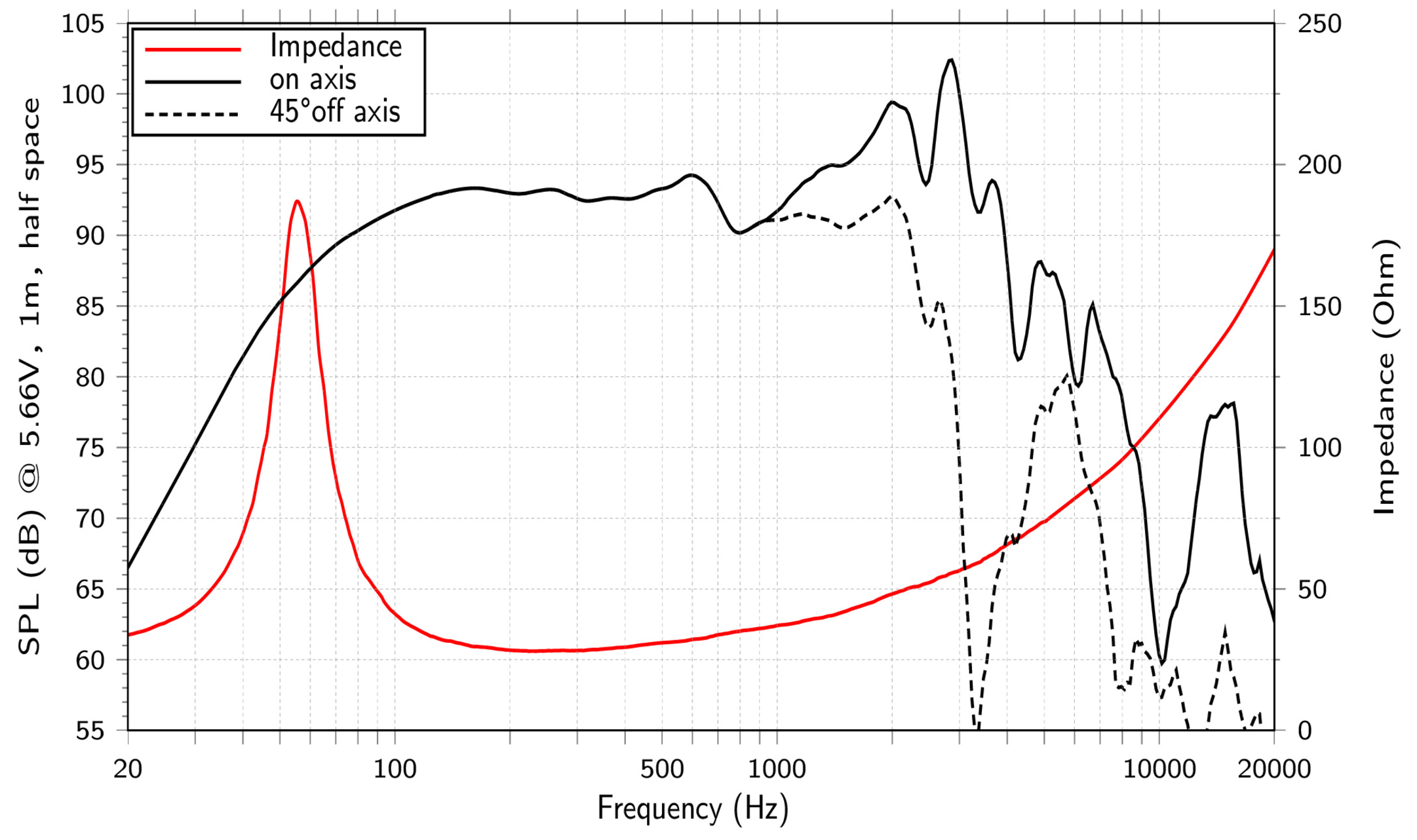

SPL & Impedance
LaVoce NBASS10-20-32 SPL & Impedance

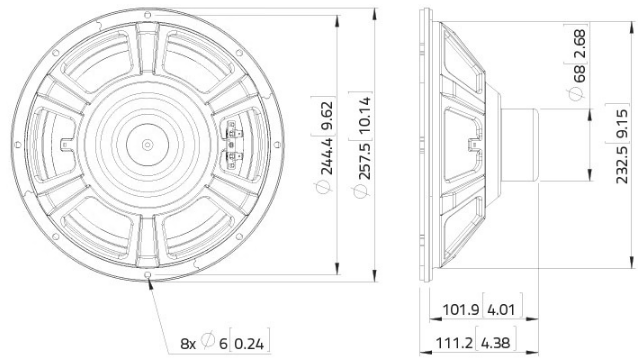

LaVoce NBASS10-20-32 Dimensions
PDF fileDatasheet

Export this driver to a simulation software:

Closed Box Simulator·Speakerbench logoSpeakerbenchWinISD logoWinISDBasta! logoBasta!Hornresp logoHornrespQSpeakers logoQSpeakersSpeakerSim logoSpeakerSimMfbLabs logoMfbLabsAmplion logoAmplion

Similar speaker drivers to LaVoce NBASS10-20-32

P.Audio IMF HP10W V3 Low frequency

P.Audio IMF HP10W V3

8 Ω
10″ Low frequency
fS58 Hz
SD363 cm²
50 - 4000 Hz
QTS0.74
xmax3 mm
SPL1W91.3 dB
Bl/√RE3.79
Pmax300 W

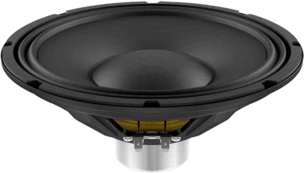

LaVoce NBASS10-20-16 Woofer
