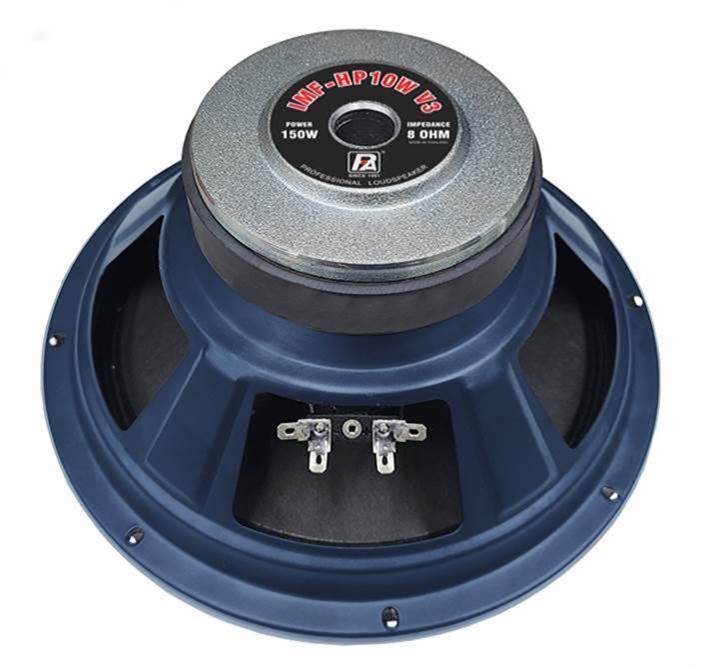

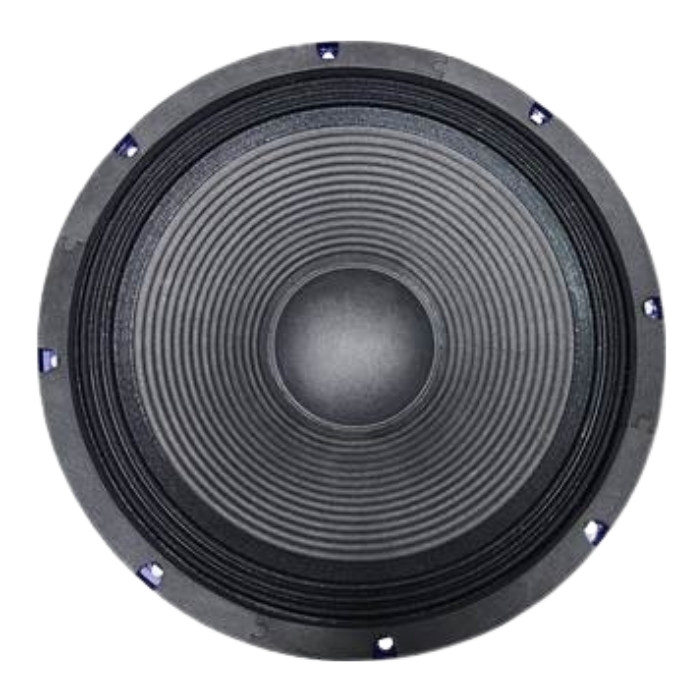

P.Audio IMF HP10W V3
8Ω
Low frequency
| Nominal diameter | 10″ / 254 mm |
| Resonance | 58 Hz |
| Q factor | 0.74 |
| Sensitivity | 91.3 dB |
| Linear excursion | ± 3 mm |
| Program Power | 300 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91.3dB

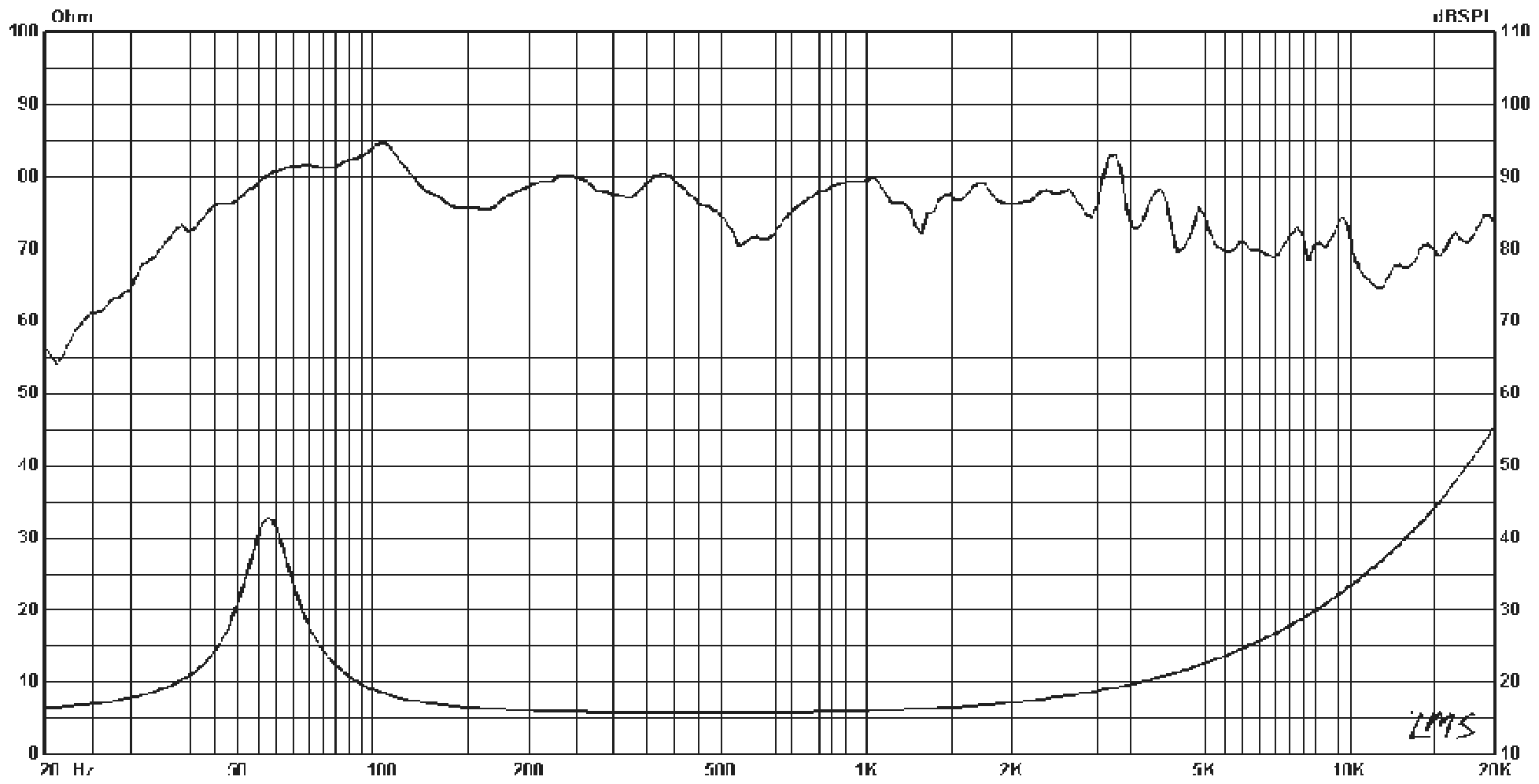

- Frequency response 50 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 58Hz
- Mechanical quality factor QMS 4.27
- Electrical quality factor QES 0.82
- Total quality factor QTS 0.74
Large signal parameters
- Maximum linear excursion xmax 3mm
- Air volume displaced at xmax VD 109cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.7Ω
- Inductance (1kHz) LE 0.36mH
- VC Diameter 50mm
- Winding height HVC 14mm
- Winding material SV-W
- Former material Aluminum
Magnet
- Flux density B 0.9T
- Force factor Bl 9.06N/A
- Motor constant Bl/√RE 3.79N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 213mm
- Effective area SD 363cm²
- Moving mass MMS 35.4g
- Moving mass (without air load) MMD 30.5g
- Material Paper
Suspensions
- Stiffness KMS 4.31N/mm
- Compliance CMS 232µm/N
- Equivalent volume to the compliance VAS 39.8L
- Mechanical resistance RMS 3.02N·s/m
- Surround material Cloth
- Spider material Single

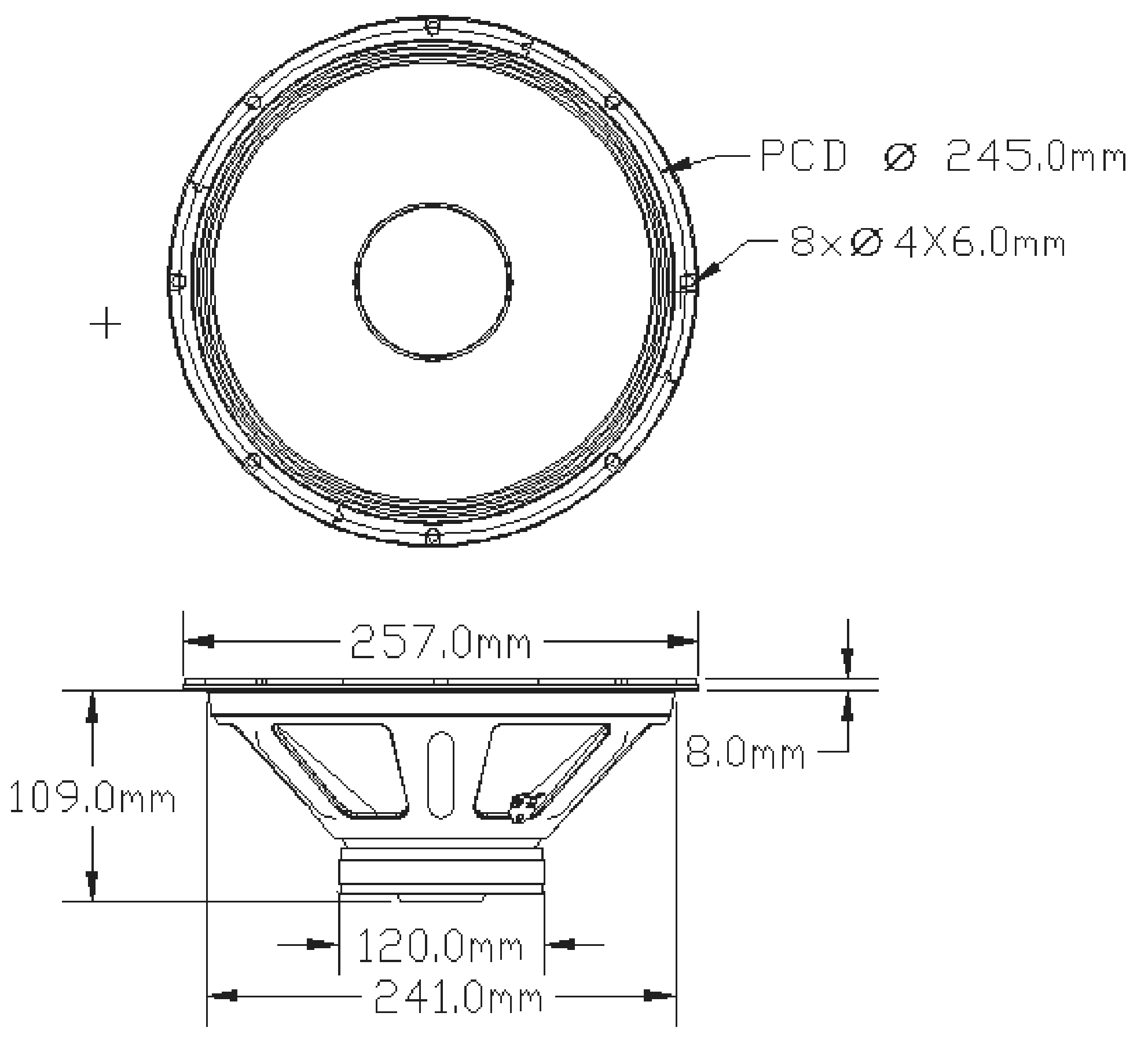

Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 257mm
- Baffle cutout diameter 241mm
- Overall depth 117mm
- Flange thickness 8mm
- Mounting depth 109mm
- Volume occupied by the driver (estimated) 1.2L
- Net weight 2.6kg
- Frame material Heavy-duty stamp steel
.png)
.png)
