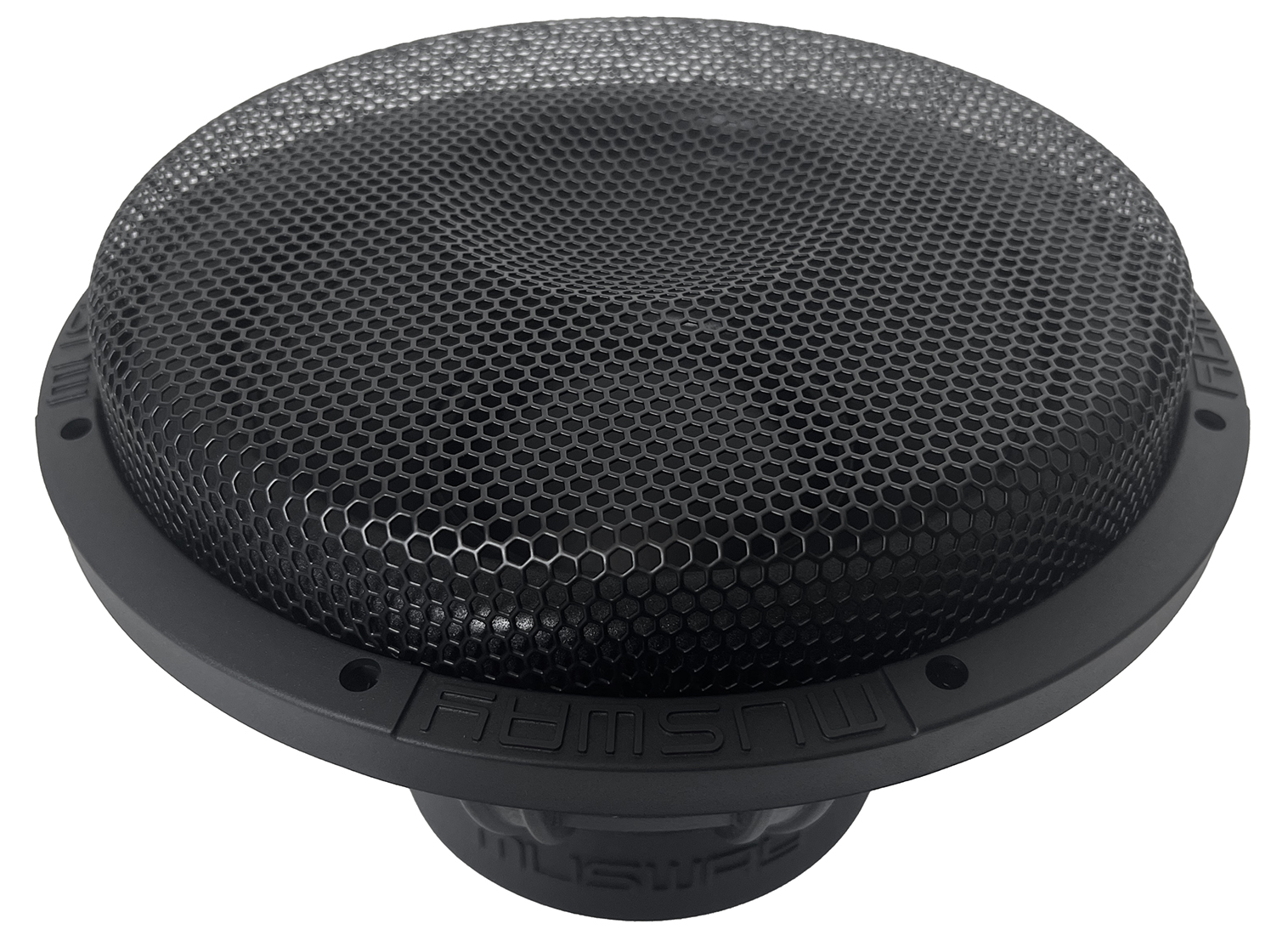

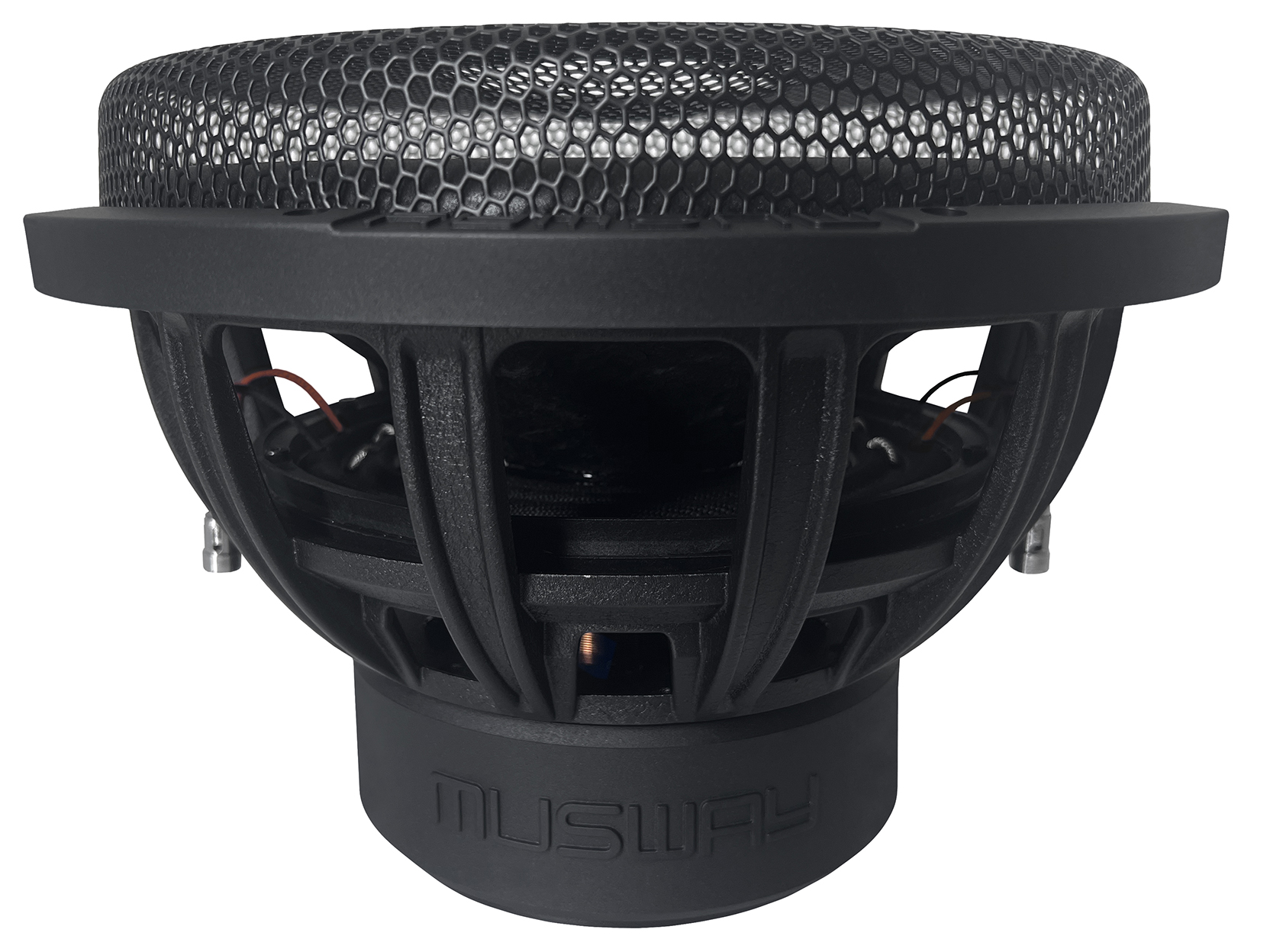

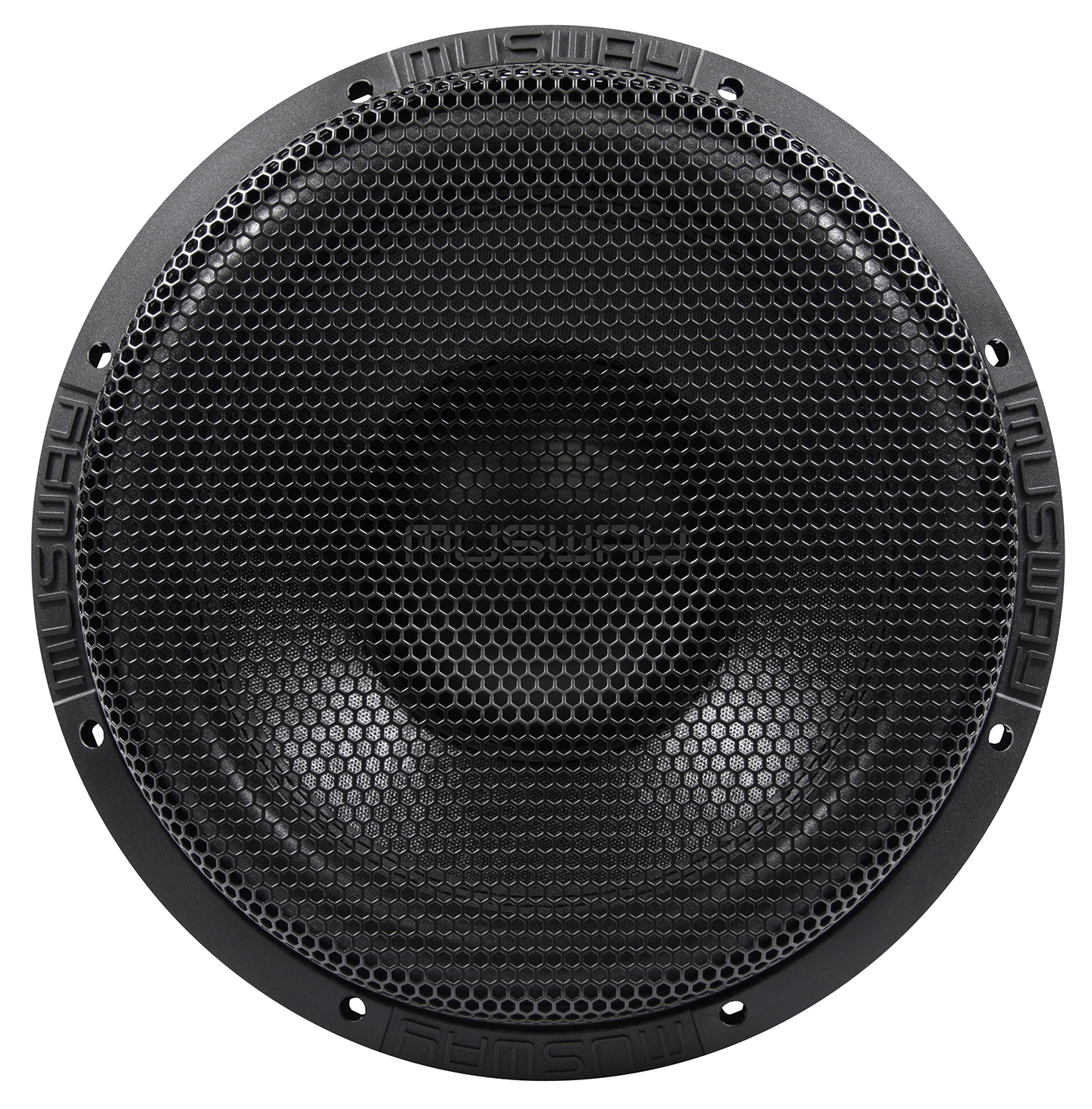

MUSWAY MG12
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 30 Hz |
| Q factor | 0.40 |
| Sensitivity | 87.5 dB |
| Linear excursion | ± 14 mm |
| Program Power | 1400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 30Hz
- Mechanical quality factor QMS 3.28
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Maximum excursion before damage xlim 22mm
- Air volume displaced at xmax VD 743cm³
- Power handling P 700W
- Program power Pmax 1400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 1.8mH
- VC Diameter 76.5mm
- Winding height HVC 38mm
- Former material ASV
Magnet
- Force factor (in series) Bl 16N/A
- Motor constant Bl/√RE 8.43N/√W
- Diameter 170mm
- Height 40mm
- Weight 3.402kg
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 174g
- Moving mass (without air load) MMD 165g
- Material Non-pressed Paper Cone
Suspensions
- Stiffness KMS 6.25N/mm
- Compliance CMS 160µm/N
- Equivalent volume to the compliance VAS 64L
- Mechanical resistance RMS 10N·s/m
- Surround material Rubber
- Spider material Polycotton
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 324mm
- Baffle cutout diameter 285mm
- Mounting depth 181mm
- Volume occupied by the driver (estimated) 2.8L
- Frame material Aluminium
