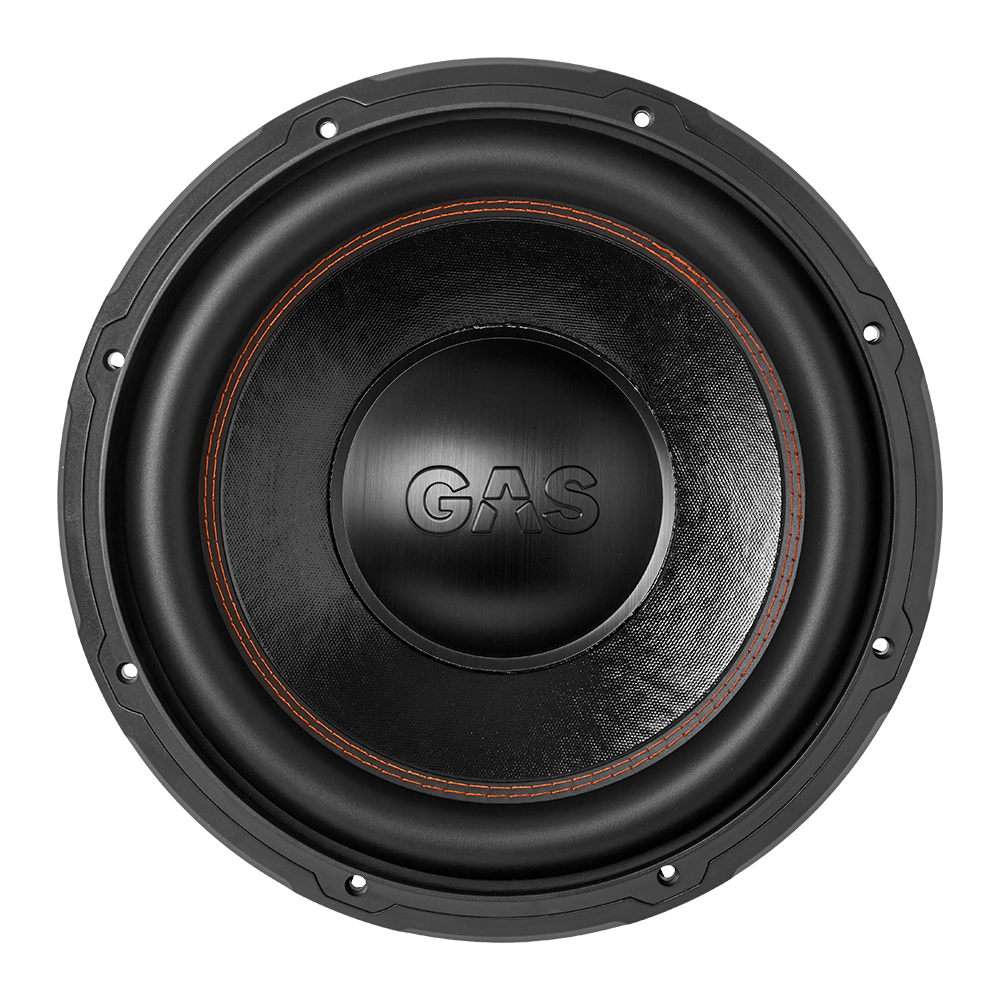

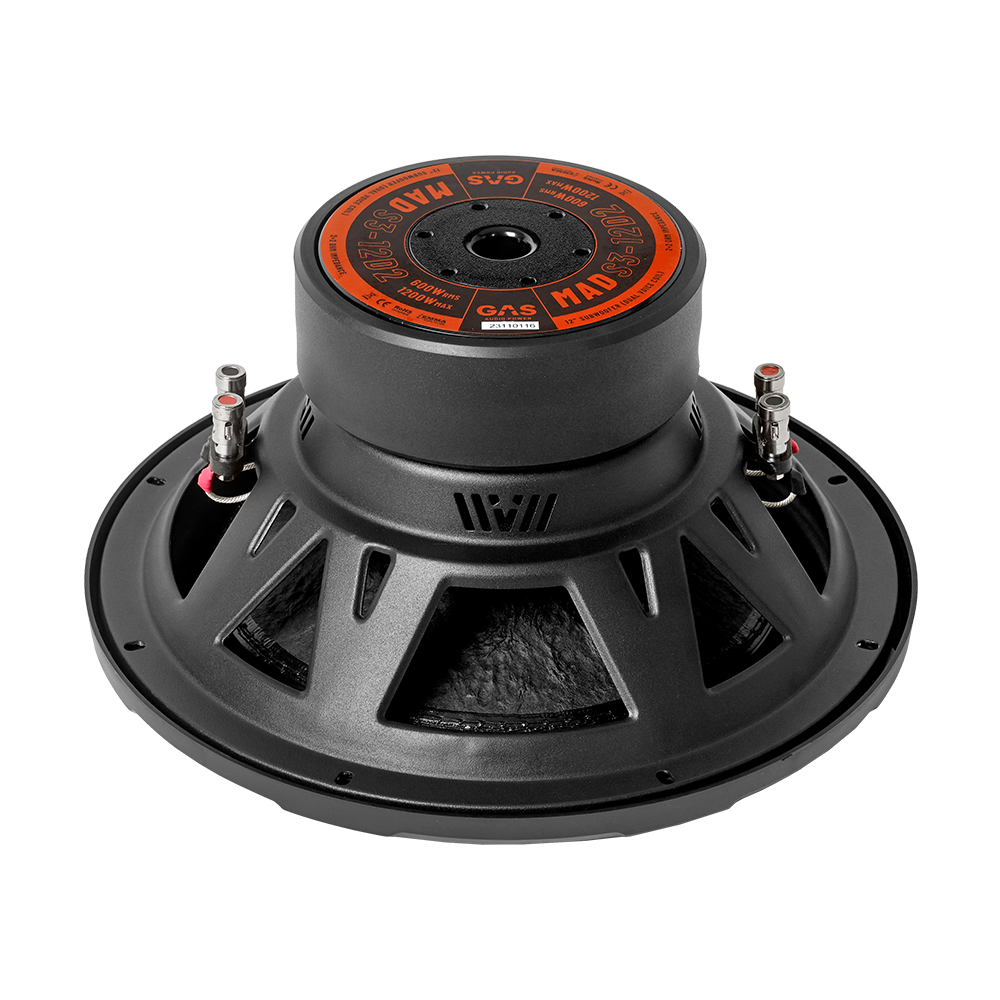

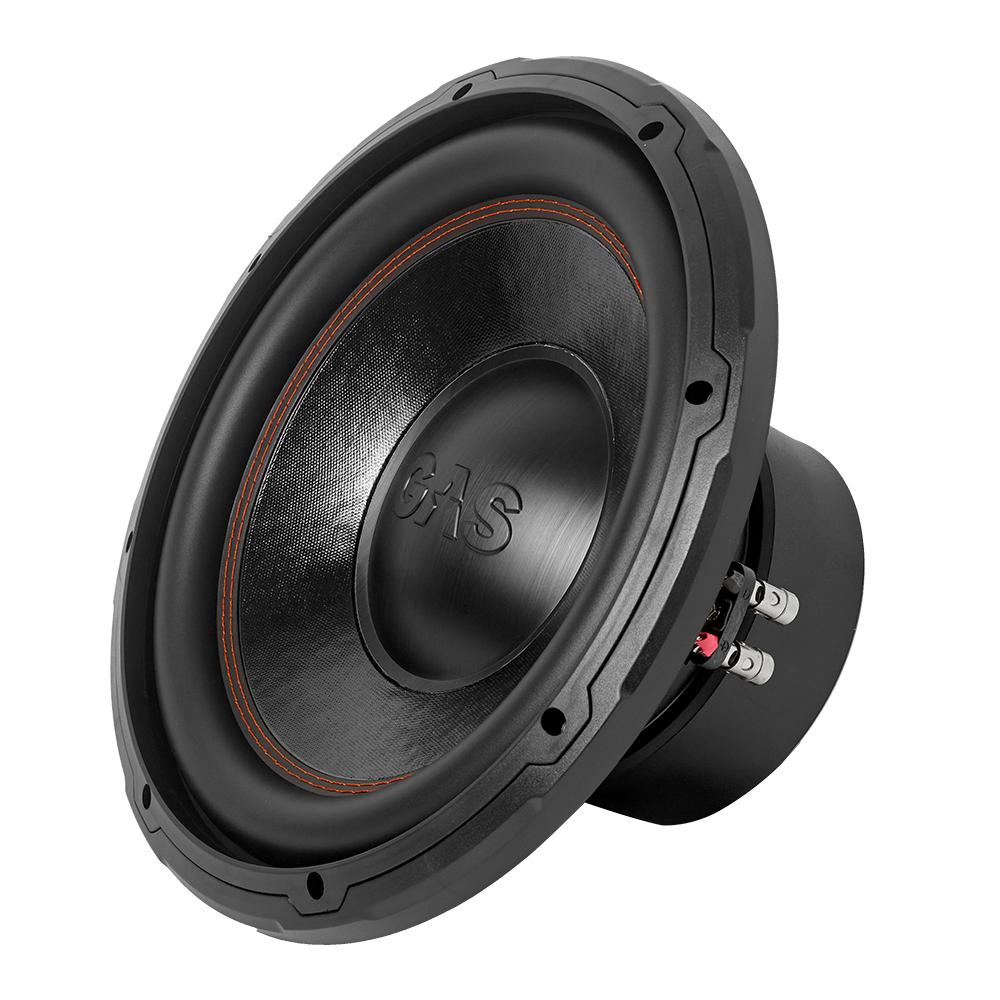

GAS Audio Power MAD S3-12D2
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 29 Hz |
| Q factor | 0.35 |
| Sensitivity | 87.9 dB |
| Linear excursion | ± 13.5 mm |
| Program Power | 1200 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.9dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 29Hz
- Mechanical quality factor QMS 3.93
- Electrical quality factor QES 0.39
- Total quality factor QTS 0.35
Large signal parameters
- Maximum linear excursion (one way) xmax 13.5mm
- Air volume displaced at xmax VD 663cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 2.71mH
- Winding material Copper
- Former material TIL
Magnet
- Force factor (in series) Bl 16.5N/A
- Motor constant Bl/√RE 8.7N/√W
- Material Ferrite
Diaphragm
- Effective diameter 250mm
- Effective area SD 491cm²
- Moving mass MMS 158g
- Moving mass (without air load) MMD 150g
- Material Non-pressed paper
Suspensions
- Stiffness KMS 5.38N/mm
- Compliance CMS 186µm/N
- Equivalent volume to the compliance VAS 62.6L
- Mechanical resistance RMS 7.33N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 325mm
- Baffle cutout diameter 280mm
- Mounting depth 142mm
- Volume occupied by the driver 2.23L
- Net weight 5.7kg
- Frame material Steel
