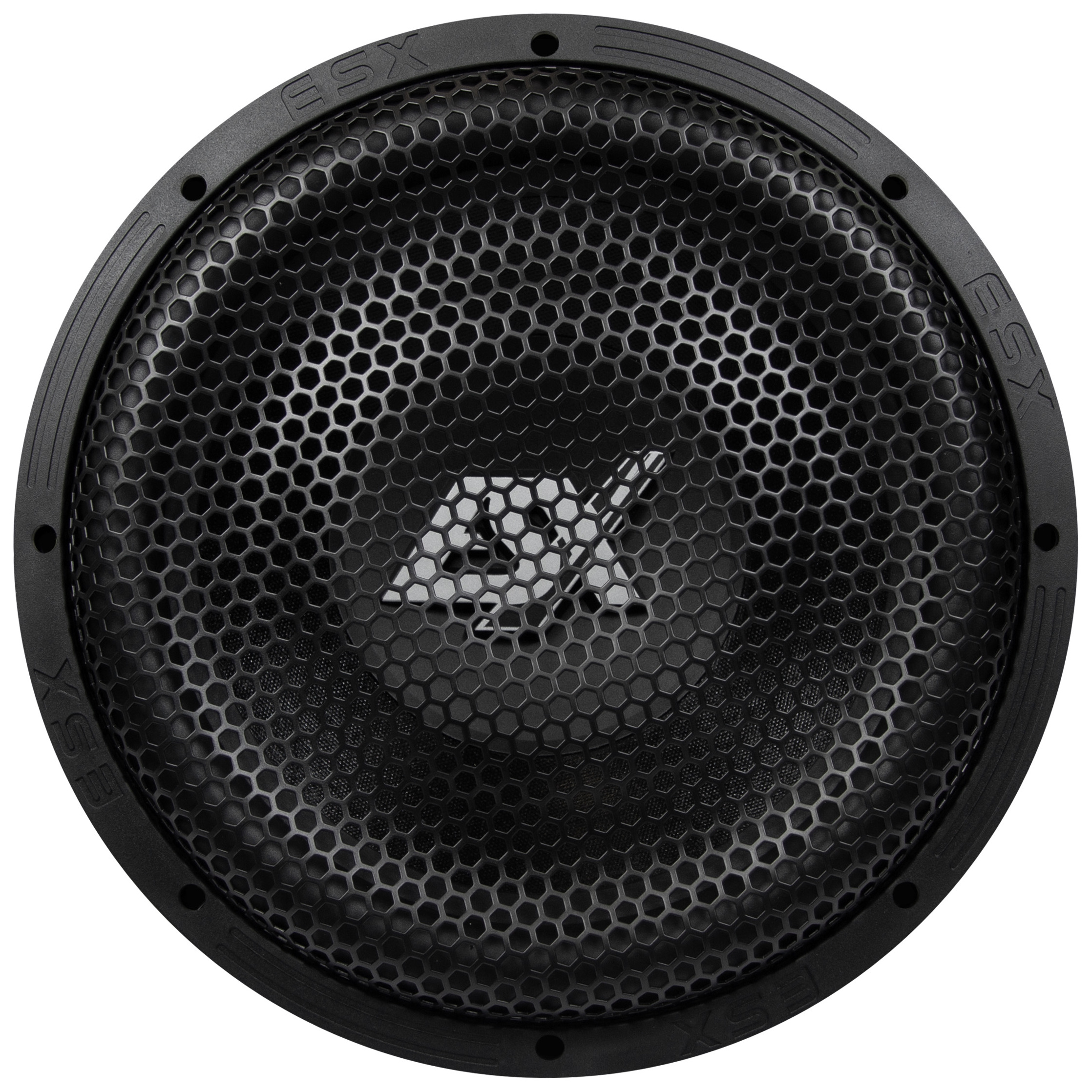

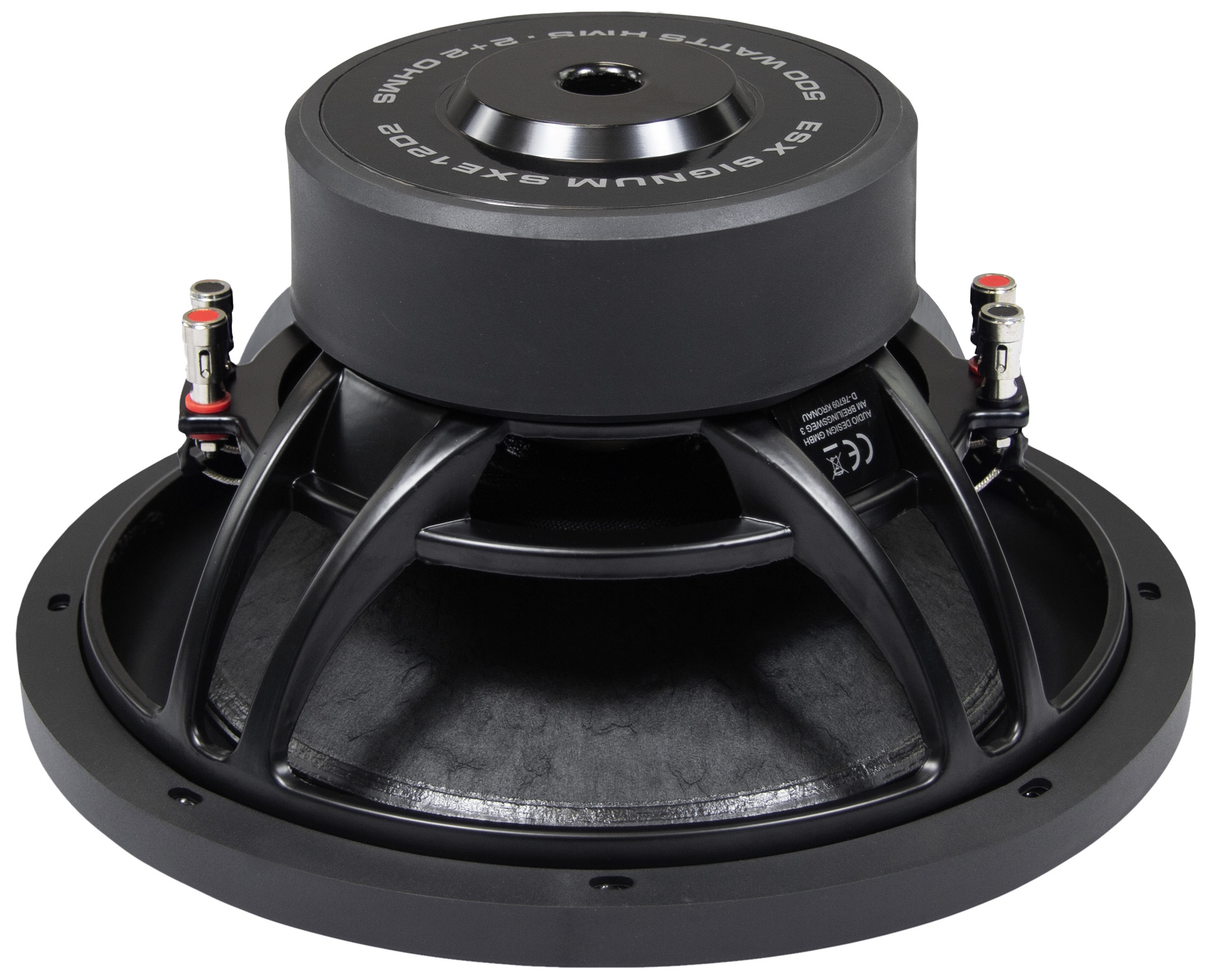

ESX SXE12D2
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 28 Hz |
| Q factor | 0.31 |
| Sensitivity | 88.2 dB |
| Linear excursion | ± 11 mm |
| Program Power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.2dB
Thiele & Small parameters
- Resonance frequency (free air) fS 28Hz
- Mechanical quality factor QMS 2.78
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.31
Large signal parameters
- Maximum linear excursion xmax 11mm
- Maximum excursion before damage xlim 22mm
- Air volume displaced at xmax VD 571cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 2.6mH
- VC Diameter 50mm
- Winding height HVC 30mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 18.6N/A
- Motor constant Bl/√RE 9.3N/√W
- Diameter 156mm
- Height 40mm
- Weight 3.005kg
Diaphragm
- Effective diameter 257mm
- Effective area SD 519cm²
- Moving mass MMS 170g
- Moving mass (without air load) MMD 162g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 5.32N/mm
- Compliance CMS 188µm/N
- Equivalent volume to the compliance VAS 71.5L
- Mechanical resistance RMS 10.8N·s/m
- Surround material Rubber
- Spider material Single Nomex
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 315mm
- Baffle cutout diameter 282mm
- Mounting depth 150mm
- Volume occupied by the driver (estimated) 3.7L
- Net weight 8.2kg
- Frame material Diecast Aluminium
