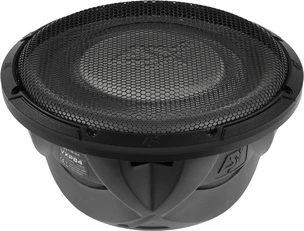

ESX VXP84G Shallow Subwoofer

ESX VXP84G

4 Ω
8″ Shallow Subwoofer
fS36 Hz
SD238 cm²
QTS0.50
xmax12 mm
SPL1W84.6 dB
Bl/√RE5.75
Pmax600 W

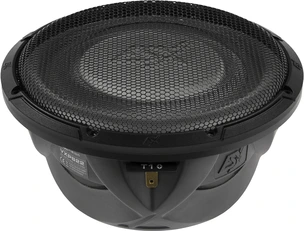

ESX VXP822G Shallow Subwoofer

ESX VXP822G

2 x 2 Ω
8″ Shallow Subwoofer
fS38 Hz
SD238 cm²
QTS0.46
xmax12 mm
SPL1W83 dB
Bl/√RE3.29
Pmax600 W

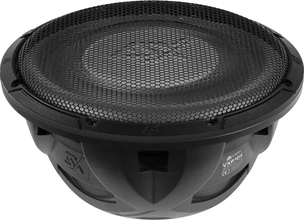

ESX VXP104G Shallow Subwoofer

ESX VXP104G

4 Ω
10″ Shallow Subwoofer
fS31 Hz
SD377 cm²
QTS0.61
xmax12 mm
SPL1W84.7 dB
Bl/√RE6.1
Pmax800 W
ESX SXT8D2 Subwoofer

ESX SXT8D2

2 x 2 Ω
8″ Subwoofer
fS34 Hz
SD227 cm²
QTS0.56
xmax10.5 mm
SPL1W83.5 dB
Bl/√RE5.45
Pmax500 W
ESX SXE8D2 Subwoofer

ESX SXE8D2

2 x 2 Ω
8″ Subwoofer
fS37 Hz
SD214 cm²
QTS0.40
xmax6 mm
SPL1W85.3 dB
Bl/√RE5.2
Pmax600 W
ESX SXE12D2 Subwoofer

ESX SXE12D2

2 x 2 Ω
12″ Subwoofer
fS28 Hz
SD519 cm²
QTS0.31
xmax11 mm
SPL1W88.2 dB
Bl/√RE9.3
Pmax1000 W
ESX SXE108D2 Subwoofer

ESX SXE108D2

2 x 2 Ω
10″ Subwoofer
fS31 Hz
SD320 cm²
QTS0.37
xmax11 mm
SPL1W84.6 dB
Bl/√RE7.9
Pmax800 W

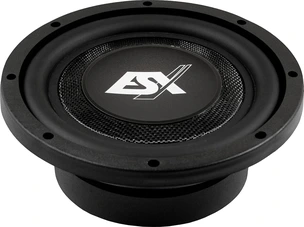

ESX QXS8D4 Shallow Subwoofer

ESX QXS8D4

2 x 4 Ω
8″ Shallow Subwoofer
fS40.7 Hz
SD214 cm²
QTS0.59
xmax10 mm
SPL1W76.6 dB
Bl/√RE3.06
Pmax500 W
Discontinued
ESX VXP84 Shallow_subwoofer

ESX VXP84

4 Ω
8″ Shallow_subwoofer
fS36 Hz
SD227 cm²
QTS0.50
xmax12 mm
SPL1W84.2 dB
Bl/√RE5.75
Pmax600 W
Discontinued
ESX VXP104 Shallow_subwoofer

ESX VXP104

4 Ω
10″ Shallow_subwoofer
fS31 Hz
SD377 cm²
QTS0.61
xmax12 mm
SPL1W84.7 dB
Bl/√RE6.1
Pmax800 W
ESX VX21PRO Subwoofer

ESX VX21PRO

2 x 2 Ω
21″ Subwoofer
fS27.4 Hz
SD1662 cm²
QTS0.58
xmax23 mm
SPL1W91 dB
Bl/√RE11.4
Pmax12000 W
ESX VX15PRO Subwoofer

ESX VX15PRO

2 x 2 Ω
15″ Subwoofer
fS33 Hz
SD810 cm²
QTS0.54
xmax23 mm
SPL1W86.7 dB
Bl/√RE11.3
Pmax7000 W
ESX VX12PRO Subwoofer

ESX VX12PRO

2 x 2 Ω
12″ Subwoofer
fS39 Hz
SD512 cm²
QTS0.52
xmax23 mm
SPL1W84.5 dB
Bl/√RE11.7
Pmax6000 W
ESX VX10PRO Subwoofer

ESX VX10PRO

2 x 2 Ω
10″ Subwoofer
fS46 Hz
SD325 cm²
QTS0.51
xmax23 mm
SPL1W82.7 dB
Bl/√RE12.2
Pmax5000 W
ESX QXE8D2 Subwoofer

ESX QXE8D2

2 x 2 Ω
8″ Subwoofer
fS42.7 Hz
SD214 cm²
QTS0.32
xmax10 mm
SPL1W83.8 dB
Bl/√RE10.3
Pmax800 W
ESX QXE6D2 Subwoofer

ESX QXE6D2

2 x 2 Ω
6.5″ Subwoofer
fS50.4 Hz
SD120 cm²
QTS0.43
xmax10 mm
SPL1W79.8 dB
Bl/√RE7.85
Pmax500 W
ESX QXE15D2 Subwoofer

ESX QXE15D2

2 x 2 Ω
15″ Subwoofer
fS32 Hz
SD820 cm²
QTS0.40
xmax14 mm
SPL1W89 dB
Bl/√RE13.2
Pmax3000 W
ESX QXE12D2 Subwoofer

ESX QXE12D2

2 x 2 Ω
12″ Subwoofer
fS34 Hz
SD510 cm²
QTS0.36
xmax14 mm
SPL1W86.2 dB
Bl/√RE13.5
Pmax2000 W
ESX QXE10D2 Subwoofer

ESX QXE10D2

2 x 2 Ω
10″ Subwoofer
fS37.9 Hz
SD332 cm²
QTS0.37
xmax10 mm
SPL1W85.1 dB
Bl/√RE11.2
Pmax1200 W
Discontinued
ESX VE1522 Subwoofer

ESX VE1522

2 x 2 Ω
15″ Subwoofer
fS35 Hz
SD844 cm²
QTS0.40
xmax17.5 mm
SPL1W89.9 dB
Bl/√RE12.9
Pmax8000 W
Discontinued
ESX VE1222 Subwoofer

ESX VE1222

2 x 2 Ω
12″ Subwoofer
fS36 Hz
SD510 cm²
QTS0.32
xmax17.5 mm
SPL1W87.9 dB
Bl/√RE12.8
Pmax6000 W
ESX SX840 Subwoofer

ESX SX840

4 Ω
8″ Subwoofer
fS35 Hz
SD214 cm²
QTS0.38
xmax3.5 mm
SPL1W86 dB
Bl/√RE5.31
Pmax600 W
Discontinued
ESX SX1240 Subwoofer

ESX SX1240

4 Ω
12″ Subwoofer
fS28 Hz
SD505 cm²
QTS0.35
xmax8.5 mm
SPL1W88.1 dB
Bl/√RE7.83
Pmax1000 W
Discontinued
ESX SX1040 Subwoofer

ESX SX1040

4 Ω
10″ Subwoofer
fS29 Hz
SD332 cm²
QTS0.32
xmax8.5 mm
SPL1W87 dB
Bl/√RE7.27
Pmax800 W
Discontinued
ESX QE822 Subwoofer

ESX QE822

2 x 2 Ω
8″ Subwoofer
fS42.7 Hz
SD208 cm²
QTS0.32
xmax10 mm
SPL1W83.6 dB
Bl/√RE10.3
Pmax800 W
Discontinued
ESX QE622 Subwoofer

ESX QE622

2 x 2 Ω
6.5″ Subwoofer
fS50.4 Hz
SD144 cm²
QTS0.43
xmax10 mm
SPL1W81.5 dB
Bl/√RE7.85
Pmax500 W
Discontinued
ESX QE1524 Subwoofer

ESX QE1524

2 x 4 Ω
15″ Subwoofer
fS36 Hz
SD830 cm²
QTS0.49
xmax13.3 mm
SPL1W90.9 dB
Bl/√RE8.68
Pmax2000 W
Discontinued

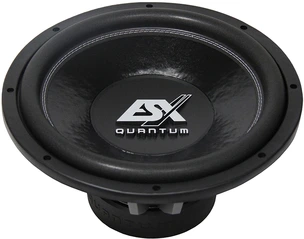

ESX QE1522 Subwoofer

ESX QE1522

2 x 2 Ω
15″ Subwoofer
fS33 Hz
SD830 cm²
QTS0.44
xmax13.3 mm
SPL1W90.8 dB
Bl/√RE9.45
Pmax2000 W
Discontinued
ESX QE1224 Subwoofer

ESX QE1224

2 x 4 Ω
12″ Subwoofer
fS37 Hz
SD510 cm²
QTS0.44
xmax13.3 mm
SPL1W89.1 dB
Bl/√RE7.64
Pmax1600 W
Discontinued
ESX QE1222 Subwoofer

ESX QE1222

2 x 2 Ω
12″ Subwoofer
fS33 Hz
SD510 cm²
QTS0.38
xmax13.3 mm
SPL1W88.9 dB
Bl/√RE8.55
Pmax1600 W
