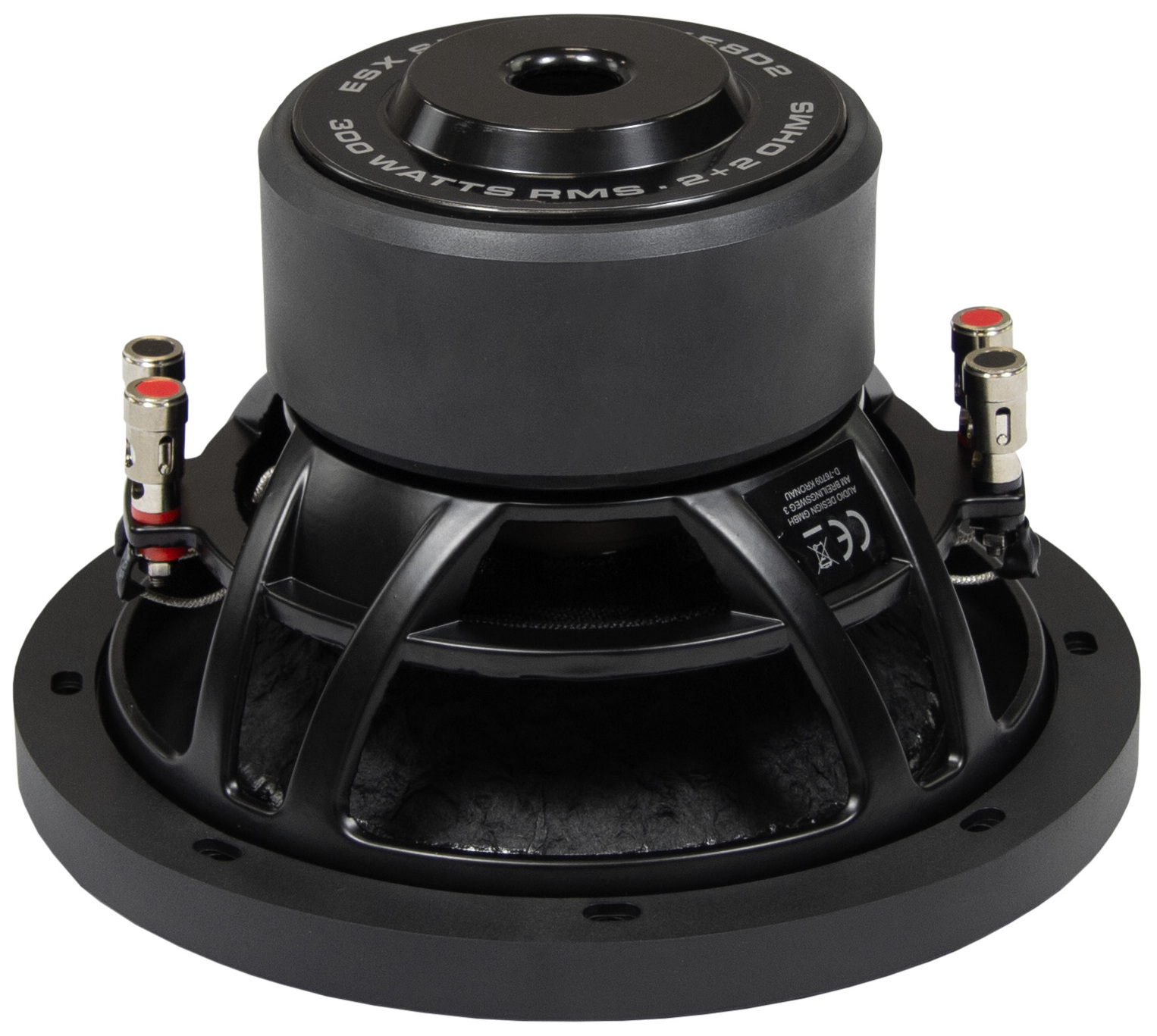

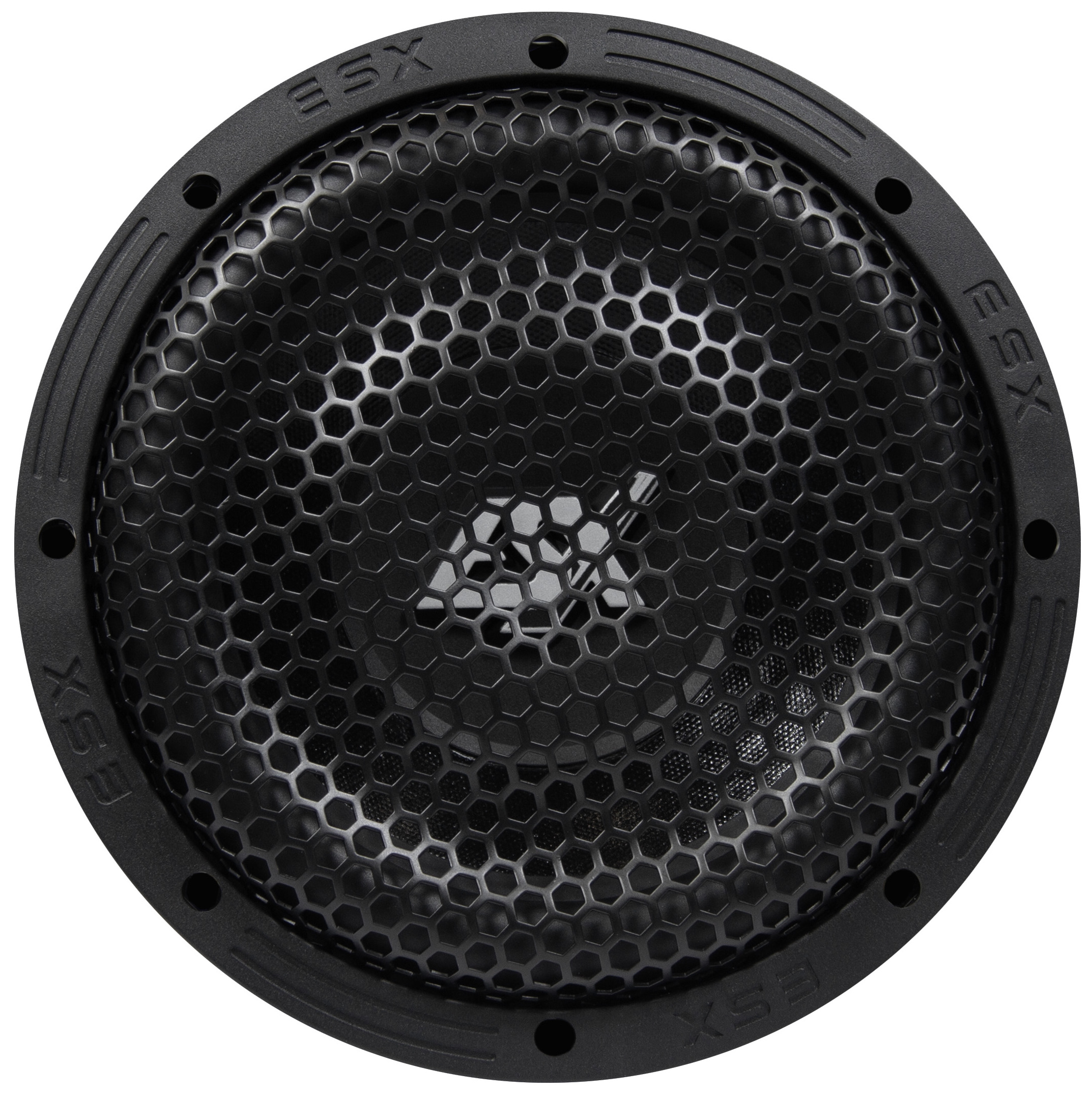

ESX SXE8D2
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 37 Hz |
| Q factor | 0.40 |
| Sensitivity | 85.3 dB |
| Linear excursion | ± 6 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 37Hz
- Mechanical quality factor QMS 2.64
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion xmax 6mm
- Maximum excursion before damage xlim 15mm
- Air volume displaced at xmax VD 128cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 1.92mH
- VC Diameter 50mm
- Winding height HVC 20mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 10.4N/A
- Motor constant Bl/√RE 5.2N/√W
- Diameter 110mm
- Height 40mm
- Weight 1.361kg
Diaphragm
- Effective diameter 165mm
- Effective area SD 214cm²
- Moving mass MMS 55.4g
- Moving mass (without air load) MMD 53g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 2.96N/mm
- Compliance CMS 338µm/N
- Equivalent volume to the compliance VAS 21.4L
- Mechanical resistance RMS 4.88N·s/m
- Surround material Rubber
- Spider material Single Nomex
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 216mm
- Baffle cutout diameter 182mm
- Mounting depth 121mm
- Volume occupied by the driver (estimated) 1.9L
- Net weight 4.4kg
- Frame material Diecast Aluminium
