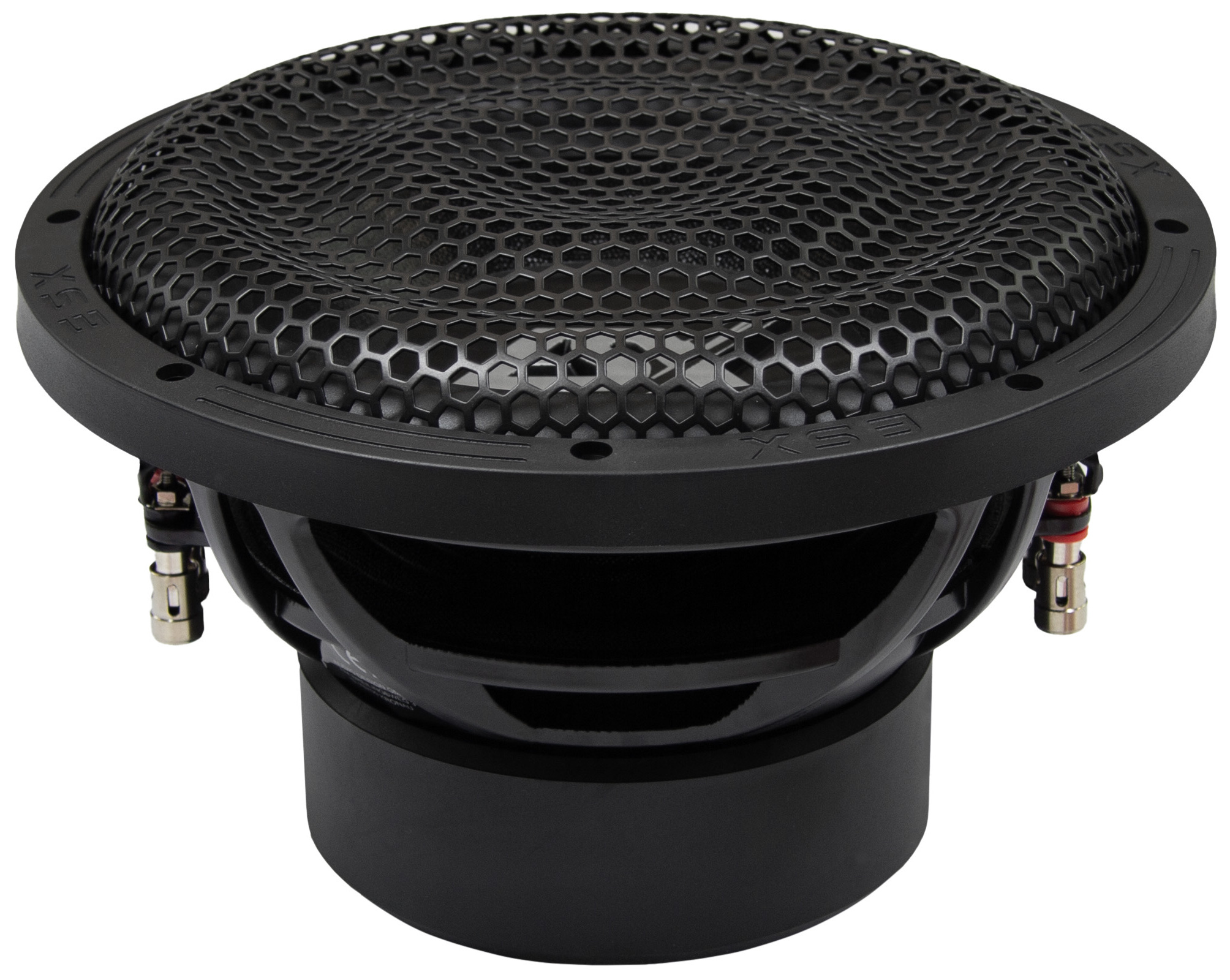

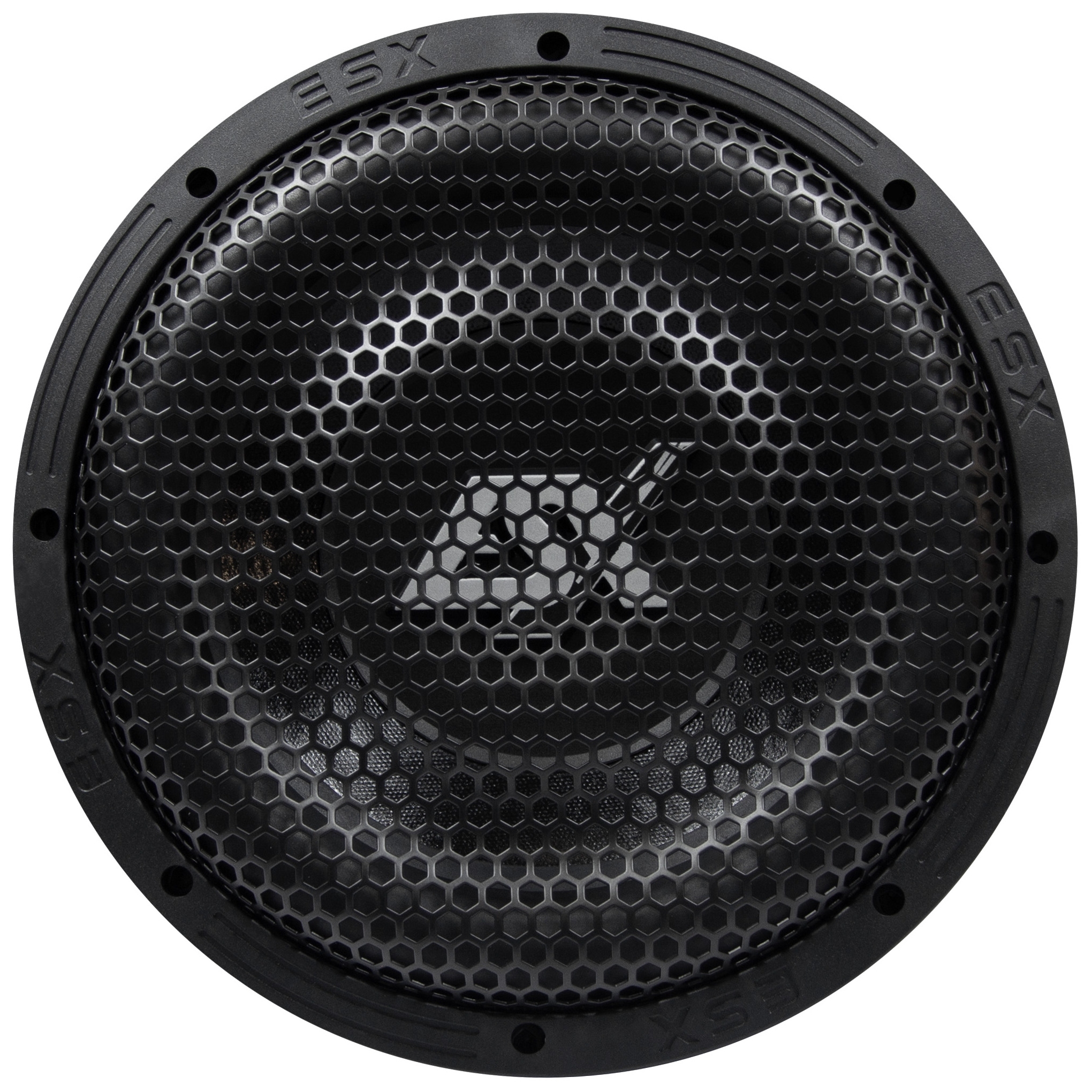

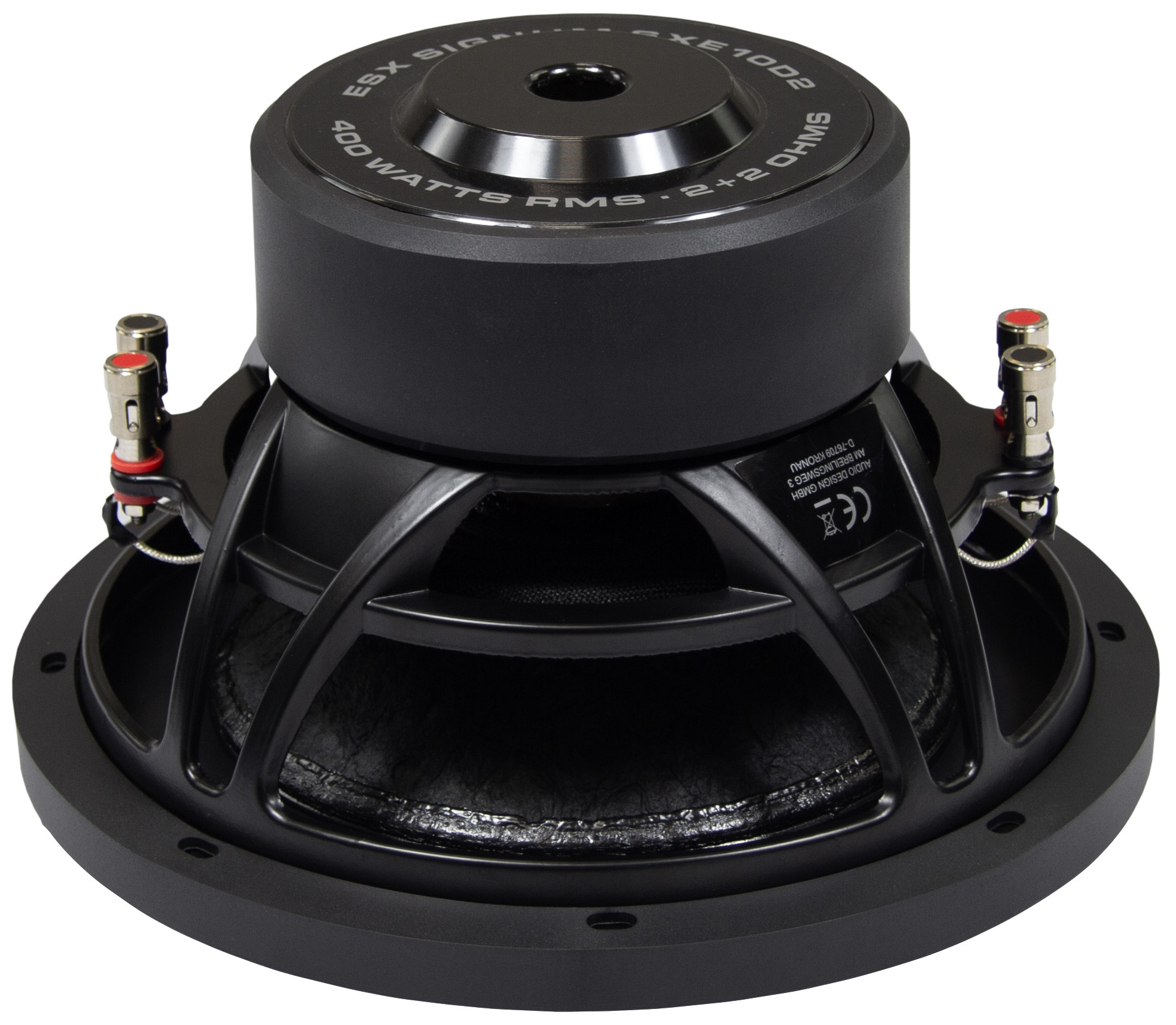

ESX SXE108D2
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 31 Hz |
| Q factor | 0.37 |
| Sensitivity | 84.6 dB |
| Linear excursion | ± 11 mm |
| Program Power | 800 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 2.83
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.37
Large signal parameters
- Maximum linear excursion xmax 11mm
- Maximum excursion before damage xlim 22mm
- Air volume displaced at xmax VD 352cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 2.6mH
- VC Diameter 50mm
- Winding height HVC 30mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 15.8N/A
- Motor constant Bl/√RE 7.9N/√W
- Diameter 140mm
- Height 40mm
- Weight 2.268kg
Diaphragm
- Effective diameter 202mm
- Effective area SD 320cm²
- Moving mass MMS 137g
- Moving mass (without air load) MMD 133g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 5.24N/mm
- Compliance CMS 191µm/N
- Equivalent volume to the compliance VAS 27.6L
- Mechanical resistance RMS 9.43N·s/m
- Surround material Rubber
- Spider material Single Nomex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 264mm
- Baffle cutout diameter 234mm
- Mounting depth 142mm
- Volume occupied by the driver (estimated) 2.8L
- Net weight 6.4kg
- Frame material Diecast Aluminium
