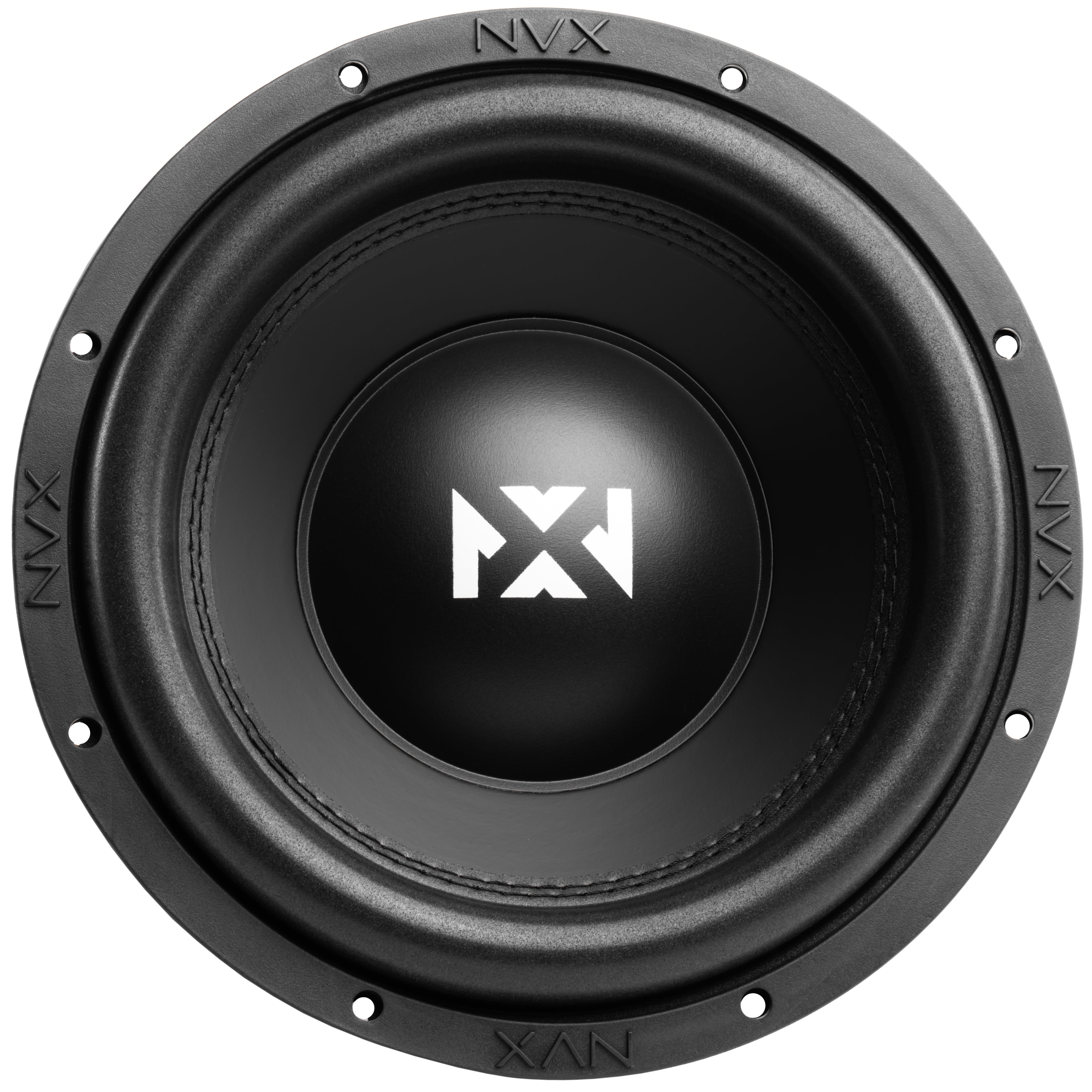

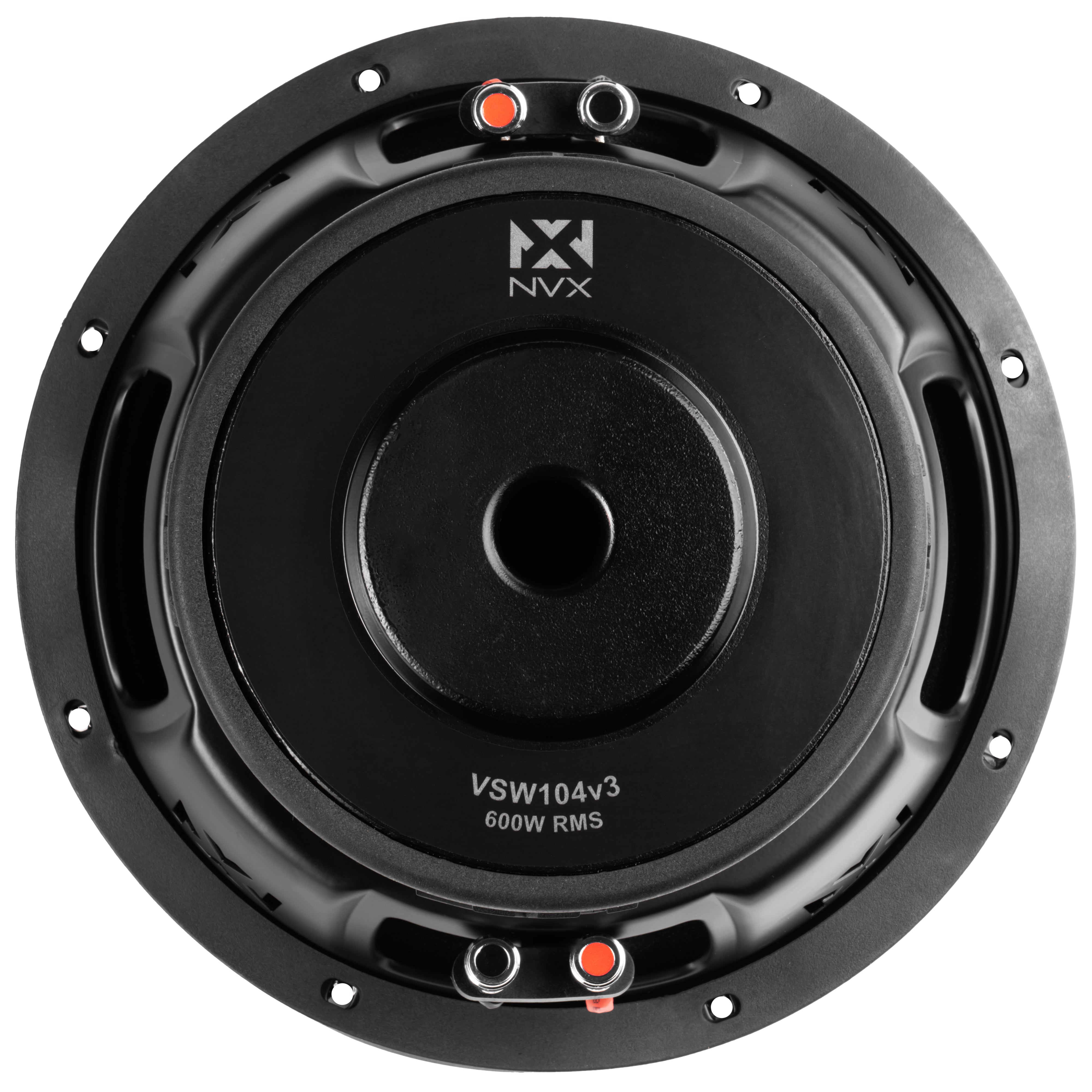

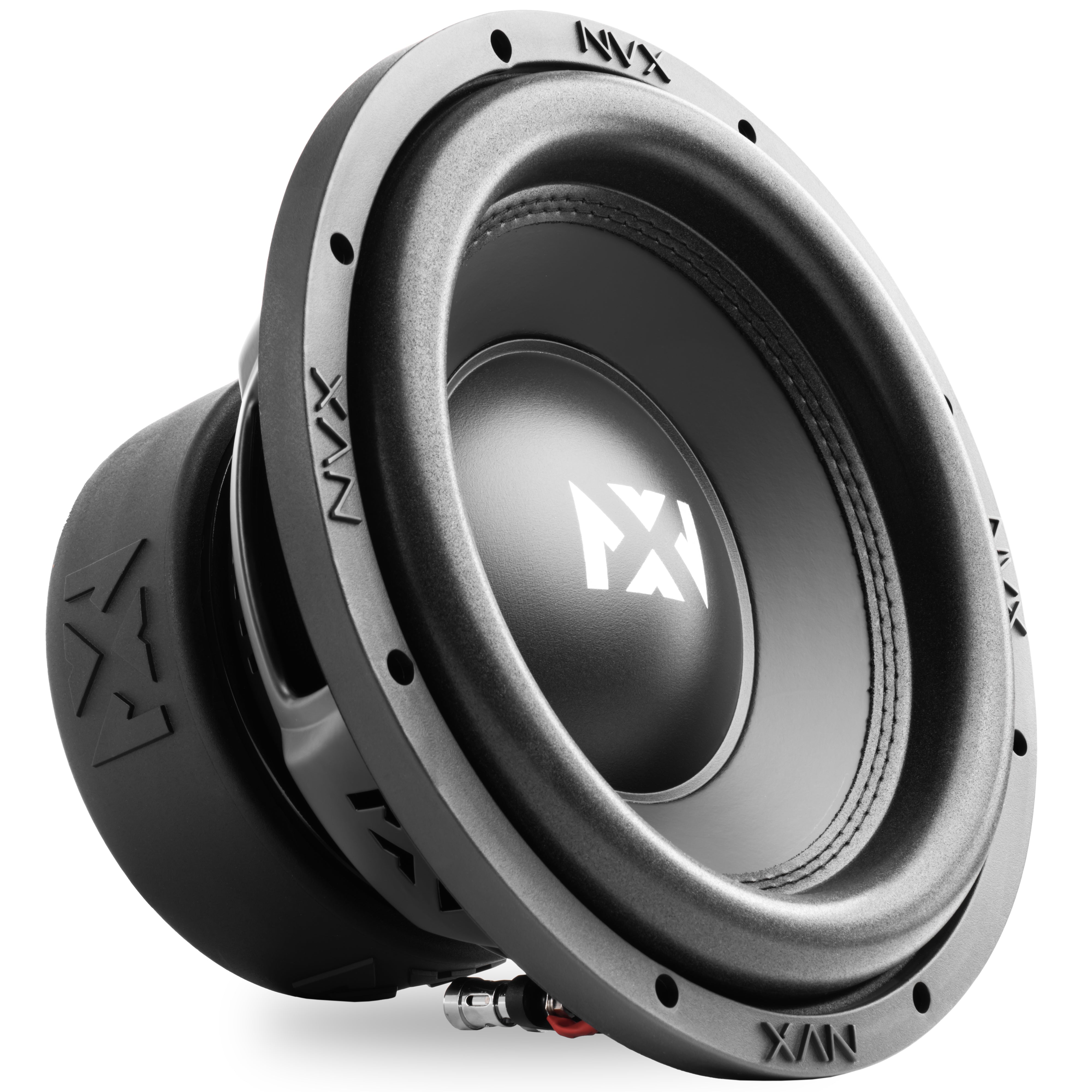

NVX VSW104v3
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 32.6 Hz |
| Q factor | 0.40 |
| Sensitivity | 84.2 dB |
| Linear excursion | ± 13.5 mm |
| Program power | 1200 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.2dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32.6Hz
- Mechanical quality factor QMS 5.11
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion (one way) xmax 13.5mm
- Air volume displaced at xmax VD 459cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 4.68mH
Magnet
- Force factor (in series) Bl 24.1N/A
- Motor constant Bl/√RE 9.53N/√W
Diaphragm
- Effective diameter 208mm
- Effective area SD 340cm²
- Moving mass (including air load) MMS 191g
- Moving mass MMD 186g
Suspensions
- Stiffness KMS 8N/mm
- Compliance CMS 125µm/N
- Equivalent volume to the compliance VAS 20.5L
- Mechanical resistance RMS 7.64N·s/m
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 263mm
- Baffle cutout diameter 229mm
- Mounting depth 148mm
- Volume occupied by the driver 1.42L
- Net weight 7.5kg
