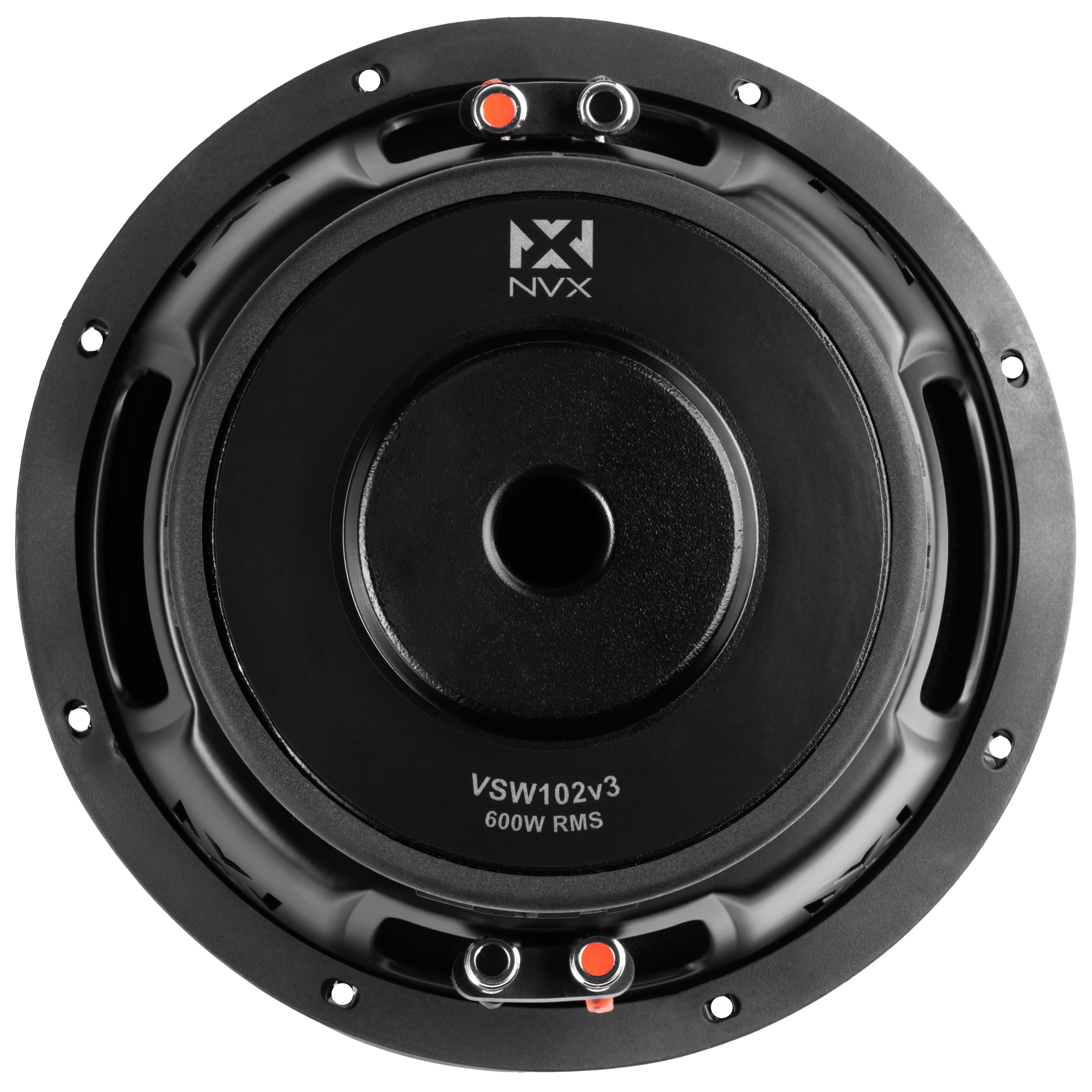

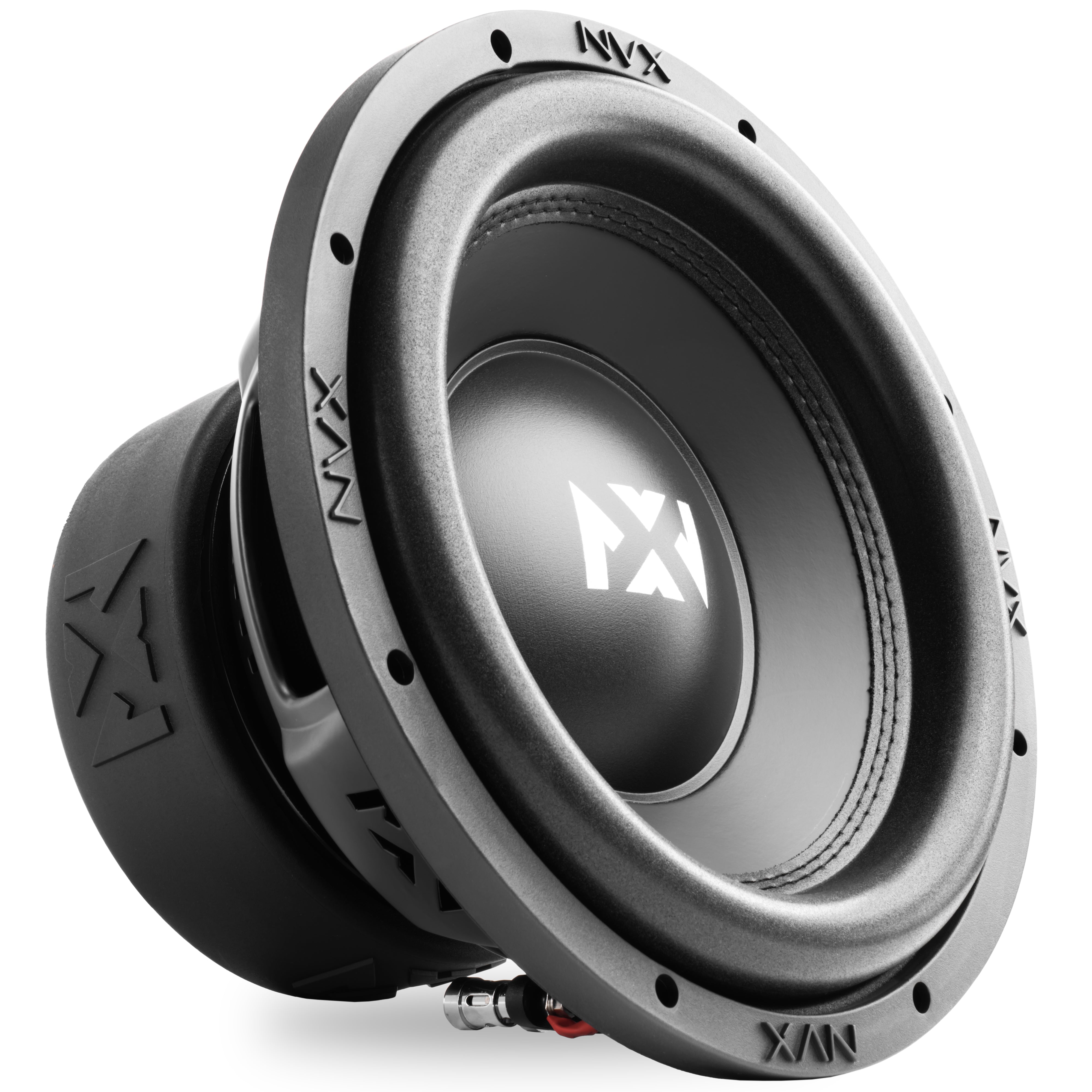

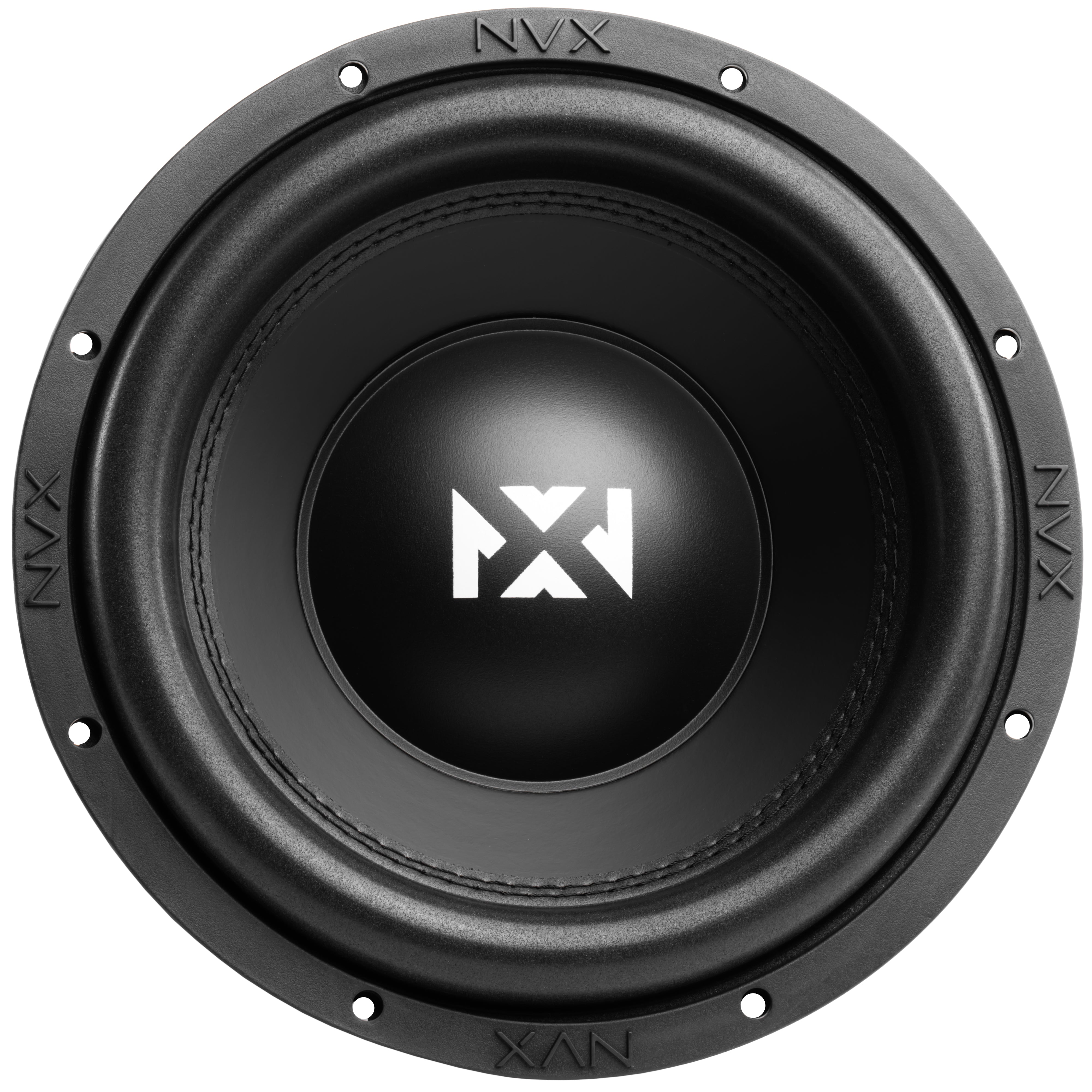

NVX VSW102v3
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 263 mm |
| Resonance | 32.1 Hz |
| Q factor | 0.31 |
| Sensitivity | 84.7 dB |
| Linear excursion | ± 13.5 mm |
| Program power | 1200 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.7dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32.1Hz
- Mechanical quality factor QMS 3.46
- Electrical quality factor QES 0.34
- Total quality factor QTS 0.31
Large signal parameters
- Maximum linear excursion (one way) xmax 13.5mm
- Air volume displaced at xmax VD 459cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 2.89mH
Magnet
- Force factor (in series) Bl 21.4N/A
- Motor constant Bl/√RE 11N/√W
Diaphragm
- Effective diameter 208mm
- Effective area SD 340cm²
- Moving mass (including air load) MMS 202g
- Moving mass MMD 197g
Suspensions
- Stiffness KMS 8.2N/mm
- Compliance CMS 122µm/N
- Equivalent volume to the compliance VAS 20L
- Mechanical resistance RMS 11.8N·s/m
Dimensions
- Nominal diameter 10″
- 263mm
- Overall diameter 263mm
- Baffle cutout diameter 229mm
- Mounting depth 148mm
- Volume occupied by the driver 1.42L
- Net weight 7.5kg
