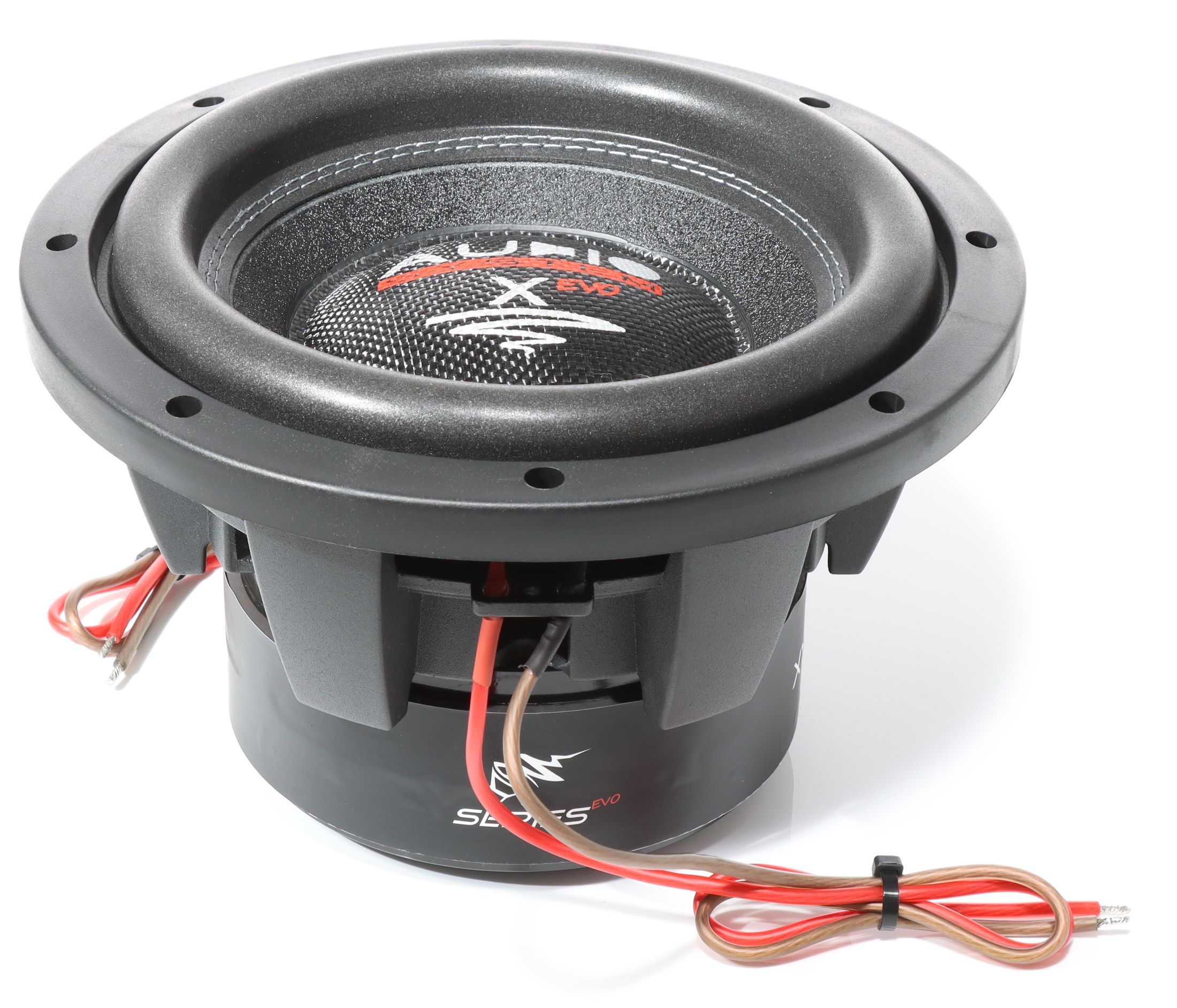

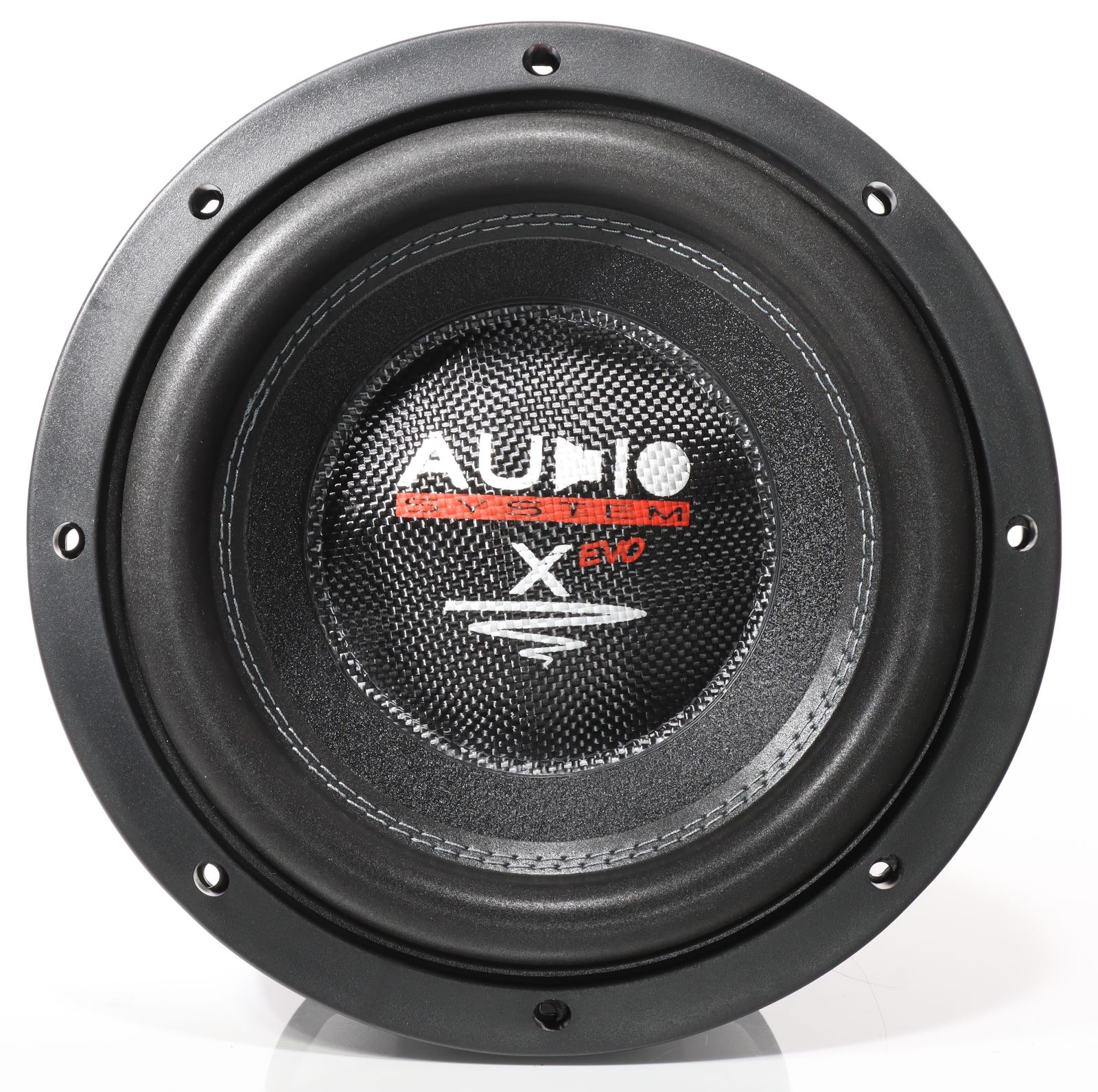

Audio System X 10 EVO
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 277 mm |
| Resonance | 29.6 Hz |
| Q factor | 0.36 |
| Sensitivity | 83.9 dB |
| Linear excursion | ± 15 mm |
| Program Power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.9dB
- Frequency response 40 - 140Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 29.6Hz
- Mechanical quality factor QMS 5.29
- Electrical quality factor QES 0.38
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion (one way) xmax 15mm
- Air volume displaced at xmax VD 495cm³
- Power handling P 600W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 3.11mH
- VC Diameter 76.5mm
- Former material Aluminum
Magnet
- Force factor (in series) Bl 21.9N/A
- Motor constant Bl/√RE 11.2N/√W
- Diameter 170mm
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 226g
- Moving mass (without air load) MMD 221g
- Material KPC Paper
Suspensions
- Stiffness KMS 8.93N/mm
- Compliance CMS 112µm/N
- Equivalent volume to the compliance VAS 14.6L
- Mechanical resistance RMS 7.94N·s/m
- Surround material Elasthan
- Spider material PPTA Connex
Dimensions
- Nominal diameter 10″
- 277mm
- Overall diameter 277mm
- Baffle cutout diameter 238mm
- Overall depth 164mm
- Flange thickness 7mm
- Mounting depth 157mm
- Volume occupied by the driver (estimated) 4L
- Net weight 11.0kg
- Frame material Aluminium
