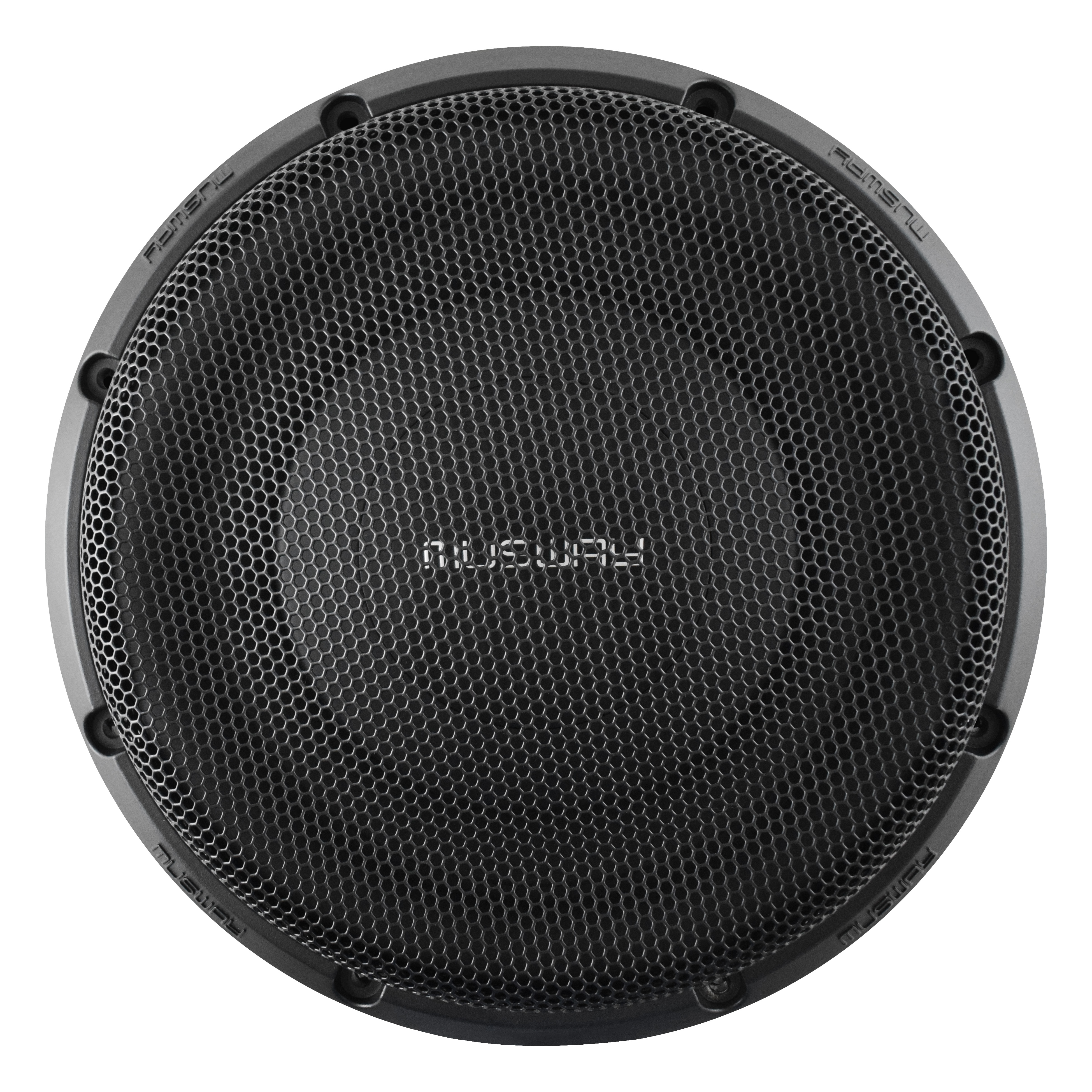

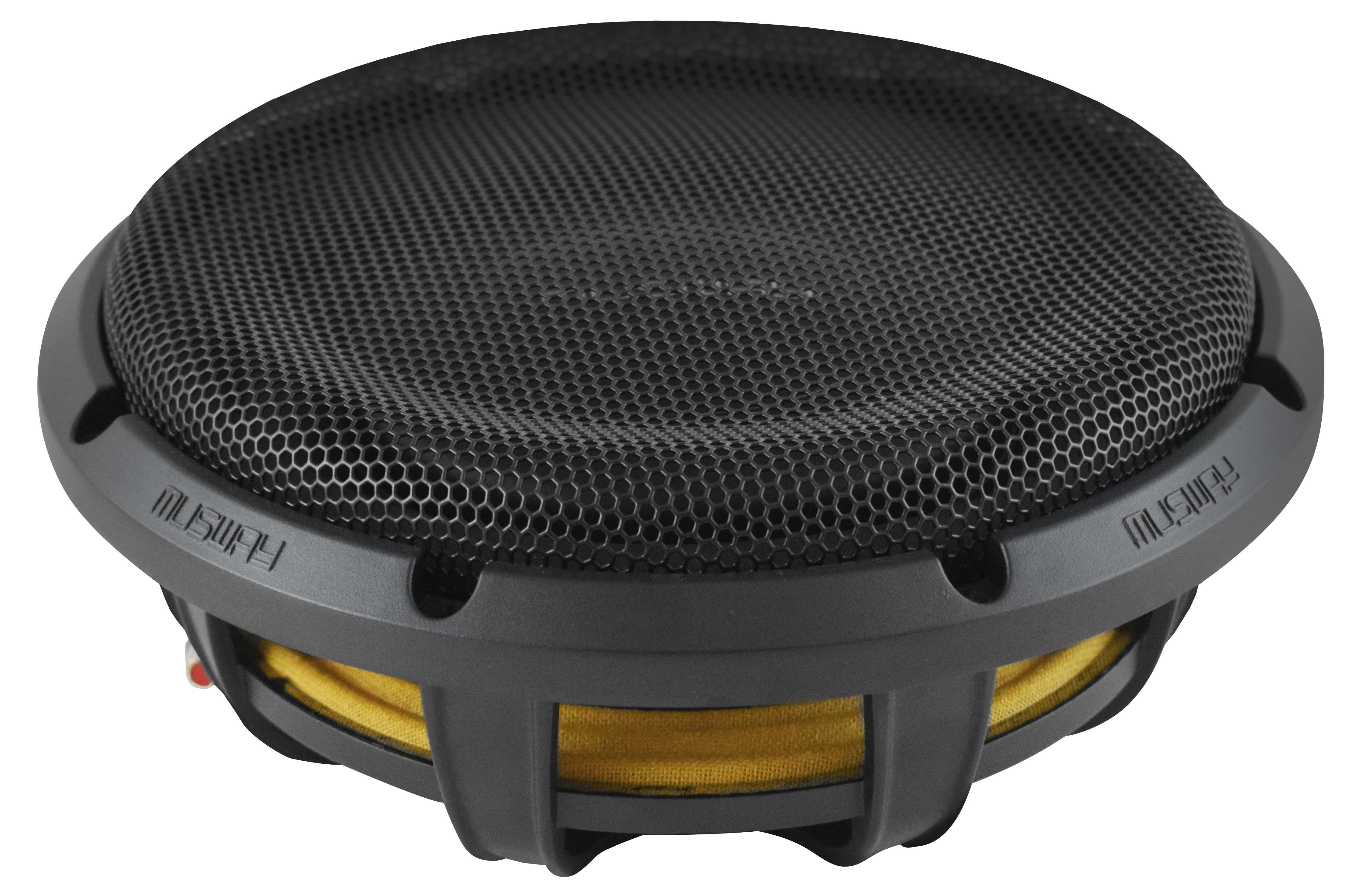

MUSWAY MWF104SQ
4Ω
Shallow Subwoofer
| Nominal diameter | 9.84″ / 250 mm |
| Resonance | 33 Hz |
| Q factor | 0.60 |
| Sensitivity | 83.8 dB |
| Linear excursion | ± 14.4 mm |
| Program power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 33Hz
- Mechanical quality factor QMS 8.93
- Electrical quality factor QES 0.65
- Total quality factor QTS 0.60
Large signal parameters
- Maximum linear excursion (one way) xmax 14.4mm
- Maximum excursion before damage xlim 20mm
- Air volume displaced at xmax VD 547cm³
- Power handling P 500W
- Program power Pmax 1000W
- Peak power Ppeak 1000W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.6Ω
- Inductance (1kHz) LE 5.2mH
- VC Diameter 38.6mm
- Winding height HVC 35.8mm
- Former material TIL (Glass-Fibre)
Magnet
- Force factor Bl 17.5N/A
- Motor constant Bl/√RE 9.22N/√W
- Diameter 135mm
- Height 36mm
- Weight 2.155kg
- Material Dual Magnet
Diaphragm
- Effective diameter 220mm
- Effective area SD 380cm²
- Moving mass (including air load) MMS 241g
- Moving mass MMD 236g
- Material Polypropylene
Suspensions
- Stiffness KMS 11.5N/mm
- Compliance CMS 87µm/N
- Equivalent volume to the compliance VAS 19.5L
- Mechanical resistance RMS 5.6N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 9.84″
- 250mm
- Overall diameter 275mm
- Baffle cutout diameter 232mm
- Mounting depth 74mm
- Volume occupied by the driver (estimated) 2.7L
- Net weight 6.2kg
- Frame material Aluminium
