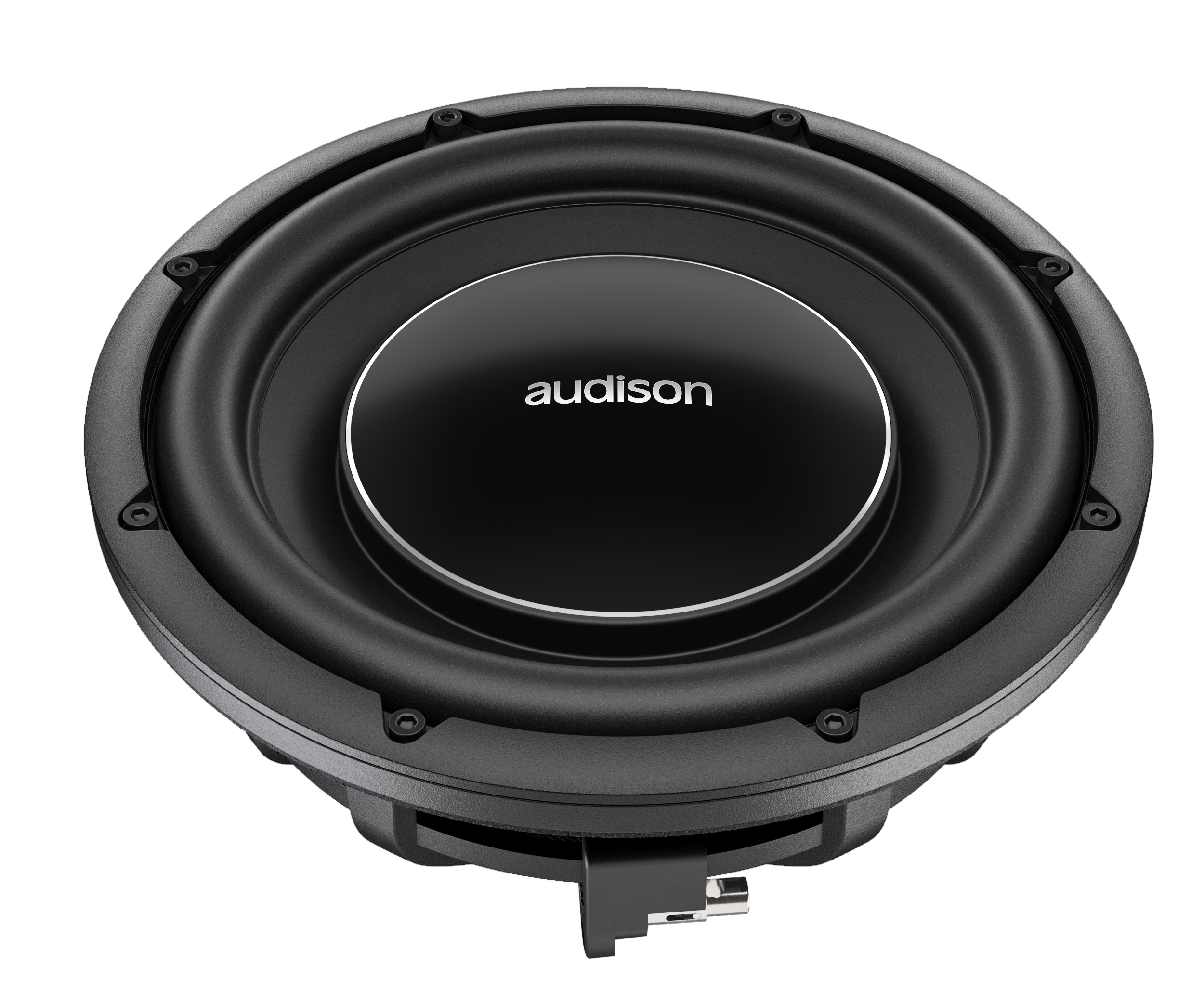

audison VOCE II AV 10 D2 II
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 35 Hz |
| Q factor | 0.63 |
| Sensitivity | 82.4 dB |
| Linear excursion | ± 16.8 mm |
| Program Power | 1100 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.4dB
- Frequency response 25 - 400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 5.50
- Electrical quality factor QES 0.70
- Total quality factor QTS 0.63
Large signal parameters
- Maximum linear excursion (one way) xmax 16.8mm
- Maximum excursion before damage xlim 20mm
- Air volume displaced at xmax VD 618cm³
- Power handling P 550W
- Program power Pmax 1100W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.3Ω
- Inductance (1kHz, in series) LE 4.1mH
- VC Diameter 38.6mm
- Winding height HVC 37mm
- Winding material Copper Clad Aluminium
- Former material GLASS FIBER
Magnet
- Force factor (in series) Bl 16.2N/A
- Motor constant Bl/√RE 8.99N/√W
- Air gap height HAG 7mm
- Diameter 134mm
- Height 36mm
- Material HIGH DENSITY FLUX FERRITE
Diaphragm
- Effective diameter 216mm
- Effective area SD 368cm²
- Moving mass MMS 264g
- Moving mass (without air load) MMD 259g
- Material POLYPROPYLENE
Suspensions
- Stiffness KMS 12.7N/mm
- Compliance CMS 79µm/N
- Equivalent volume to the compliance VAS 15.2L
- Mechanical resistance RMS 10.6N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 275mm
- Baffle cutout diameter 232mm
- Overall depth 97mm
- Flange thickness 15mm
- Mounting depth 83mm
- Volume occupied by the driver (estimated) 1.7L
- Net weight 5.0kg
- Frame material ALUMINIUM
