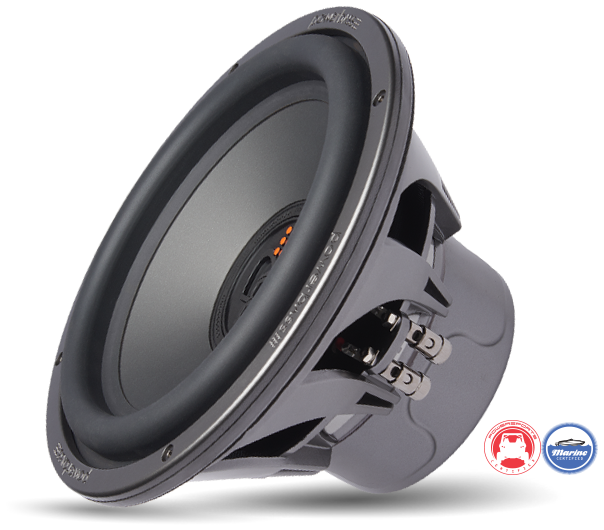

PowerBass XL-1040DSS
4Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 31.5 Hz |
| Q factor | 0.56 |
| Sensitivity | 88.7 dB |
| Linear excursion | ± 7.9 mm |
| Program power | 400 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.7dB
- Frequency response 45 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31.5Hz
- Mechanical quality factor QMS 7.21
- Electrical quality factor QES 0.61
- Total quality factor QTS 0.56
Large signal parameters
- Maximum linear excursion (one way) xmax 7.9mm
- Air volume displaced at xmax VD 287cm³
- Power handling P 200W
- Program power Pmax 400W
- Peak power Ppeak 400W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.6Ω
- Inductance (1kHz, in series, estimated) LE 3.86mH
- VC Diameter 50.8mm
- Former material Kapton
Magnet
- Force factor (in series) Bl 17.1N/A
- Motor constant Bl/√RE 6.65N/√W
- Weight 1.391kg
Diaphragm
- Effective diameter 206mm
- Effective area SD 363cm²
- Moving mass (including air load) MMS 137g
- Moving mass MMD 77.6g
- Material Polypropylene
Suspensions
- Stiffness KMS 7.41N/mm
- Compliance CMS 187µm/N
- Equivalent volume to the compliance VAS 34.9L
- Mechanical resistance RMS 4.66N·s/m
- Surround material TPO Thermoplastic Polyurethane
- Spider material Treated Textile
Dimensions
- Nominal diameter 10″
- 254mm
- Baffle cutout diameter 237mm
- Mounting depth 136mm
- Volume occupied by the driver (estimated) 1.5L
- Frame material Composite Polycarbonate / Glass Fiber
