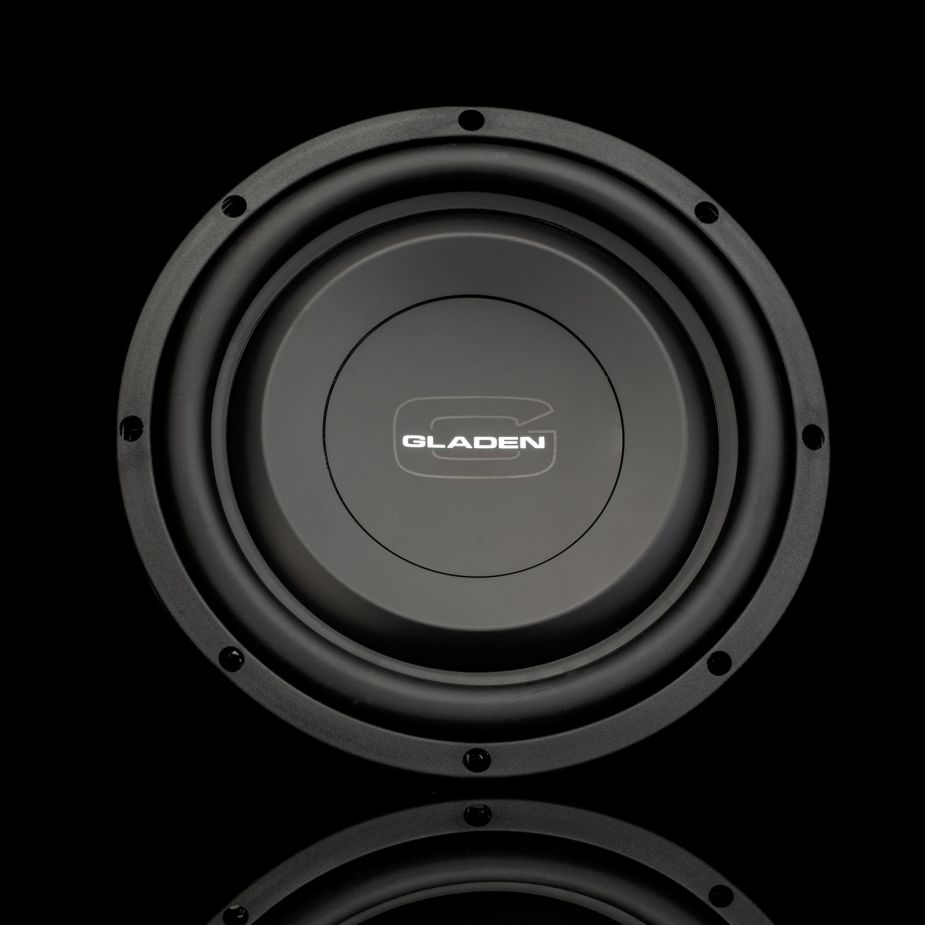

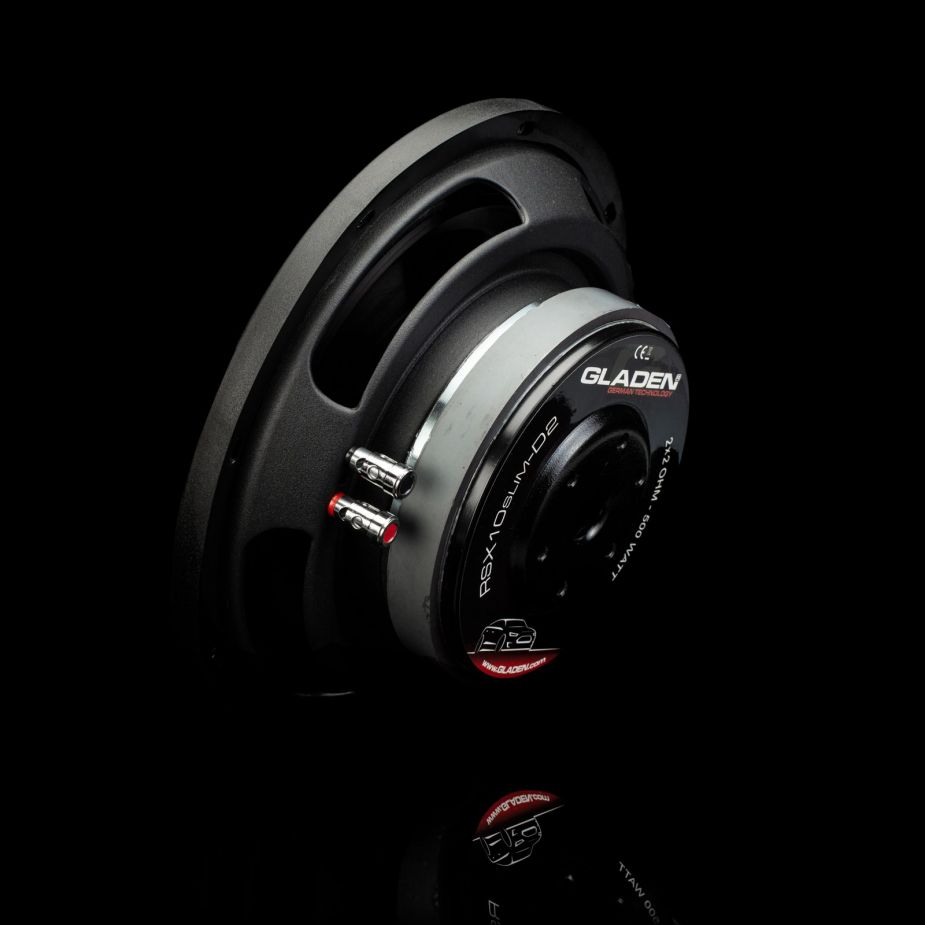

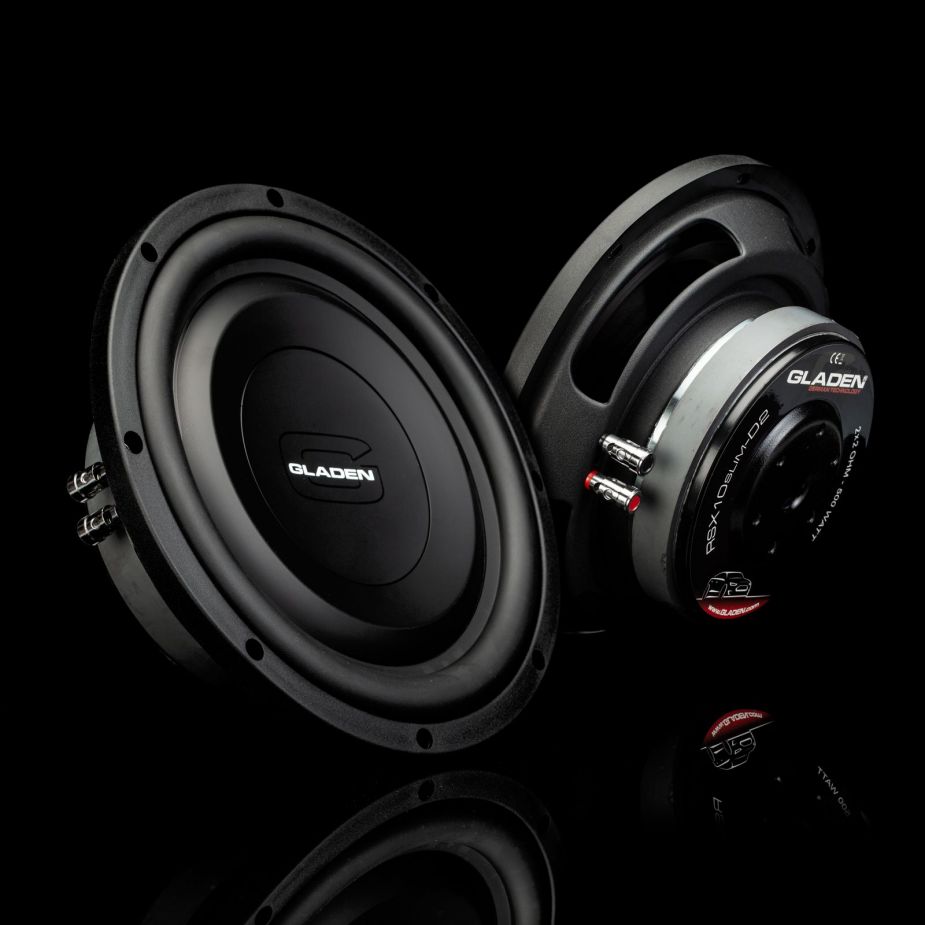

GLADEN RS-X 10 SLIM D2
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 261 mm |
| Resonance | 42 Hz |
| Q factor | 0.58 |
| Sensitivity | 86.9 dB |
| Linear excursion | ± 10 mm |
| Program power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 42Hz
- Mechanical quality factor QMS 17.40
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 350cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 1.79mH
Magnet
- Force factor (in series) Bl 13N/A
- Motor constant Bl/√RE 6.85N/√W
Diaphragm
- Effective diameter 211mm
- Effective area SD 350cm²
- Moving mass (including air load) MMS 107g
- Moving mass MMD 102g
Suspensions
- Stiffness KMS 7.41N/mm
- Compliance CMS 135µm/N
- Equivalent volume to the compliance VAS 23.4L
- Mechanical resistance RMS 1.62N·s/m
Dimensions
- Nominal diameter 10″
- 261mm
- Overall diameter 261mm
- Baffle cutout diameter 230mm
- Mounting depth 82mm
- Volume occupied by the driver (estimated) 1.6L
