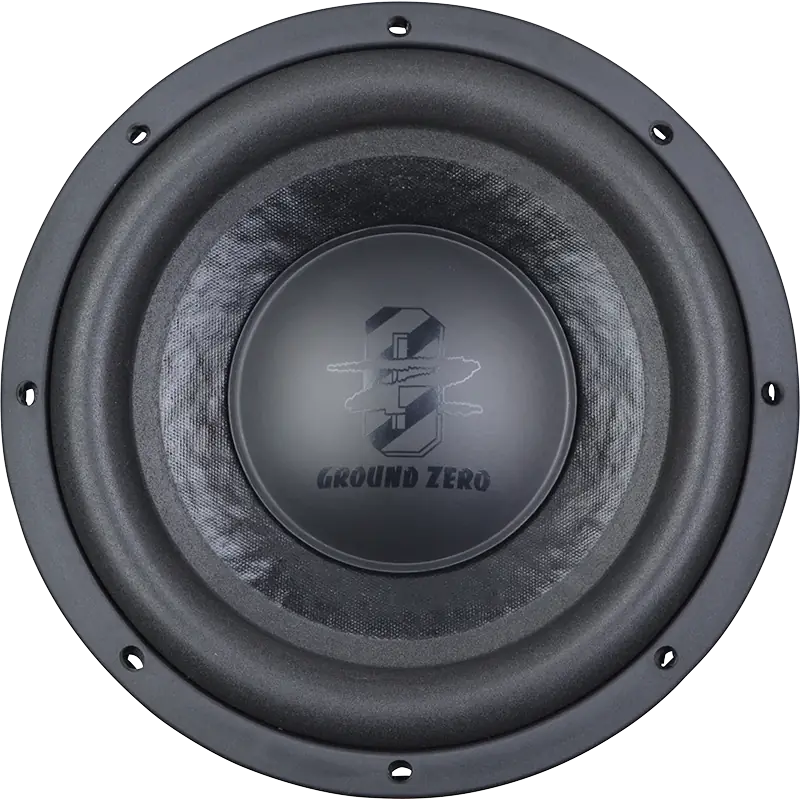

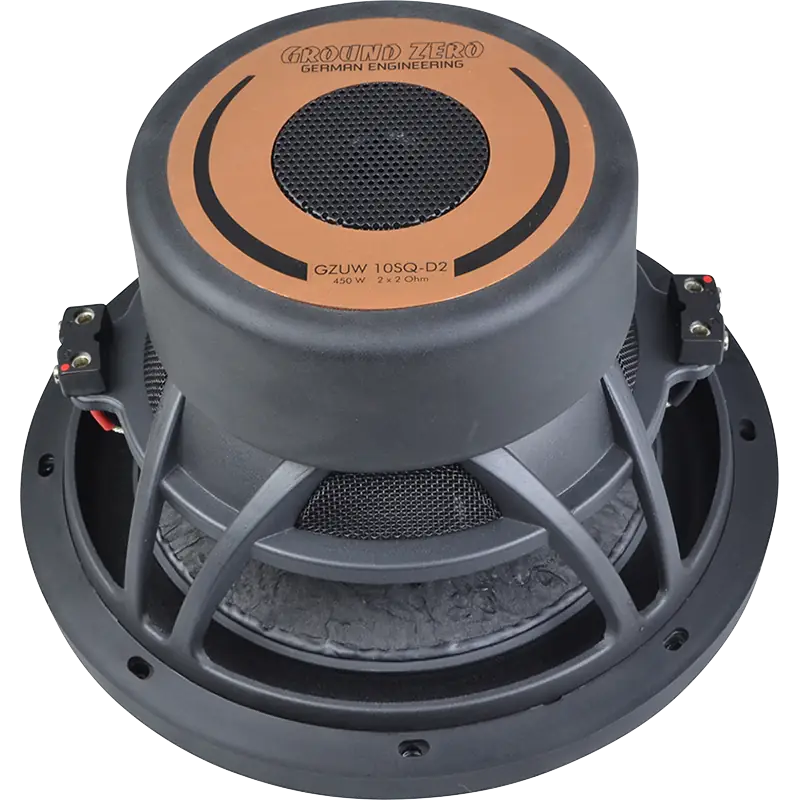

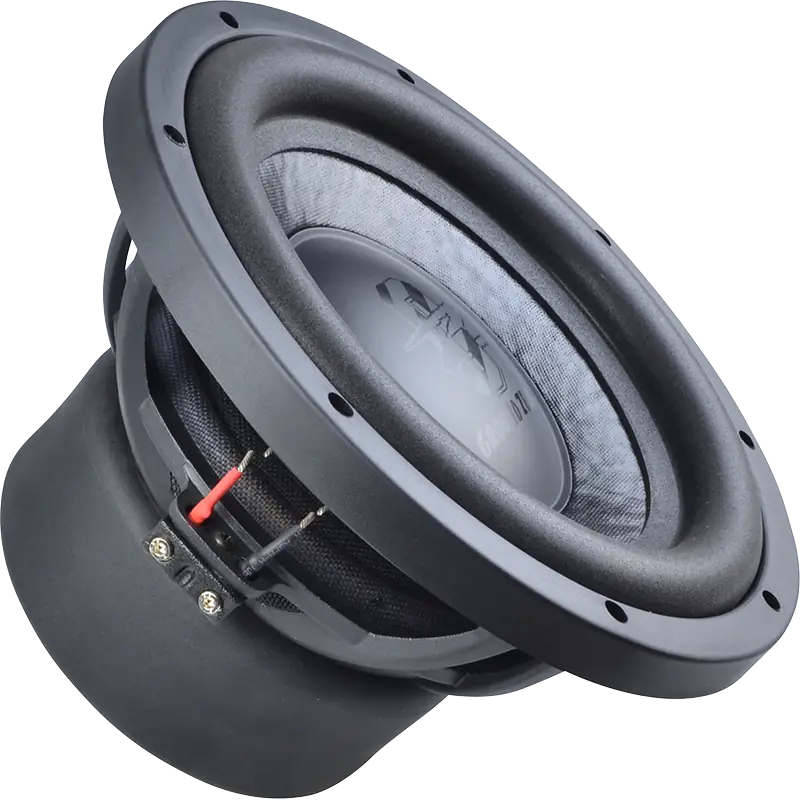

Ground Zero URANIUM GZUW 10SQ-D2
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 40.2 Hz |
| Q factor | 0.54 |
| Sensitivity | 86.2 dB |
| Linear excursion | ± 10 mm |
| Program Power | 900 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.2dB
Thiele & Small parameters
- Resonance frequency (free air) fS 40.2Hz
- Mechanical quality factor QMS 13.60
- Electrical quality factor QES 0.56
- Total quality factor QTS 0.54
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 345cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 1.95mH
- VC Diameter 50mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 14.8N/A
- Motor constant Bl/√RE 7.41N/√W
Diaphragm
- Effective diameter 210mm
- Effective area SD 345cm²
- Moving mass MMS 122g
- Moving mass (without air load) MMD 118g
- Material Paper
Suspensions
- Stiffness KMS 7.75N/mm
- Compliance CMS 129µm/N
- Equivalent volume to the compliance VAS 21.8L
- Mechanical resistance RMS 2.27N·s/m
- Spider material Polycot
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 262mm
- Baffle cutout diameter 236mm
- Mounting depth 148mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Aluminium cast
