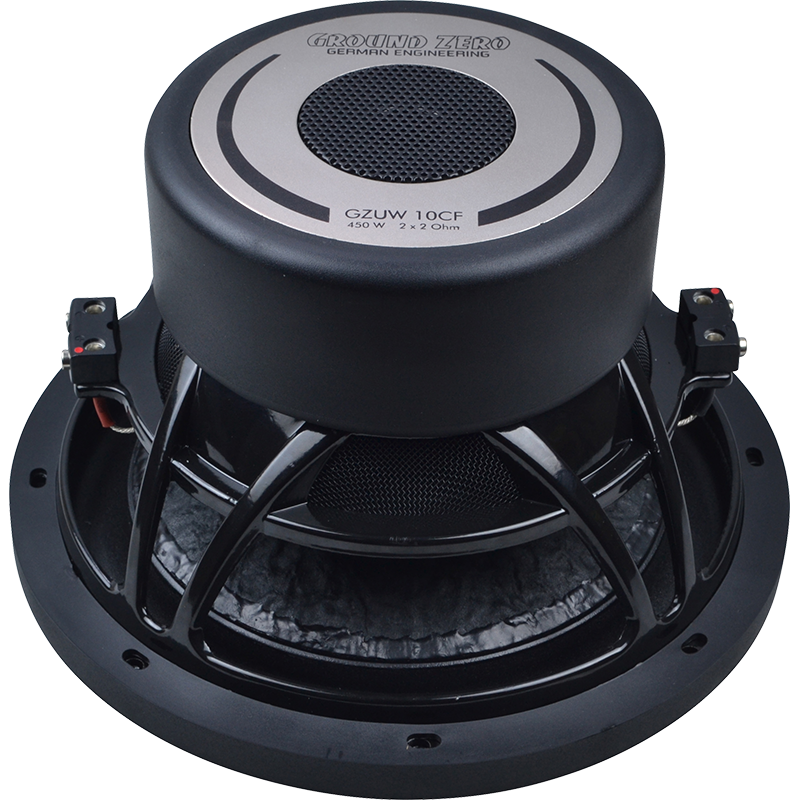

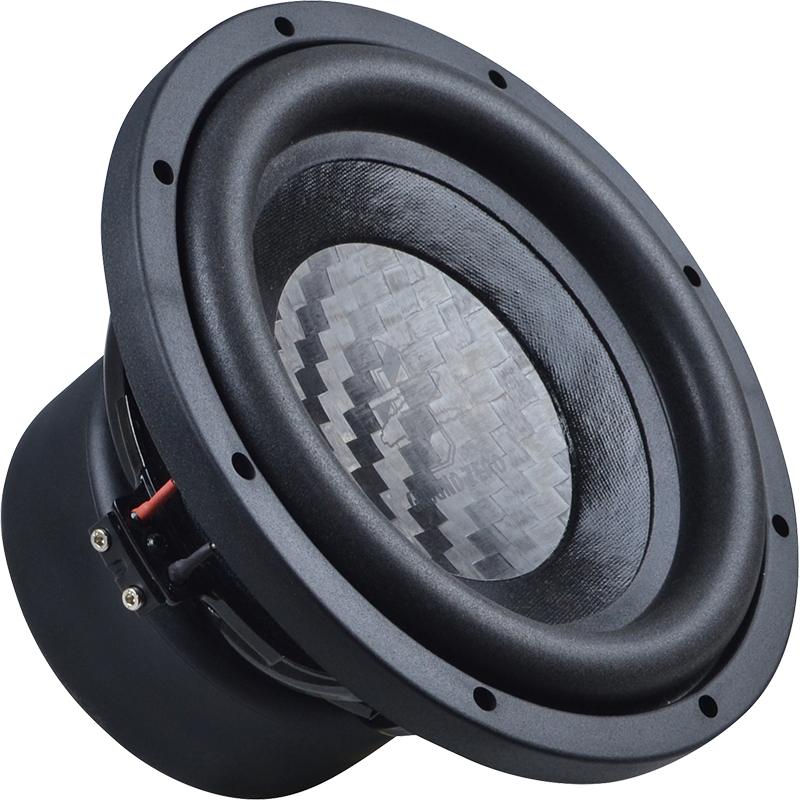

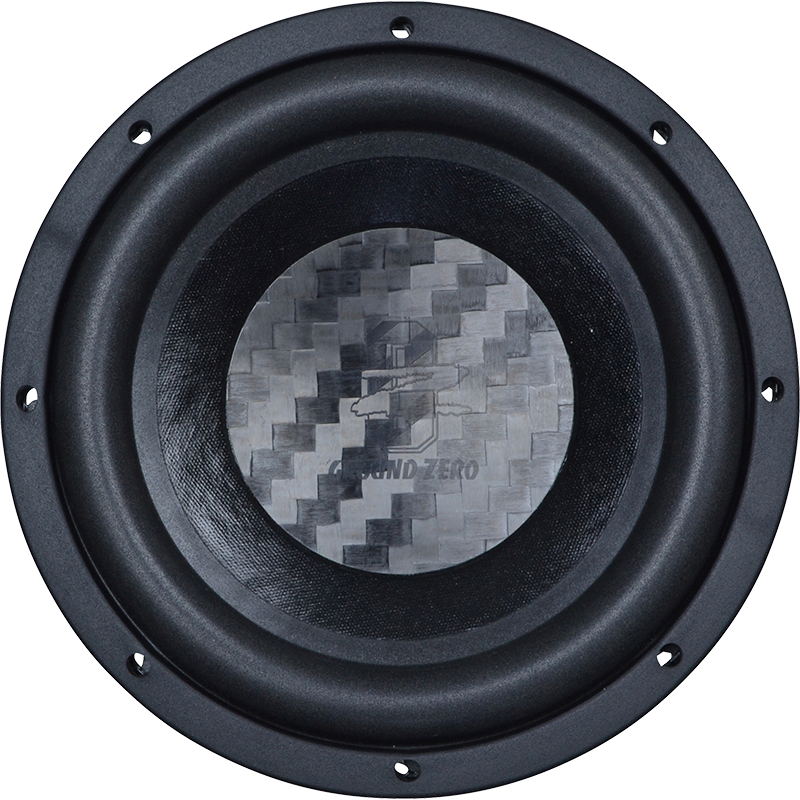

Ground Zero URANIUM GZUW 10CF
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 40 Hz |
| Q factor | 0.52 |
| Sensitivity | 86.5 dB |
| Linear excursion | ± 10 mm |
| Program Power | 900 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 40Hz
- Mechanical quality factor QMS 14.50
- Electrical quality factor QES 0.54
- Total quality factor QTS 0.52
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 346cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.1Ω
- Inductance (1kHz, in series) LE 2.02mH
- VC Diameter 50mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 15.4N/A
- Motor constant Bl/√RE 7.61N/√W
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 121g
- Moving mass (without air load) MMD 116g
- Material Pressed and coated paper
Suspensions
- Stiffness KMS 7.87N/mm
- Compliance CMS 127µm/N
- Equivalent volume to the compliance VAS 21.4L
- Mechanical resistance RMS 2.1N·s/m
- Spider material Polycot
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 262mm
- Baffle cutout diameter 236mm
- Mounting depth 148mm
- Volume occupied by the driver (estimated) 1.6L
- Frame material Aluminium cast
