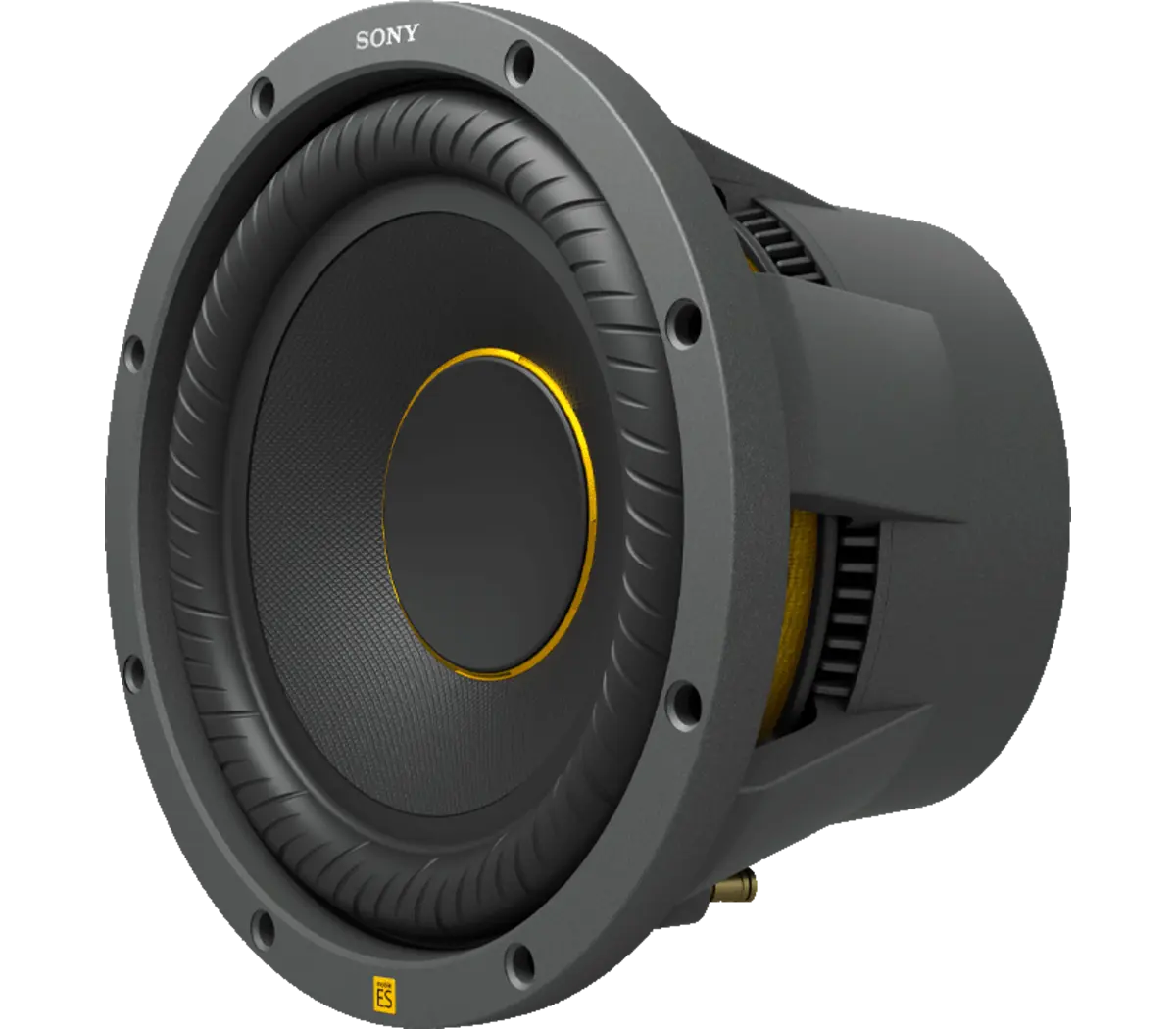

SONY XS-W104ES
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 39.6 Hz |
| Q factor | 0.49 |
| Sensitivity | 86.7 dB |
| Linear excursion | ± 6.5 mm |
| Program Power | 900 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.7dB
- Frequency response 28 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 39.6Hz
- Mechanical quality factor QMS 7.03
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion xmax 6.5mm
- Air volume displaced at xmax VD 235cm³
- Power handling P 450W
- Program power Pmax 900W
- Peak power Ppeak 1800W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.8Ω
- Inductance (1kHz) LE 2.95mH
Magnet
- Force factor Bl 15.4N/A
- Motor constant Bl/√RE 7.89N/√W
Diaphragm
- Effective diameter 215mm
- Effective area SD 362cm²
- Moving mass MMS 129g
- Moving mass (without air load) MMD 124g
Suspensions
- Stiffness KMS 8N/mm
- Compliance CMS 125µm/N
- Equivalent volume to the compliance VAS 23.3L
- Mechanical resistance RMS 4.58N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 279mm
- Baffle cutout diameter 234mm
- Overall depth 150mm
- Flange thickness 13mm
- Mounting depth 137mm
- Volume occupied by the driver (estimated) 192L
- Net weight 4960.0kg
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
