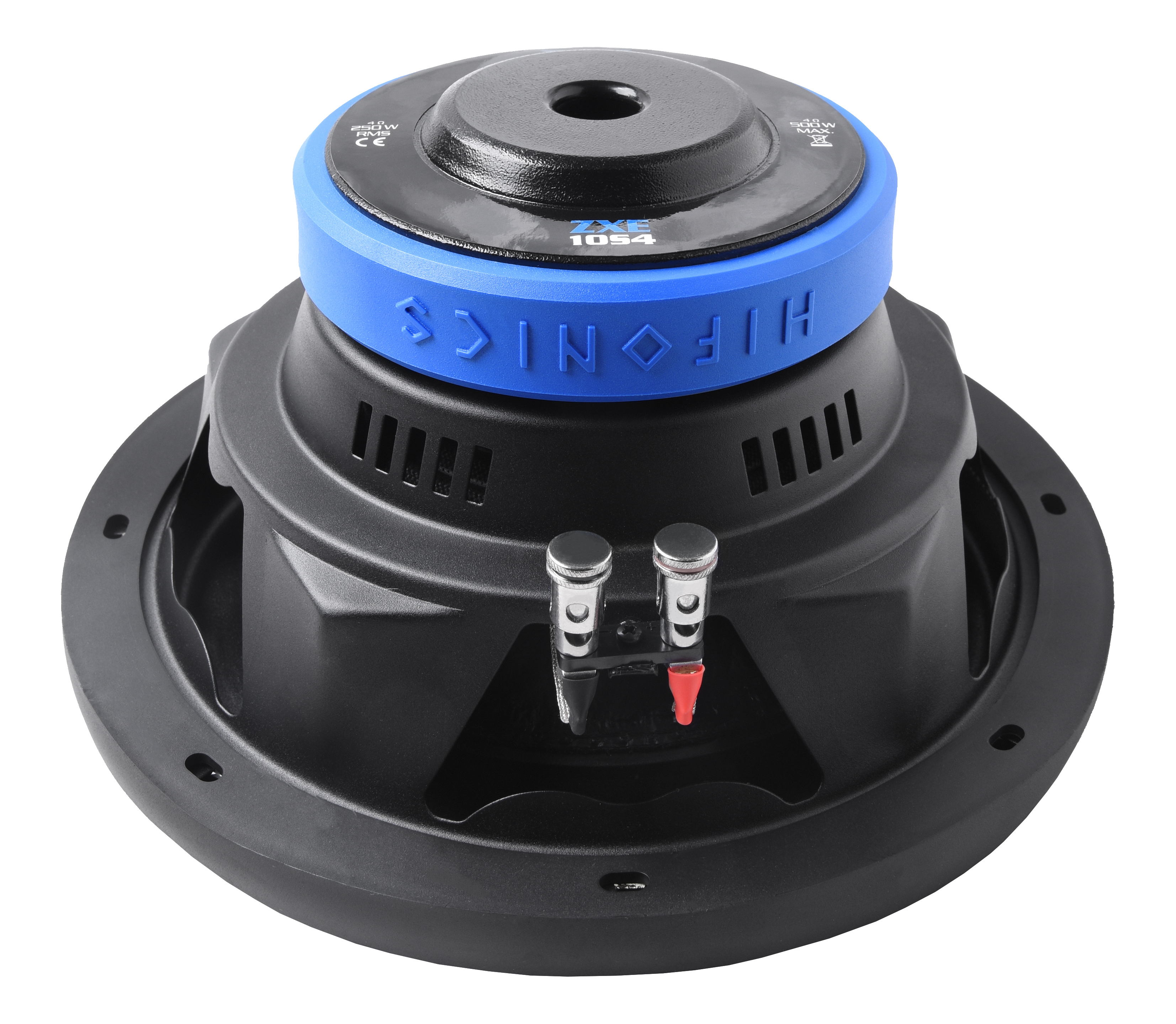

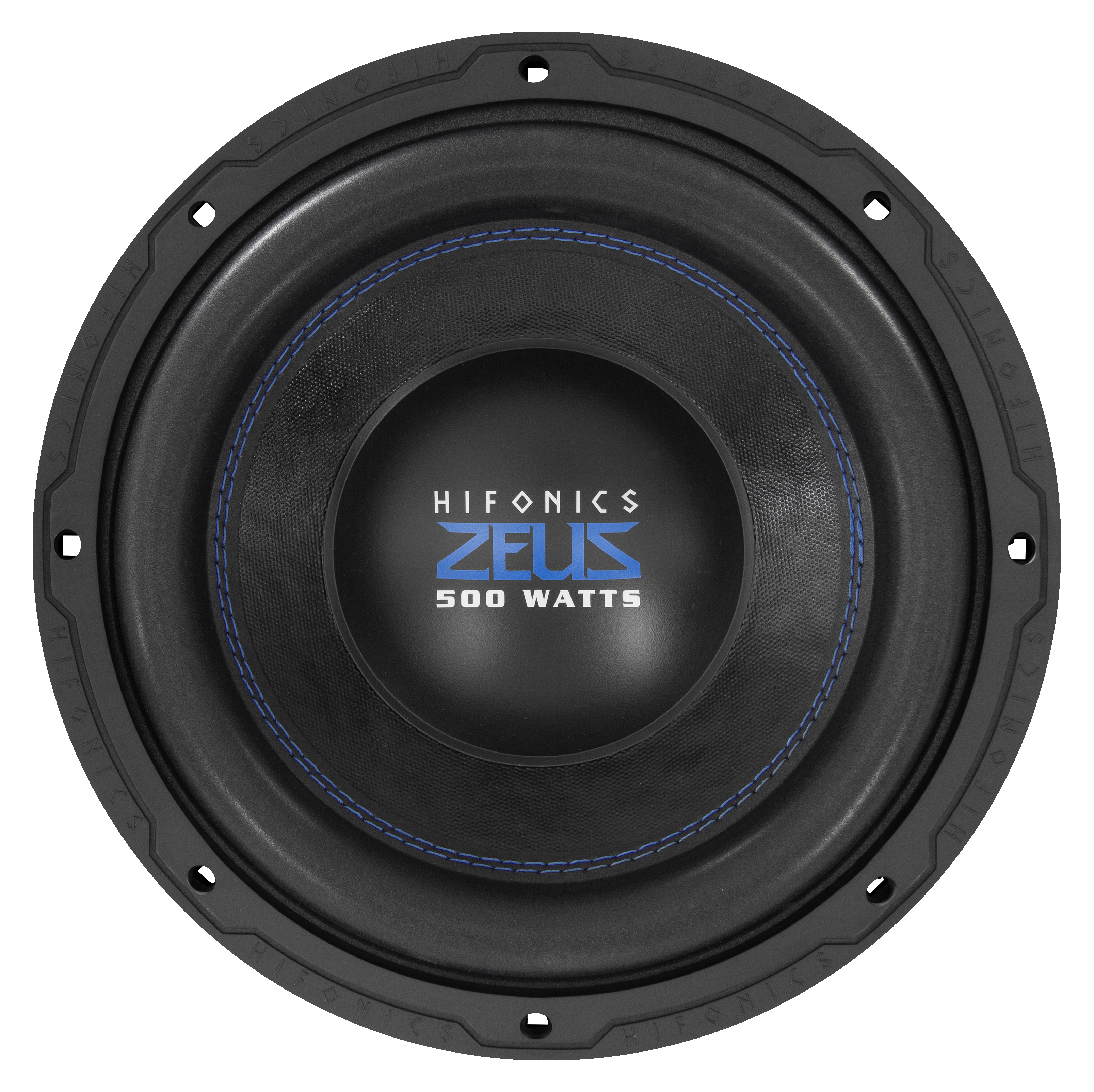

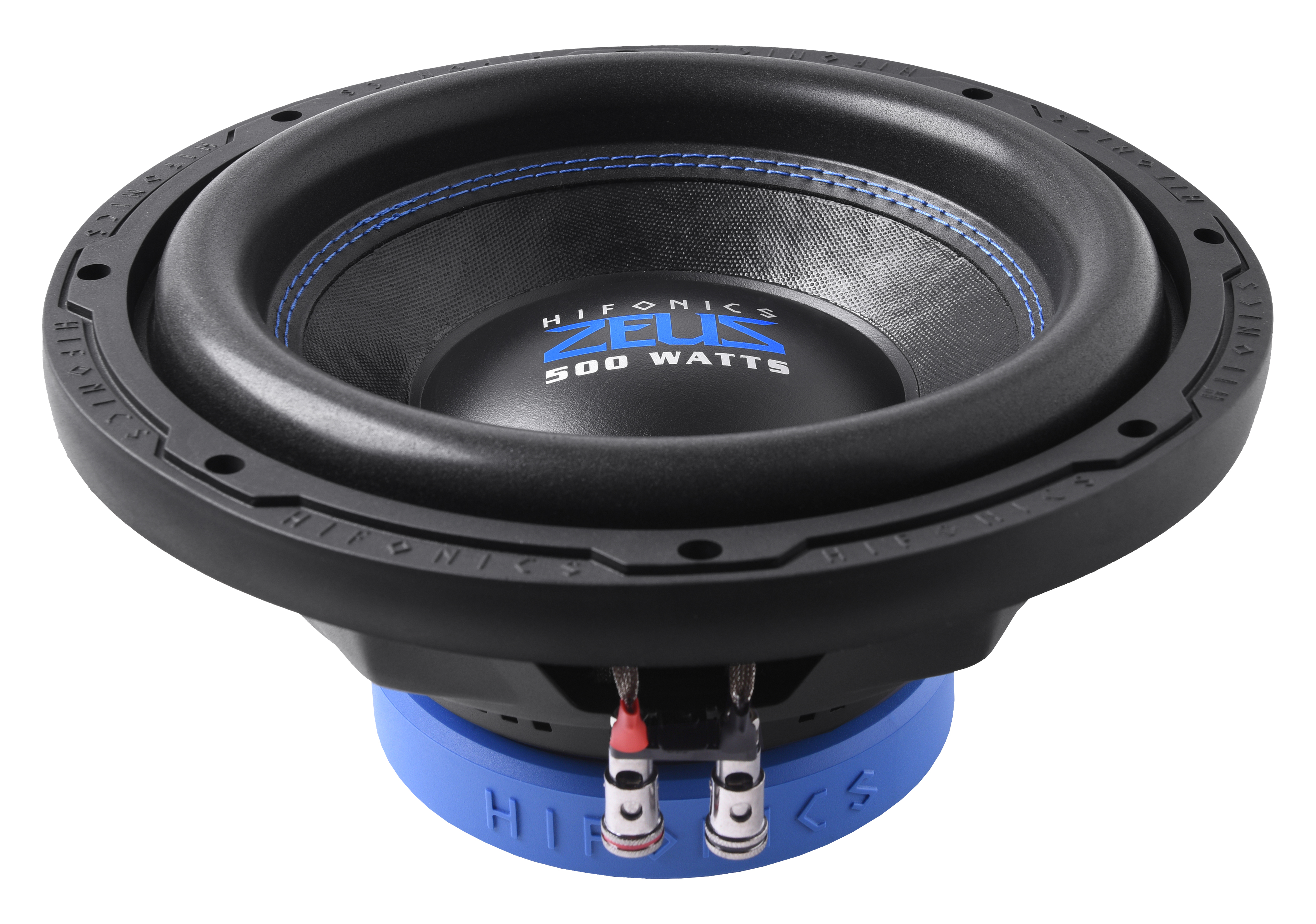

HiFonics ZEUS EVOLUTION ZXE10S4
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 39 Hz |
| Q factor | 0.57 |
| Sensitivity | 86.3 dB |
| Linear excursion | ± 3.5 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 3.39
- Electrical quality factor QES 0.69
- Total quality factor QTS 0.57
Large signal parameters
- Maximum linear excursion (one way) xmax 3.5mm
- Maximum excursion before damage xlim 16mm
- Air volume displaced at xmax VD 119cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.1Ω
- Inductance (1kHz, estimated) LE 1.35mH
- VC Diameter 64mm
- Winding height HVC 15mm
- Former material Aluminium
Magnet
- Force factor Bl 9.9N/A
- Motor constant Bl/√RE 5.62N/√W
- Diameter 140mm
- Height 20mm
- Weight 1.134kg
- Material Ferrite (Y35)
Diaphragm
- Effective diameter 208mm
- Effective area SD 339cm²
- Moving mass MMS 87.8g
- Moving mass (without air load) MMD 83g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 5.35N/mm
- Compliance CMS 187µm/N
- Equivalent volume to the compliance VAS 30.5L
- Mechanical resistance RMS 6.35N·s/m
- Surround material Foam
- Spider material Polycot
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 276mm
- Baffle cutout diameter 238mm
- Mounting depth 120mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Steel
