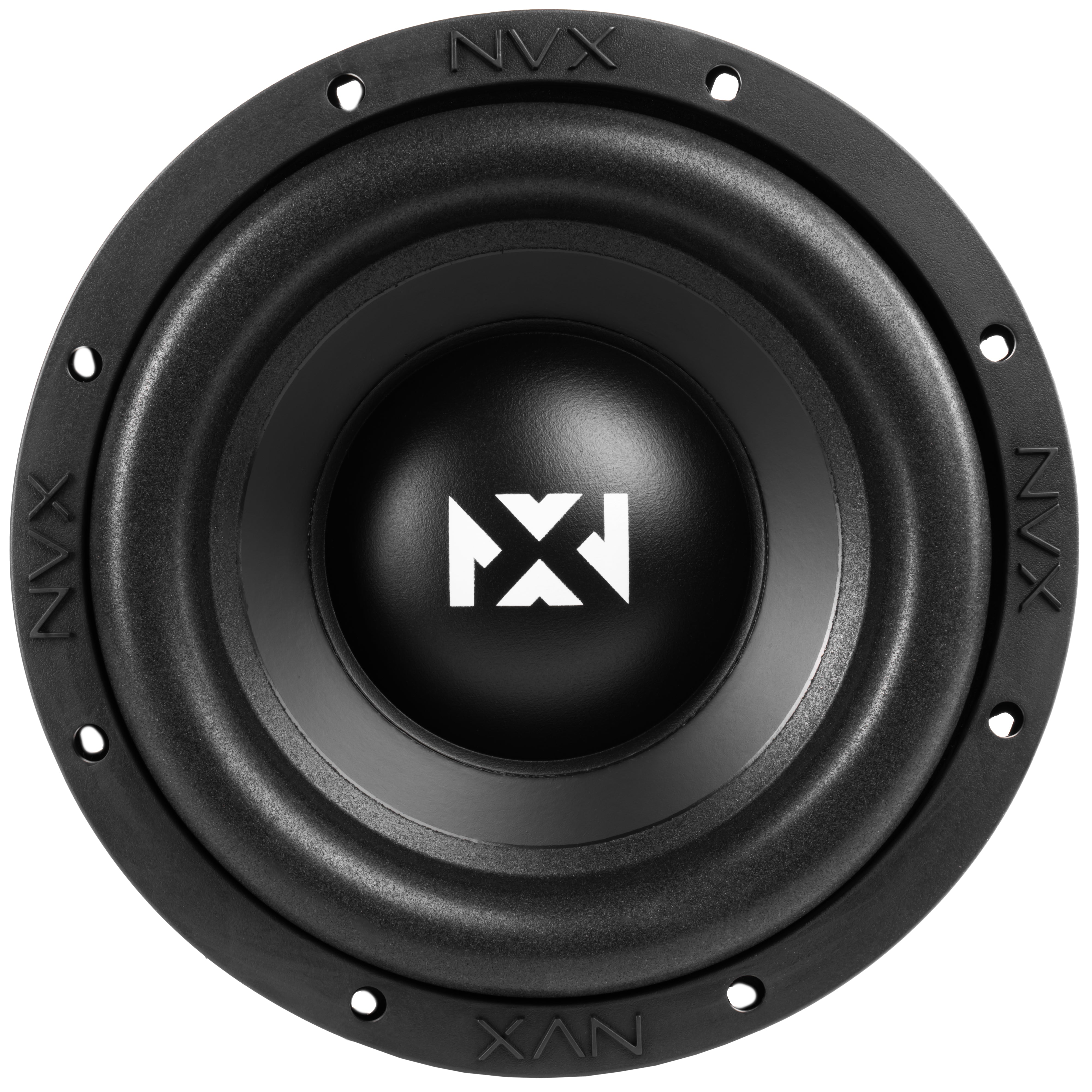

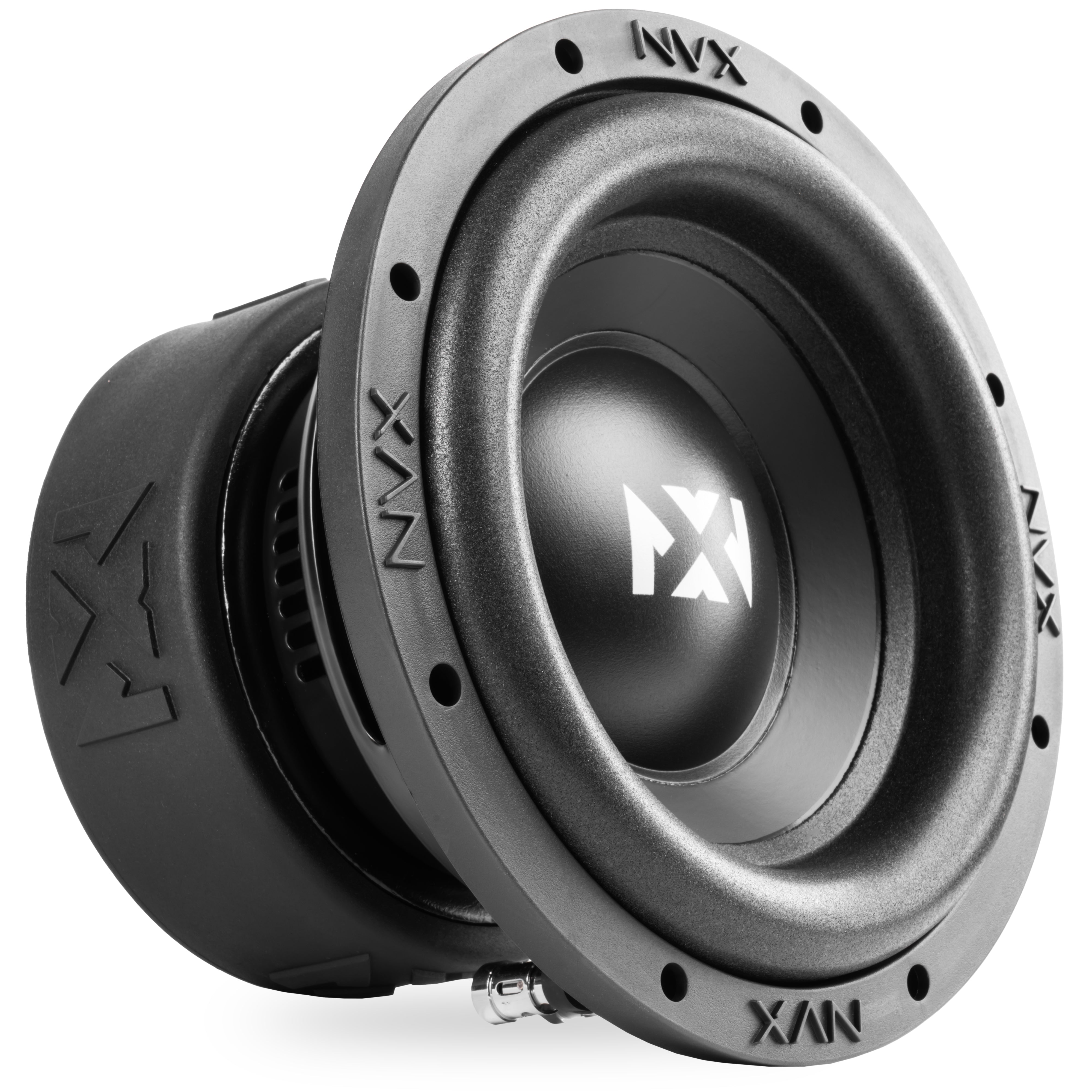

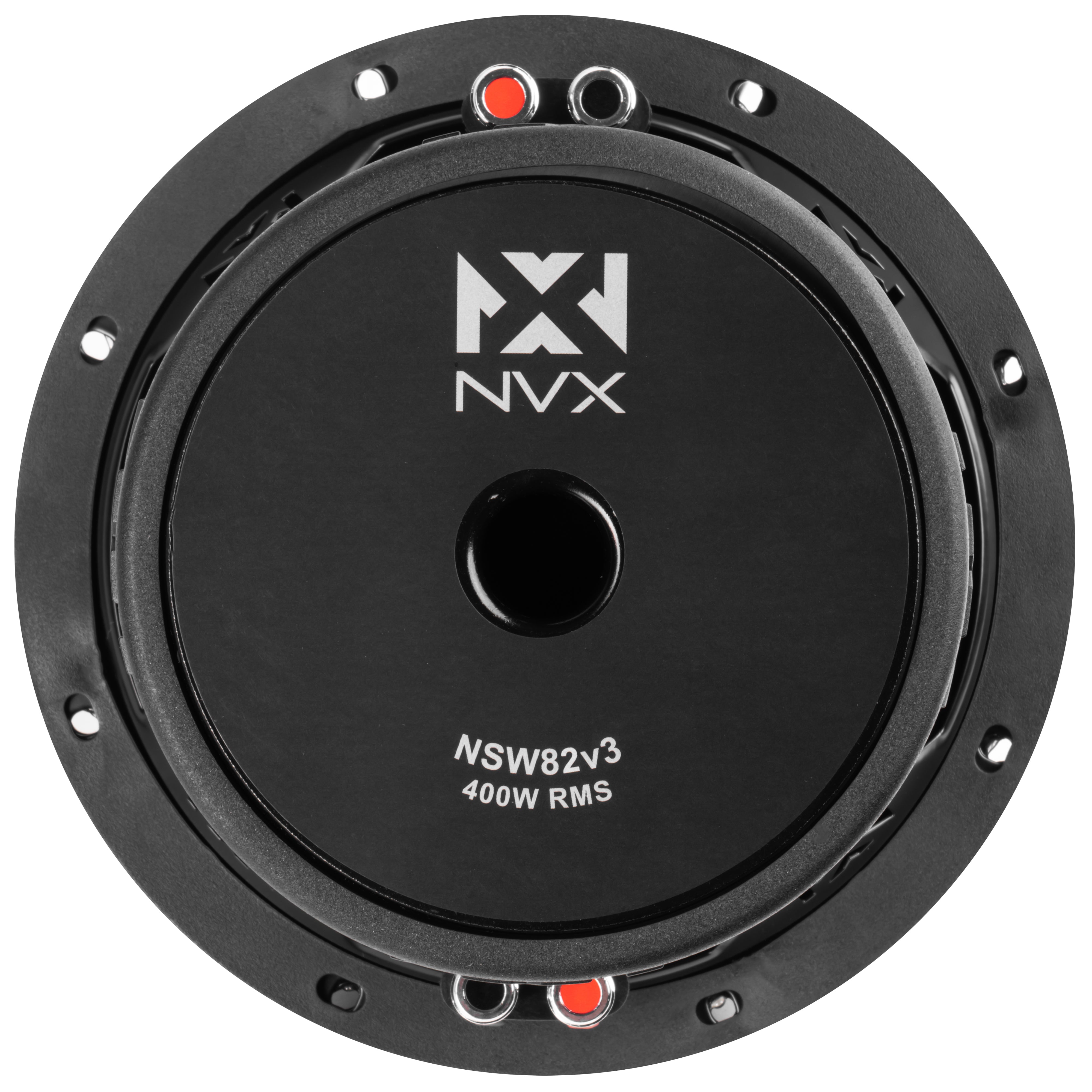

NVX NSW82v3
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 39.1 Hz |
| Q factor | 0.39 |
| Sensitivity | 81.4 dB |
| Linear excursion | ± 10.5 mm |
| Program power | 800 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.4dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 39.1Hz
- Mechanical quality factor QMS 4.52
- Electrical quality factor QES 0.42
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 10.5mm
- Air volume displaced at xmax VD 211cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 2.43mH
Magnet
- Force factor (in series) Bl 18.6N/A
- Motor constant Bl/√RE 9.54N/√W
Diaphragm
- Effective diameter 160mm
- Effective area SD 201cm²
- Moving mass (including air load) MMS 156g
- Moving mass MMD 154g
Suspensions
- Stiffness KMS 9.43N/mm
- Compliance CMS 106µm/N
- Equivalent volume to the compliance VAS 6.05L
- Mechanical resistance RMS 8.49N·s/m
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 215mm
- Baffle cutout diameter 181mm
- Mounting depth 127mm
- Volume occupied by the driver 0.85L
- Net weight 5.7kg
