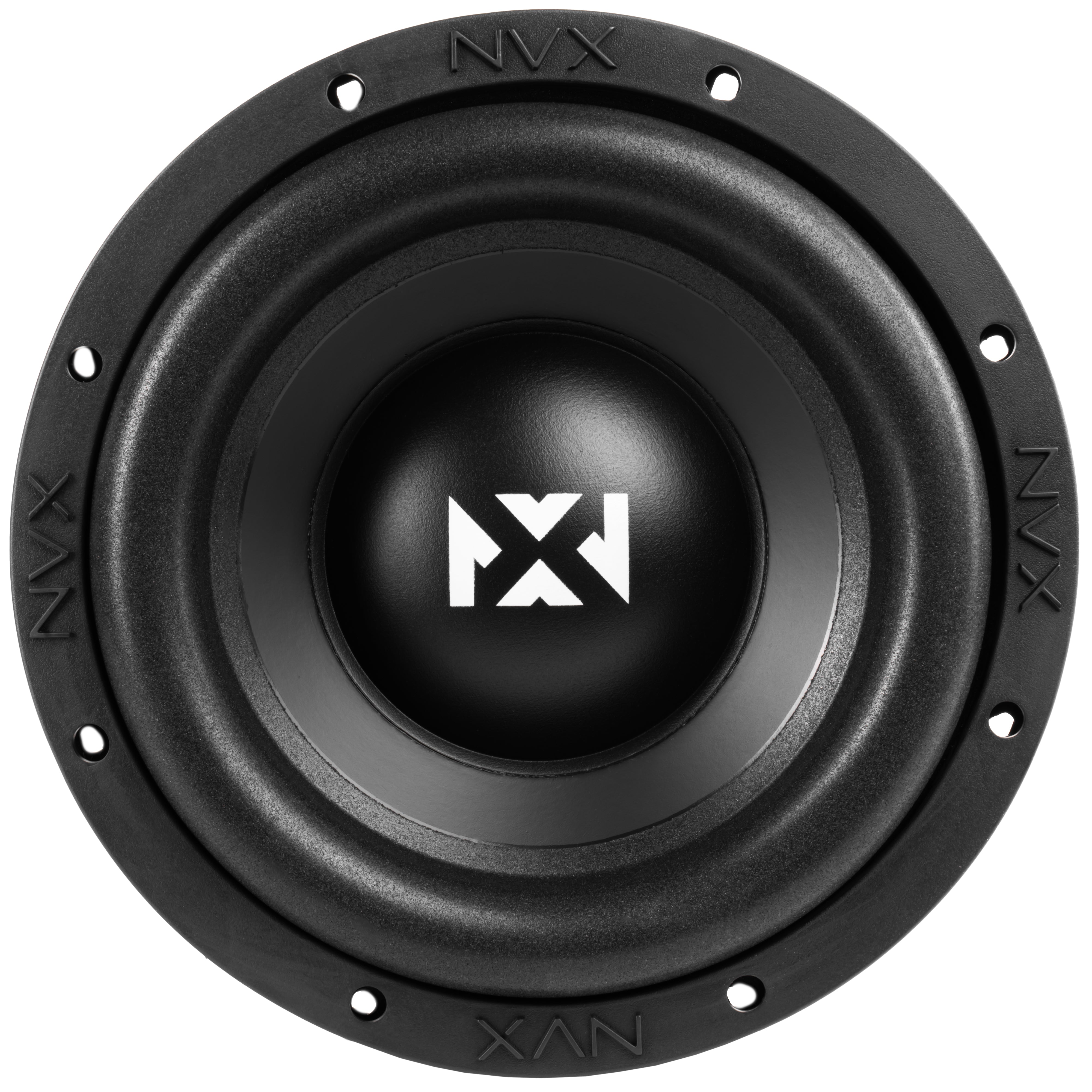

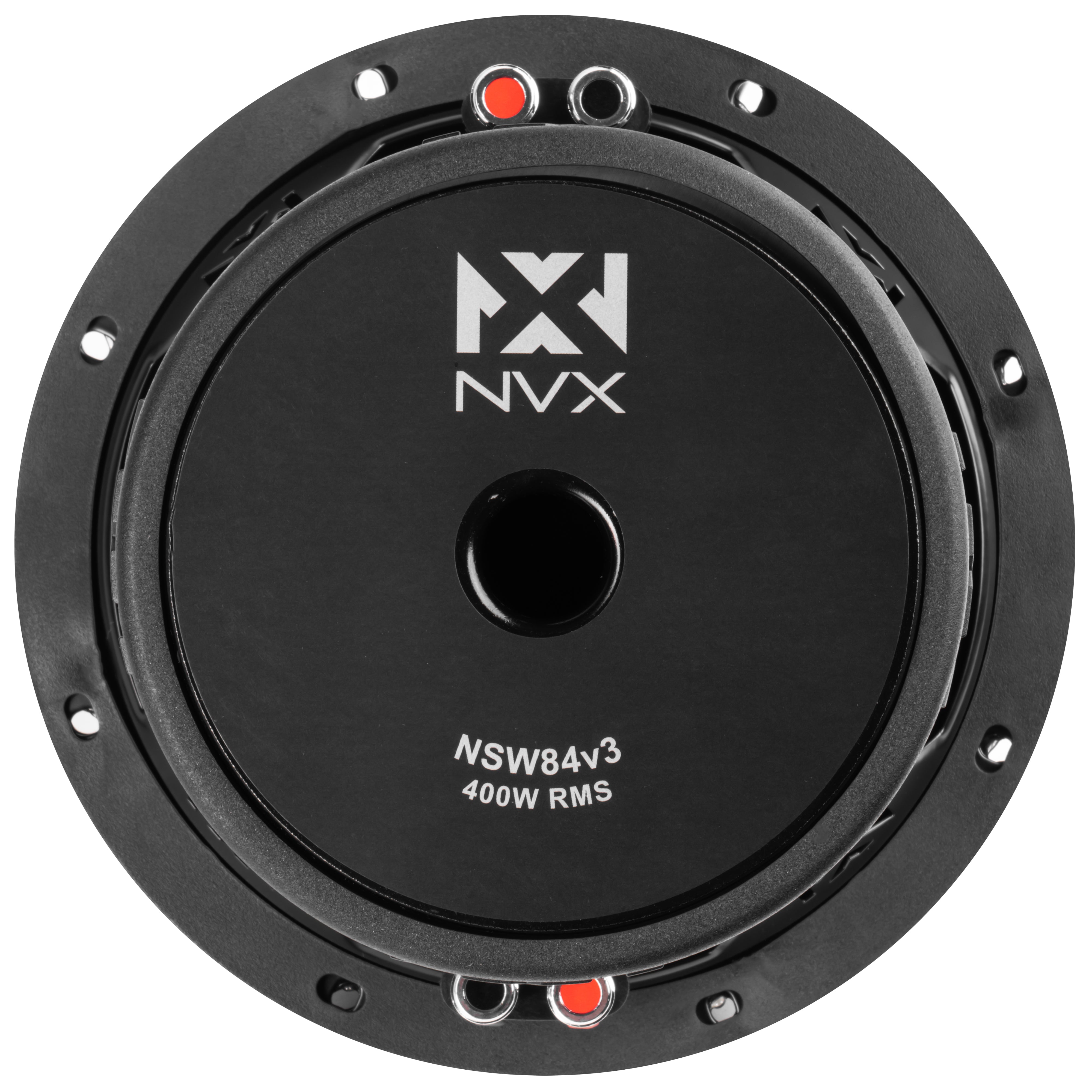

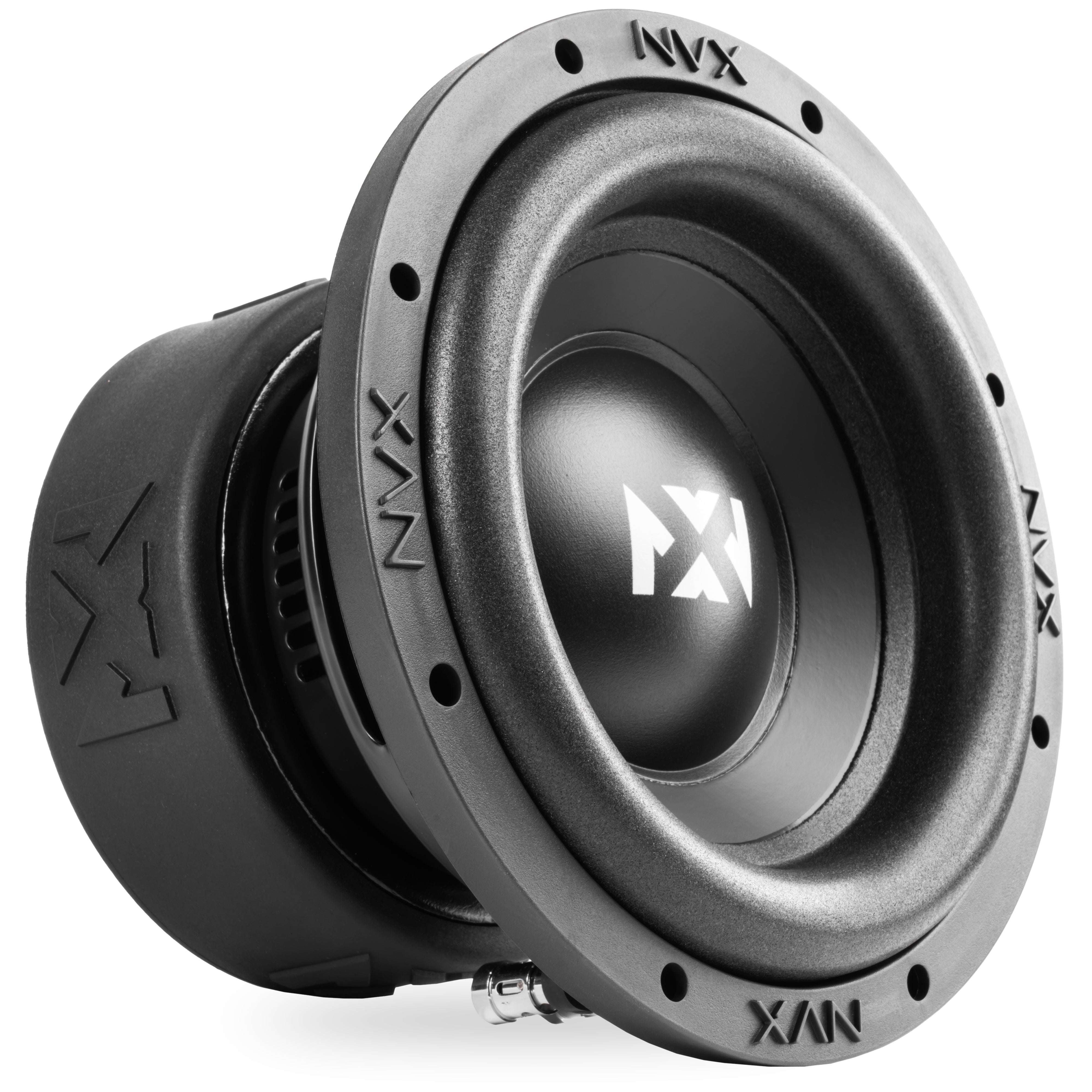

NVX NSW84v3
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 41.5 Hz |
| Q factor | 0.44 |
| Sensitivity | 81.5 dB |
| Linear excursion | ± 10.5 mm |
| Program power | 800 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.5dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41.5Hz
- Mechanical quality factor QMS 4.83
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion (one way) xmax 10.5mm
- Air volume displaced at xmax VD 211cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 3.89mH
Magnet
- Force factor (in series) Bl 22.2N/A
- Motor constant Bl/√RE 8.78N/√W
Diaphragm
- Effective diameter 160mm
- Effective area SD 201cm²
- Moving mass (including air load) MMS 145g
- Moving mass MMD 142g
Suspensions
- Stiffness KMS 9.8N/mm
- Compliance CMS 102µm/N
- Equivalent volume to the compliance VAS 5.85L
- Mechanical resistance RMS 7.79N·s/m
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 215mm
- Baffle cutout diameter 181mm
- Mounting depth 127mm
- Volume occupied by the driver 0.85L
- Net weight 5.7kg
