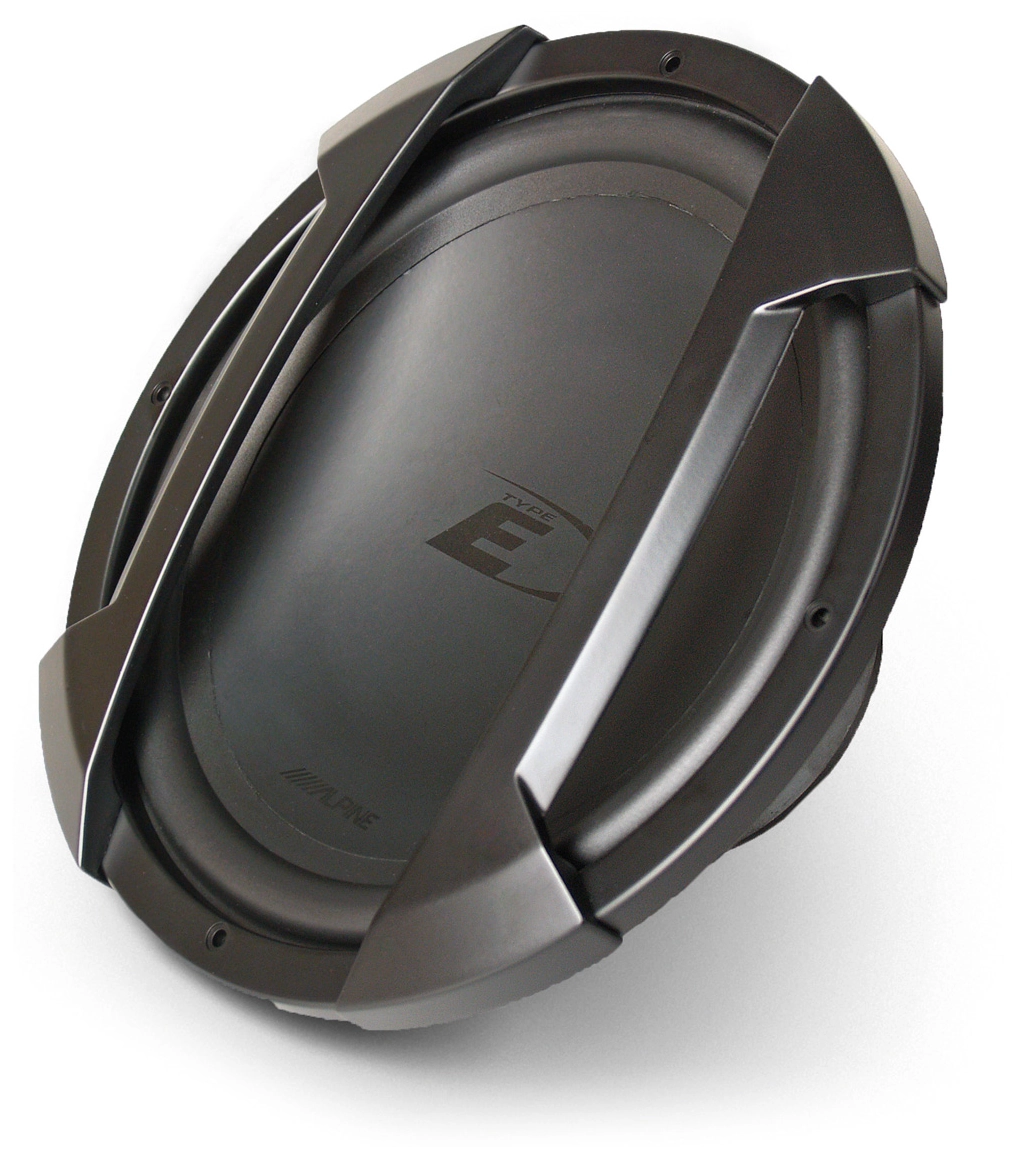

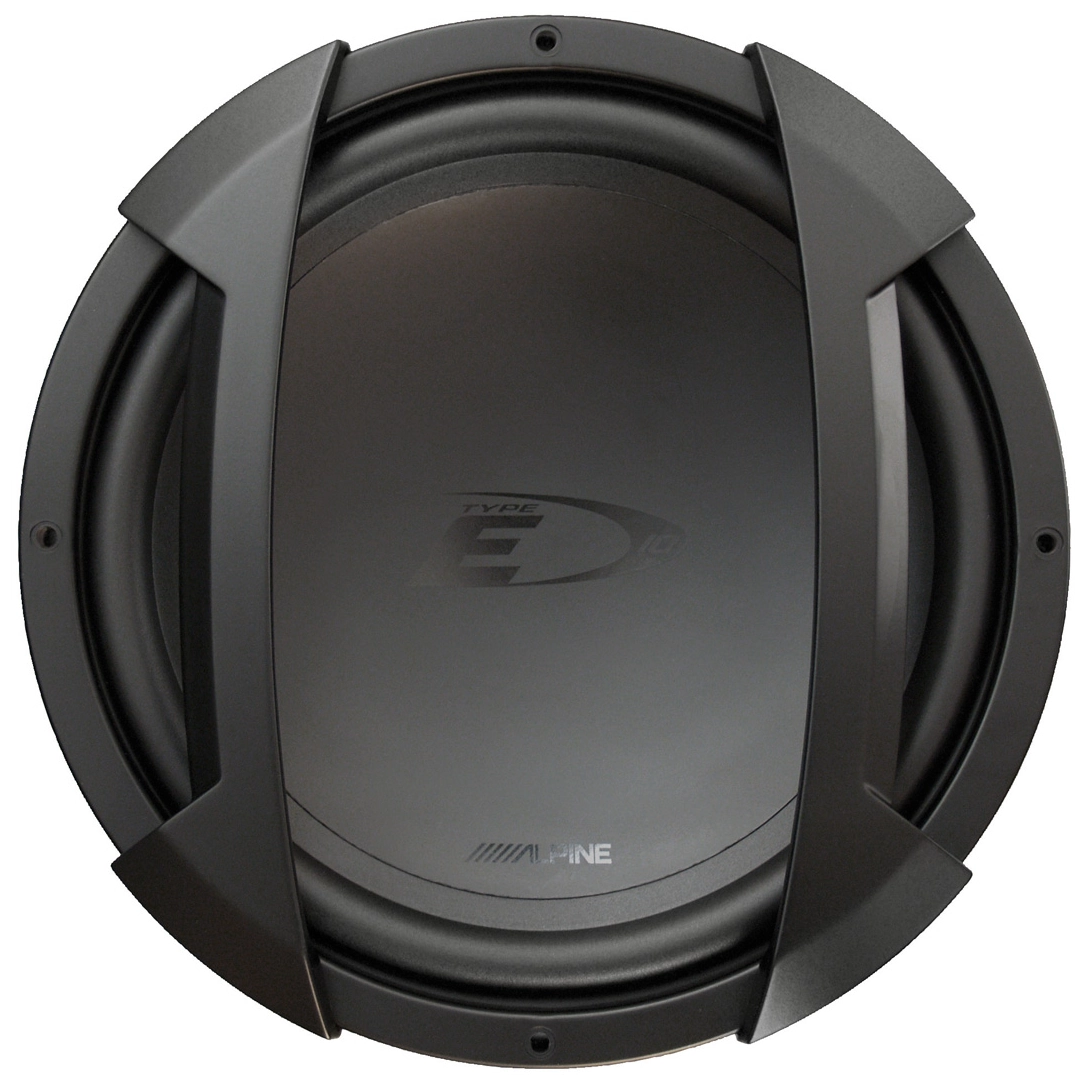

ALPINE SWE-1044E
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 34 Hz |
| Q factor | 0.49 |
| Sensitivity | 86.7 dB |
| Linear excursion | ± 8.5 mm |
| Program power | 300 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.7dB
- Frequency response 33 - 800Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 2.90
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion (one way) xmax 8.5mm
- Maximum excursion before damage xlim 17mm
- Air volume displaced at xmax VD 408cm³
- Power handling P 150W
- Program power Pmax 300W
- Peak power Ppeak 500W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 0.6mH
- VC Diameter 50mm
- Winding height HVC 24.5mm
- Winding material High Temp Copper Wire
- Former material ASV
Magnet
- Force factor Bl 13.1N/A
- Motor constant Bl/√RE 7.21N/√W
- Air gap height HAG 8mm
- Diameter 134mm
- Weight 1.23kg
- Material Double Stack Y-30 HQ-Strontium
Diaphragm
- Effective diameter 247mm
- Effective area SD 480cm²
- Moving mass (including air load) MMS 146g
- Moving mass MMD 140g
- Material Drenched Long-Fibre Pulp, Polypropylene Reinforced
Suspensions
- Stiffness KMS 6.67N/mm
- Compliance CMS 150µm/N
- Equivalent volume to the compliance VAS 49L
- Mechanical resistance RMS 10.8N·s/m
- Surround material Butyl Rubber
- Spider material Carbonized Coated Cotton
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 247mm
- Baffle cutout diameter 230mm
- Overall depth 125mm
- Flange thickness 10mm
- Mounting depth 115mm
- Volume occupied by the driver 1.9L
- Frame material Heavy Gauge Steel, Titanium Powder Coated
