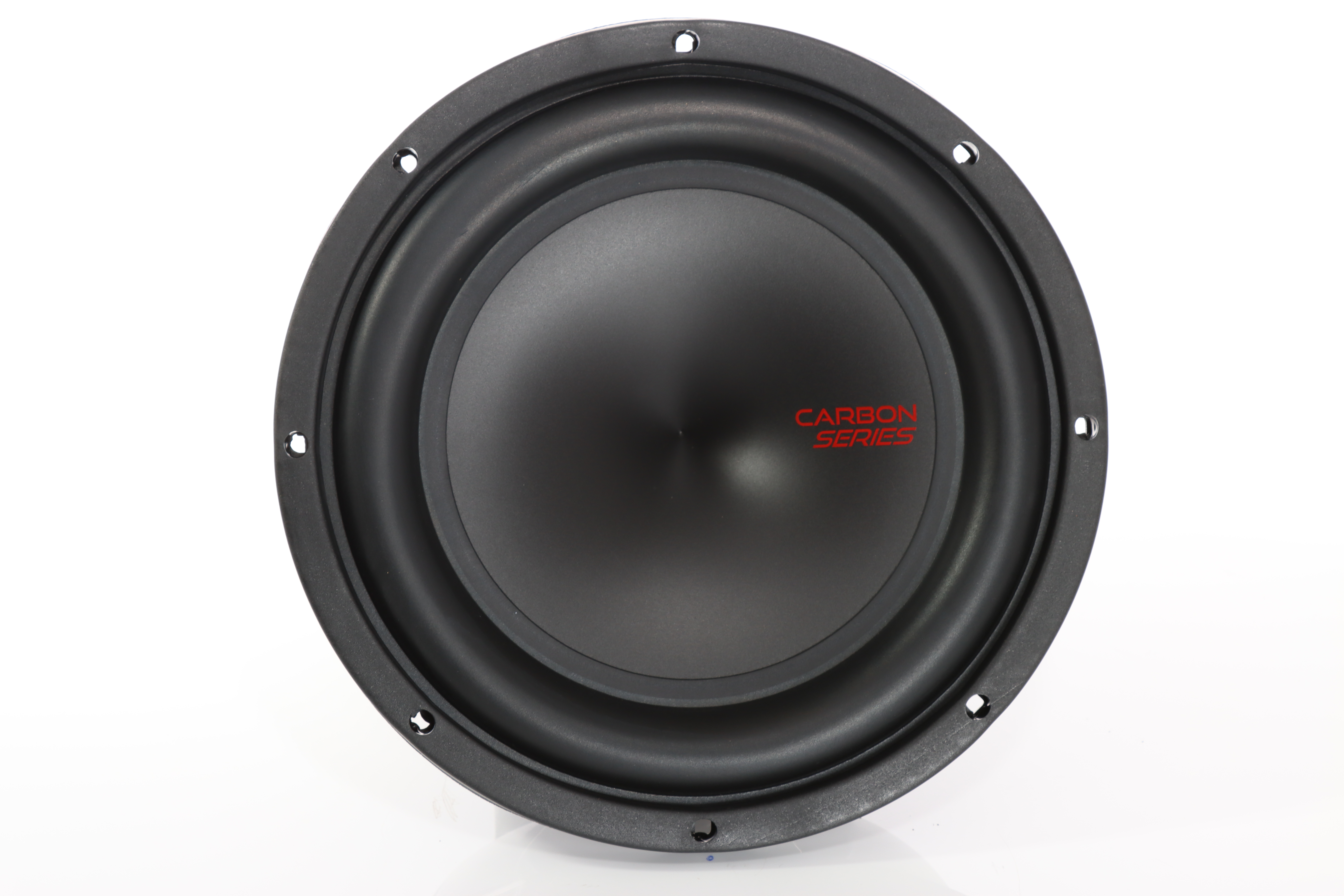

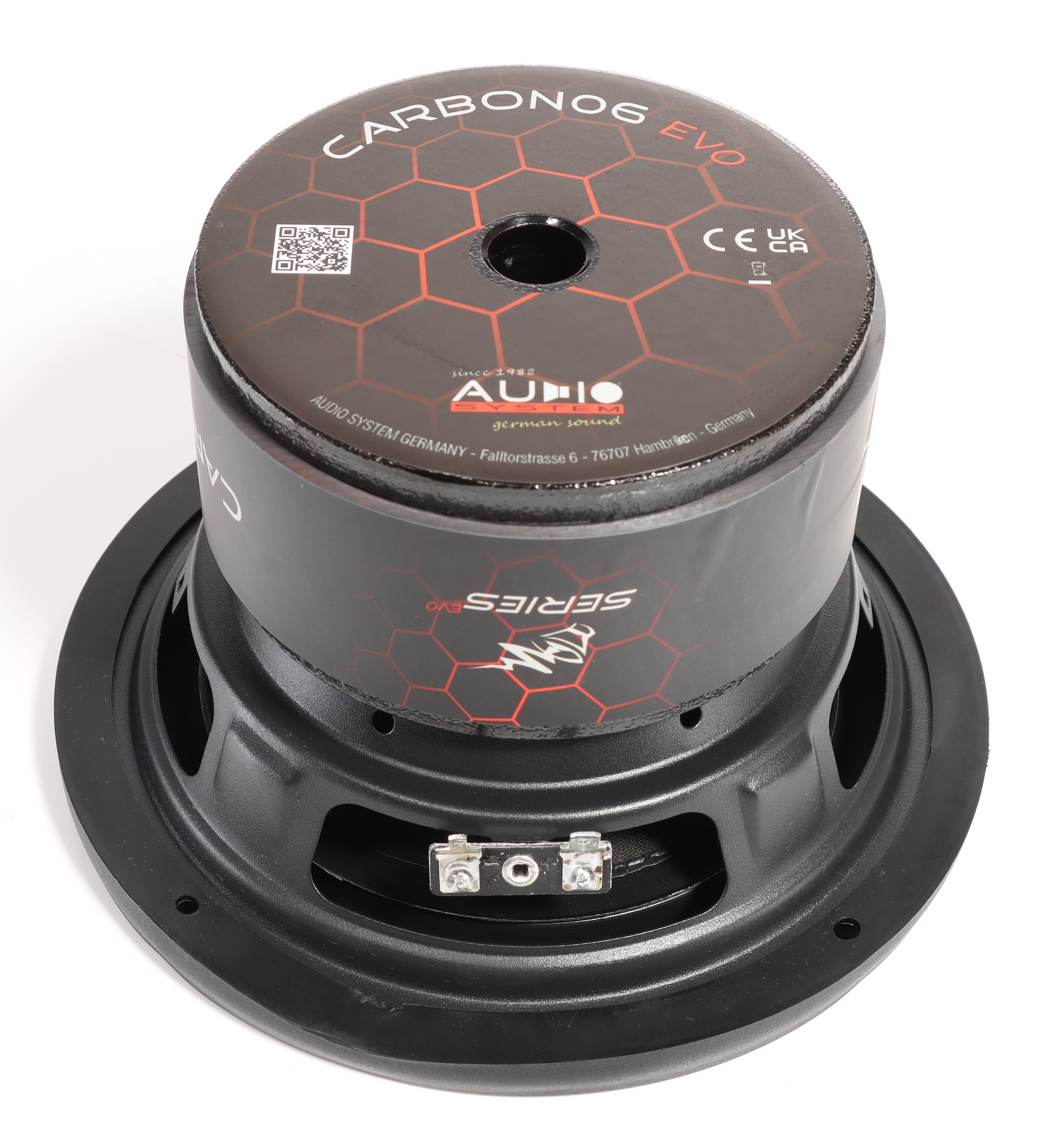

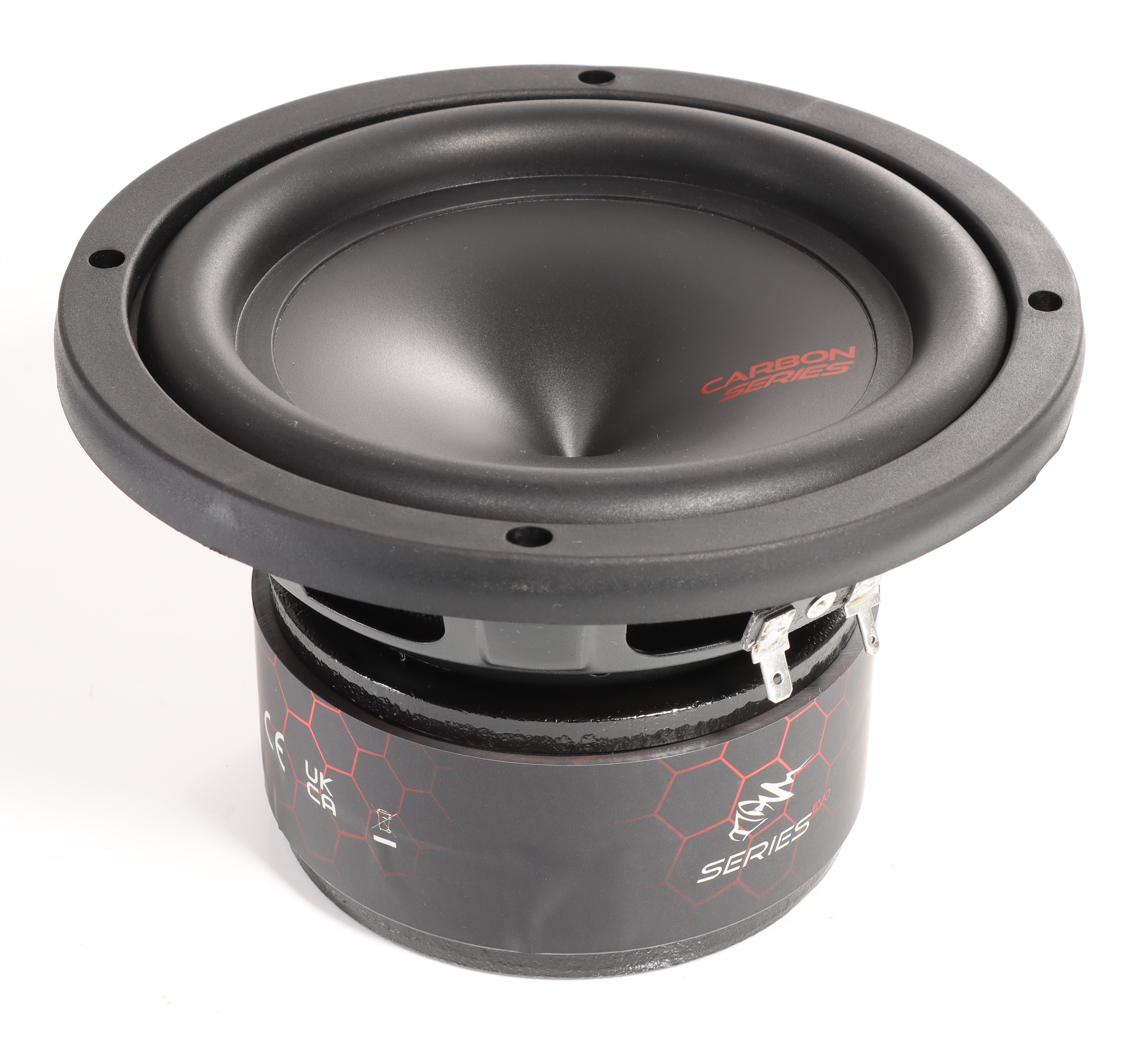

Audio System CARBON06 EVO
2x2Ω
4x2ΩSubwoofer
| Nominal diameter | 6.5″ / 171 mm |
| Resonance | 52.5 Hz |
| Q factor | 0.36 |
| Sensitivity | 79.9 dB |
| Linear excursion | ± 5 mm |
| Program power | 240 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 79.9dB
- Frequency response 35 - 800Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 52.5Hz
- Mechanical quality factor QMS 3.13
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion (one way) xmax 5mm
- Air volume displaced at xmax VD 64cm³
- Power handling P 160W
- Program power Pmax 240W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.2Ω
- Inductance (1kHz, in series, estimated) LE 1.2mH
- VC Diameter 38.6mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 7.82N/A
- Motor constant Bl/√RE 3.82N/√W
Diaphragm
- Effective diameter 128mm
- Effective area SD 129cm²
- Moving mass (including air load) MMS 46.5g
- Moving mass MMD 45.4g
- Material Paper
Suspensions
- Stiffness KMS 2.16N/mm
- Compliance CMS 463µm/N
- Equivalent volume to the compliance VAS 3.65L
- Mechanical resistance RMS 4.9N·s/m
- Surround material NBR (Rubber)
- Spider material PPTA Connex
Dimensions
- Nominal diameter 6.5″
- 171mm
- Overall diameter 171mm
- Baffle cutout diameter 145mm
- Overall depth 110mm
- Flange thickness 10mm
- Mounting depth 100mm
- Volume occupied by the driver (estimated) 1L
- Net weight 3.2kg
- Frame material Steel-Sheet
