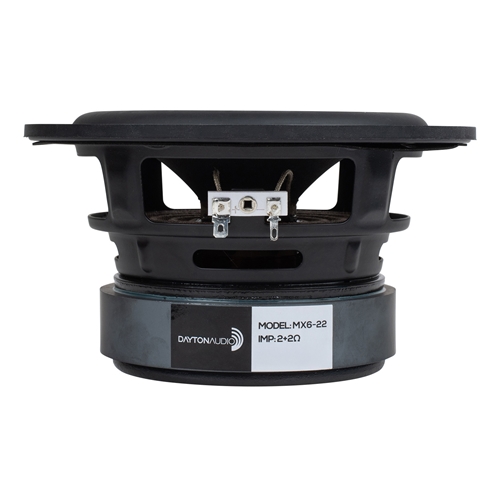

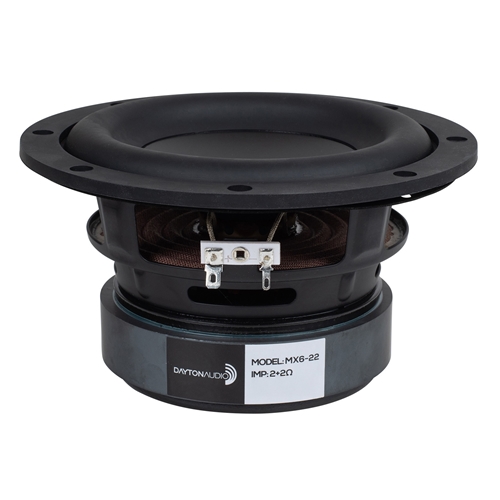

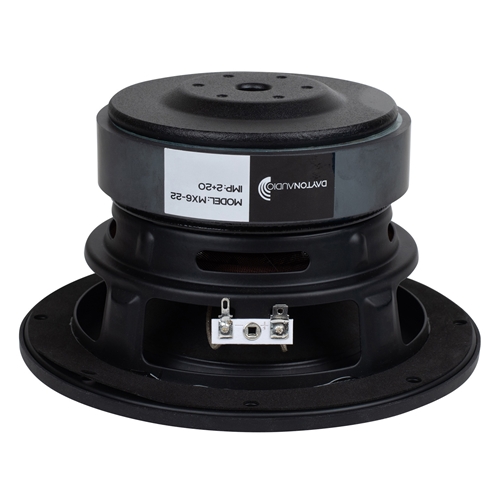

Dayton Audio Max-X MX6-22
2x2Ω
Subwoofer
| Nominal diameter | 6.5″ / 182 mm |
| Resonance | 30 Hz |
| Q factor | 0.33 |
| Sensitivity | 80.4 dB |
| Linear excursion | ± 12 mm |
| Program Power | 140 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.4dB

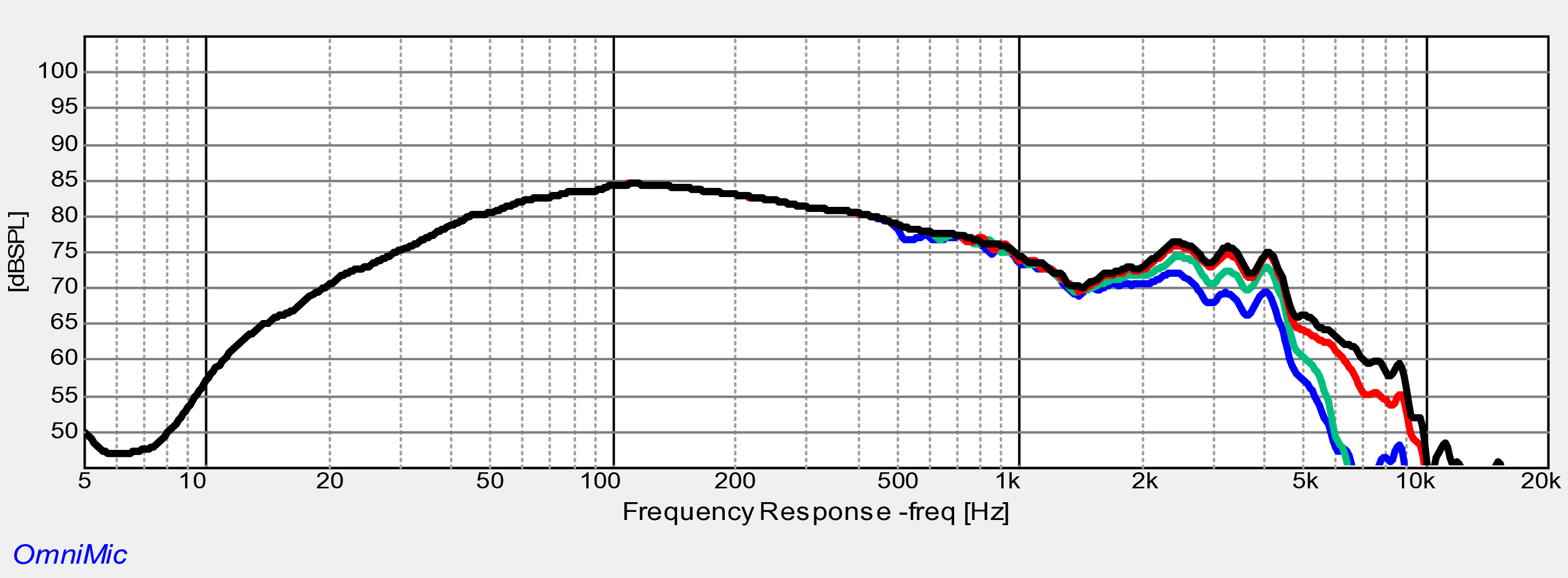

- Frequency response 20 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30Hz
- Mechanical quality factor QMS 2.99
- Electrical quality factor QES 0.37
- Total quality factor QTS 0.33
Large signal parameters
- Maximum linear excursion (one way) xmax 12mm
- Air volume displaced at xmax VD 152cm³
- Power handling P 70W
- Program power Pmax 140W
Voice Coil

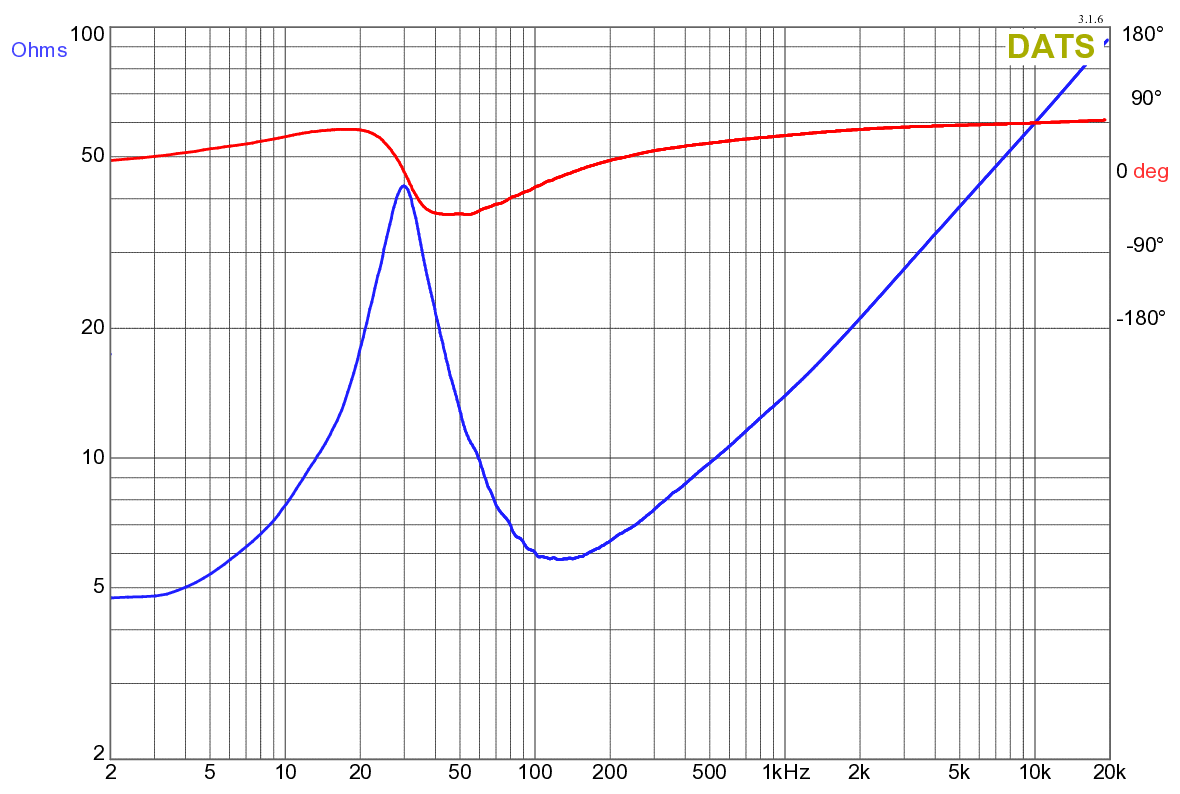

- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.7Ω
- Inductance (1kHz, in series) LE 1.5mH
- VC Diameter 38mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor (in series) Bl 12.3N/A
- Motor constant Bl/√RE 5.67N/√W
- Material Ferrite
Diaphragm
- Effective diameter 127mm
- Effective area SD 126cm²
- Moving mass MMS 63.8g
- Moving mass (without air load) MMD 62.7g
- Material Paper
Suspensions
- Stiffness KMS 2.27N/mm
- Compliance CMS 440µm/N
- Equivalent volume to the compliance VAS 10L
- Mechanical resistance RMS 4.02N·s/m
- Surround material Rubber

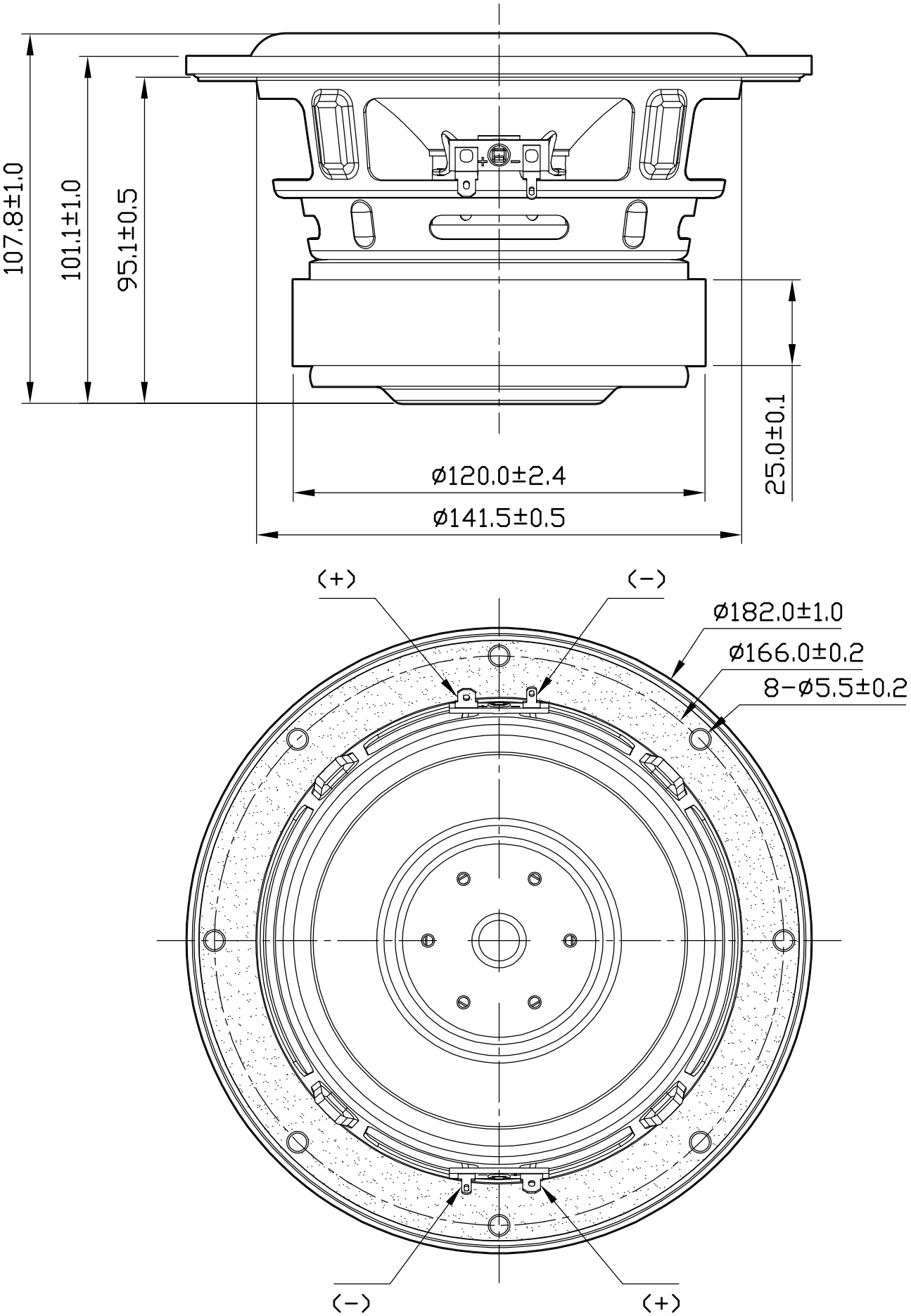

Dimensions
- Nominal diameter 6.5″
- 182mm
- Overall diameter 182mm
- Baffle cutout diameter 142mm
- Overall depth 101mm
- Volume occupied by the driver (estimated) 0.74L
- Frame material Steel
.png)
.png)
.webp)
