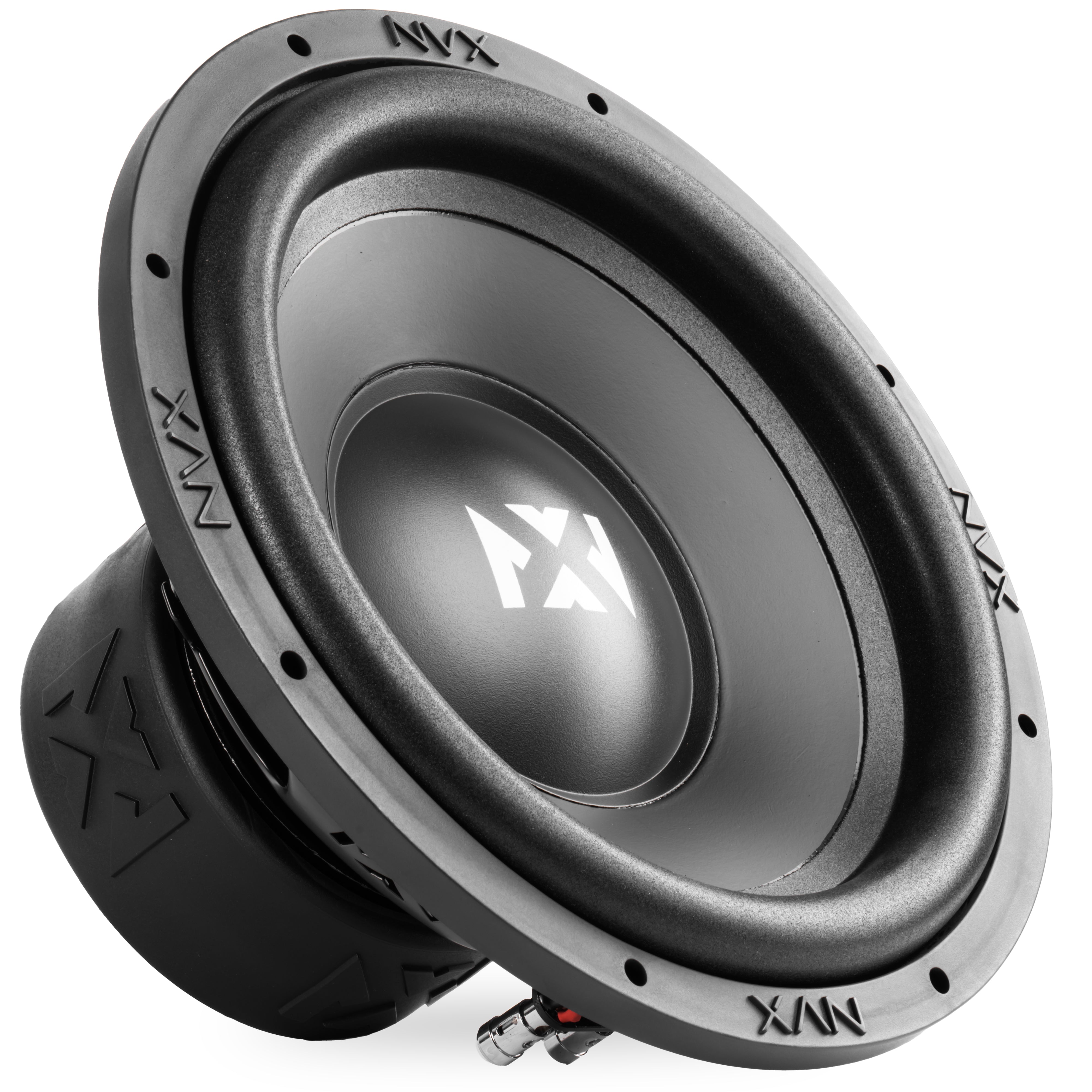

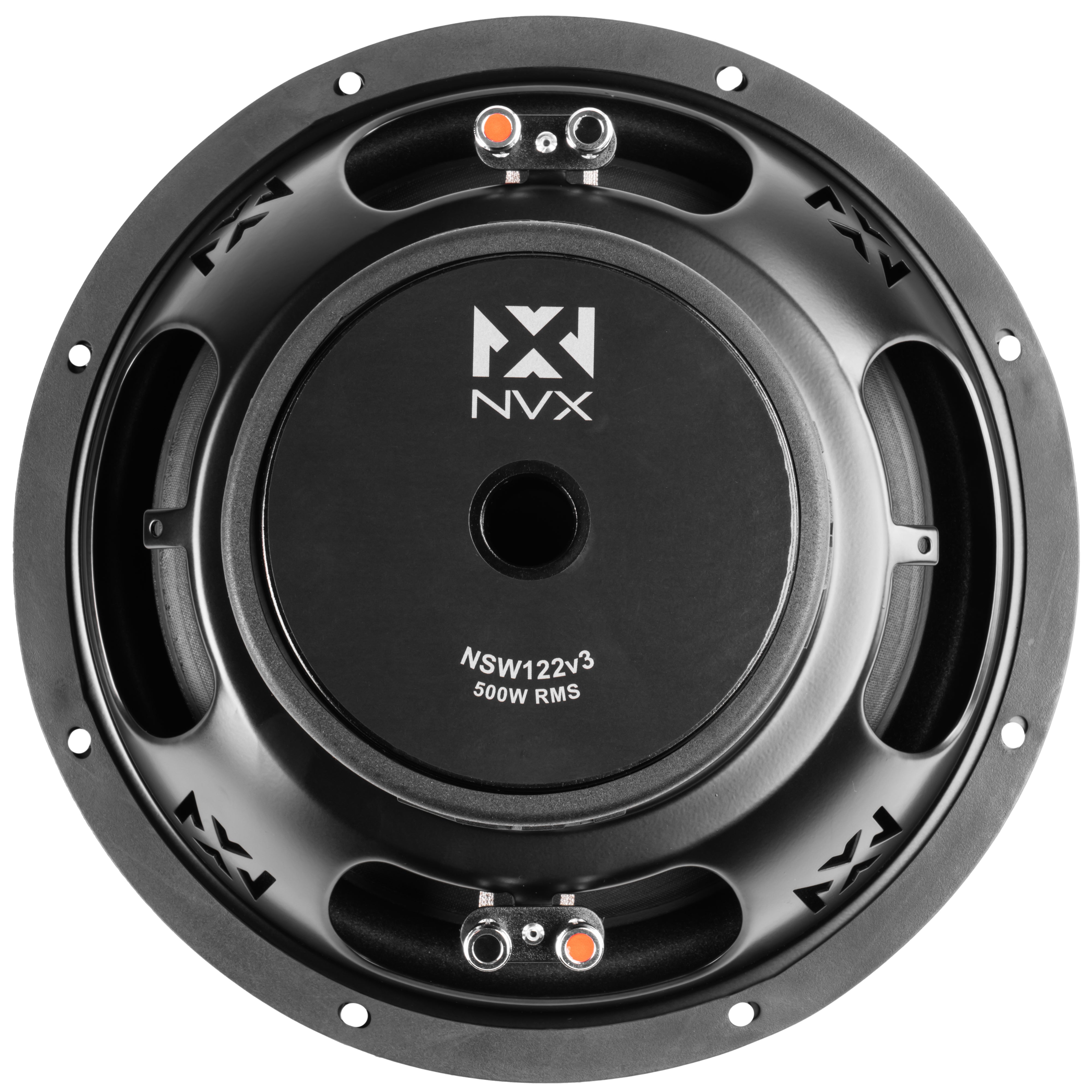

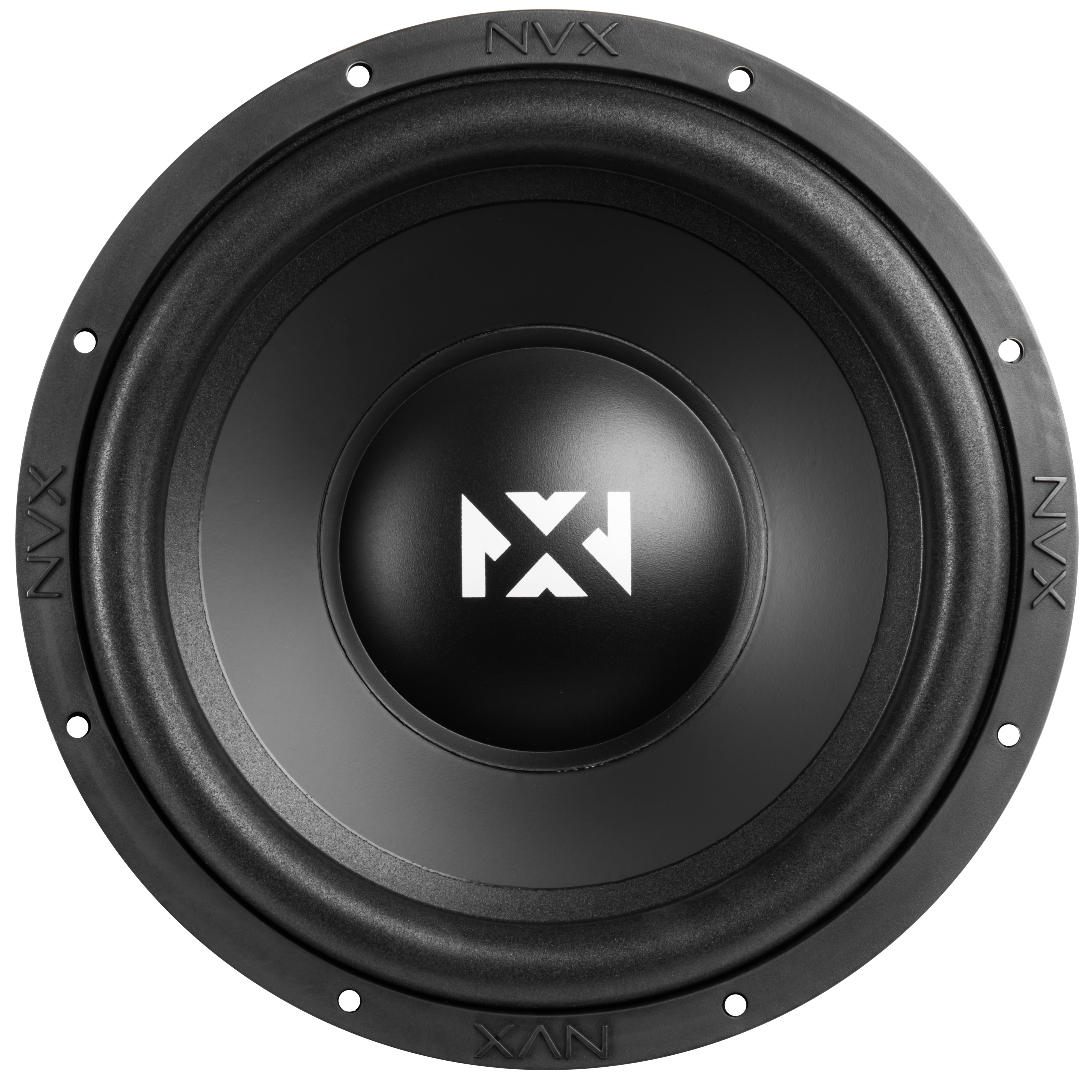

NVX NSW122v3
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 12″ / 317 mm |
| Resonance | 34.7 Hz |
| Q factor | 0.49 |
| Sensitivity | 86.8 dB |
| Linear excursion | ± 12.5 mm |
| Program power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.8dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34.7Hz
- Mechanical quality factor QMS 5.79
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion (one way) xmax 12.5mm
- Air volume displaced at xmax VD 638cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 2.93mH
Magnet
- Force factor (in series) Bl 17.9N/A
- Motor constant Bl/√RE 9.18N/√W
Diaphragm
- Effective diameter 255mm
- Effective area SD 511cm²
- Moving mass (including air load) MMS 207g
- Moving mass MMD 198g
Suspensions
- Stiffness KMS 9.8N/mm
- Compliance CMS 102µm/N
- Equivalent volume to the compliance VAS 37.7L
- Mechanical resistance RMS 7.77N·s/m
Dimensions
- Nominal diameter 12″
- 317mm
- Overall diameter 317mm
- Baffle cutout diameter 276mm
- Mounting depth 153mm
- Volume occupied by the driver 2.27L
- Net weight 6.85kg
