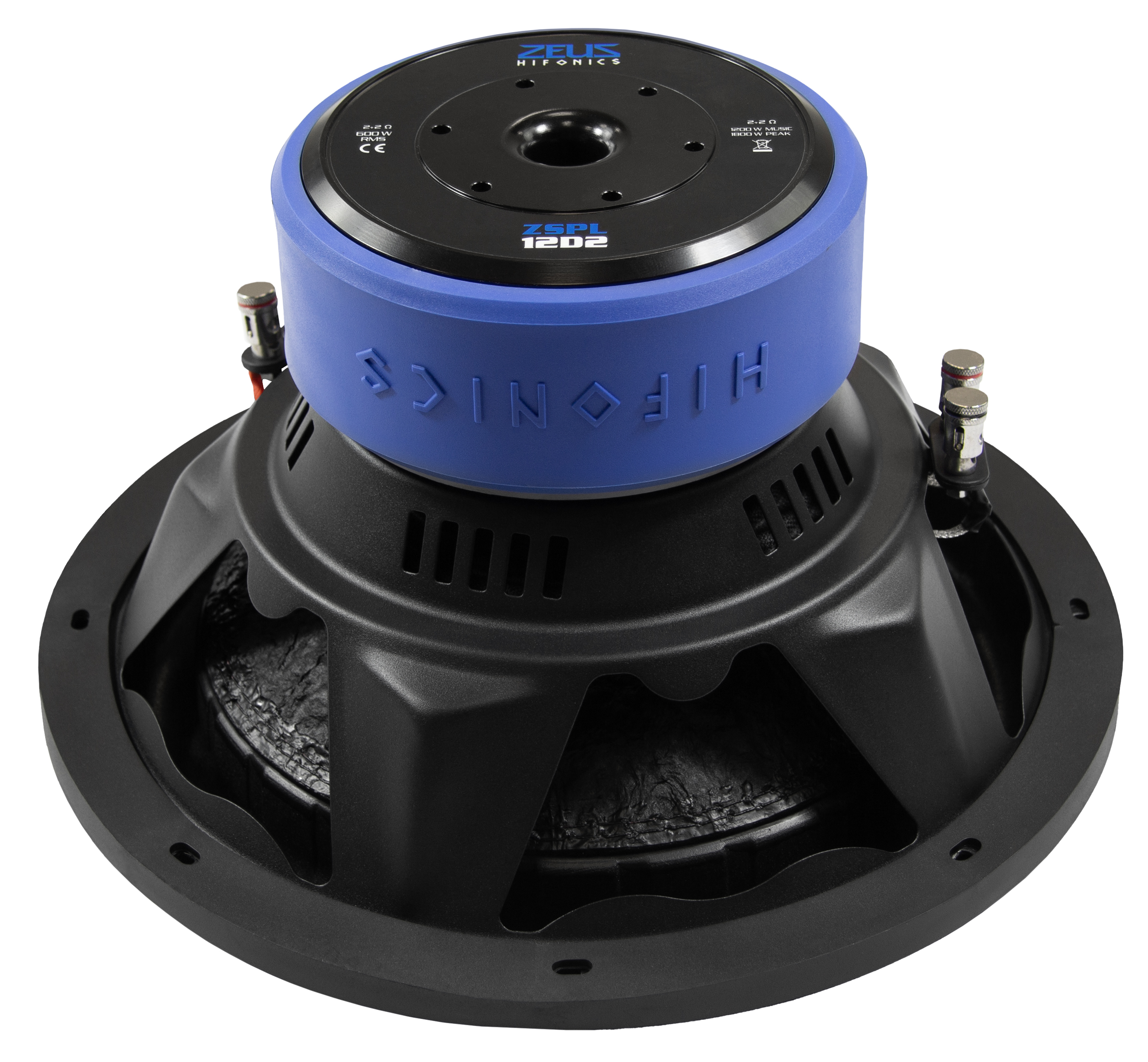

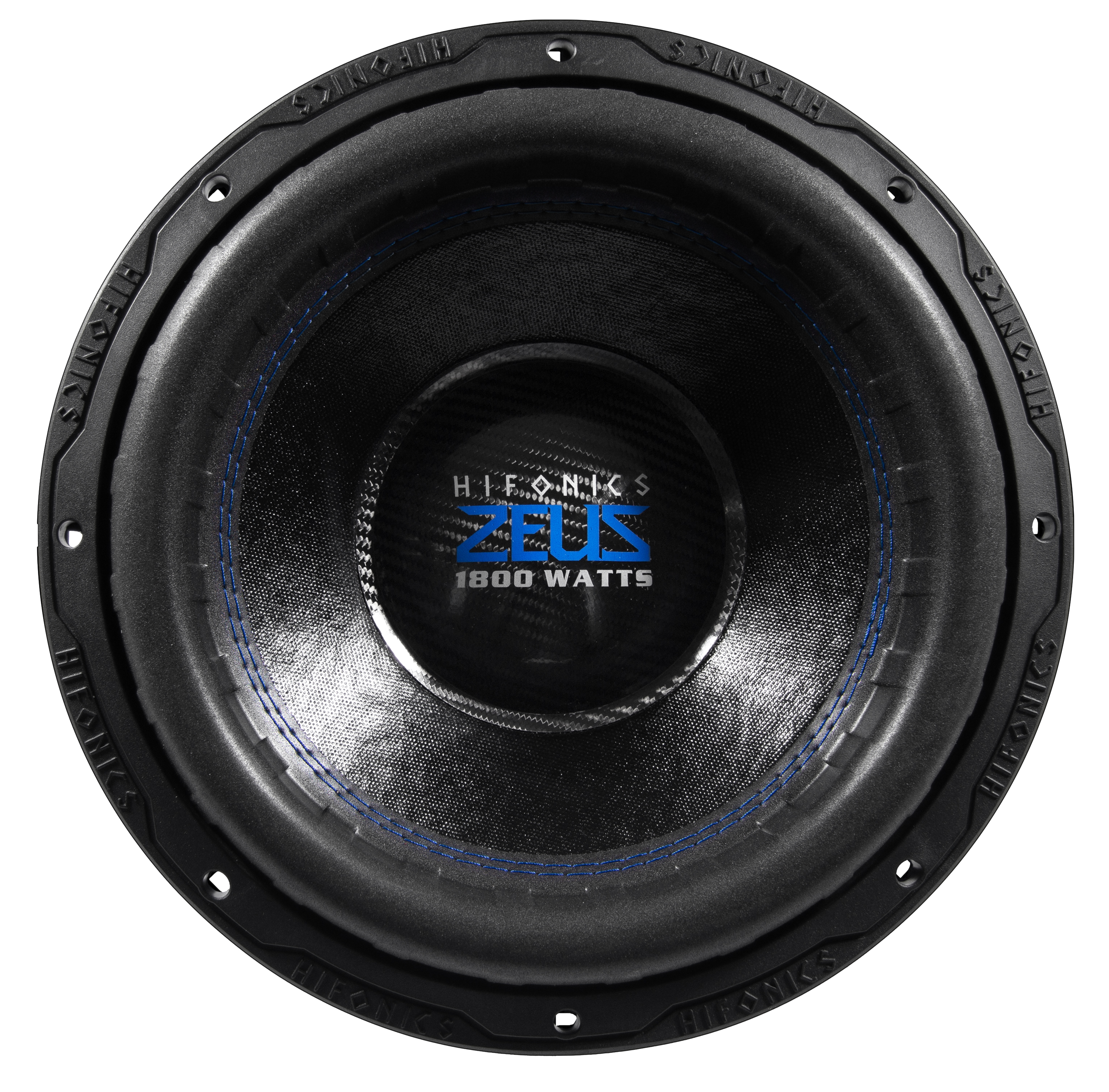

HiFonics ZEUS SPL ZSPL12D2
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 34 Hz |
| Q factor | 0.53 |
| Sensitivity | 86.6 dB |
| Linear excursion | ± 13 mm |
| Program Power | 1800 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 4.24
- Electrical quality factor QES 0.61
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion (one way) xmax 13mm
- Maximum excursion before damage xlim 26mm
- Air volume displaced at xmax VD 666cm³
- Power handling P 600W
- Program power Pmax 1800W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.4Ω
- Inductance (1kHz, in series, estimated) LE 2.46mH
- VC Diameter 64mm
- Winding height HVC 38mm
- Former material BASV
Magnet
- Force factor (in series) Bl 15.1N/A
- Motor constant Bl/√RE 8.17N/√W
- Diameter 156mm
- Height 50mm
- Weight 3.402kg
Diaphragm
- Effective diameter 255mm
- Effective area SD 512cm²
- Moving mass MMS 188g
- Moving mass (without air load) MMD 180g
- Material Paper
Suspensions
- Stiffness KMS 8.7N/mm
- Compliance CMS 115µm/N
- Equivalent volume to the compliance VAS 42.7L
- Mechanical resistance RMS 9.47N·s/m
- Surround material Foam
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 320mm
- Baffle cutout diameter 276mm
- Mounting depth 166mm
- Volume occupied by the driver (estimated) 2.7L
- Frame material Steel
