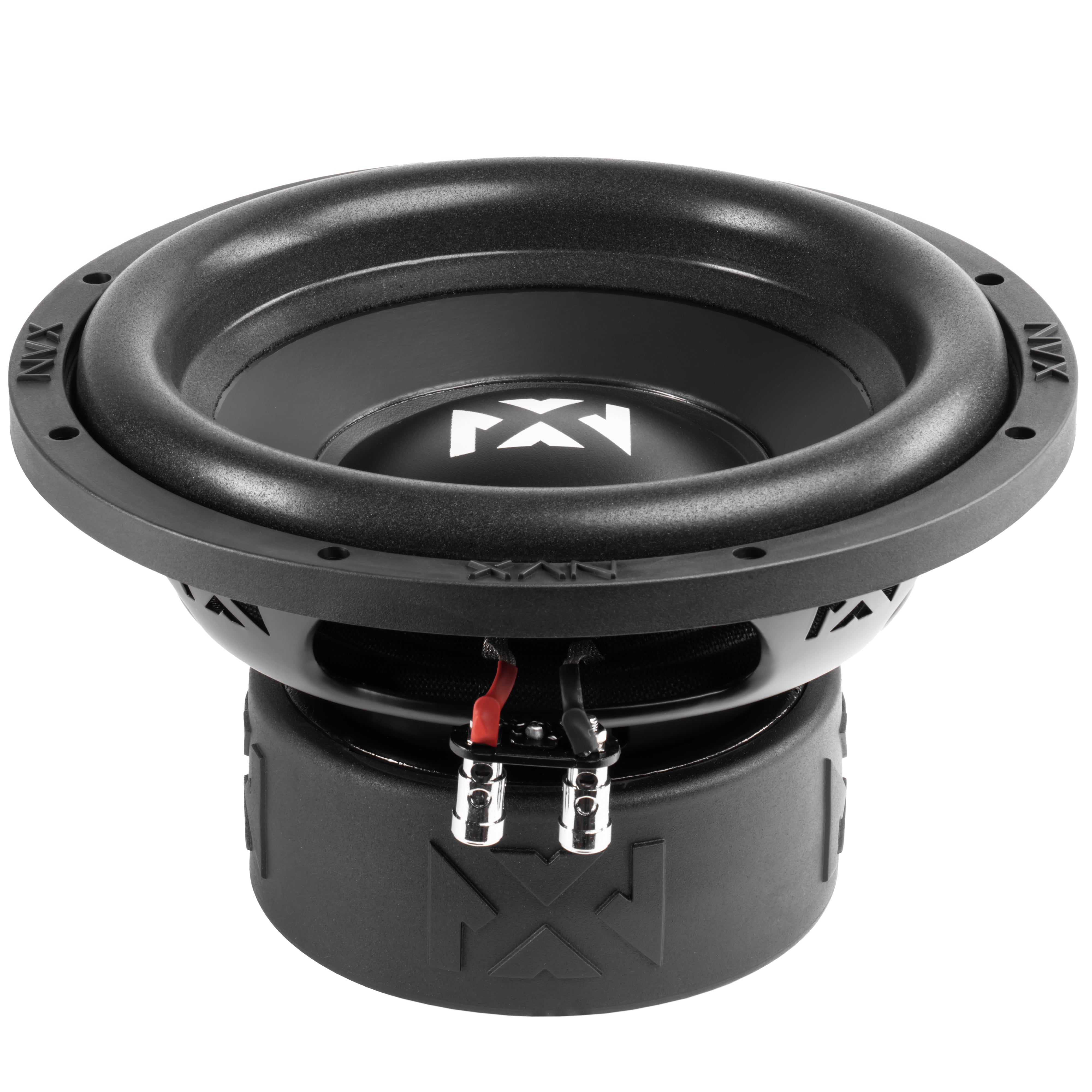

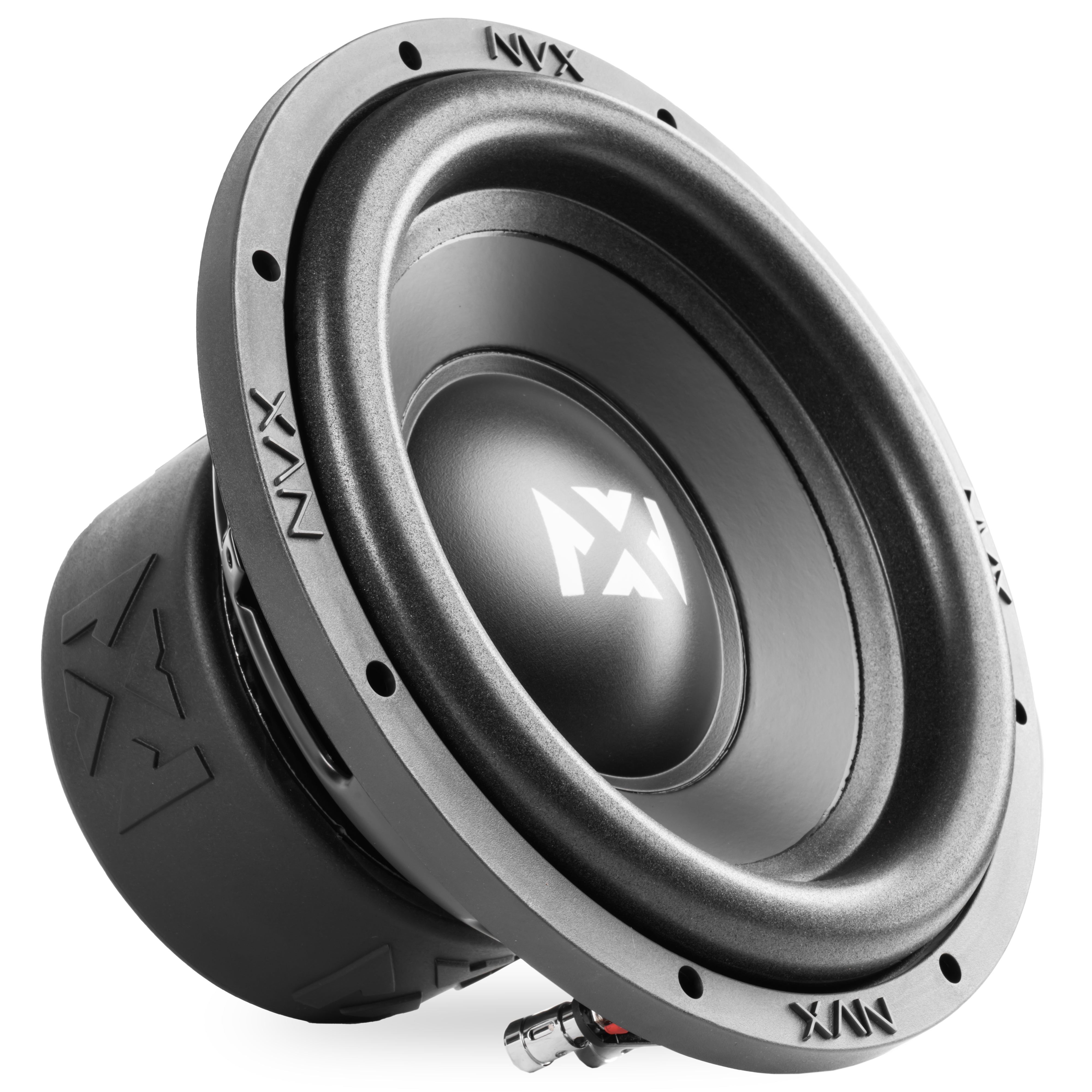

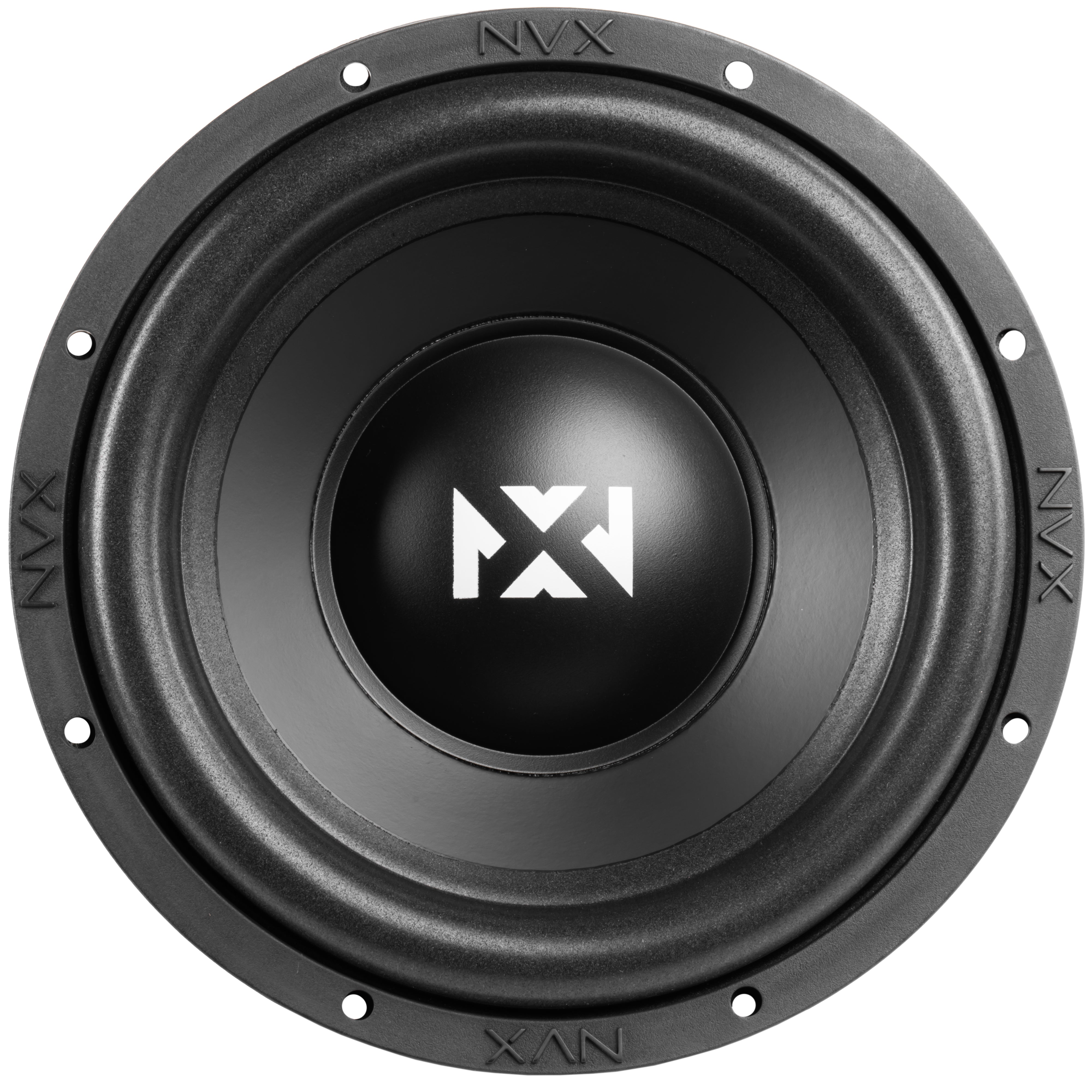

NVX NSW102v3
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 263 mm |
| Resonance | 38.7 Hz |
| Q factor | 0.51 |
| Sensitivity | 84.9 dB |
| Linear excursion | ± 12.5 mm |
| Program power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.9dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38.7Hz
- Mechanical quality factor QMS 7.32
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion (one way) xmax 12.5mm
- Air volume displaced at xmax VD 425cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 2.47mH
Magnet
- Force factor (in series) Bl 16.4N/A
- Motor constant Bl/√RE 8.41N/√W
Diaphragm
- Effective diameter 208mm
- Effective area SD 340cm²
- Moving mass (including air load) MMS 160g
- Moving mass MMD 155g
Suspensions
- Stiffness KMS 9.43N/mm
- Compliance CMS 106µm/N
- Equivalent volume to the compliance VAS 17.4L
- Mechanical resistance RMS 5.3N·s/m
Dimensions
- Nominal diameter 10″
- 263mm
- Overall diameter 263mm
- Baffle cutout diameter 228mm
- Mounting depth 136mm
- Volume occupied by the driver 1.42L
- Net weight 6.55kg
