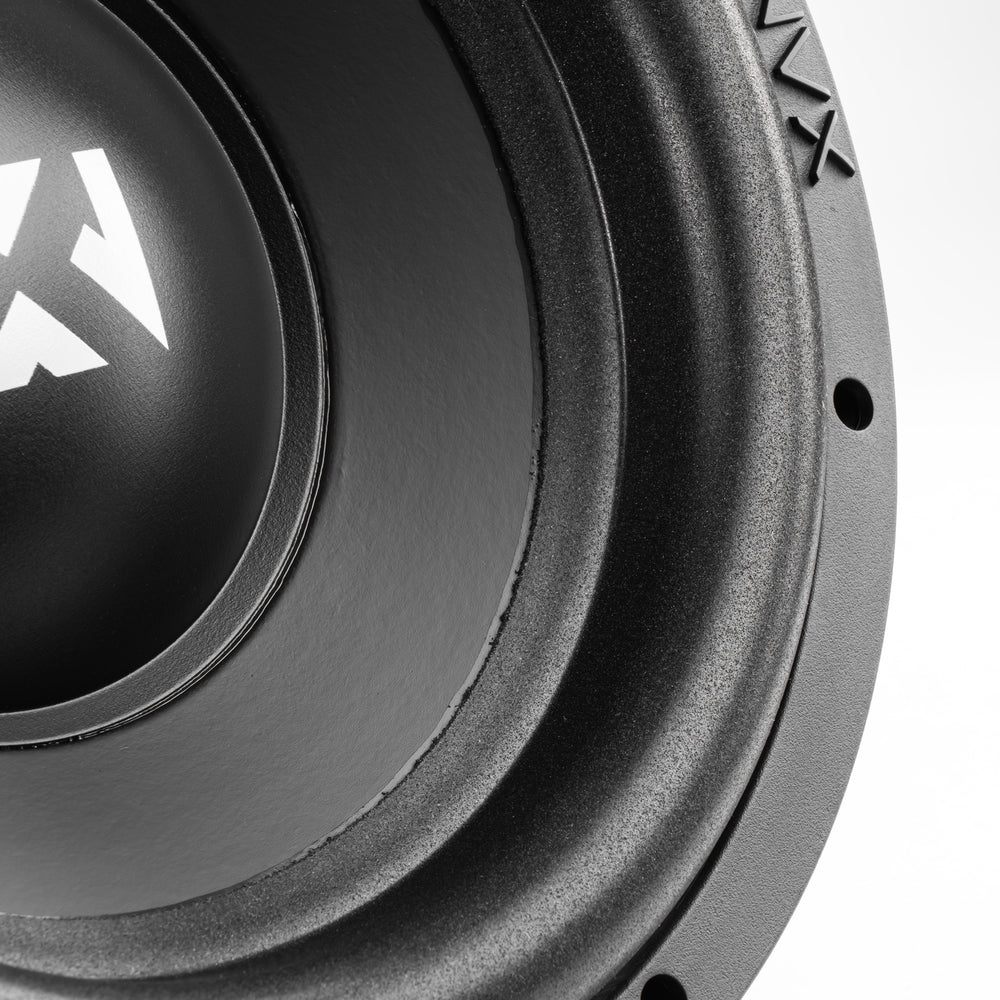

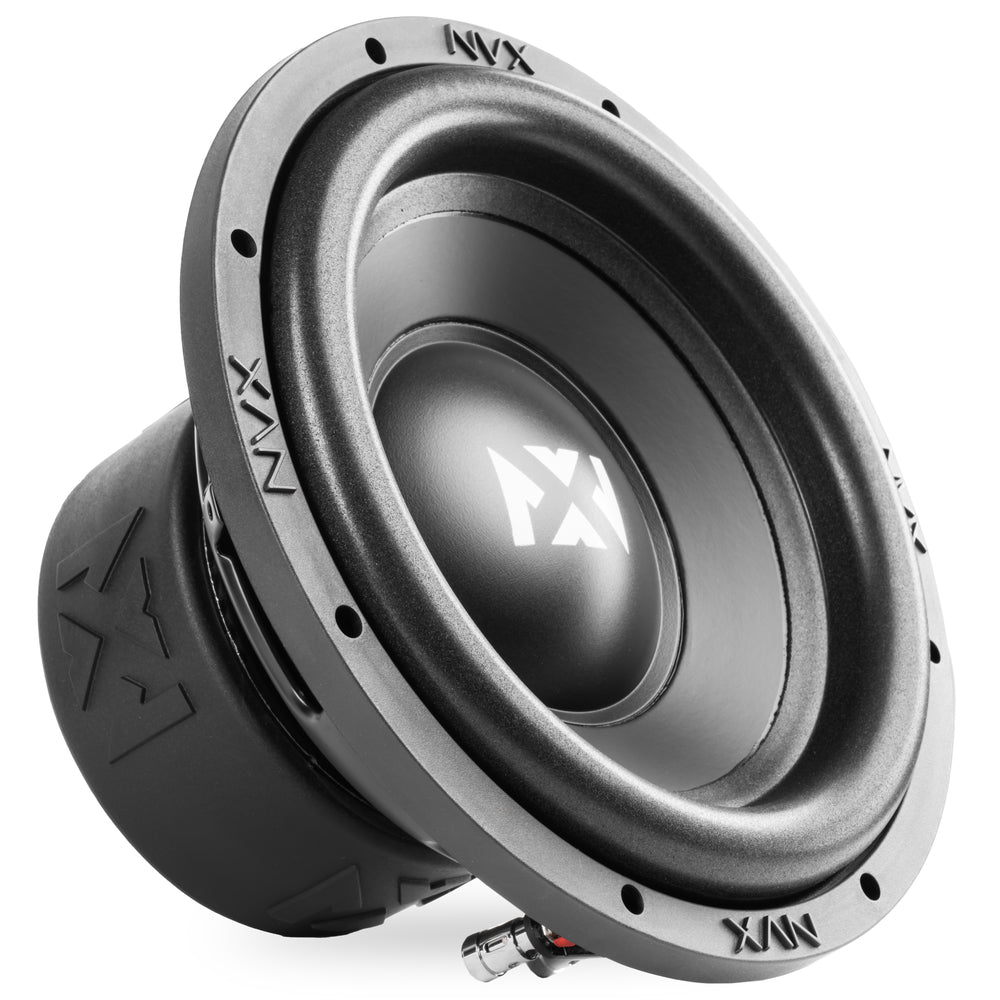

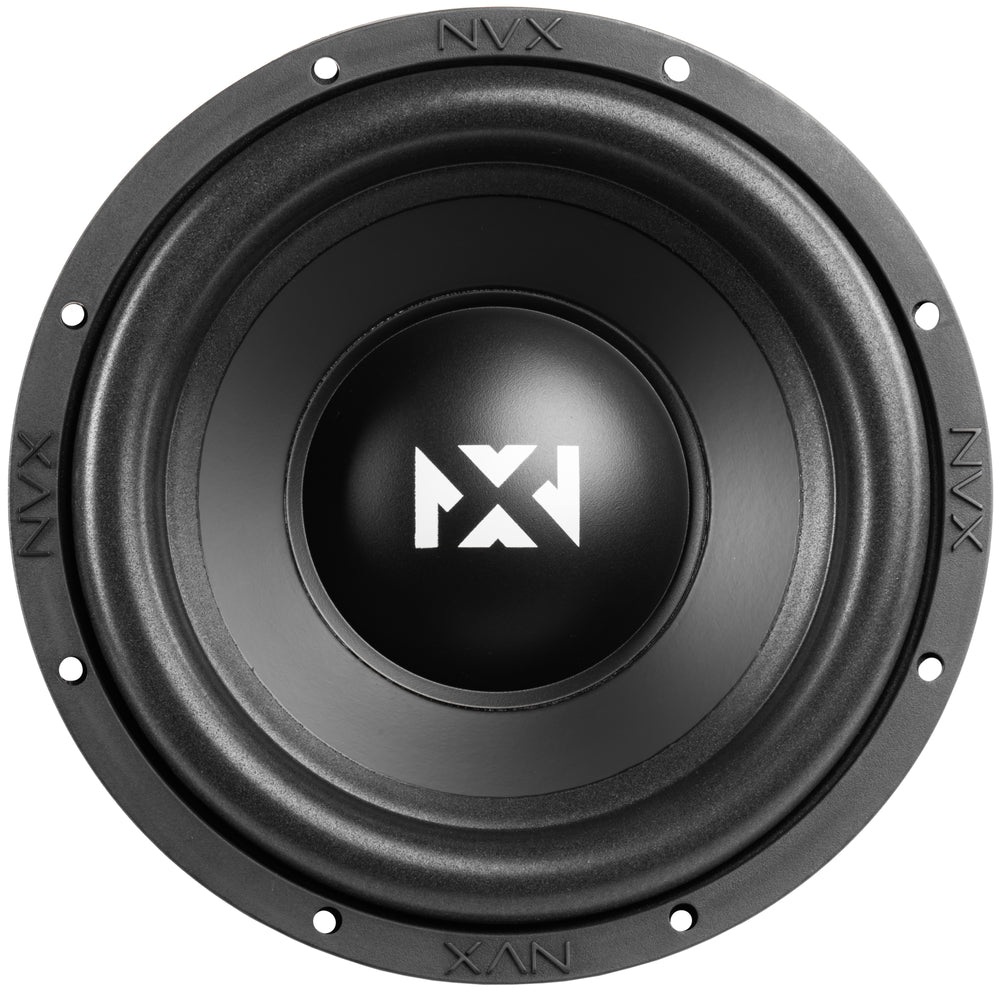

NVX NSW104v3
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 36.9 Hz |
| Q factor | 0.54 |
| Sensitivity | 83.9 dB |
| Linear excursion | ± 12.5 mm |
| Program power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.9dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36.9Hz
- Mechanical quality factor QMS 4.59
- Electrical quality factor QES 0.61
- Total quality factor QTS 0.54
Large signal parameters
- Maximum linear excursion (one way) xmax 12.5mm
- Air volume displaced at xmax VD 425cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 4.34mH
Magnet
- Force factor (in series) Bl 20.3N/A
- Motor constant Bl/√RE 8.02N/√W
Diaphragm
- Effective diameter 208mm
- Effective area SD 340cm²
- Moving mass (including air load) MMS 171g
- Moving mass MMD 166g
Suspensions
- Stiffness KMS 9.17N/mm
- Compliance CMS 109µm/N
- Equivalent volume to the compliance VAS 17.9L
- Mechanical resistance RMS 8.61N·s/m
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 263mm
- Baffle cutout diameter 228mm
- Mounting depth 136mm
- Volume occupied by the driver 1.42L
- Net weight 6.55kg
