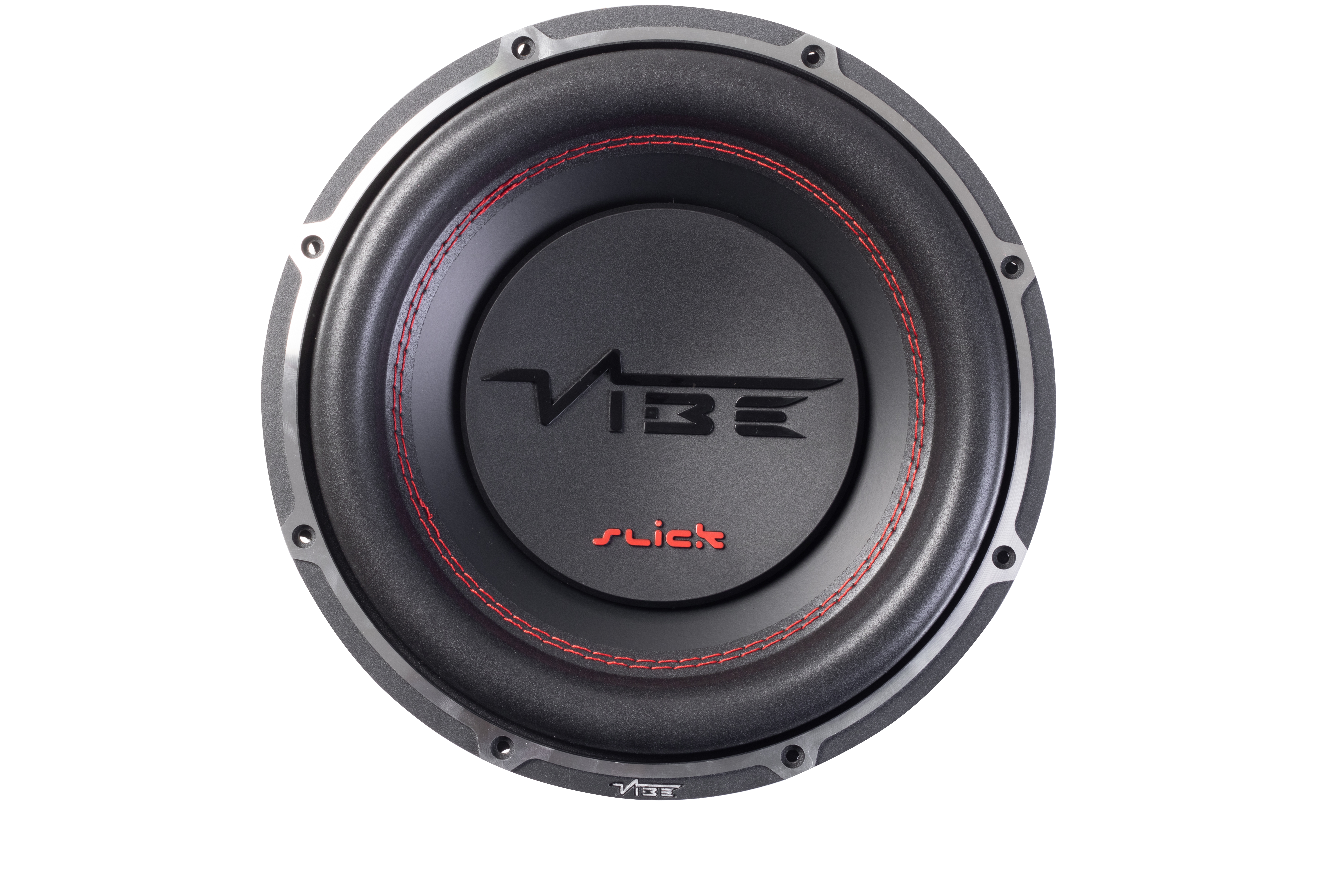

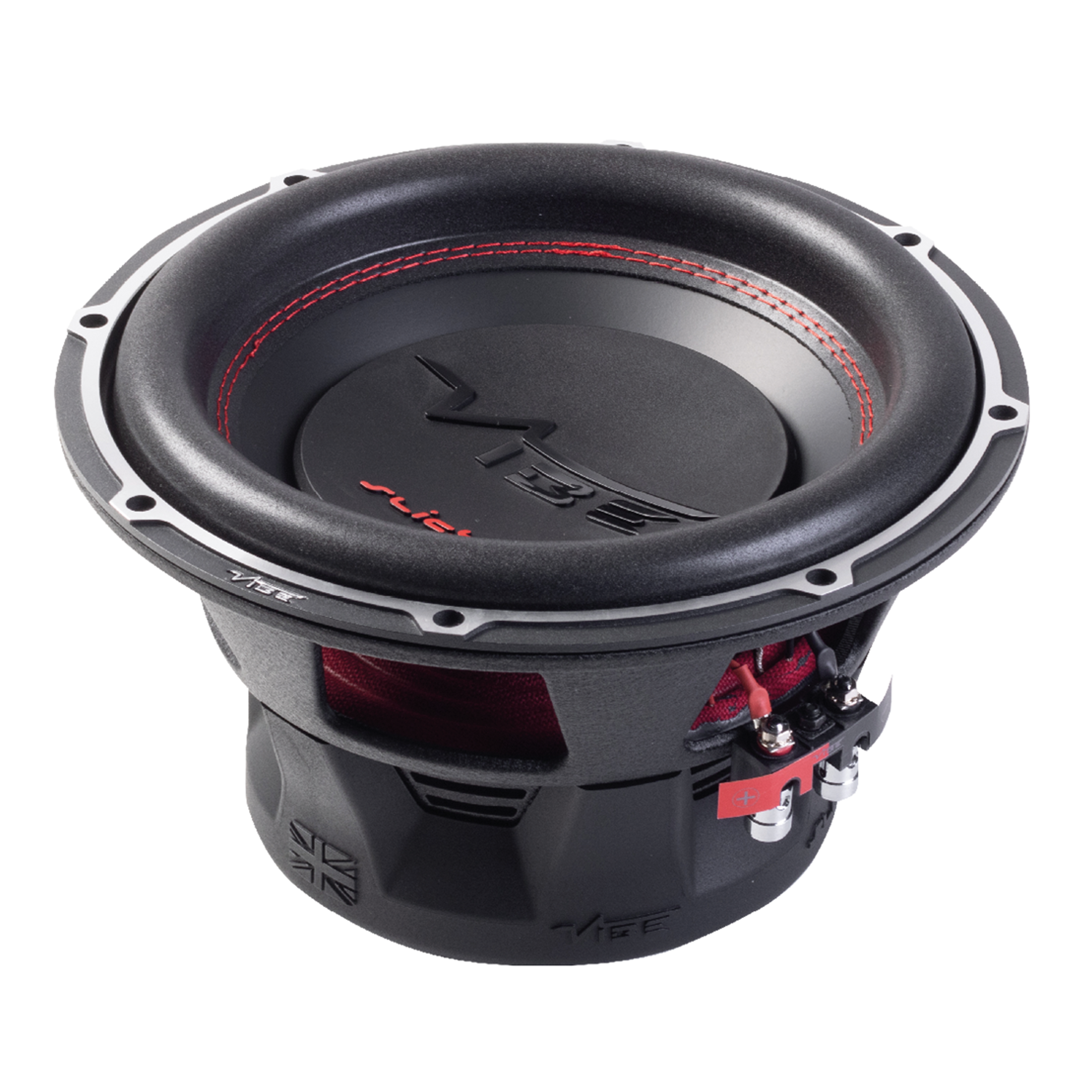

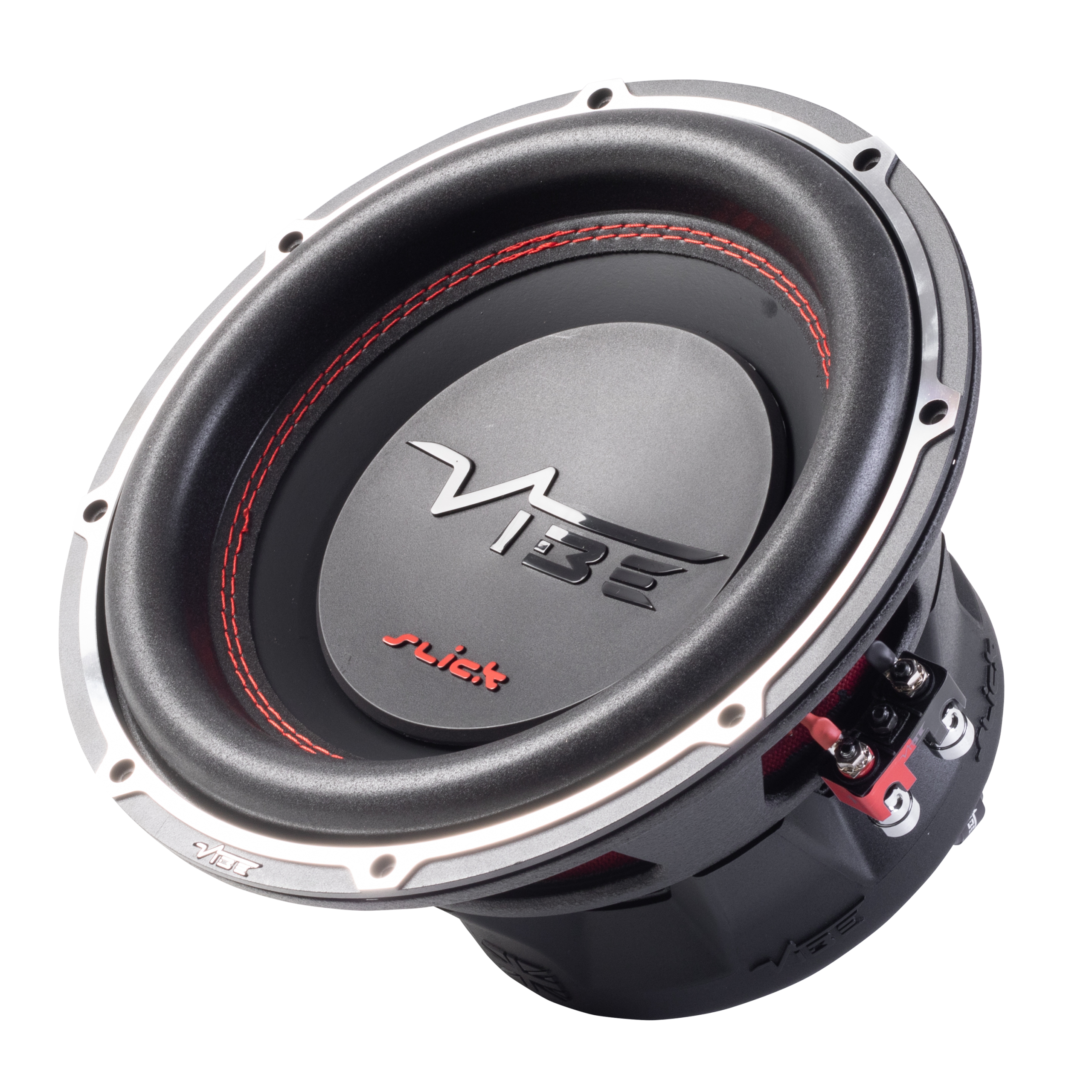

VIBE Audio Slick SLICK10D2-V3
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 274 mm |
| Resonance | 36.1 Hz |
| Q factor | 0.51 |
| Sensitivity | 84.1 dB |
| Linear excursion | ± 11 mm |
| Program Power | 1000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.1dB
- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36.1Hz
- Mechanical quality factor QMS 4.34
- Electrical quality factor QES 0.57
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Maximum excursion before damage xlim 13mm
- Air volume displaced at xmax VD 363cm³
- Power handling P 500W
- Program power Pmax 1000W
- Peak power Ppeak 1500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 2.45mH
- VC Diameter 50.8mm
Magnet
- Force factor (in series) Bl 15.4N/A
- Motor constant Bl/√RE 7.91N/√W
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 158g
- Moving mass (without air load) MMD 154g
Suspensions
- Stiffness KMS 8.15N/mm
- Compliance CMS 123µm/N
- Equivalent volume to the compliance VAS 19L
- Mechanical resistance RMS 8.27N·s/m
Dimensions
- Nominal diameter 10″
- 274mm
- Overall diameter 274mm
- Baffle cutout diameter 230mm
- Mounting depth 138mm
- Volume occupied by the driver (estimated) 1.8L
