VIBE Audio SLICK8D2-V3 Subwoofer

VIBE Audio SLICK8D2-V3

2 x 2 Ω
8″ Subwoofer
fS41.5 Hz
SD200 cm²
35 - 1500 Hz
QTS0.47
xmax9 mm
SPL1W82.1 dB
Bl/√RE6.96
Pmax900 W

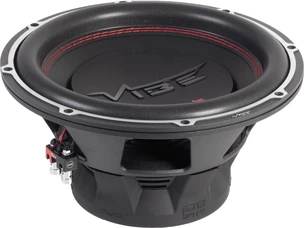

VIBE Audio SLICK12D2-V3 Subwoofer

VIBE Audio SLICK12D2-V3

2 x 2 Ω
12″ Subwoofer
fS29.1 Hz
SD500 cm²
25 - 850 Hz
QTS0.57
xmax11 mm
SPL1W85.6 dB
Bl/√RE7.34
Pmax1000 W
VIBE Audio SLICK10D2-V3 Subwoofer

VIBE Audio SLICK10D2-V3

2 x 2 Ω
10″ Subwoofer
fS36.1 Hz
SD330 cm²
30 - 1000 Hz
QTS0.51
xmax11 mm
SPL1W84.1 dB
Bl/√RE7.91
Pmax1000 W
VIBE Audio CVEN10SW-V7 Subwoofer

VIBE Audio CVEN10SW-V7

4 Ω
10″ Subwoofer
fS29 Hz
SD312 cm²
QTS0.46
xmax11.5 mm
SPL1W82.8 dB
Bl/√RE7.98
Pmax400 W

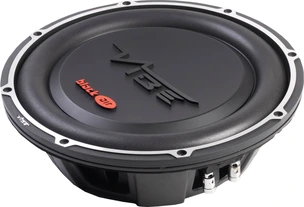

VIBE Audio BLACKAIR12D2S-V3 Shallow Subwoofer

VIBE Audio BLACKAIR12D2S-V3

2 x 2 Ω
12″ Shallow Subwoofer
fS31.6 Hz
SD480 cm²
25 - 850 Hz
QTS0.82
xmax8 mm
SPL1W83.3 dB
Bl/√RE7.32
Pmax600 W

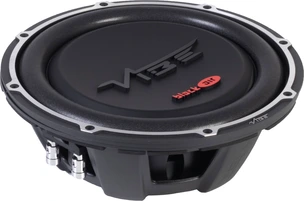

VIBE Audio BLACKAIR10D2S-V3 Shallow Subwoofer

VIBE Audio BLACKAIR10D2S-V3

2 x 2 Ω
10″ Shallow Subwoofer
fS36.1 Hz
SD340 cm²
30 - 1000 Hz
QTS0.87
xmax8 mm
SPL1W81.3 dB
Bl/√RE7.03
Pmax600 W
VIBE Audio BDC18D1SPL-V4 Subwoofer

VIBE Audio BDC18D1SPL-V4

2 x 1 Ω
18″ Subwoofer
fS30.3 Hz
SD1164 cm²
15 - 850 Hz
QTS0.36
xmax26 mm
SPL1W88.5 dB
Bl/√RE21.4
Pmax10000 W
VIBE Audio BDC15D1SPL-V4 Subwoofer

VIBE Audio BDC15D1SPL-V4

2 x 1 Ω
15″ Subwoofer
fS33.6 Hz
SD487 cm²
15 - 850 Hz
QTS0.31
xmax26 mm
SPL1W83.9 dB
Bl/√RE19.7
Pmax10000 W

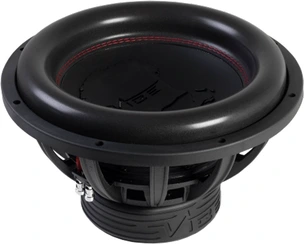

VIBE Audio BD15D4-V4 Subwoofer

VIBE Audio BD15D4-V4

2 x 4 Ω
15″ Subwoofer
fS30.1 Hz
SD755 cm²
20 - 1000 Hz
QTS0.79
xmax16 mm
SPL1W83.8 dB
Bl/√RE10.1
Pmax3200 W
VIBE Audio BD15D2SPL-V4 Subwoofer

VIBE Audio BD15D2SPL-V4

2 x 2 Ω
15″ Subwoofer
fS36.7 Hz
SD755 cm²
15 - 850 Hz
QTS0.71
xmax25 mm
SPL1W86.6 dB
Bl/√RE9.34
Pmax6000 W
VIBE Audio BD15D2-V4 Subwoofer

VIBE Audio BD15D2-V4

2 x 2 Ω
15″ Subwoofer
fS30.2 Hz
SD755 cm²
20 - 1000 Hz
QTS0.72
xmax16 mm
SPL1W84.3 dB
Bl/√RE10.7
Pmax3200 W
VIBE Audio BD15D1SPL-V4 Subwoofer

VIBE Audio BD15D1SPL-V4

2 x 1 Ω
15″ Subwoofer
fS35.6 Hz
SD755 cm²
15 - 850 Hz
QTS0.59
xmax25 mm
SPL1W87.3 dB
Bl/√RE10.2
Pmax6000 W
VIBE Audio BD12D4-V4 Subwoofer

VIBE Audio BD12D4-V4

2 x 4 Ω
12″ Subwoofer
fS33.9 Hz
SD453 cm²
25 - 850 Hz
QTS0.65
xmax16 mm
SPL1W81.9 dB
Bl/√RE10.2
Pmax3000 W
VIBE Audio BD12D2SPL-V4 Subwoofer

VIBE Audio BD12D2SPL-V4

2 x 2 Ω
12″ Subwoofer
fS39.7 Hz
SD452 cm²
15 - 850 Hz
QTS0.69
xmax25 mm
SPL1W84.8 dB
Bl/√RE8.93
Pmax6000 W
VIBE Audio BD12D2-V4 Subwoofer

VIBE Audio BD12D2-V4

2 x 2 Ω
12″ Subwoofer
fS32.1 Hz
SD453 cm²
25 - 850 Hz
QTS0.60
xmax16 mm
SPL1W80.5 dB
Bl/√RE11.3
Pmax3000 W
VIBE Audio BD12D1SPL-V4 Subwoofer

VIBE Audio BD12D1SPL-V4

2 x 1 Ω
12″ Subwoofer
fS39.9 Hz
SD452 cm²
25 - 850 Hz
QTS0.58
xmax25 mm
SPL1W84.9 dB
Bl/√RE9.96
Pmax3000 W
