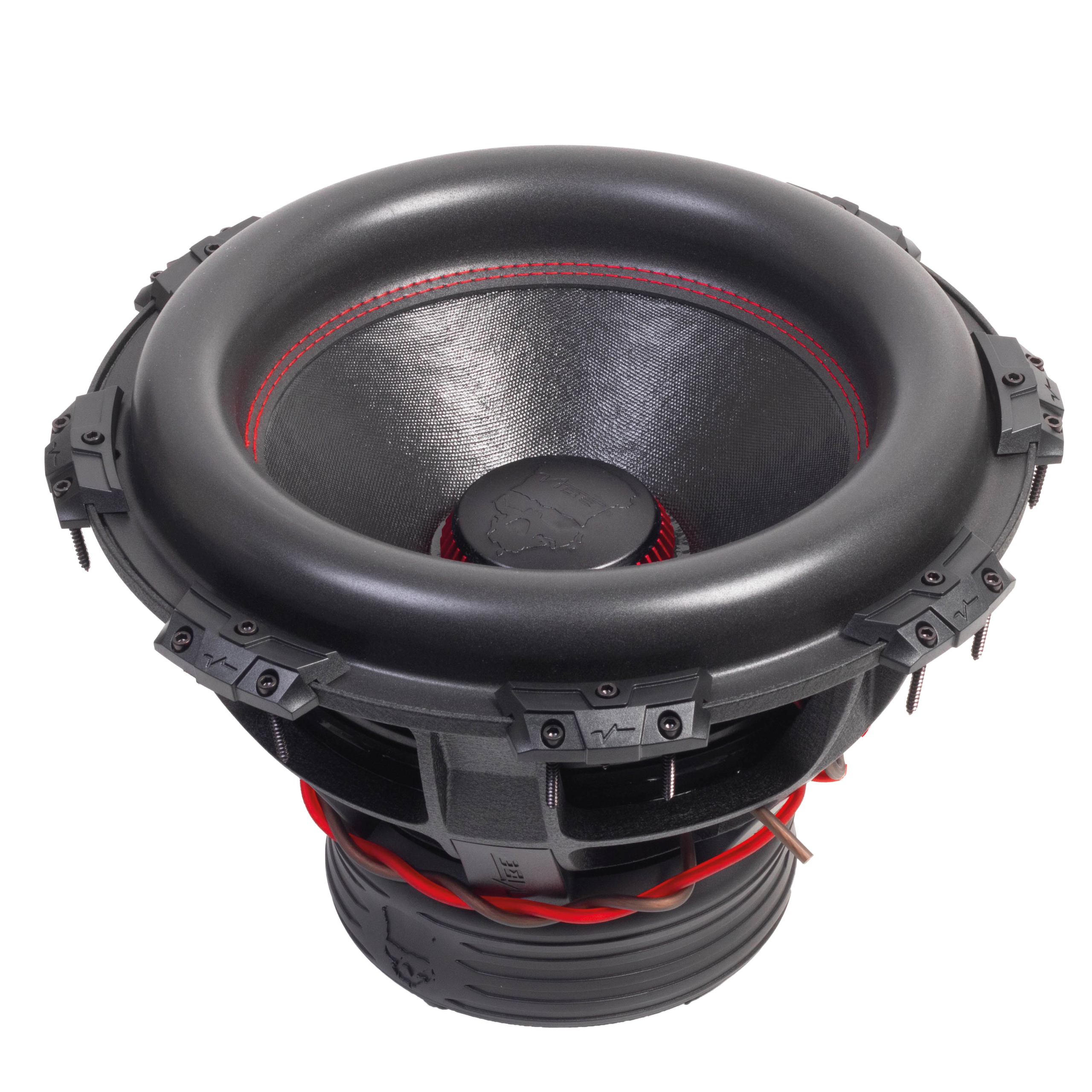

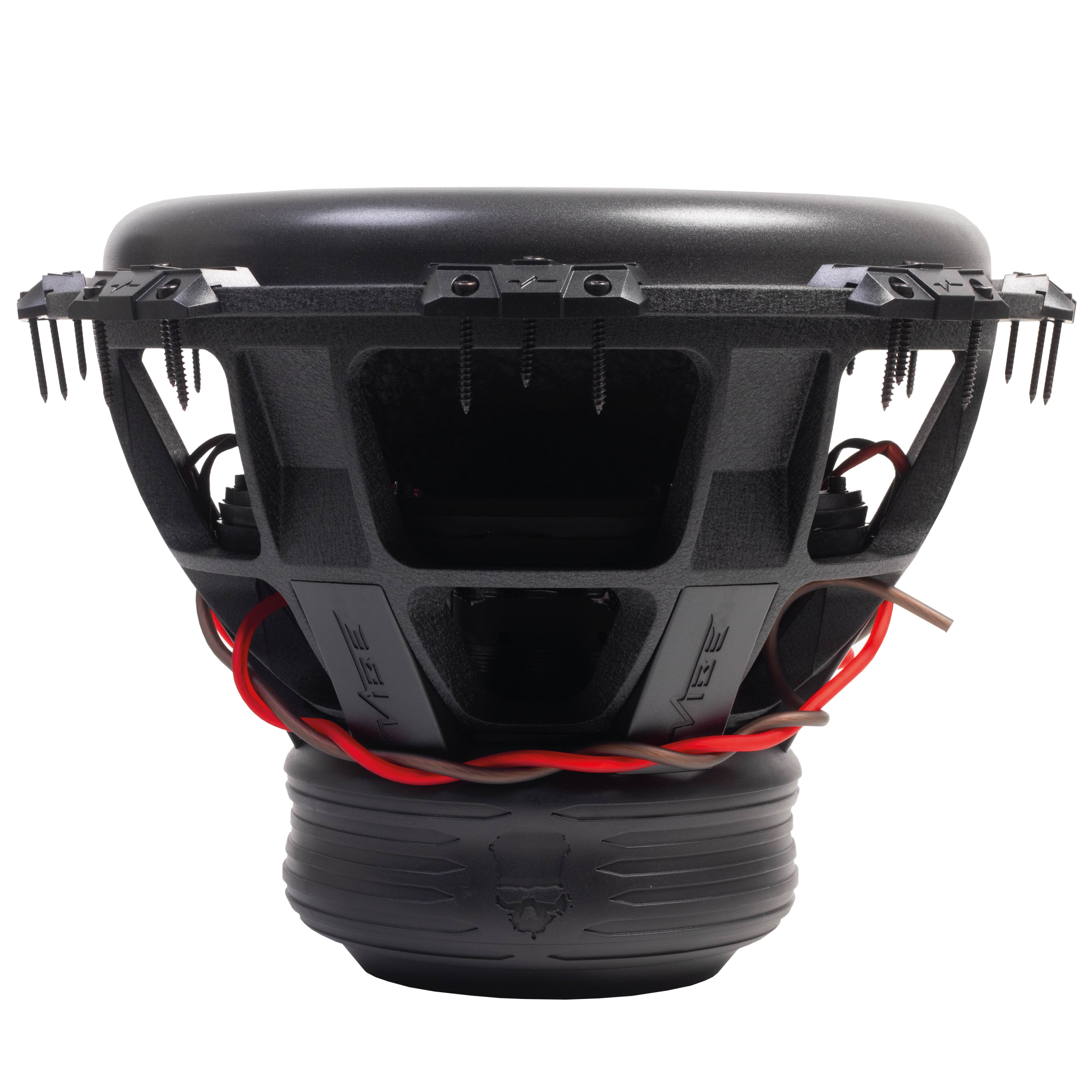

VIBE Audio BlackDeath BD15D1SPL-V4
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 15″ / 392 mm |
| Resonance | 35.6 Hz |
| Q factor | 0.59 |
| Sensitivity | 87.3 dB |
| Linear excursion | ± 25 mm |
| Program Power | 6000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.3dB
- Frequency response 15 - 850Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35.6Hz
- Mechanical quality factor QMS 2.22
- Electrical quality factor QES 0.80
- Total quality factor QTS 0.59
Large signal parameters
- Maximum linear excursion (one way) xmax 25mm
- Maximum excursion before damage xlim 38mm
- Air volume displaced at xmax VD 1887cm³
- Power handling P 3000W
- Program power Pmax 6000W
- Peak power Ppeak 9000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 2.0Ω
- Inductance (1kHz, in series) LE 0.822mH
- VC Diameter 76.2mm
- Winding height HVC 70mm
Magnet
- Force factor (in series) Bl 14.5N/A
- Motor constant Bl/√RE 10.2N/√W
- Air gap height HAG 20mm
- Weight 5.67kg
Diaphragm
- Effective diameter 310mm
- Effective area SD 755cm²
- Moving mass MMS 315g
- Moving mass (without air load) MMD 299g
Suspensions
- Stiffness KMS 22.5N/mm
- Compliance CMS 44.4µm/N
- Equivalent volume to the compliance VAS 35.9L
- Mechanical resistance RMS 31.7N·s/m
Dimensions
- Nominal diameter 15″
- 392mm
- Overall diameter 392mm
- Baffle cutout diameter 375mm
- Mounting depth 300mm
- Volume occupied by the driver (estimated) 4.6L
