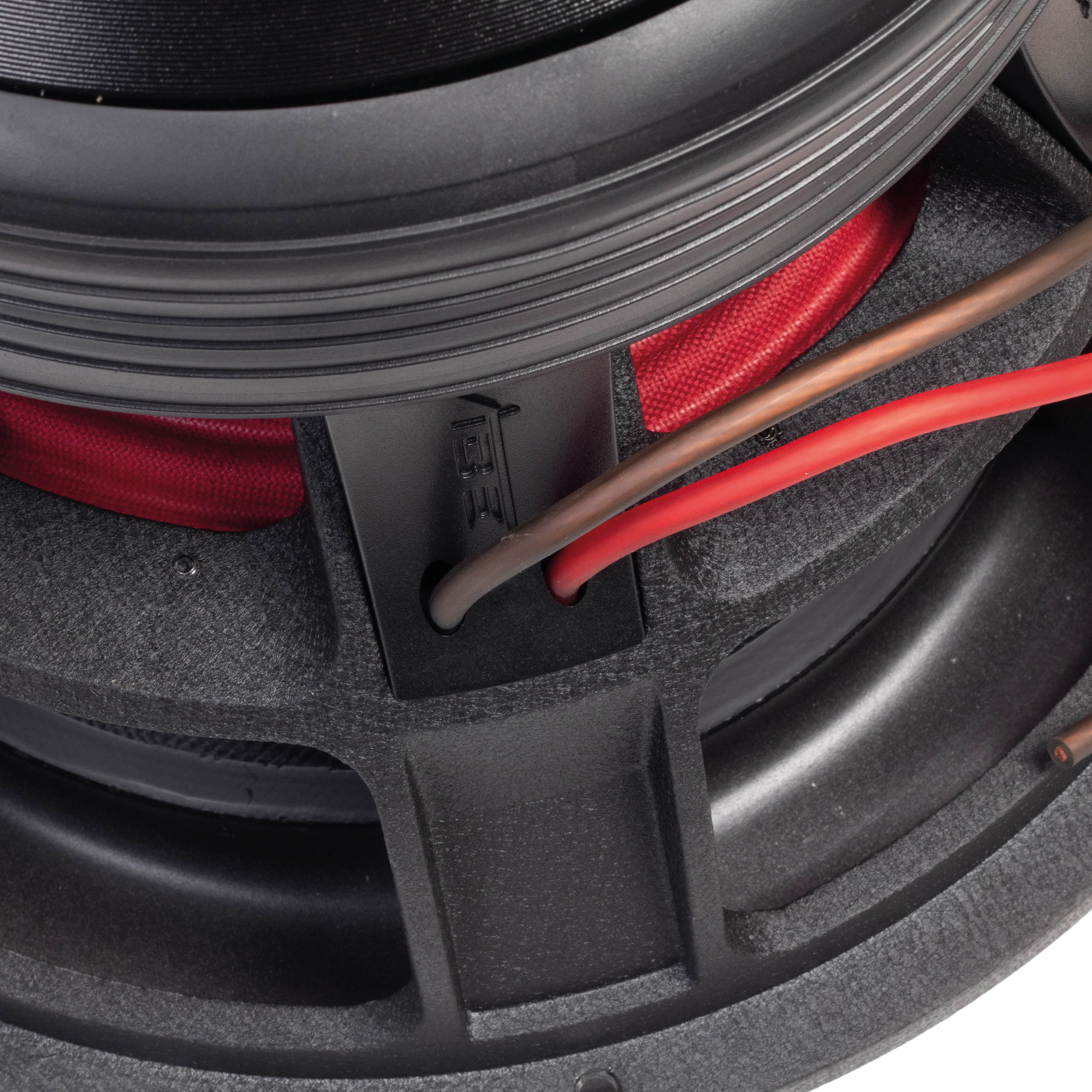

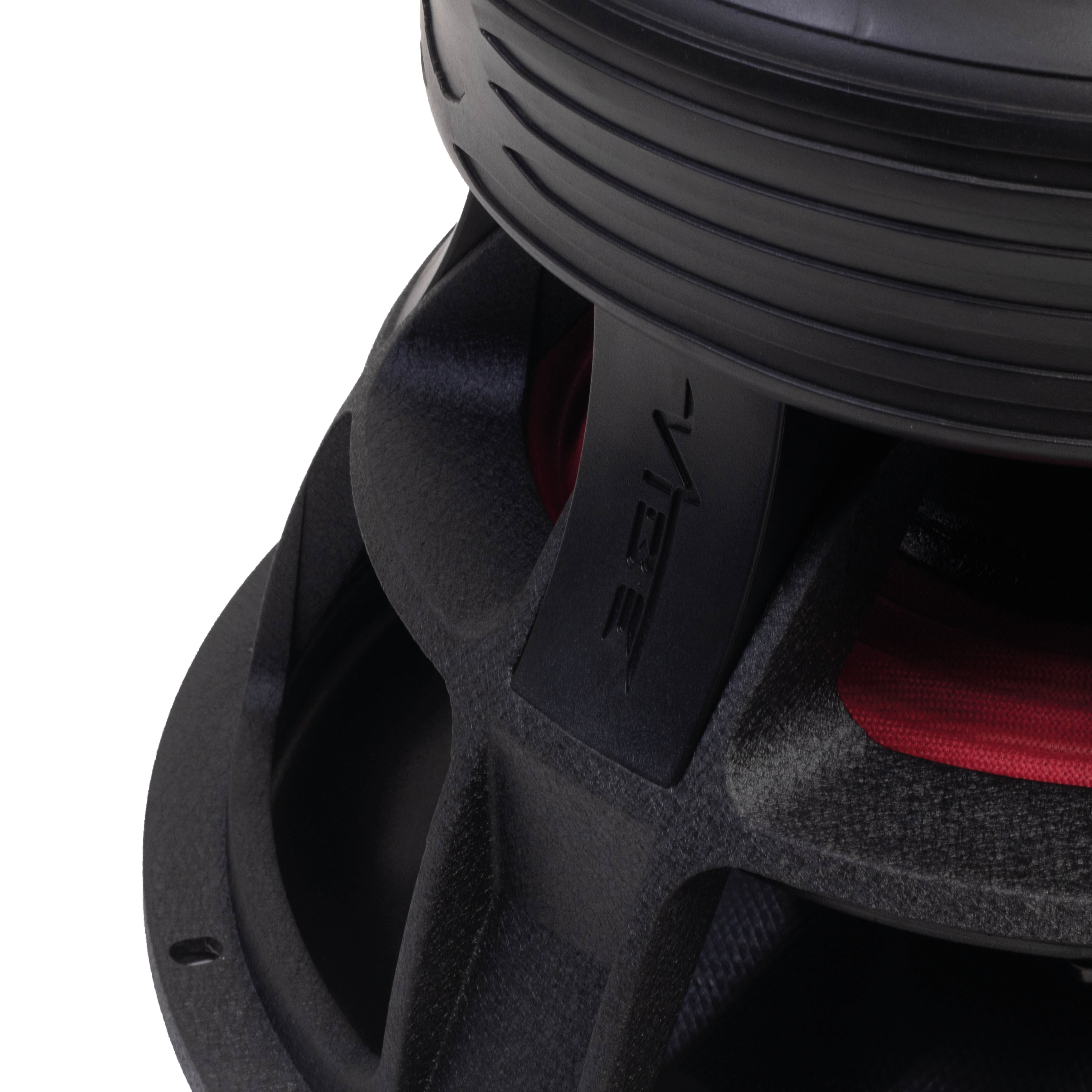

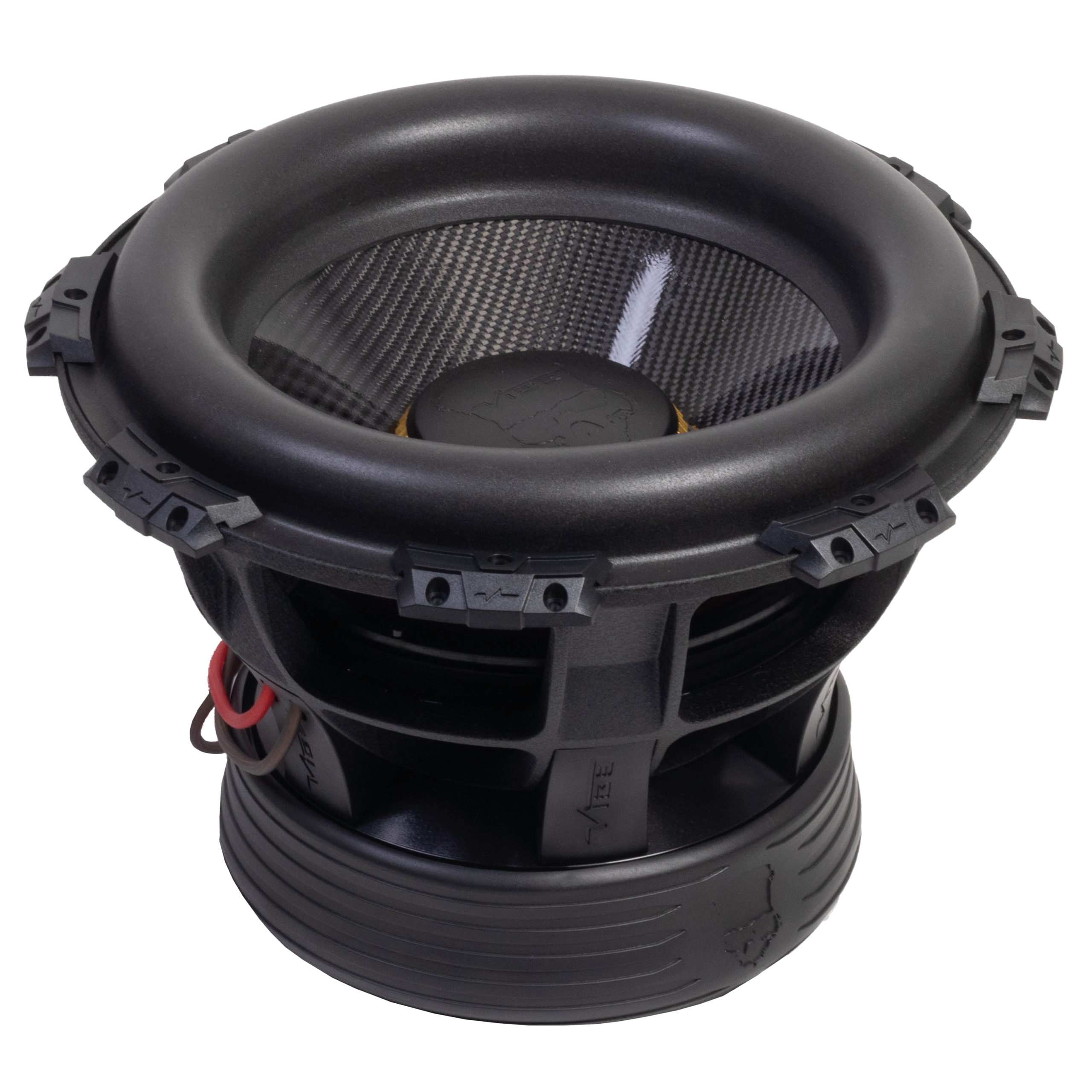

VIBE Audio BlackDeath BDC15D1SPL-V4
2x1Ω
Subwoofer
| Nominal diameter | 15″ / 392 mm |
| Resonance | 33.6 Hz |
| Q factor | 0.31 |
| Sensitivity | 83.9 dB |
| Linear excursion | ± 26 mm |
| Program Power | 10000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.9dB
- Frequency response 15 - 850Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 33.6Hz
- Mechanical quality factor QMS 2.57
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.31
Large signal parameters
- Maximum linear excursion (one way) xmax 26mm
- Maximum excursion before damage xlim 40mm
- Air volume displaced at xmax VD 1266cm³
- Power handling P 5000W
- Program power Pmax 10000W
- Peak power Ppeak 15000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 2.0Ω
- Inductance (1kHz, in series) LE 2.19mH
Magnet
- Force factor (in series) Bl 27.8N/A
- Motor constant Bl/√RE 19.7N/√W
Diaphragm
- Effective diameter 249mm
- Effective area SD 487cm²
- Moving mass MMS 566g
- Moving mass (without air load) MMD 557g
Suspensions
- Stiffness KMS 33.3N/mm
- Compliance CMS 30µm/N
- Equivalent volume to the compliance VAS 9.01L
- Mechanical resistance RMS 46.5N·s/m
Dimensions
- Nominal diameter 15″
- 392mm
- Overall diameter 392mm
- Baffle cutout diameter 357mm
- Overall depth 262mm
- Flange thickness 0mm
- Mounting depth 262mm
- Volume occupied by the driver (estimated) 6.6L
- Net weight 10.77kg
