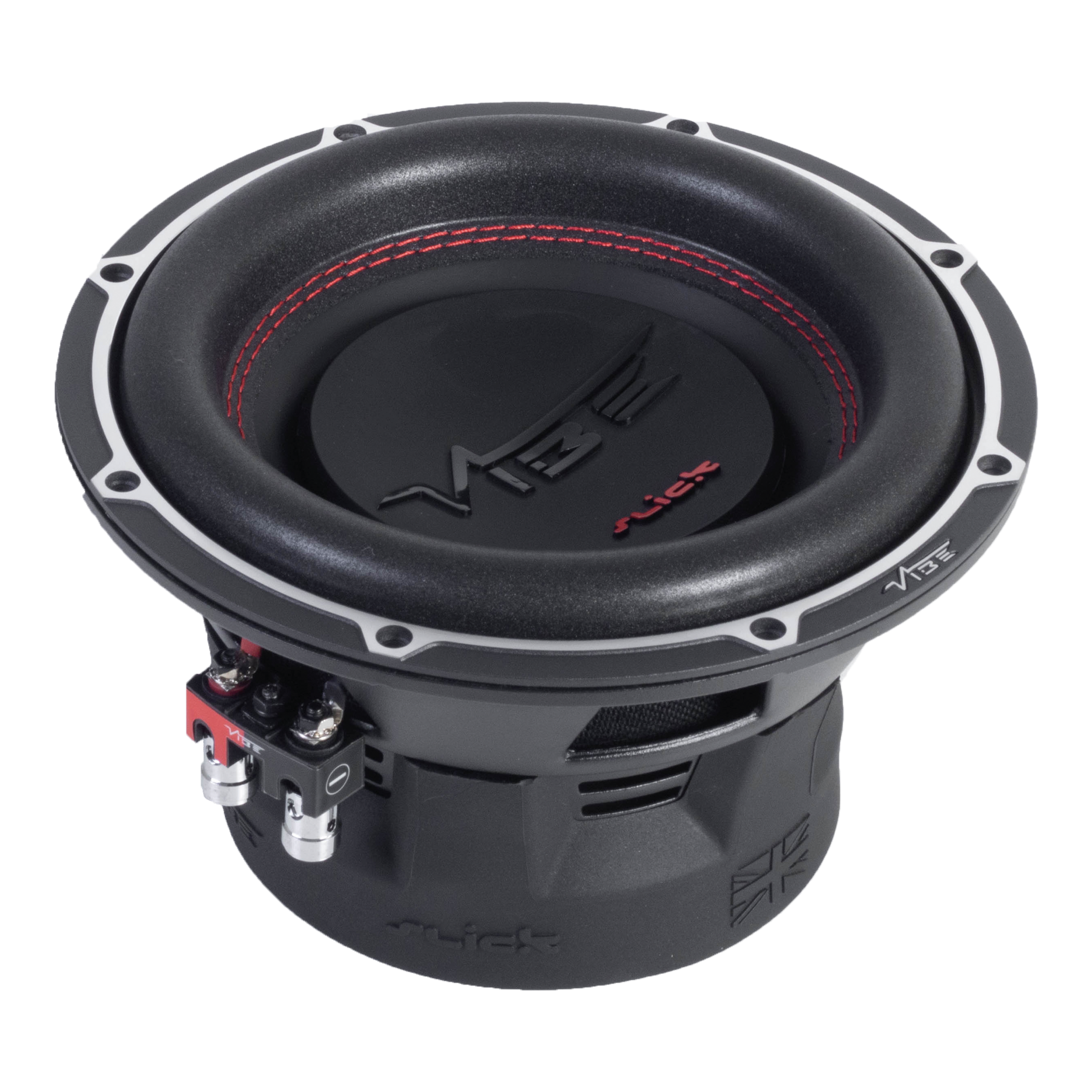

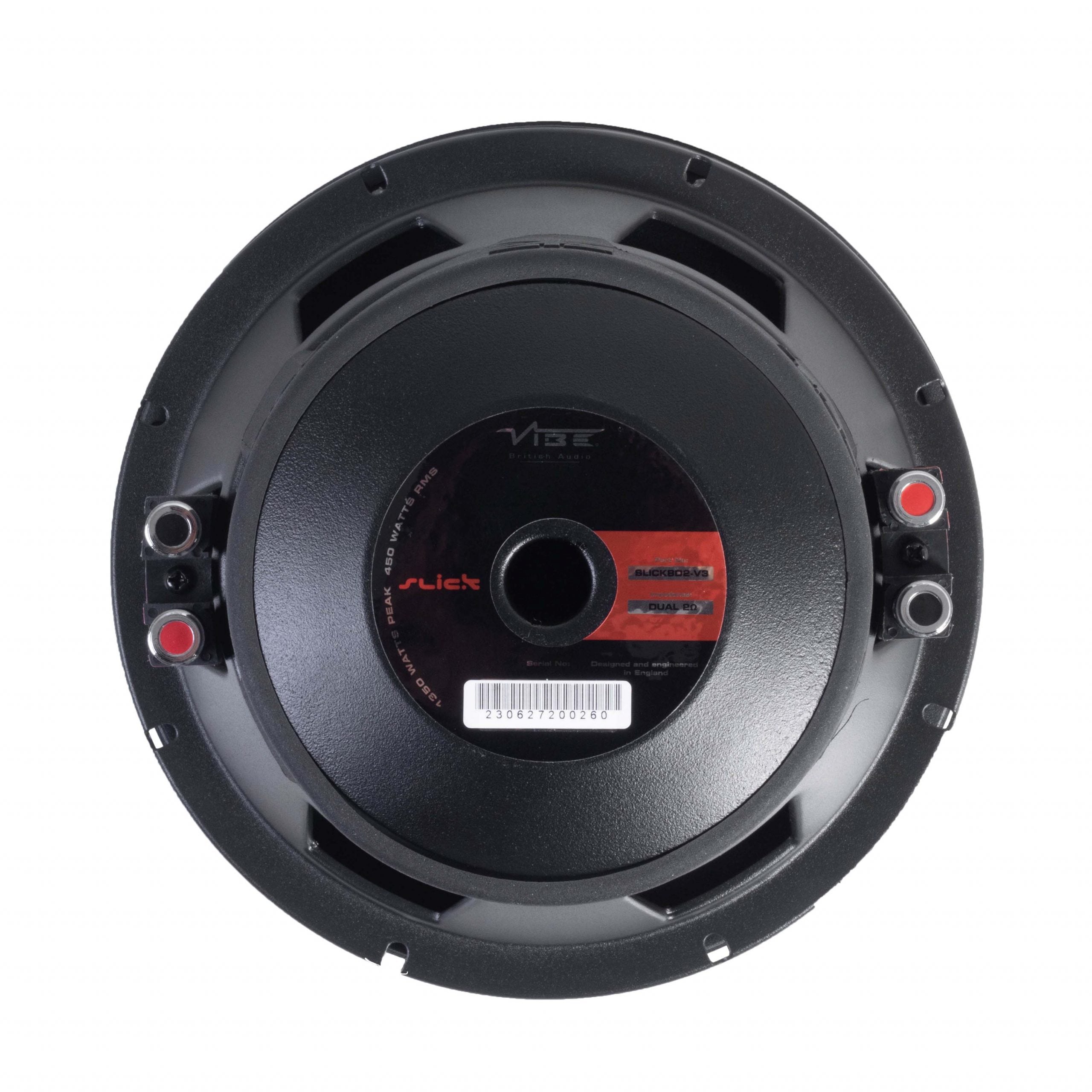

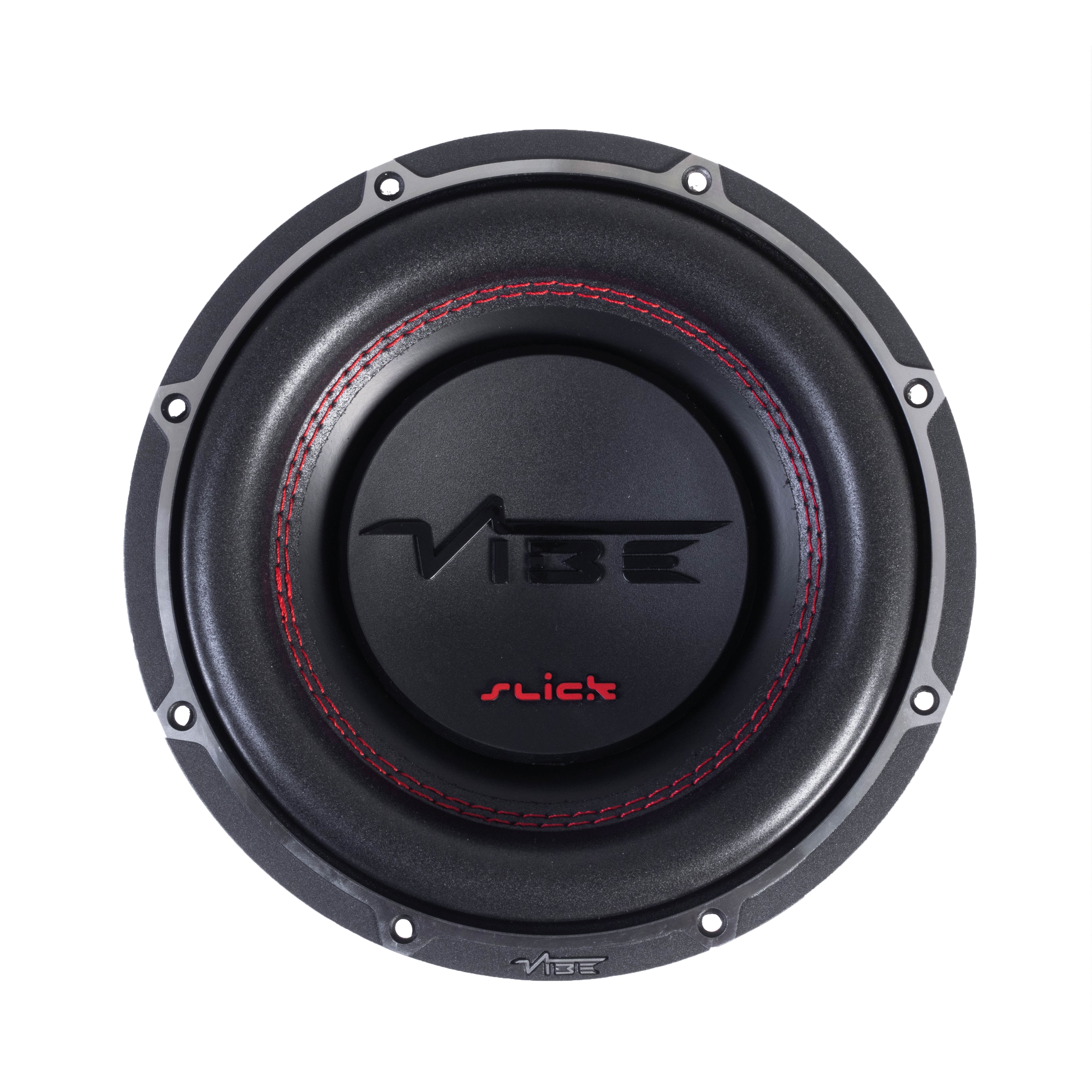

VIBE Audio Slick SLICK8D2-V3
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 41.5 Hz |
| Q factor | 0.47 |
| Sensitivity | 82.1 dB |
| Linear excursion | ± 9 mm |
| Program Power | 900 W |
.png)
.png)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.1dB
- Frequency response 35 - 1500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41.5Hz
- Mechanical quality factor QMS 2.89
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion (one way) xmax 9mm
- Maximum excursion before damage xlim 11mm
- Air volume displaced at xmax VD 180cm³
- Power handling P 450W
- Program power Pmax 900W
- Peak power Ppeak 1350W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.4Ω
- Inductance (1kHz, in series, estimated) LE 1.65mH
Magnet
- Force factor (in series) Bl 12.8N/A
- Motor constant Bl/√RE 6.96N/√W
Diaphragm
- Effective diameter 160mm
- Effective area SD 200cm²
- Moving mass MMS 103g
- Moving mass (without air load) MMD 101g
Suspensions
- Stiffness KMS 7N/mm
- Compliance CMS 143µm/N
- Equivalent volume to the compliance VAS 8.2L
- Mechanical resistance RMS 9.28N·s/m
Dimensions
- Nominal diameter 8″
- 200mm
- Baffle cutout diameter 181mm
- Mounting depth 120mm
- Volume occupied by the driver (estimated) 0.82L
