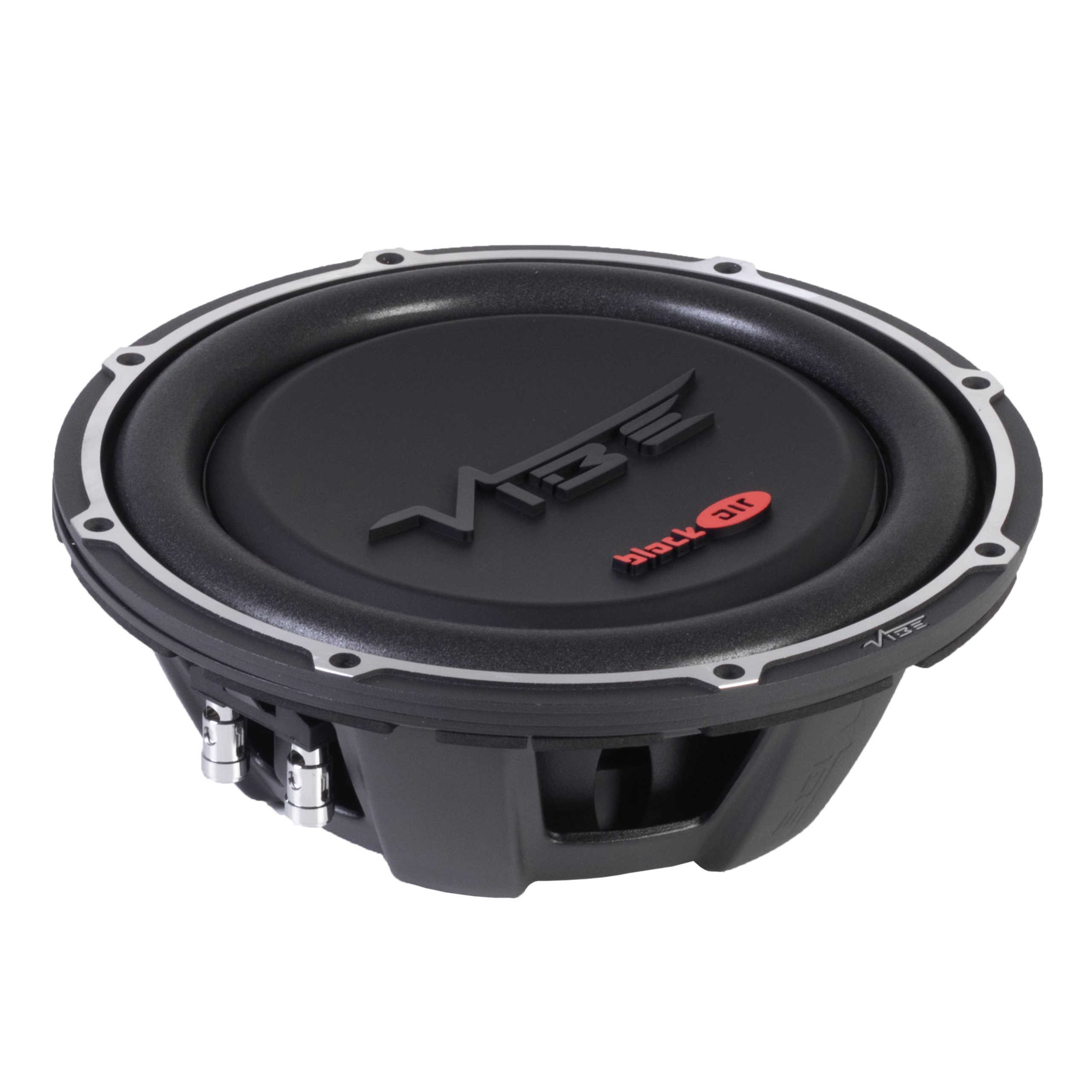

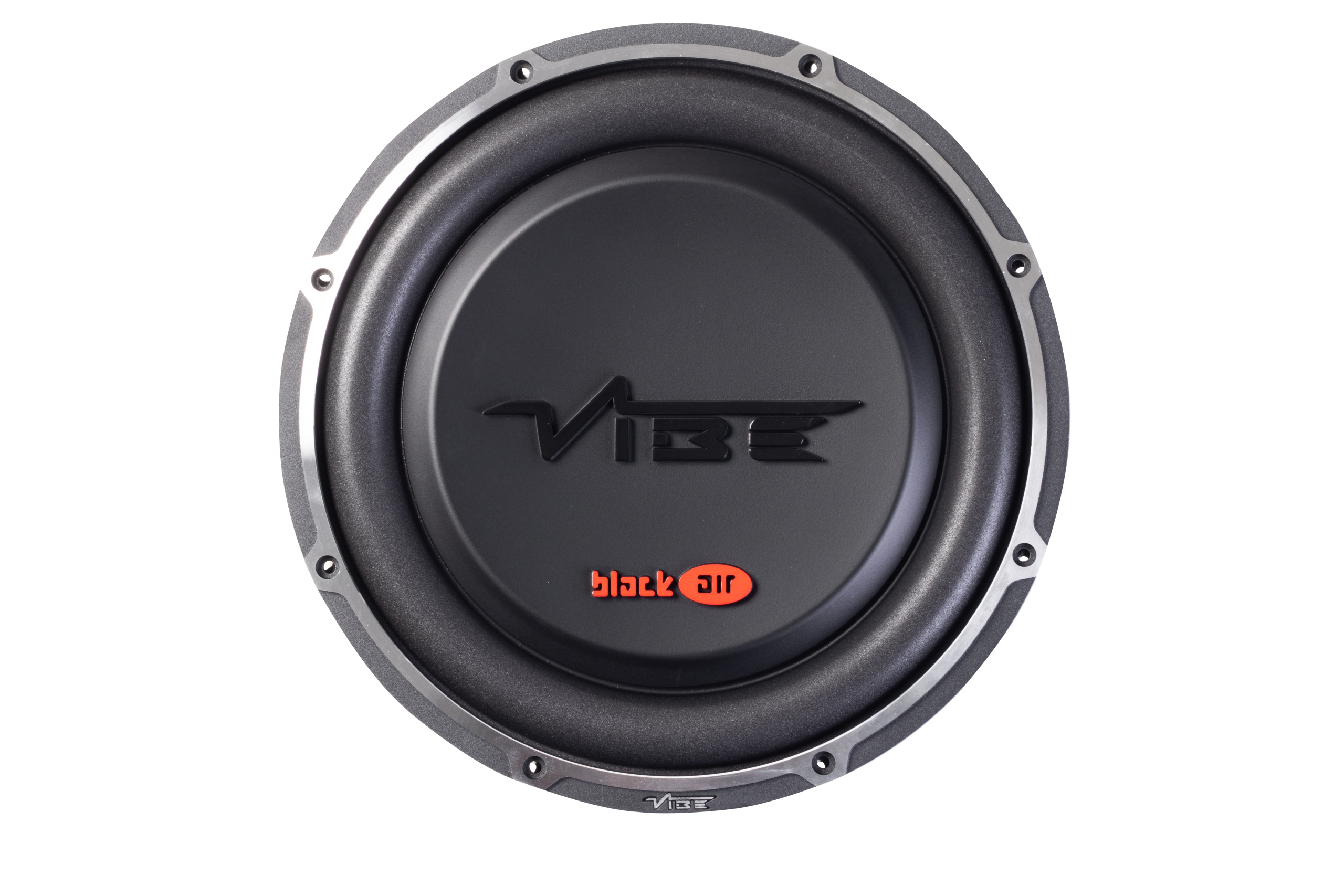

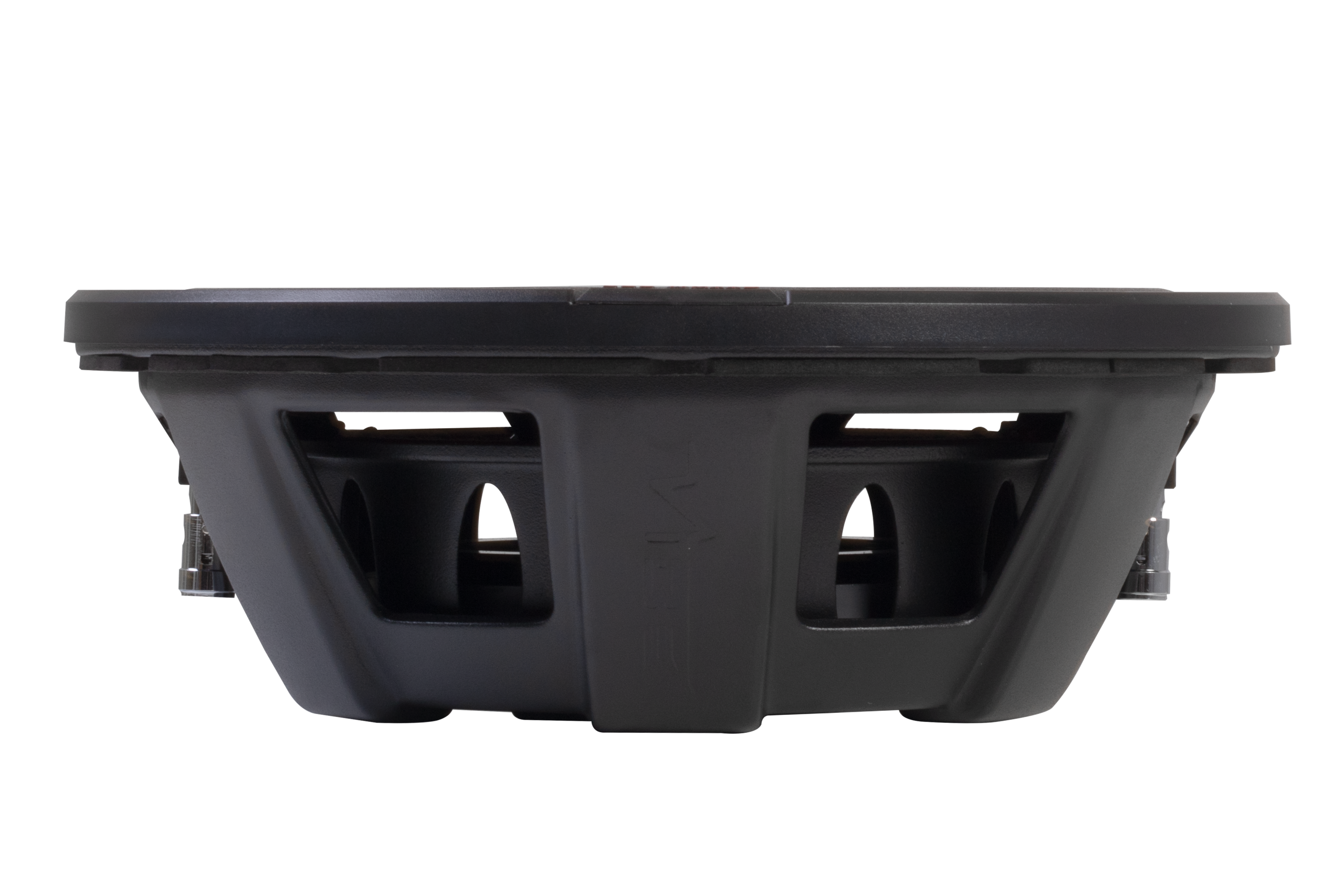

VIBE Audio Black Air BLACKAIR10D2S-V3
2x2Ω
Shallow Subwoofer
| Nominal diameter | 10″ / 261 mm |
| Resonance | 36.1 Hz |
| Q factor | 0.87 |
| Sensitivity | 81.3 dB |
| Linear excursion | ± 8 mm |
| Program Power | 600 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.3dB
- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36.1Hz
- Mechanical quality factor QMS 5.10
- Electrical quality factor QES 1.05
- Total quality factor QTS 0.87
Large signal parameters
- Maximum linear excursion (one way) xmax 8mm
- Maximum excursion before damage xlim 20mm
- Air volume displaced at xmax VD 272cm³
- Power handling P 300W
- Program power Pmax 600W
- Peak power Ppeak 900W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 2.97mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 13.3N/A
- Motor constant Bl/√RE 7.03N/√W
Diaphragm
- Effective diameter 208mm
- Effective area SD 340cm²
- Moving mass MMS 229g
- Moving mass (without air load) MMD 224g
Suspensions
- Stiffness KMS 11.8N/mm
- Compliance CMS 84.7µm/N
- Equivalent volume to the compliance VAS 14.4L
- Mechanical resistance RMS 10.2N·s/m
Dimensions
- Nominal diameter 10″
- 261mm
- Overall diameter 261mm
- Baffle cutout diameter 230mm
- Mounting depth 76mm
- Volume occupied by the driver (estimated) 1.6L
