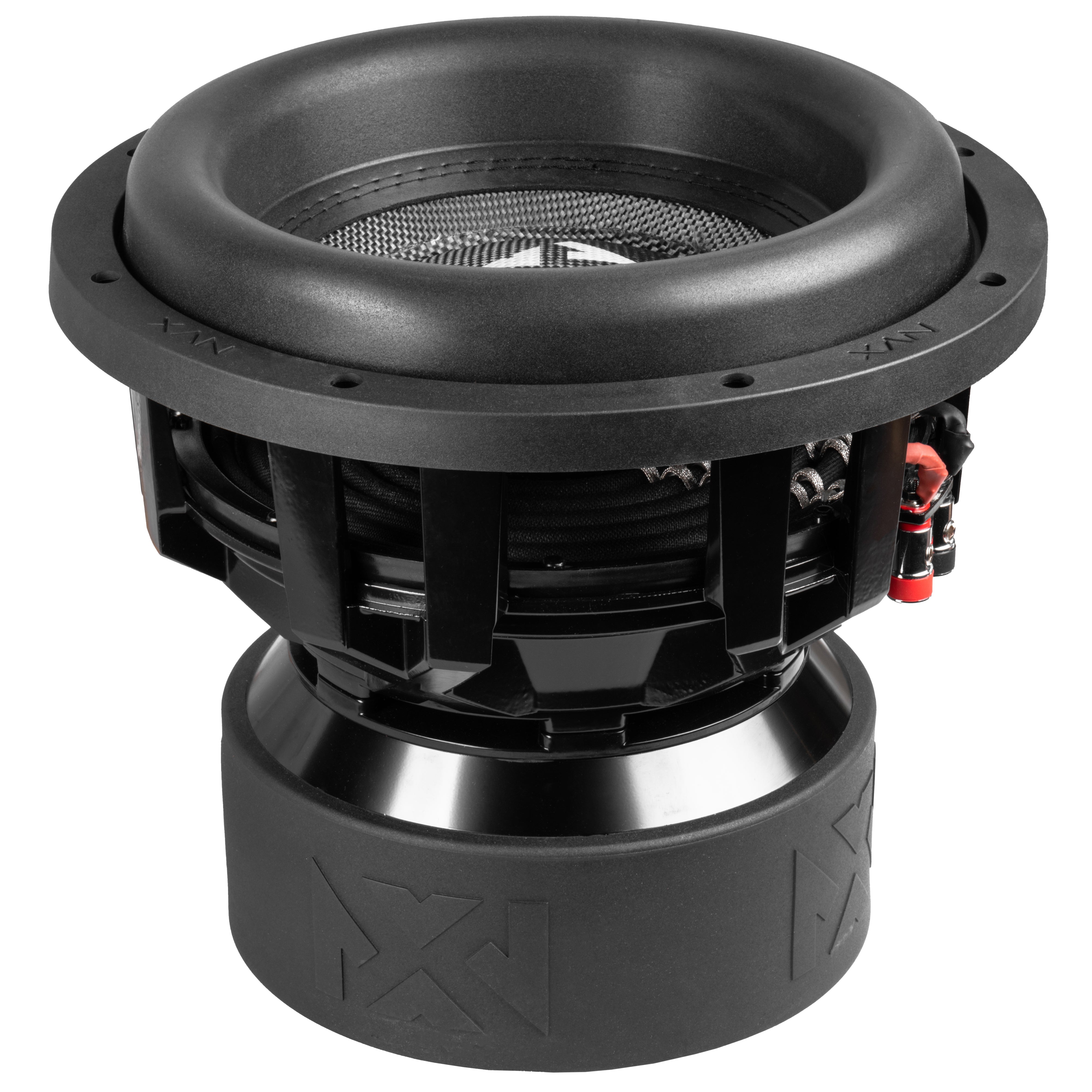

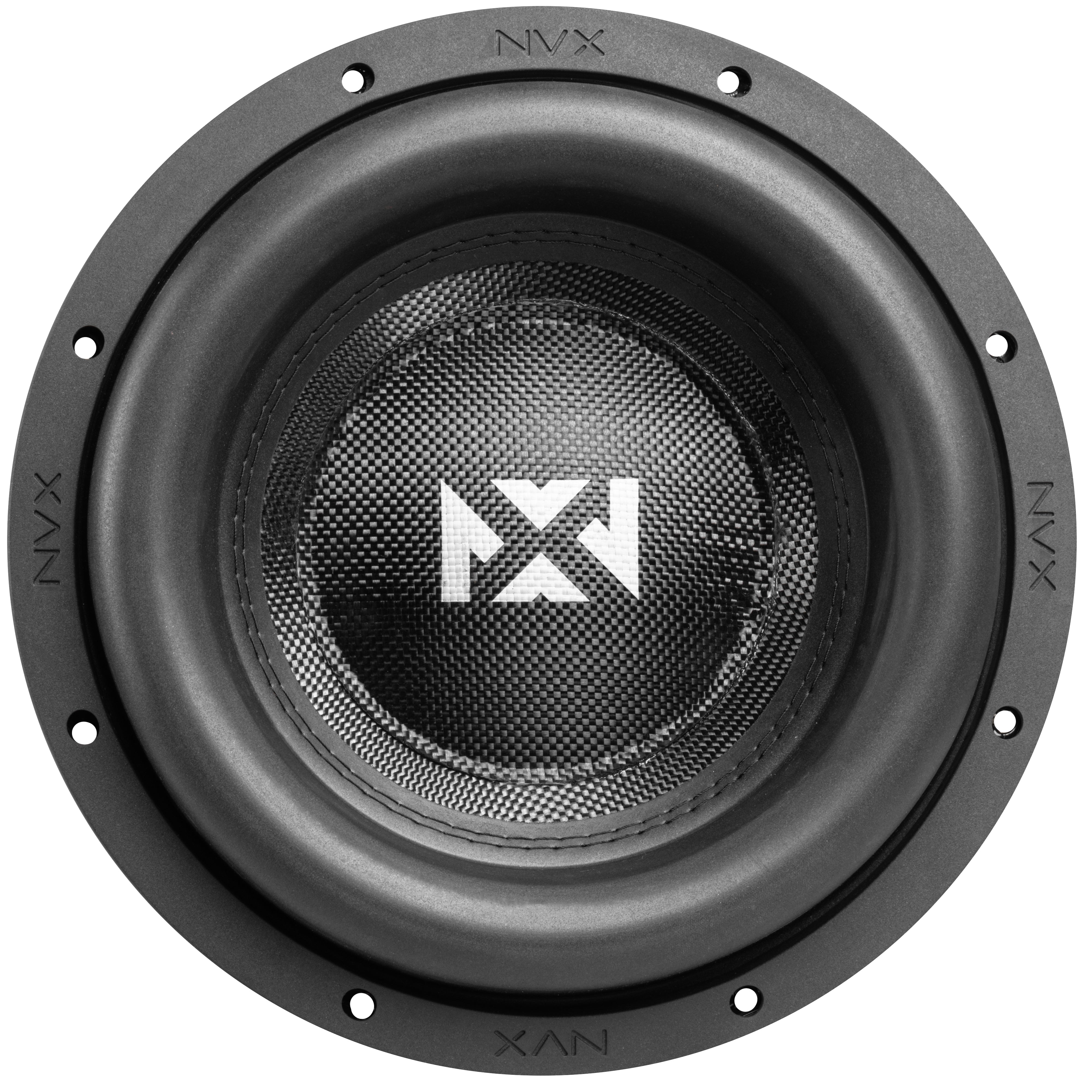

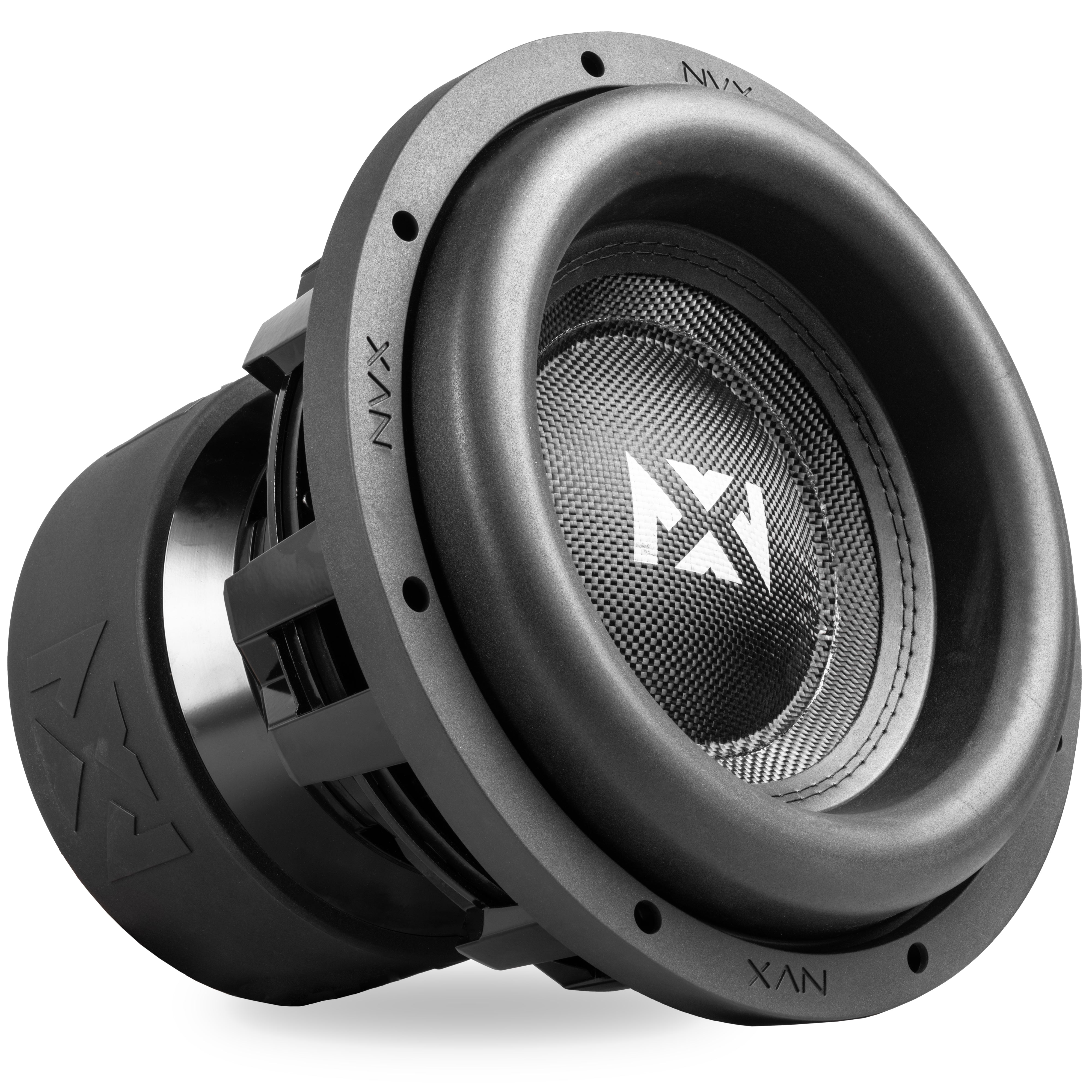

NVX XCW122
2x1Ω
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 305 mm |
| Resonance | 38.2 Hz |
| Q factor | 0.48 |
| Sensitivity | 82.1 dB |
| Linear excursion | ± 30 mm |
| Program power | 4000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.1dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38.2Hz
- Mechanical quality factor QMS 3.81
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion (one way) xmax 30mm
- Air volume displaced at xmax VD 1414cm³
- Power handling P 2000W
- Program power Pmax 4000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 3.8mH
Magnet
- Force factor (in series) Bl 14.8N/A
- Motor constant Bl/√RE 7.77N/√W
Diaphragm
- Effective diameter 245mm
- Effective area SD 471cm²
- Moving mass (including air load) MMS 331g
- Moving mass MMD 323g
Suspensions
- Stiffness KMS 17.4N/mm
- Compliance CMS 57.6µm/N
- Equivalent volume to the compliance VAS 19.4L
- Mechanical resistance RMS 20.9N·s/m
Dimensions
- Nominal diameter 12″
- 305mm
- Overall diameter 325mm
- Baffle cutout diameter 285mm
- Mounting depth 263mm
- Volume occupied by the driver 5.66L
- Net weight 25.5kg
