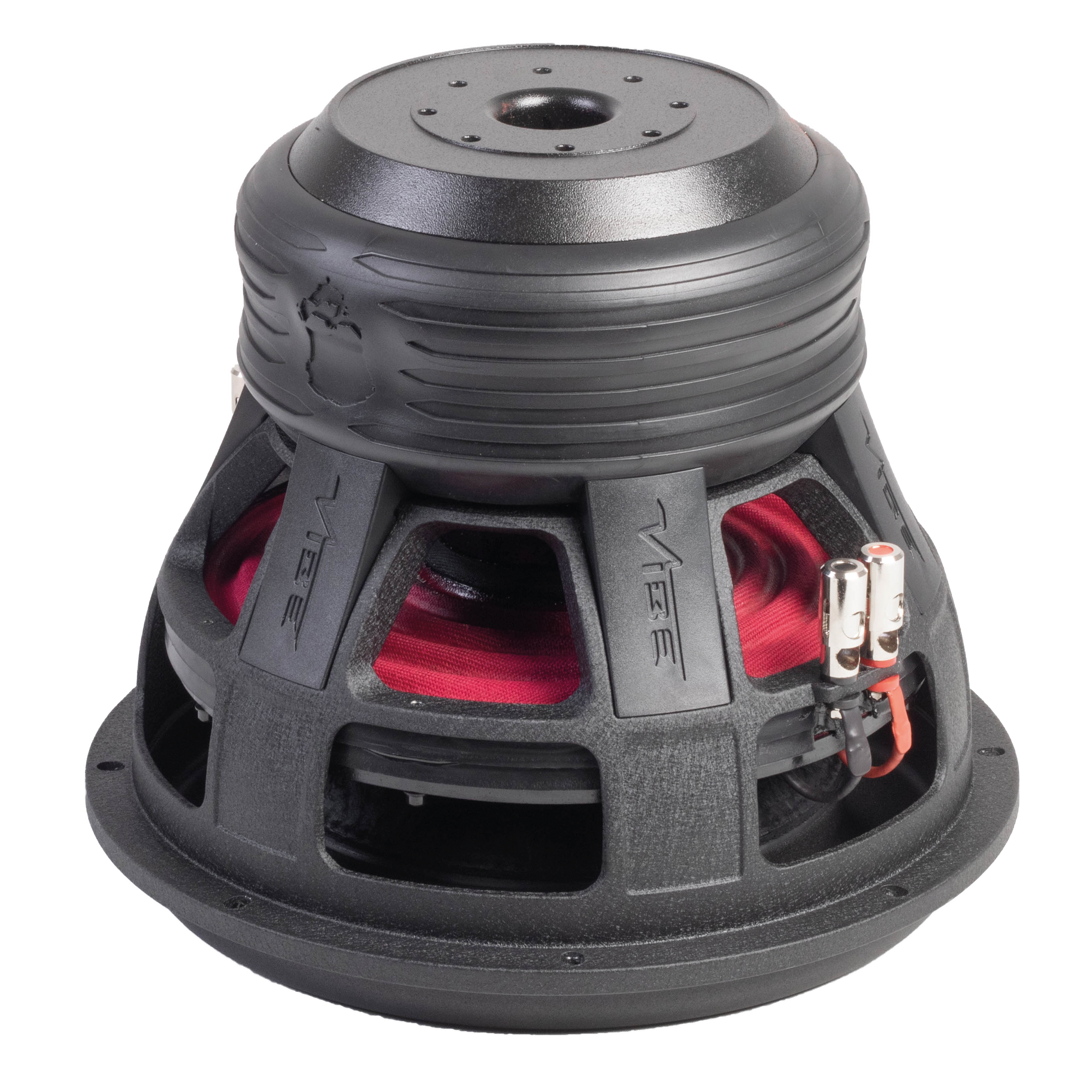

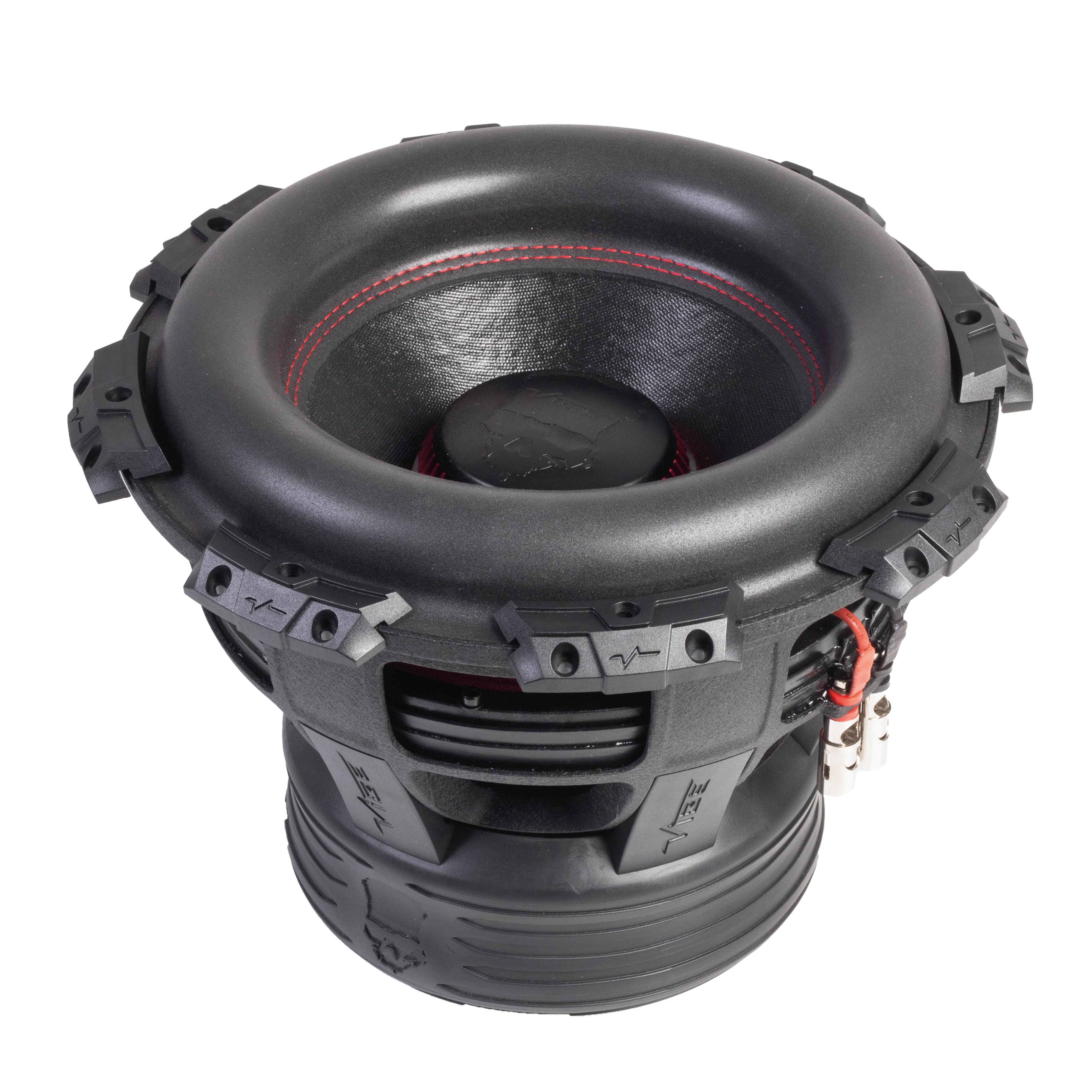

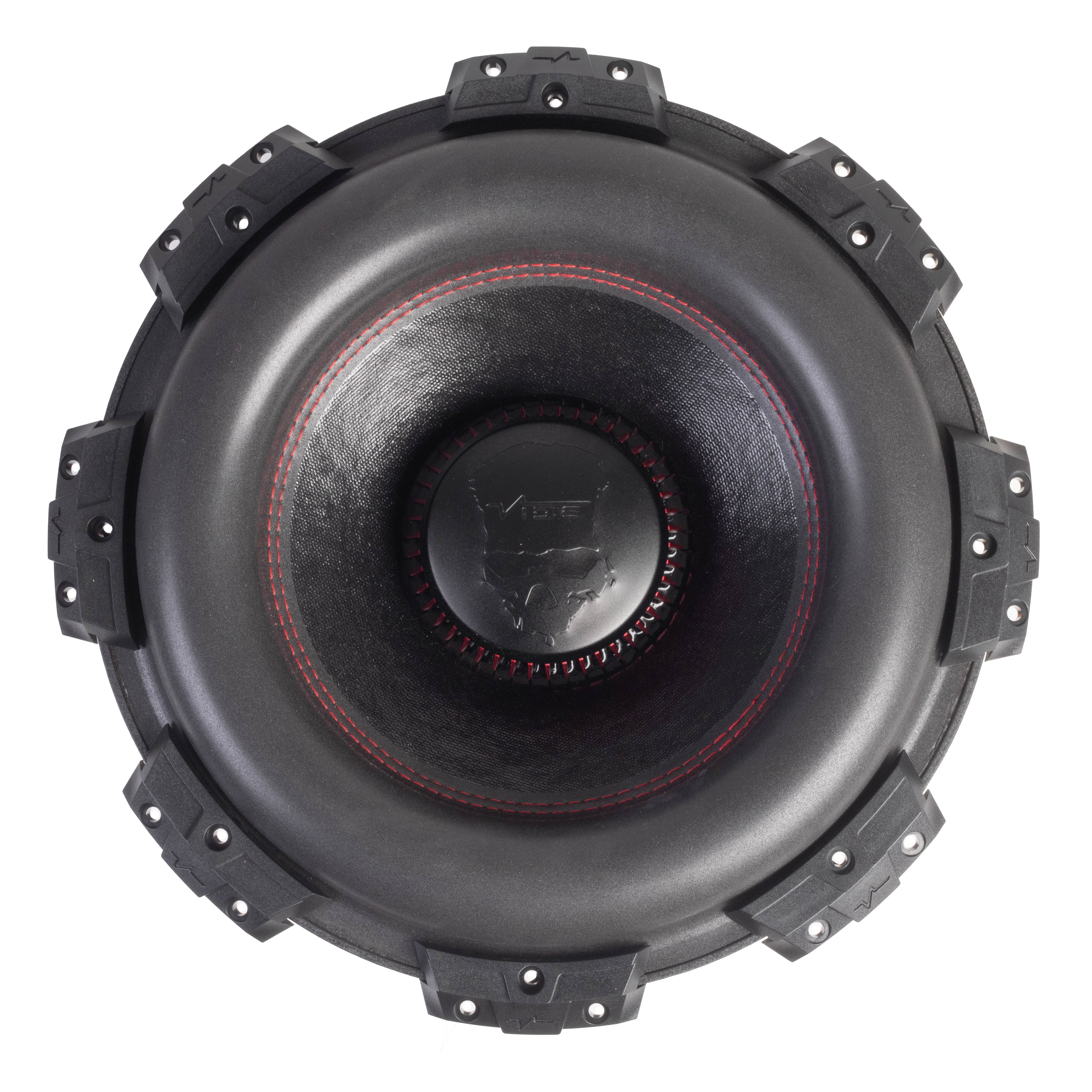

VIBE Audio BlackDeath BD12D1SPL-V4
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 12″ / 323 mm |
| Resonance | 39.9 Hz |
| Q factor | 0.58 |
| Sensitivity | 84.9 dB |
| Linear excursion | ± 25 mm |
| Program Power | 3000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.9dB
- Frequency response 25 - 850Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 39.9Hz
- Mechanical quality factor QMS 2.42
- Electrical quality factor QES 0.76
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion (one way) xmax 25mm
- Maximum excursion before damage xlim 38mm
- Air volume displaced at xmax VD 1131cm³
- Power handling P 1500W
- Program power Pmax 3000W
- Peak power Ppeak 9000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 2.0Ω
- Inductance (1kHz, in series) LE 0.855mH
- VC Diameter 76.2mm
- Winding height HVC 70mm
Magnet
- Force factor (in series) Bl 14.1N/A
- Motor constant Bl/√RE 9.96N/√W
- Air gap height HAG 20mm
- Weight 5.67kg
Diaphragm
- Effective diameter 240mm
- Effective area SD 452cm²
- Moving mass MMS 248g
- Moving mass (without air load) MMD 240g
Suspensions
- Stiffness KMS 22.9N/mm
- Compliance CMS 43.6µm/N
- Equivalent volume to the compliance VAS 12.7L
- Mechanical resistance RMS 25.7N·s/m
Dimensions
- Nominal diameter 12″
- 323mm
- Overall diameter 323mm
- Baffle cutout diameter 301mm
- Mounting depth 285mm
- Volume occupied by the driver (estimated) 2.8L
