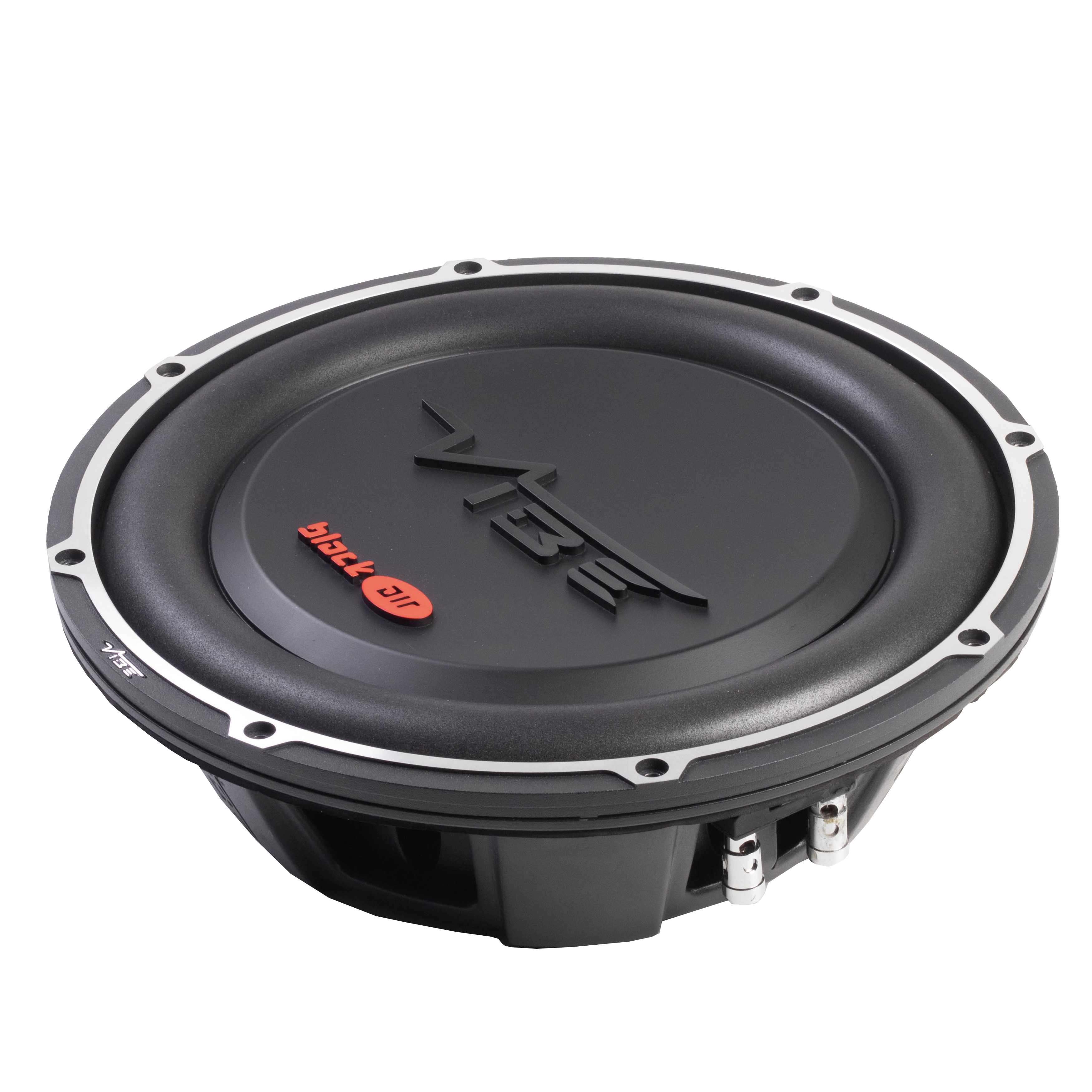

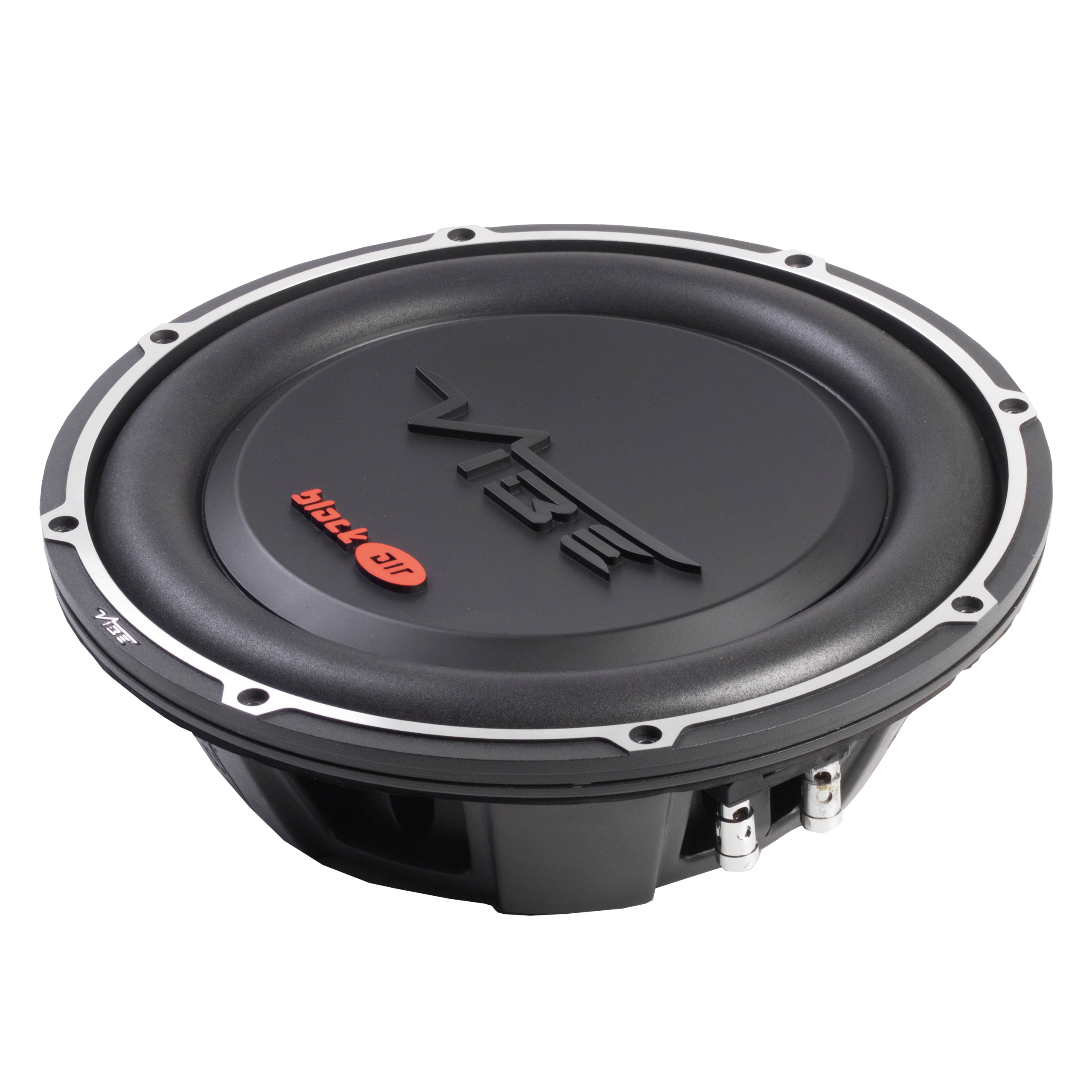

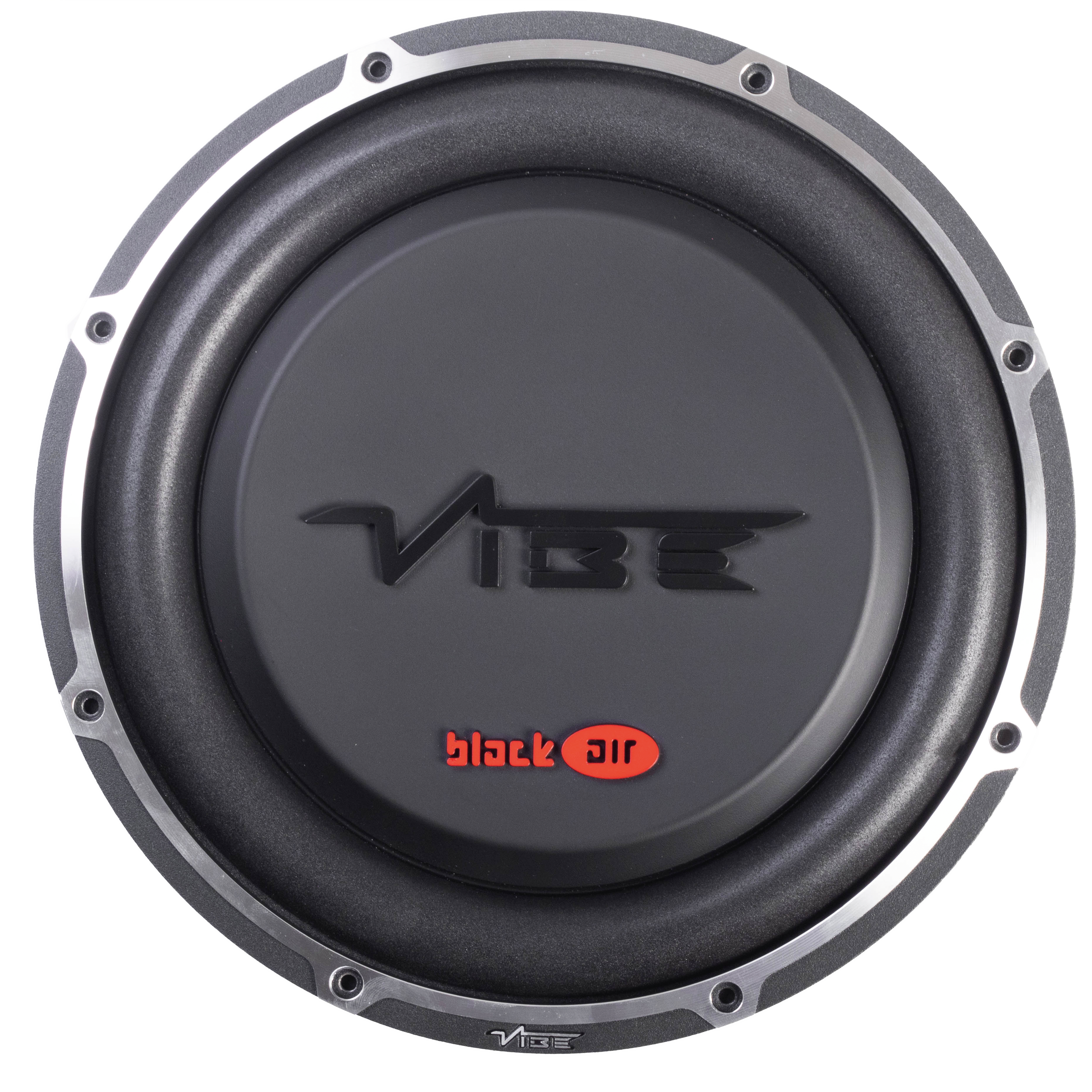

VIBE Audio Black Air BLACKAIR12D2S-V3
2x2Ω
Shallow Subwoofer
| Nominal diameter | 12″ / 313 mm |
| Resonance | 31.6 Hz |
| Q factor | 0.82 |
| Sensitivity | 83.3 dB |
| Linear excursion | ± 8 mm |
| Program Power | 600 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.3dB
- Frequency response 25 - 850Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31.6Hz
- Mechanical quality factor QMS 5.49
- Electrical quality factor QES 0.97
- Total quality factor QTS 0.82
Large signal parameters
- Maximum linear excursion (one way) xmax 8mm
- Maximum excursion before damage xlim 20mm
- Air volume displaced at xmax VD 384cm³
- Power handling P 300W
- Program power Pmax 600W
- Peak power Ppeak 900W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 3.24mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 13.9N/A
- Motor constant Bl/√RE 7.32N/√W
Diaphragm
- Effective diameter 247mm
- Effective area SD 480cm²
- Moving mass MMS 260g
- Moving mass (without air load) MMD 253g
Suspensions
- Stiffness KMS 10.3N/mm
- Compliance CMS 97.2µm/N
- Equivalent volume to the compliance VAS 32.2L
- Mechanical resistance RMS 9.43N·s/m
Dimensions
- Nominal diameter 12″
- 313mm
- Overall diameter 313mm
- Baffle cutout diameter 267mm
- Mounting depth 80mm
- Volume occupied by the driver (estimated) 2.6L
