| Nominal diameter | 12″ / 320 mm |
| Resonance | 33 Hz |
| Q factor | 0.70 |
| Sensitivity | 83.8 dB |
| Program Power | 1600 W |
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.8dB
- Frequency response 20 - 600Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 33Hz
- Mechanical quality factor QMS 4.83
- Electrical quality factor QES 0.82
- Total quality factor QTS 0.70
Large signal parameters
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.0Ω
- Inductance (1kHz, in series) LE 2.94mH
- VC Diameter 63.5mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor (in series) Bl 14N/A
- Motor constant Bl/√RE 8.08N/√W
- Diameter 160mm
- Weight 1.758kg
- Material Ferrite
Diaphragm
- Effective diameter 251mm
- Effective area SD 495cm²
- Moving mass MMS 262g
- Moving mass (without air load) MMD 253g
- Material Paper
Suspensions
- Stiffness KMS 9.42N/mm
- Compliance CMS 106µm/N
- Equivalent volume to the compliance VAS 38L
- Mechanical resistance RMS 11.2N·s/m
- Surround material Stitched Rubber

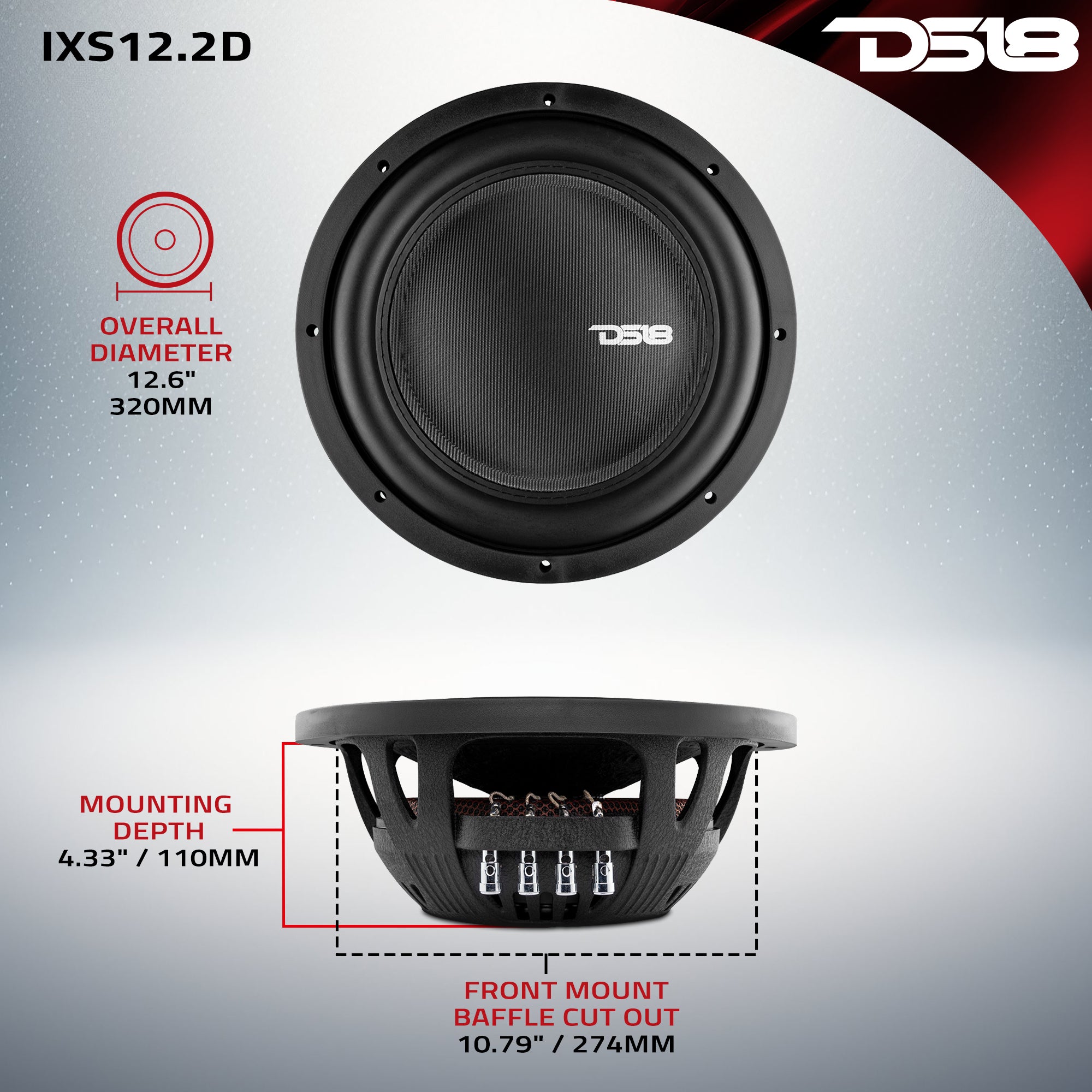

Dimensions
- Nominal diameter 12″
- 320mm
- Overall diameter 320mm
- Baffle cutout diameter 274mm
- Overall depth 129mm
- Flange thickness 19mm
- Mounting depth 110mm
- Volume occupied by the driver 0.93L
- Frame material Aluminium
