DS18 IXS12.4S

4Ω

Shallow Subwoofer

Nominal diameter	12″ / 320 mm
Resonance	35 Hz
Q factor	0.69
Sensitivity	86.2 dB
Program Power	1600 W

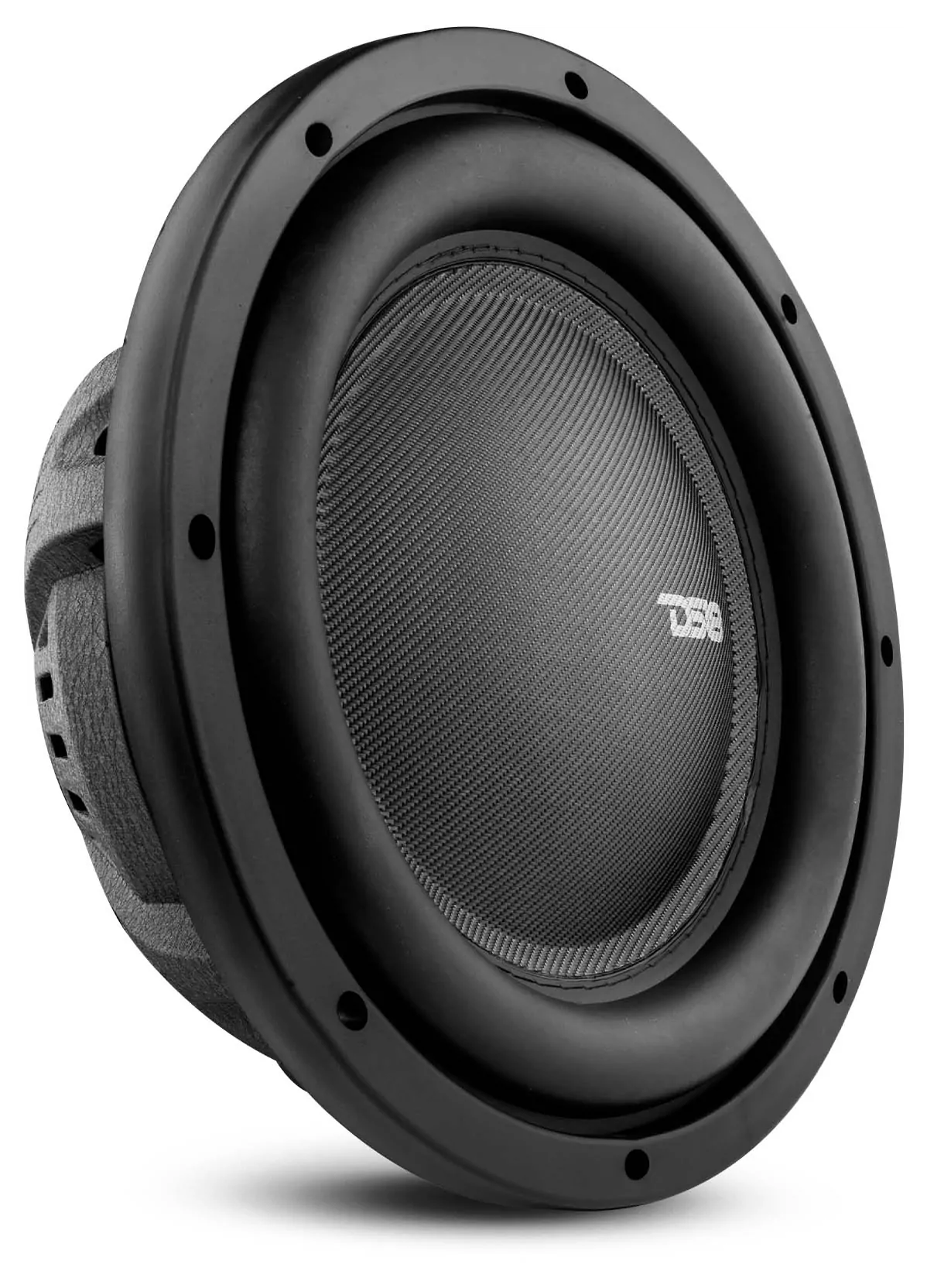

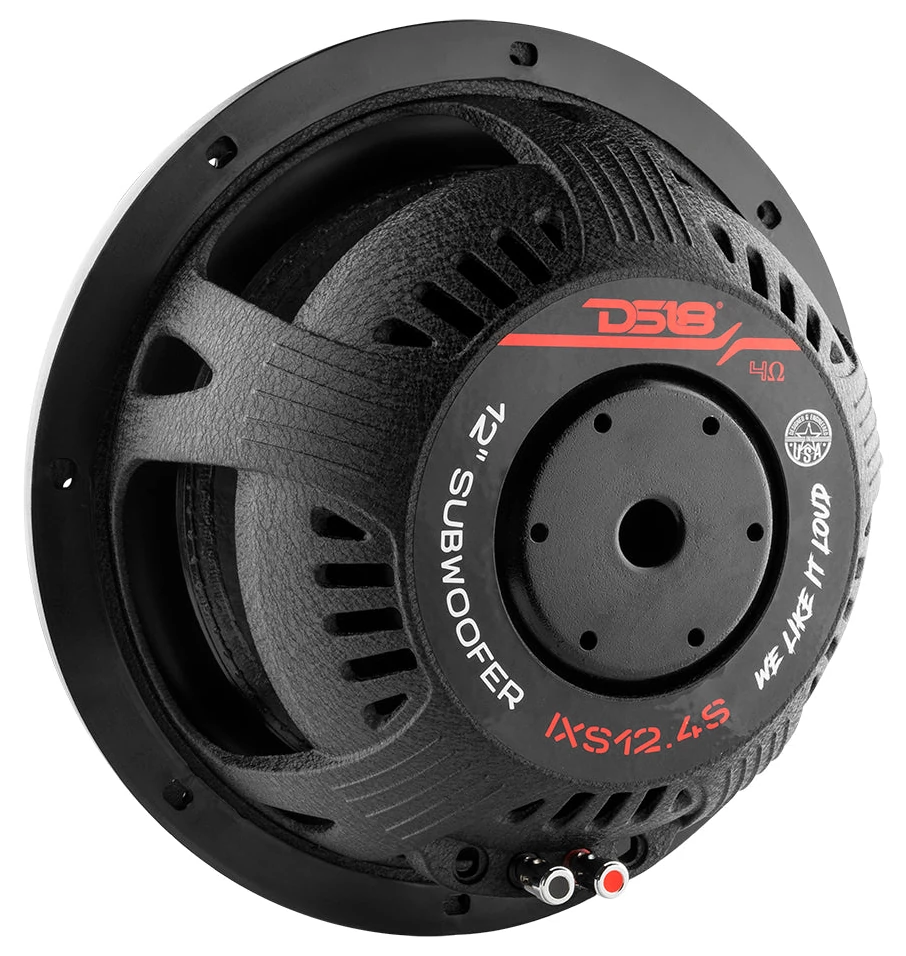

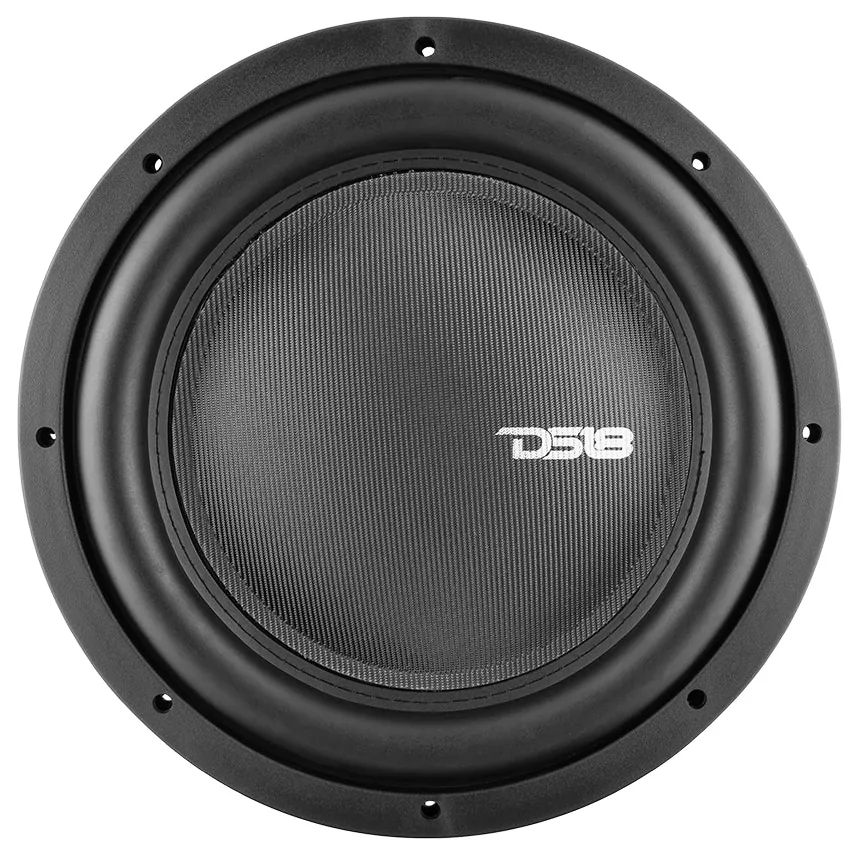

DS18 IXS12.4S Shallow Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 86.2dB
Frequency response 20 - 600Hz

Thiele & Small parameters

Resonance frequency (free air) fS 35Hz
Mechanical quality factor QMS 4.56
Electrical quality factor QES 0.81
Total quality factor QTS 0.69

Large signal parameters

Power handling P 800W
Program power Pmax 1600W

Voice Coil

Nominal impedance Z 4Ω
DC resistance RE 3.6Ω
Inductance (1kHz) LE 4.34mH
VC Diameter 63.5mm
Winding material Copper
Former material Aluminum

Magnet

Force factor Bl 13.4N/A
Motor constant Bl/√RE 7.05N/√W
Diameter 156mm
Weight 1.758kg
Material Ferrite

Diaphragm

Effective diameter 253mm
Effective area SD 502cm²
Moving mass MMS 183g
Moving mass (without air load) MMD 174g
Material Paper

Suspensions

Stiffness KMS 8.87N/mm
Compliance CMS 113µm/N
Equivalent volume to the compliance VAS 40.5L
Mechanical resistance RMS 8.8N·s/m
Surround material Stitched Rubber

Dimensions

Nominal diameter 12″
320mm
Overall diameter 320mm
Baffle cutout diameter 274mm
Overall depth 120mm
Flange thickness 10mm
Mounting depth 110mm
Volume occupied by the driver 0.93L
Frame material Aluminium

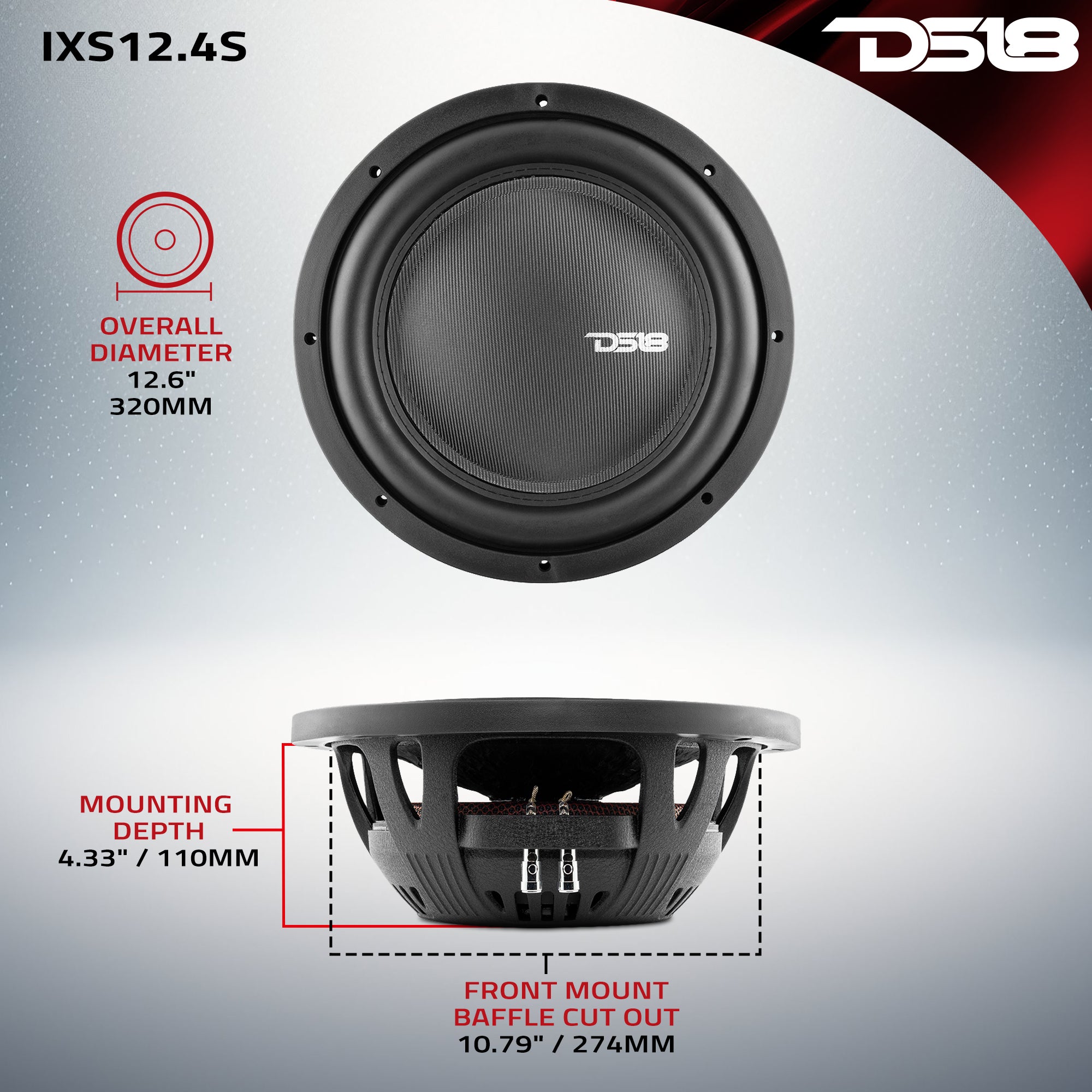

DS18 IXS12.4S Dimensions

Export this driver to a simulation software:

Closed Box Simulator·
