KICKER CompVT 52CVT122
2Ω
4ΩSubwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 34.8 Hz |
| Q factor | 0.74 |
| Sensitivity | 86.4 dB |
| Linear excursion | ± 13 mm |
| Program Power | 900 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 34.8Hz
- Mechanical quality factor QMS 7.85
- Electrical quality factor QES 0.82
- Total quality factor QTS 0.74
Large signal parameters
- Maximum linear excursion xmax 13mm
- Air volume displaced at xmax VD 690cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 2Ω
- DC resistance RE 2.1Ω
- Inductance (1kHz) LE 2.04mH
Magnet
- Force factor Bl 10.4N/A
- Motor constant Bl/√RE 7.23N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 196g
- Moving mass (without air load) MMD 188g
Suspensions
- Stiffness KMS 9.38N/mm
- Compliance CMS 107µm/N
- Equivalent volume to the compliance VAS 42.5L
- Mechanical resistance RMS 5.46N·s/m

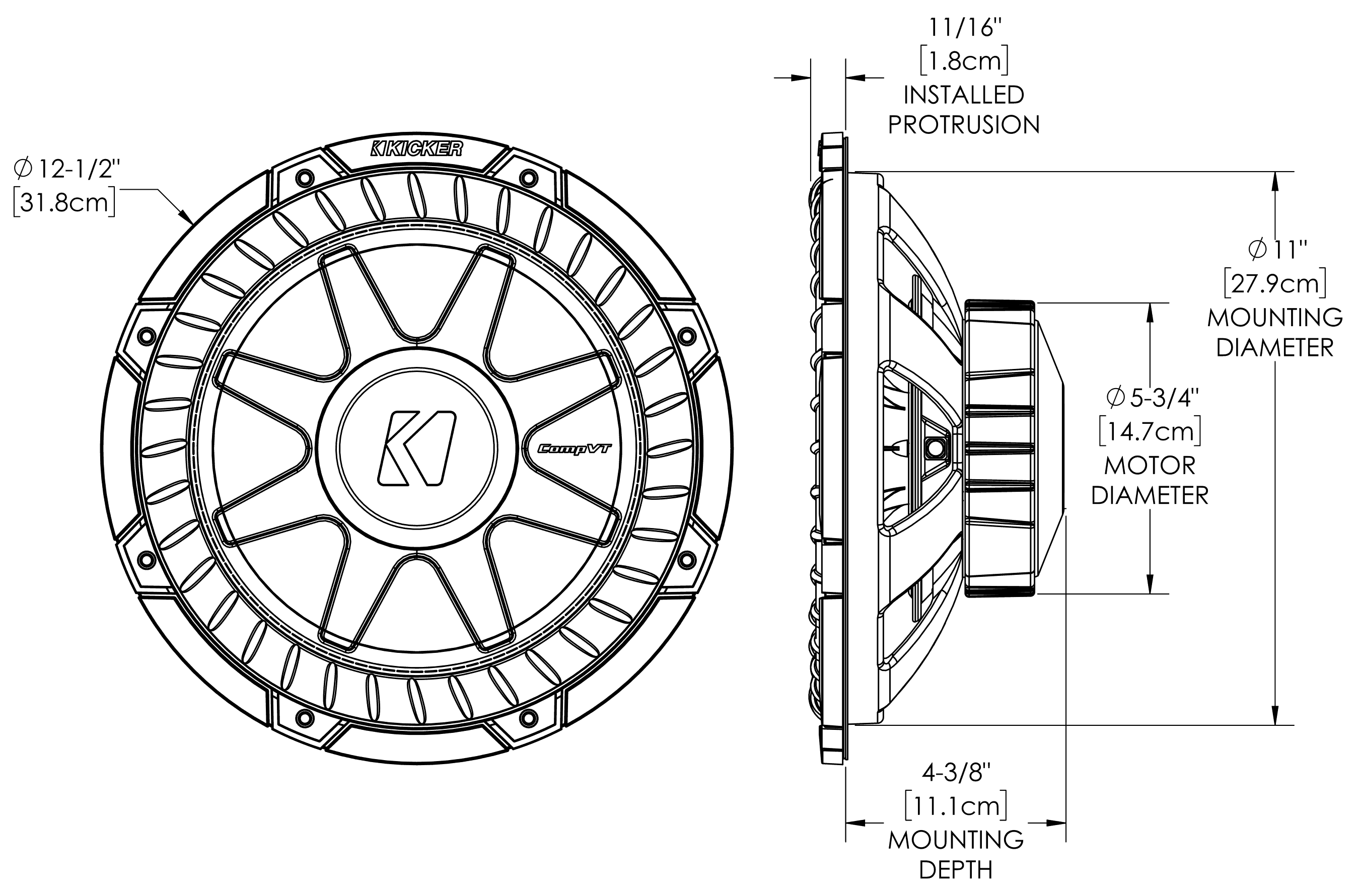

Dimensions
- Nominal diameter 12″
- 300mm
- Baffle cutout diameter 281mm
- Mounting depth 111mm
- Volume occupied by the driver (estimated) 2.3L
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
