KICKER CompVT 52CVT124
2Ω
4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 36.4 Hz |
| Q factor | 0.83 |
| Sensitivity | 86.4 dB |
| Linear excursion | ± 13 mm |
| Program power | 900 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 36.4Hz
- Mechanical quality factor QMS 7.77
- Electrical quality factor QES 0.93
- Total quality factor QTS 0.83
Large signal parameters
- Maximum linear excursion (one way) xmax 13mm
- Air volume displaced at xmax VD 690cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.7Ω
- Inductance (1kHz) LE 3.02mH
Magnet
- Force factor Bl 12.9N/A
- Motor constant Bl/√RE 6.73N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass (including air load) MMS 185g
- Moving mass MMD 176g
Suspensions
- Stiffness KMS 9.63N/mm
- Compliance CMS 104µm/N
- Equivalent volume to the compliance VAS 41.6L
- Mechanical resistance RMS 5.43N·s/m

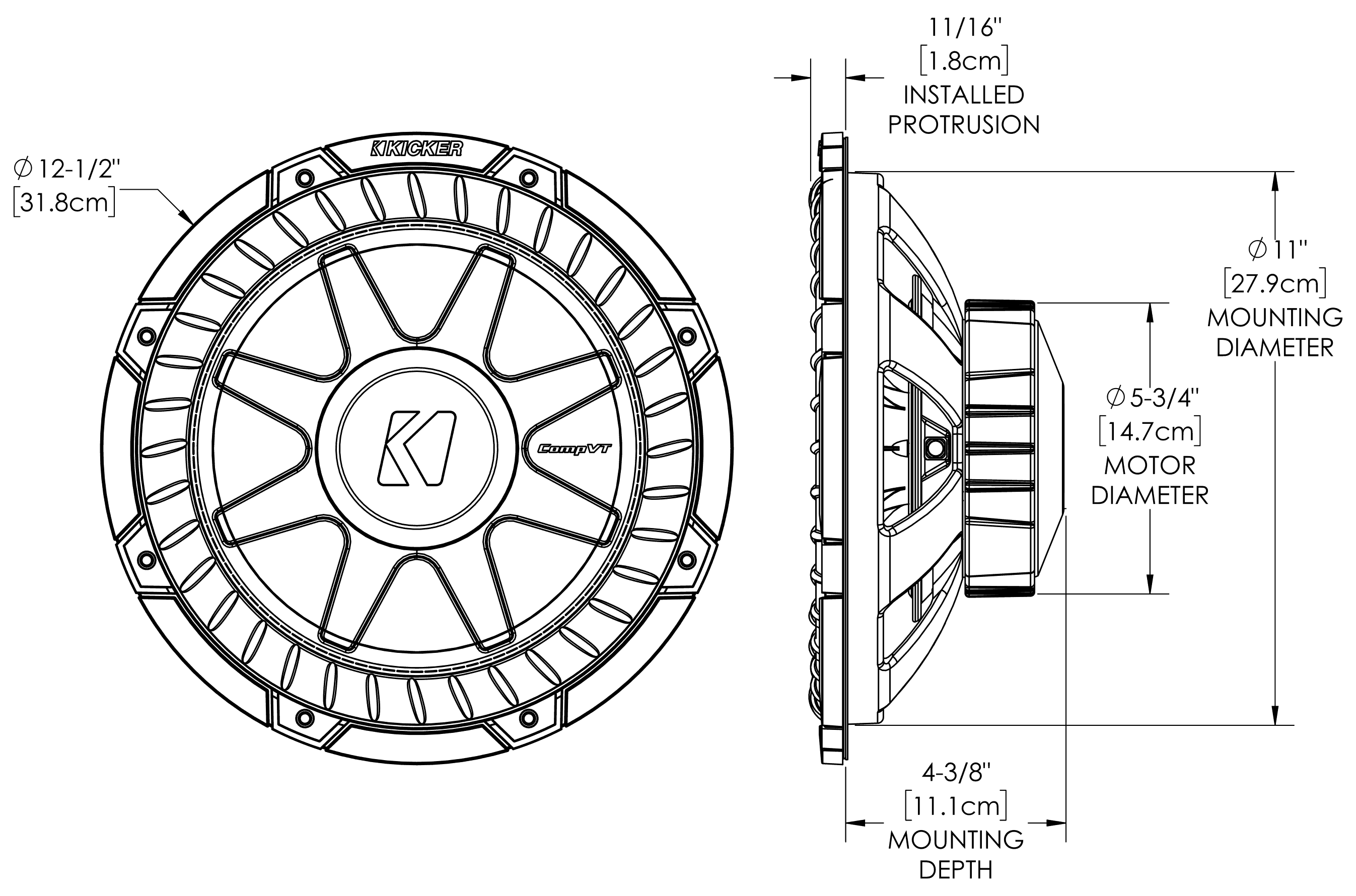

Dimensions
- Nominal diameter 12″
- 300mm
- Baffle cutout diameter 281mm
- Mounting depth 111mm
- Volume occupied by the driver (estimated) 2.3L
