DS18 IXS12.4D

2x4Ω

Shallow Subwoofer

Nominal diameter	12″ / 320 mm
Resonance	35 Hz
Q factor	0.71
Sensitivity	85.8 dB
Program Power	1600 W

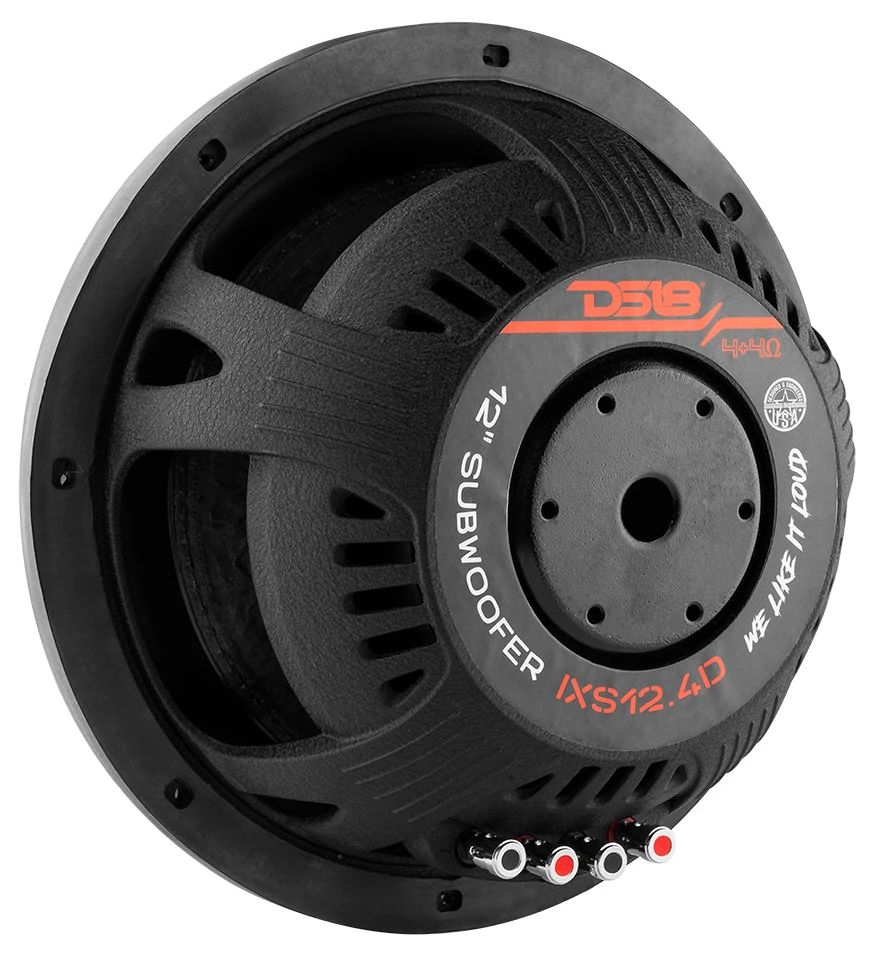

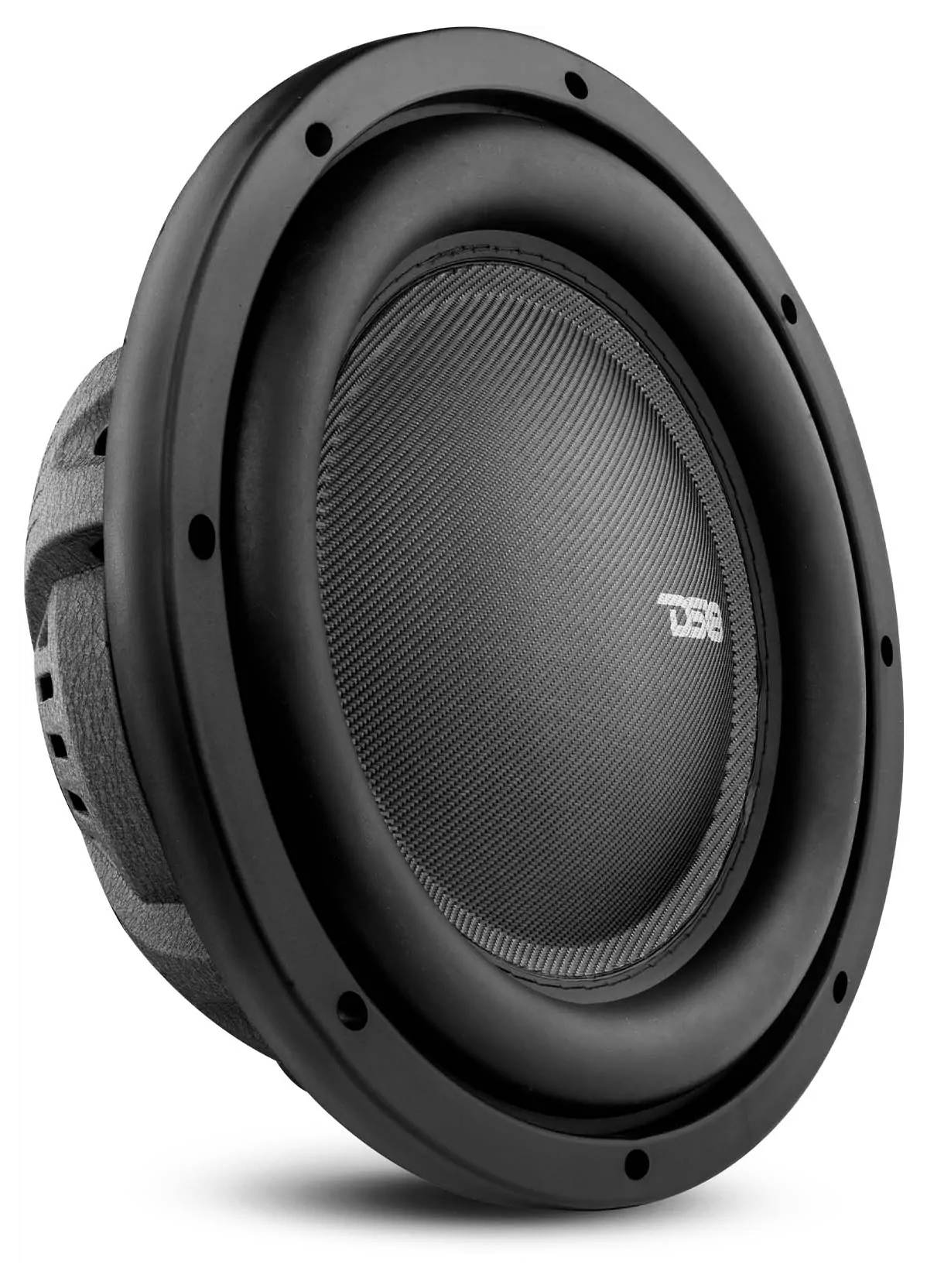

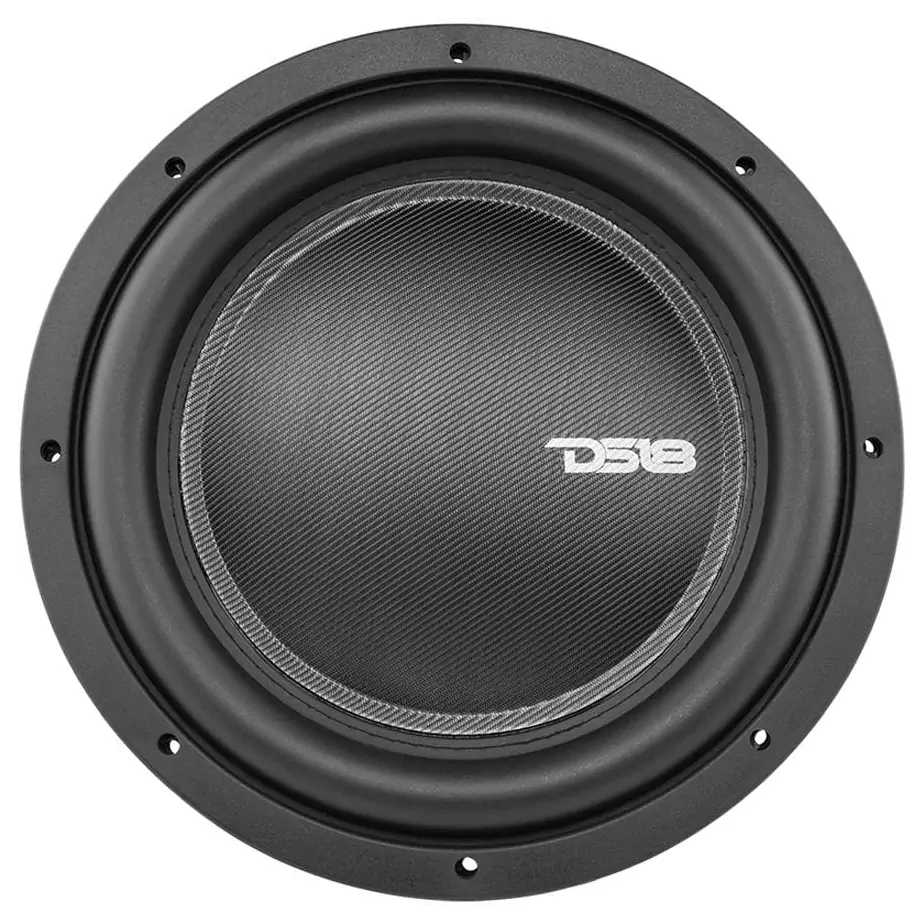

DS18 IXS12.4D Shallow Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 85.8dB
Frequency response 20 - 600Hz

Thiele & Small parameters

Resonance frequency (free air) fS 35Hz
Mechanical quality factor QMS 4.03
Electrical quality factor QES 0.86
Total quality factor QTS 0.71

Large signal parameters

Power handling P 800W
Program power Pmax 1600W

Voice Coil

Nominal impedance Z 2 x 4Ω
DC resistance (in series) RE 7.5Ω
Inductance (1kHz, in series) LE 7.07mH
VC Diameter 63.5mm
Winding material Copper
Former material Aluminum

Magnet

Force factor (in series) Bl 18.8N/A
Motor constant Bl/√RE 6.85N/√W
Diameter 156mm
Weight 0.176kg
Material Ferrite

Diaphragm

Effective diameter 253mm
Effective area SD 503cm²
Moving mass MMS 184g
Moving mass (without air load) MMD 176g
Material Paper

Suspensions

Stiffness KMS 9.62N/mm
Compliance CMS 104µm/N
Equivalent volume to the compliance VAS 37.3L
Mechanical resistance RMS 10N·s/m
Surround material Stitched Rubber

Dimensions

Nominal diameter 12″
320mm
Overall diameter 320mm
Baffle cutout diameter 274mm
Overall depth 120mm
Flange thickness 10mm
Mounting depth 110mm
Volume occupied by the driver 0.93L
Frame material Aluminium

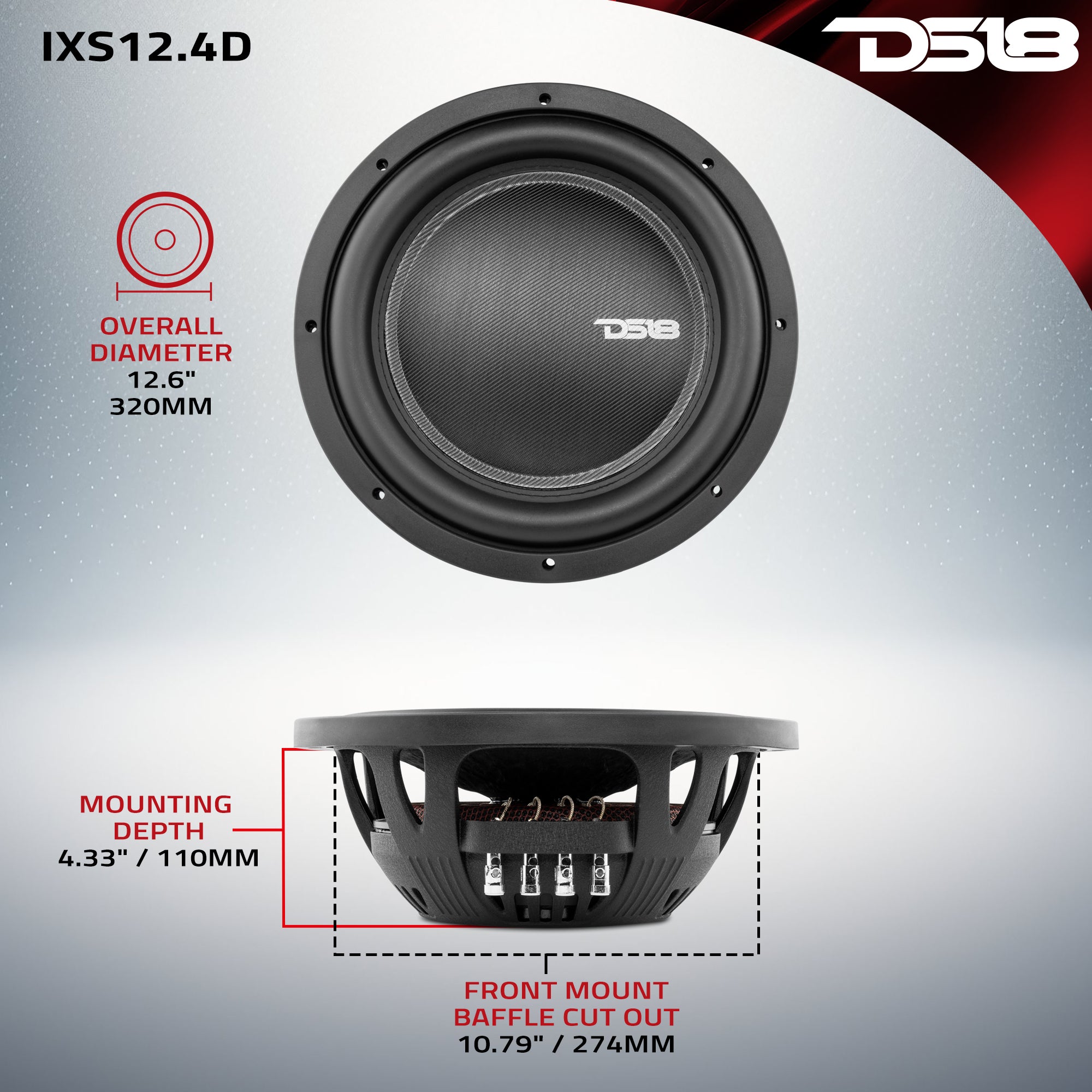

DS18 IXS12.4D Dimensions
