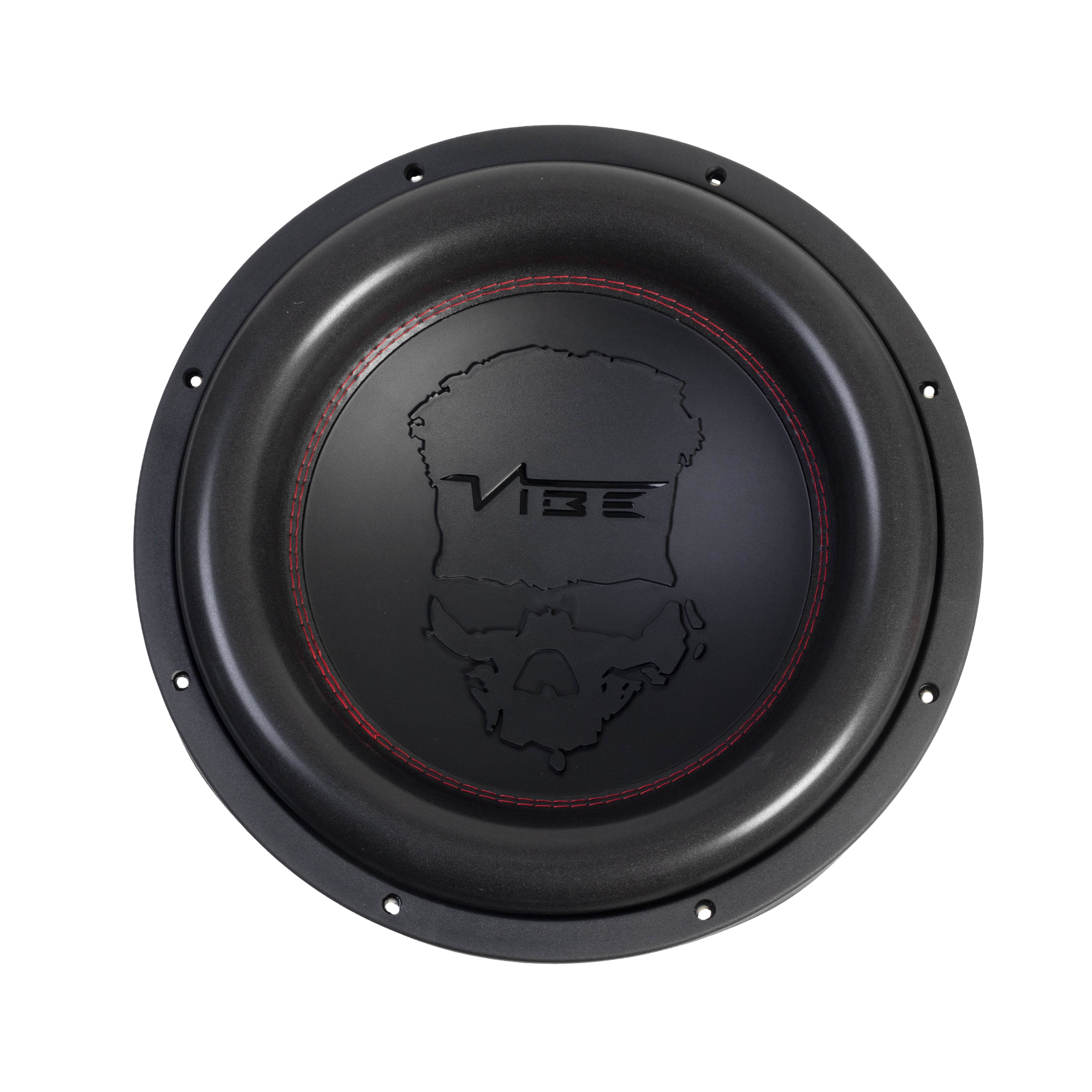

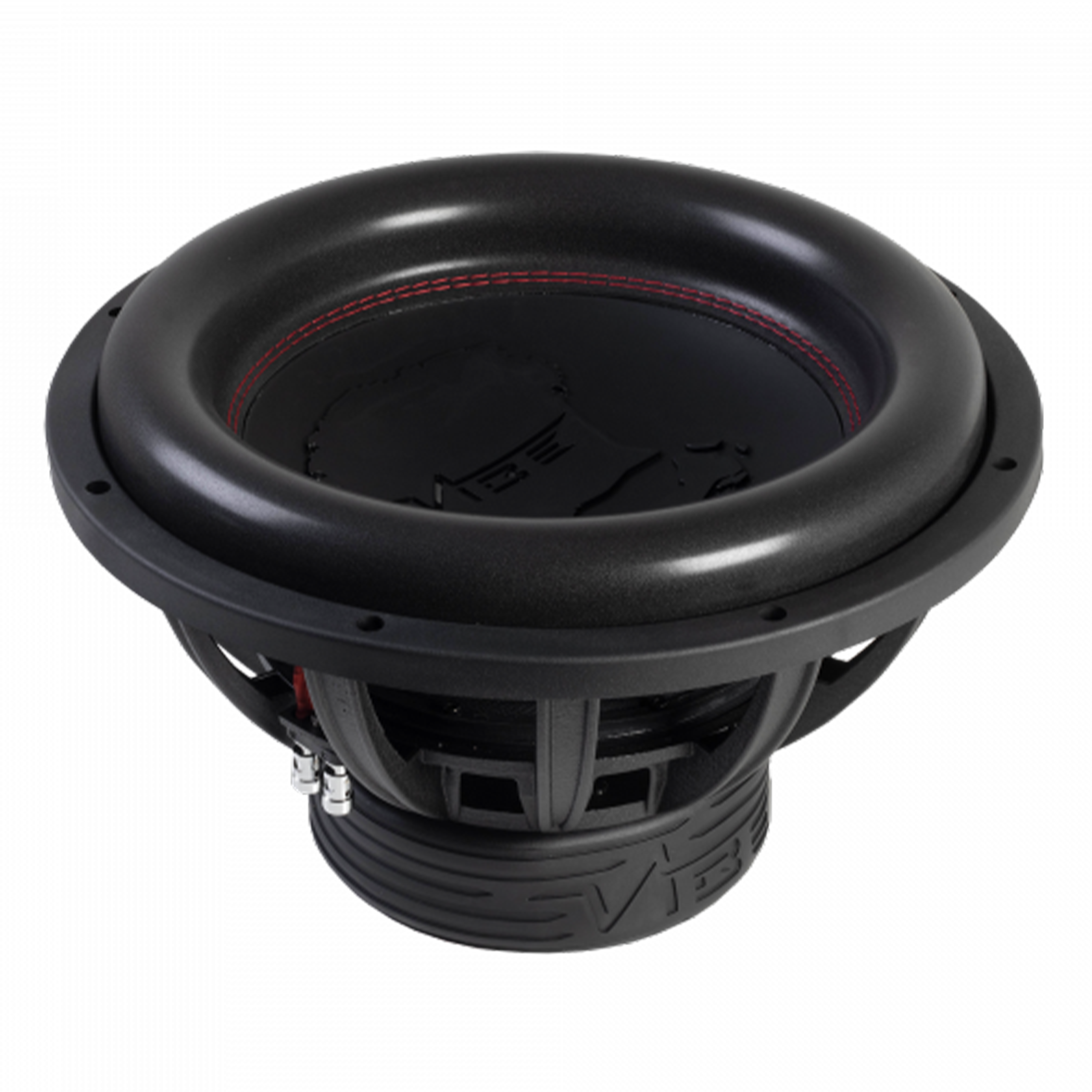

VIBE Audio BlackDeath BD15D4-V4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 392 mm |
| Resonance | 30.1 Hz |
| Q factor | 0.79 |
| Sensitivity | 83.8 dB |
| Linear excursion | ± 16 mm |
| Program Power | 3200 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.8dB
- Frequency response 20 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30.1Hz
- Mechanical quality factor QMS 4.61
- Electrical quality factor QES 0.95
- Total quality factor QTS 0.79
Large signal parameters
- Maximum linear excursion (one way) xmax 16mm
- Maximum excursion before damage xlim 24mm
- Air volume displaced at xmax VD 1208cm³
- Power handling P 1600W
- Program power Pmax 3200W
- Peak power Ppeak 4800W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series) LE 4.6mH
- VC Diameter 76.2mm
- Winding height HVC 45mm
Magnet
- Force factor (in series) Bl 25.4N/A
- Motor constant Bl/√RE 10.1N/√W
- Weight 3.74kg
Diaphragm
- Effective diameter 310mm
- Effective area SD 755cm²
- Moving mass MMS 509g
- Moving mass (without air load) MMD 494g
Suspensions
- Stiffness KMS 18.3N/mm
- Compliance CMS 54.7µm/N
- Equivalent volume to the compliance VAS 44.3L
- Mechanical resistance RMS 20.9N·s/m
Dimensions
- Nominal diameter 15″
- 392mm
- Overall diameter 392mm
- Baffle cutout diameter 352mm
- Mounting depth 209mm
- Volume occupied by the driver (estimated) 4.6L
