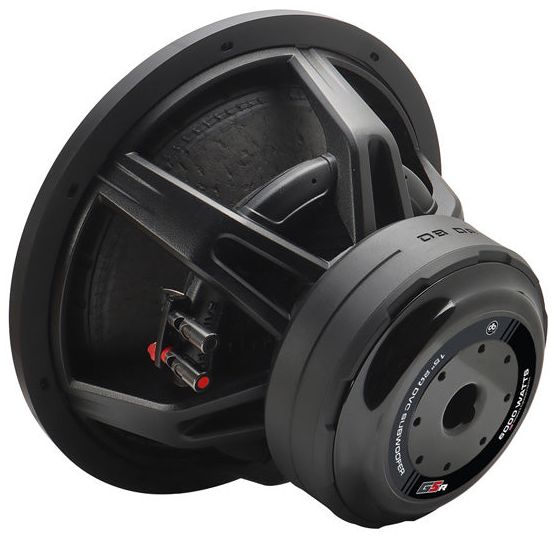

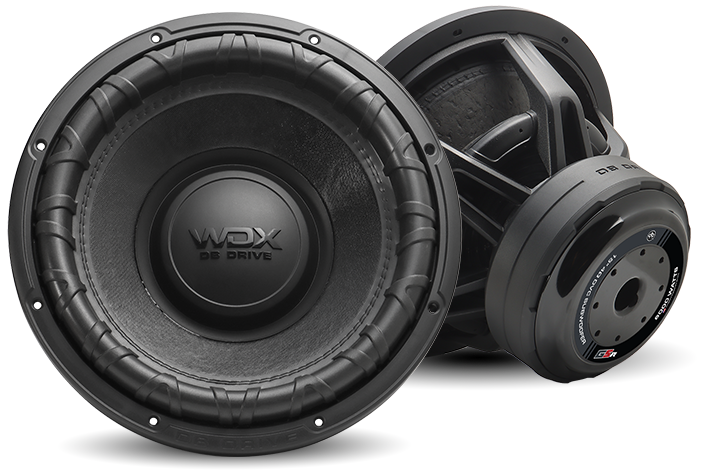

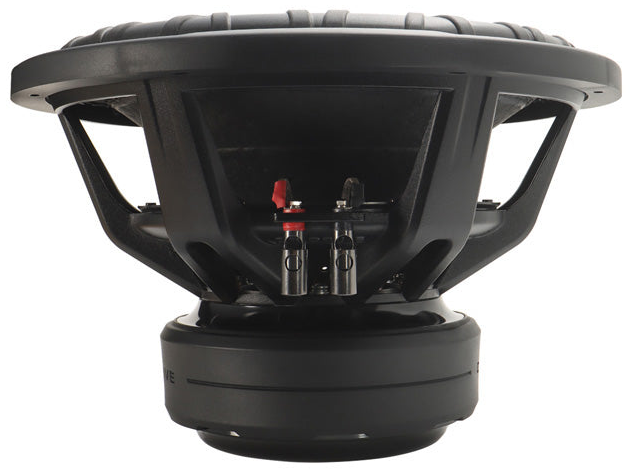

DB Drive WDX15G5R.2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 397 mm |
| Resonance | 28.9 Hz |
| Q factor | 0.54 |
| Sensitivity | 85.3 dB |
| Program Power | 6000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 28.9Hz
- Mechanical quality factor QMS 3.84
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.54
Large signal parameters
- Power handling P 3000W
- Program power Pmax 6000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series, estimated) LE 5.93mH
- VC Diameter 76.2mm
- Winding material Anodized aluminum
Magnet
- Force factor (in series) Bl 25.4N/A
- Motor constant Bl/√RE 12.7N/√W
Diaphragm
- Effective diameter 320mm
- Effective area SD 805cm²
- Moving mass MMS 552g
- Moving mass (without air load) MMD 535g
- Material Non-Pressed paper
Suspensions
- Stiffness KMS 18.2N/mm
- Compliance CMS 55µm/N
- Equivalent volume to the compliance VAS 50.5L
- Mechanical resistance RMS 26.1N·s/m
- Surround material Reinforced foam
- Spider material Poly-cotton
Dimensions
- Nominal diameter 15″
- 397mm
- Overall diameter 397mm
- Baffle cutout diameter 249mm
- Mounting depth 221mm
- Volume occupied by the driver (estimated) 4.8L
- Frame material Die-cast Aluminium
