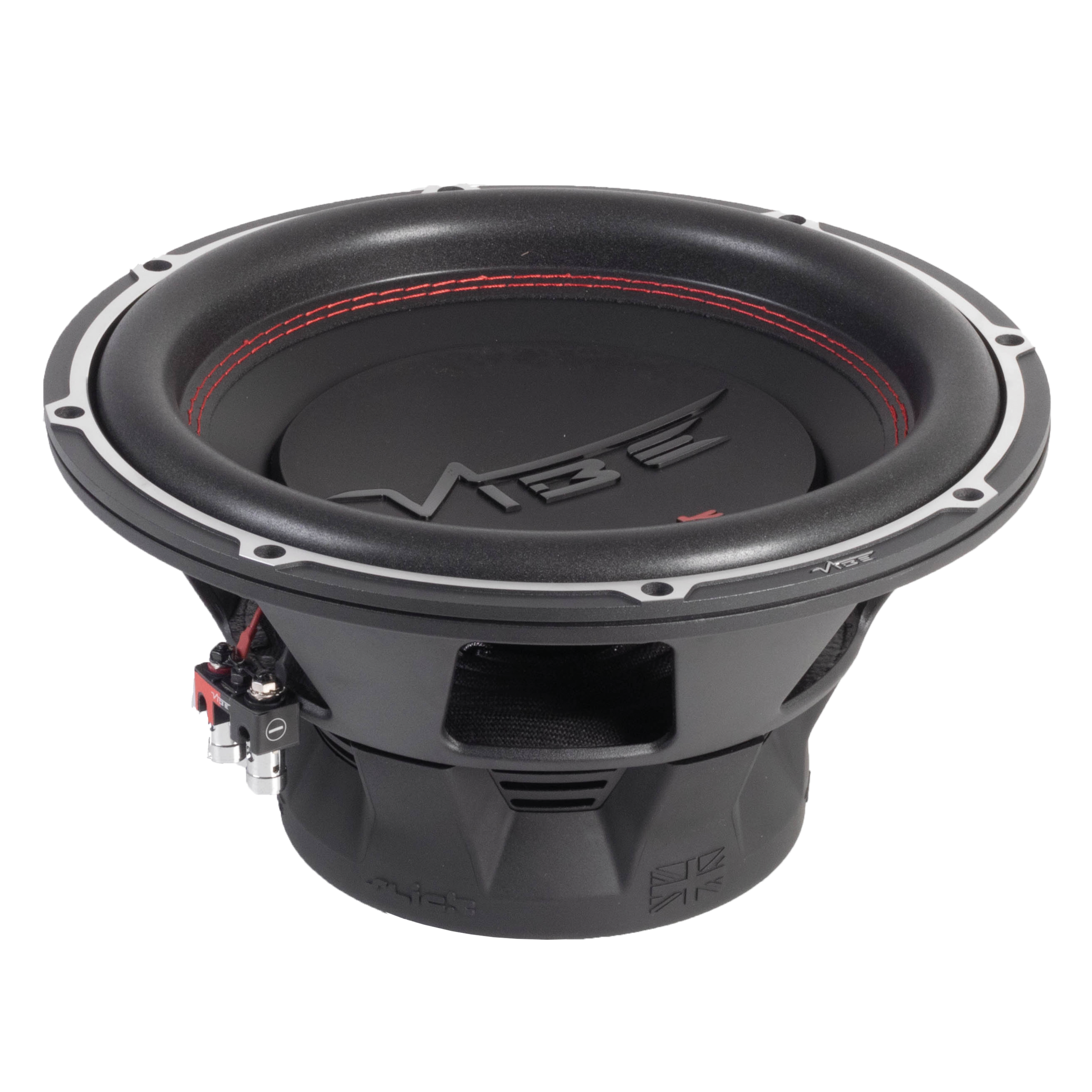

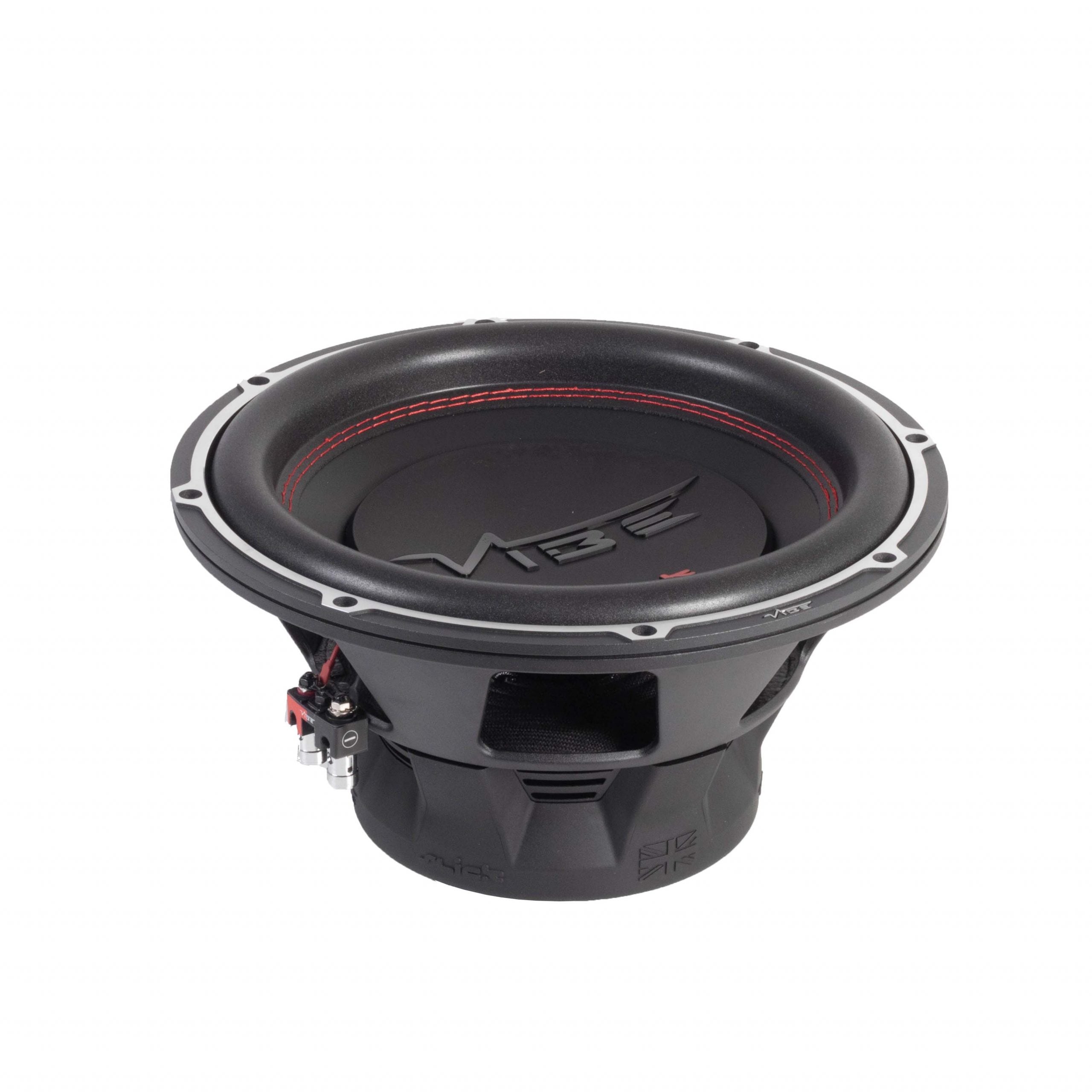

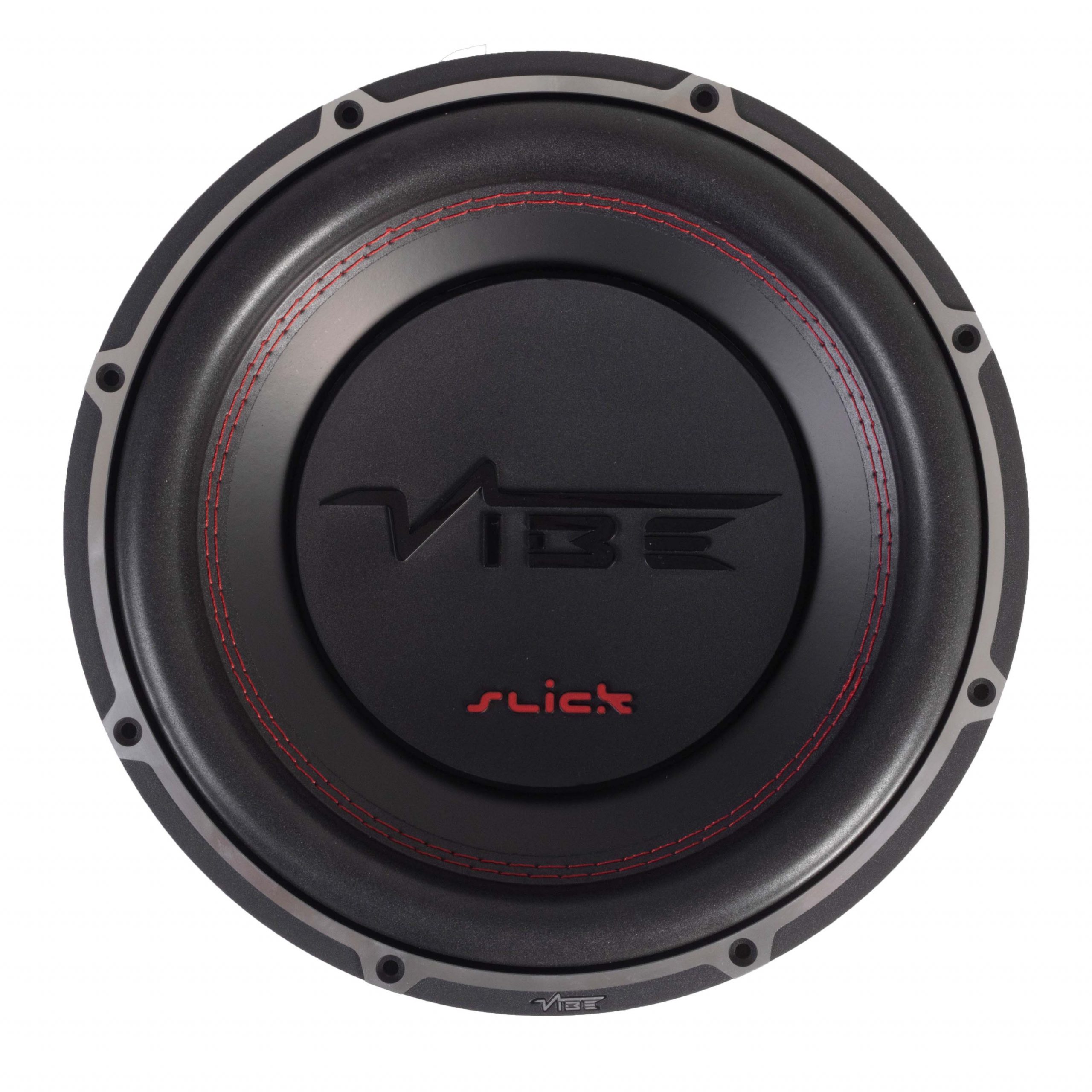

VIBE Audio Slick SLICK12D2-V3
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 323 mm |
| Resonance | 29.1 Hz |
| Q factor | 0.57 |
| Sensitivity | 85.6 dB |
| Linear excursion | ± 11 mm |
| Program Power | 1000 W |
.png)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.6dB
- Frequency response 25 - 850Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 29.1Hz
- Mechanical quality factor QMS 5.25
- Electrical quality factor QES 0.64
- Total quality factor QTS 0.57
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Maximum excursion before damage xlim 13mm
- Air volume displaced at xmax VD 550cm³
- Power handling P 500W
- Program power Pmax 1000W
- Peak power Ppeak 1500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 2.74mH
- VC Diameter 50.8mm
Magnet
- Force factor (in series) Bl 14.3N/A
- Motor constant Bl/√RE 7.34N/√W
Diaphragm
- Effective diameter 252mm
- Effective area SD 500cm²
- Moving mass MMS 187g
- Moving mass (without air load) MMD 179g
Suspensions
- Stiffness KMS 6.27N/mm
- Compliance CMS 160µm/N
- Equivalent volume to the compliance VAS 59.1L
- Mechanical resistance RMS 6.52N·s/m
Dimensions
- Nominal diameter 12″
- 323mm
- Overall diameter 323mm
- Baffle cutout diameter 277mm
- Mounting depth 147mm
- Volume occupied by the driver (estimated) 2.8L
