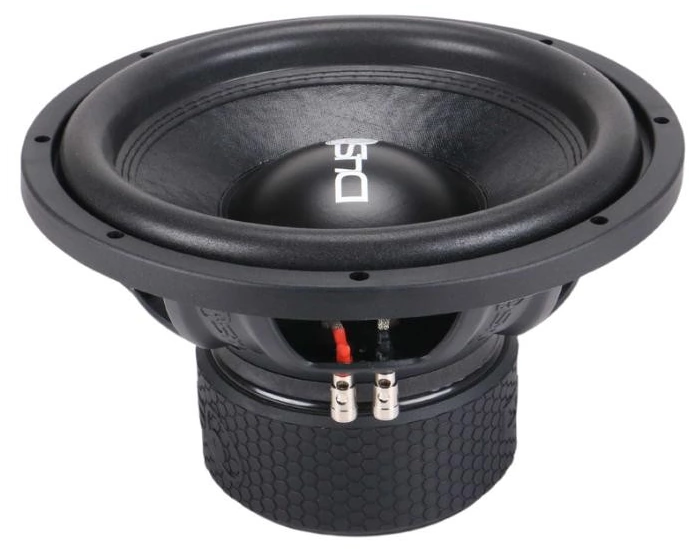

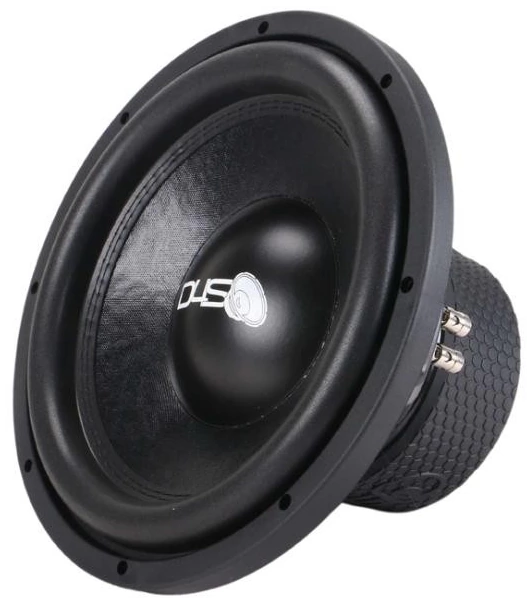

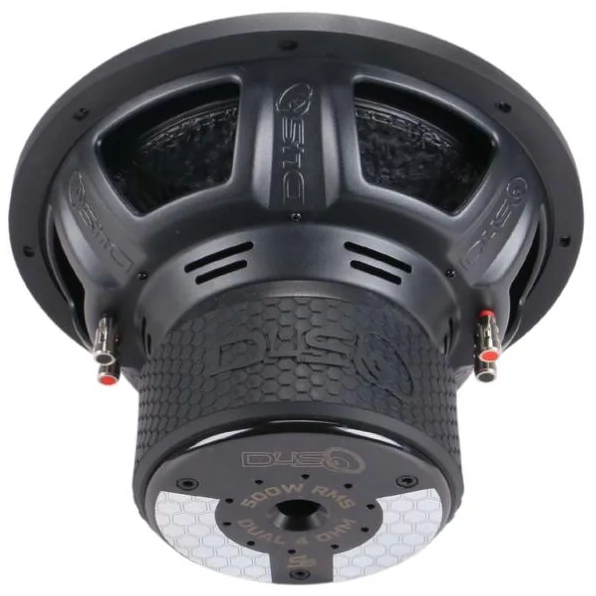

Down4Sound SB12D2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 12″ / 316 mm |
| Resonance | 29.3 Hz |
| Q factor | 0.48 |
| Sensitivity | 85.7 dB |
| Linear excursion | ± 21 mm |
| Program Power | 1000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 29.3Hz
- Mechanical quality factor QMS 3.62
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion (one way) xmax 21mm
- Air volume displaced at xmax VD 1071cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series, estimated) LE 3.39mH
- VC Diameter 63.5mm
Magnet
- Force factor (in series) Bl 17.8N/A
- Motor constant Bl/√RE 8.88N/√W
Diaphragm
- Effective diameter 255mm
- Effective area SD 510cm²
- Moving mass MMS 236g
- Moving mass (without air load) MMD 227g
Suspensions
- Stiffness KMS 7.94N/mm
- Compliance CMS 126µm/N
- Equivalent volume to the compliance VAS 46.4L
- Mechanical resistance RMS 0.768N·s/m
Dimensions
- Nominal diameter 12″
- 316mm
- Overall diameter 316mm
- Baffle cutout diameter 276mm
- Mounting depth 173mm
- Volume occupied by the driver 4.25L
- Net weight 10.0kg
